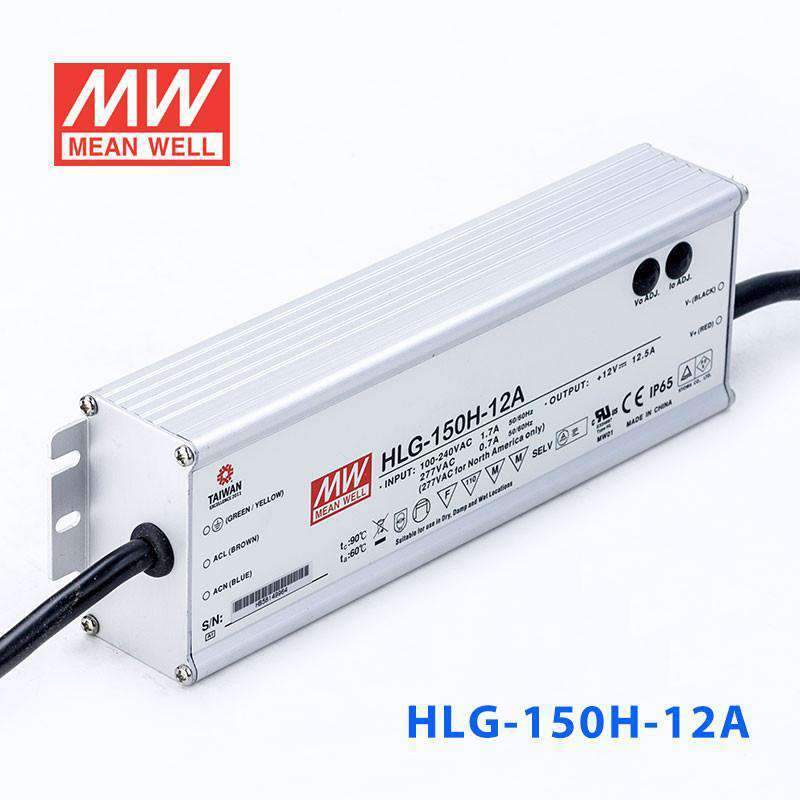

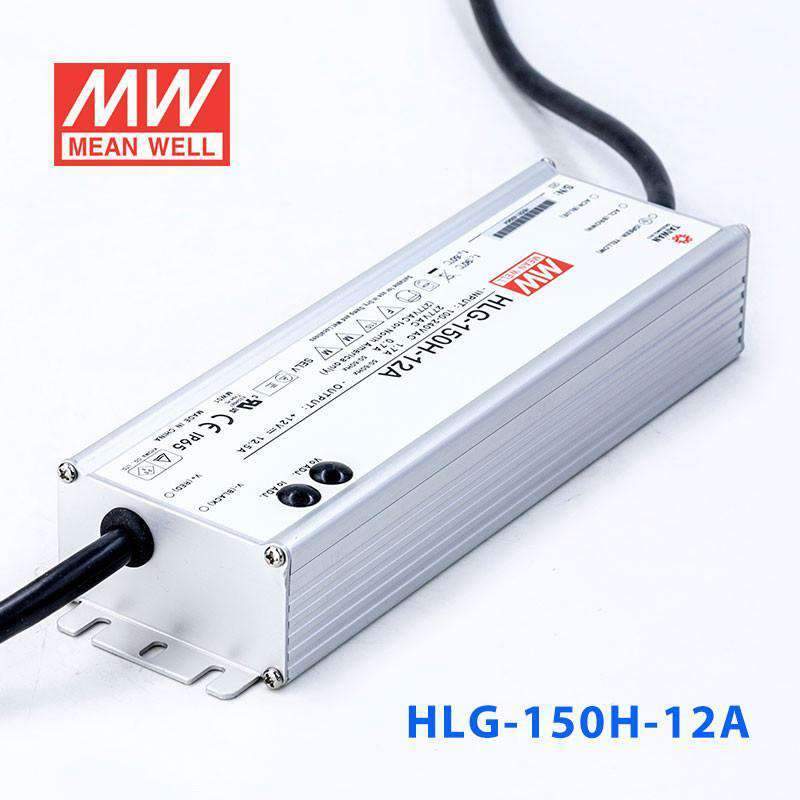

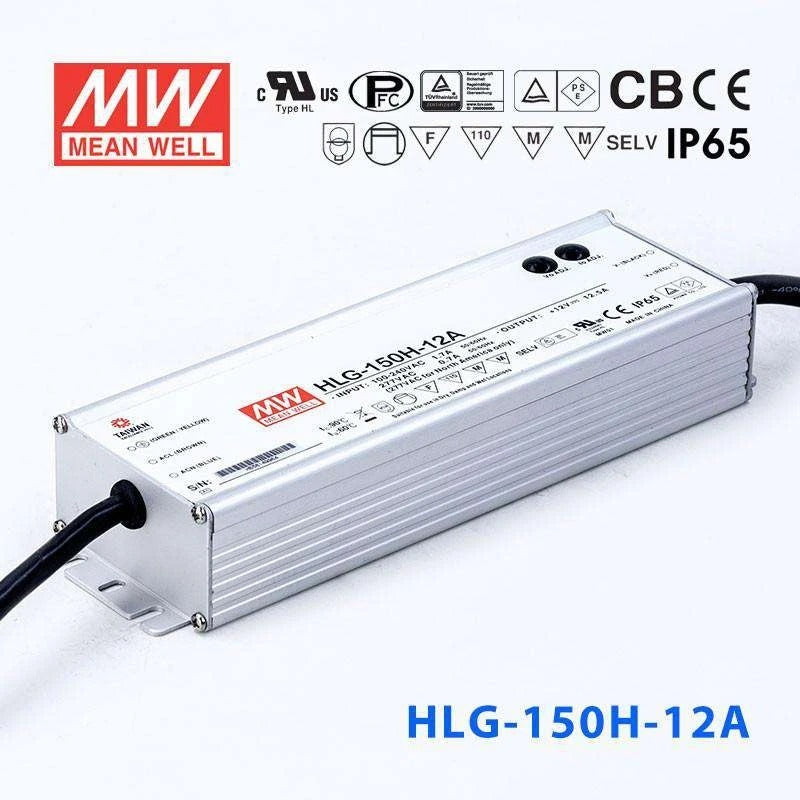

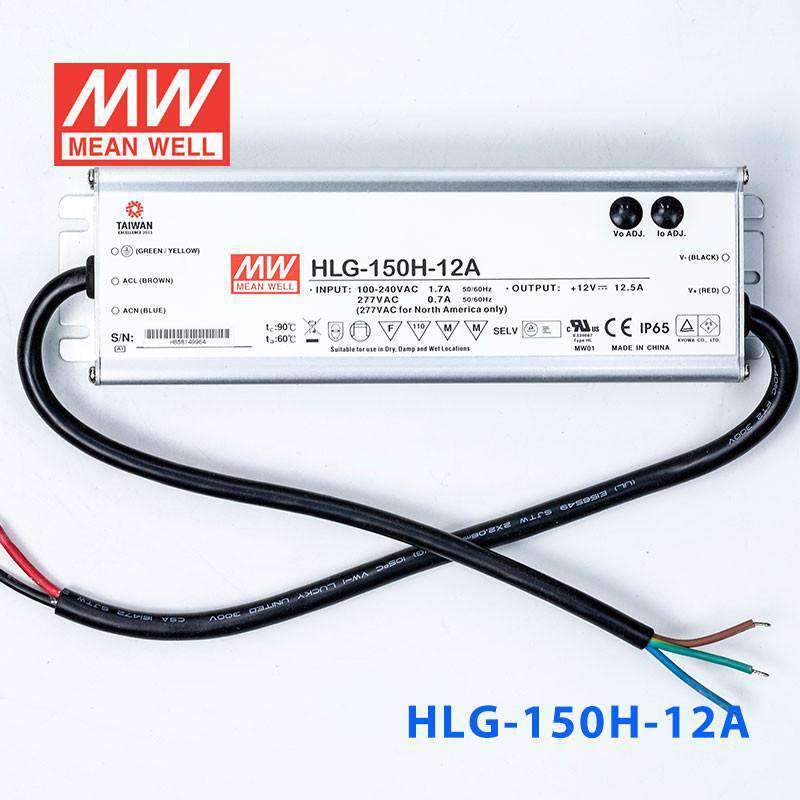

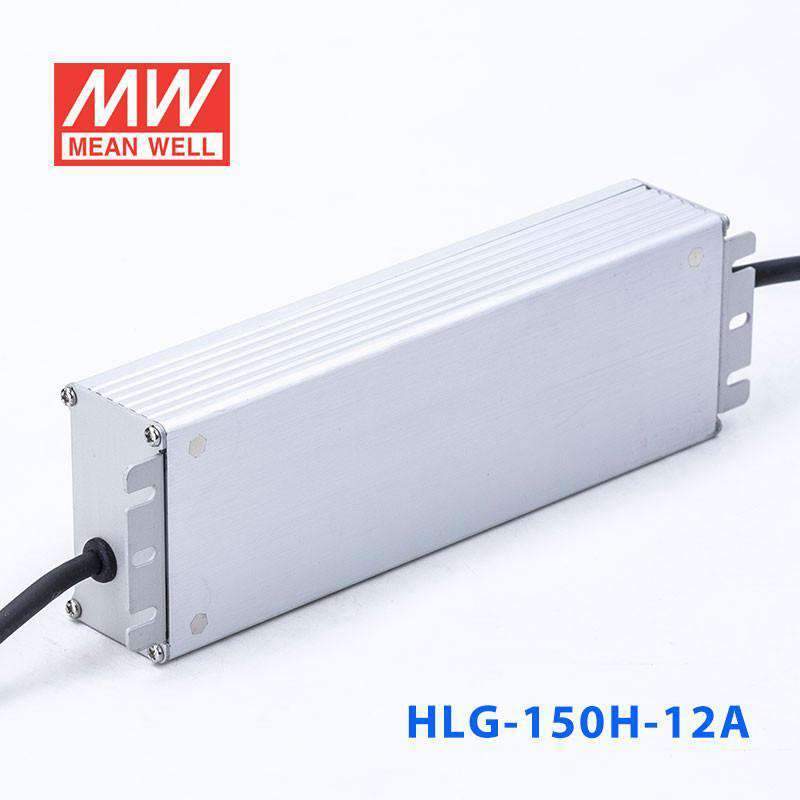

Mean Well HLG-150H-12A Power Supply 150W 12V - Adjustable | Auckland, New Zealand

Overview

HLG-150H-12A is the 12V output model of this series: rated current 12.5A, rated power 150W, typical efficiency 91.5%.

HLG-150H series is a 150W AC/DC LED driver featuring the dual mode constant voltage and constant current output. HLG-150H operates from 90～305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 94%, with the fanless design, the entire series is able to operate for -40℃ ~ +90℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-150H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Metal housing with class I design
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime > 62000 hours
7 years warranty

Specifications

HLG-150H-12ASpecifications from the official datasheet (2019-12-10 edition)Download datasheet PDF

OUTPUT

DC VOLTAGE: 12V
CONSTANT CURRENT REGION^Note.4: 6 ~12V
RATED CURRENT: 12.5A
RATED POWER: 150W
RIPPLE & NOISE (max.)^Note.2: 150mVp-p
VOLTAGE ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 10.8 ~ 13.5V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer) 7.5 ~ 12.5A
VOLTAGE TOLERANCE^Note.3: ±2.5%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 1000ms,200ms/115VAC 500ms,200ms/230VAC
HOLD UP TIME (Typ.): 16ms / 115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.98/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC @ full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20% (@ load≧60% / 115VAC,230VAC; @ load≧75% / 277VAC) (Please refer to " TOTAL HARMONIC DISTORTION (THD) " section)
EFFICIENCY (Typ.): 91.5%
AC CURRENT (Typ.): 1.7A / 115VAC 0.75A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=425μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 14 ~ 17V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase= -40 ~ +90℃ (Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase= +90℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.0-08; EN/AS/NZS 61347-1, EN/AS/NZS 61347-2-13 independent;GB19510.1, GB19510.14; IP65 or IP67; J61347-1, J61347-2-13 (except for B,AB and D-type) ,BIS IS15885( for 12B,24B,36A,54A only), EAC TP TC 004; KC61347-1,KC61347-2-13 (except for AB,D-type) approved ; Design refer to UL60950-1, TUV EN60950-1
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to EN55015, EN55032 (CISPR32) Class B, EN61000-3-2 Class C (@ load≧60%) ; EN61000-3-3, GB17743 and GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11, EN61547, EN55024, light industry level (surge immunity Line-Earth 4KV, Line-Line 2KV), EAC TP TC 020

OTHERS

MTBF: 192.2K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 228*68*38.8mm
PACKING: 1.15Kg; 12pcs/14.8Kg/0.8CUFT

Certifications & ratings

Type: HL

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uF & 47uF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Please refer to "DRIVING METHODS OF LED MODULE".
5. De-rating may be needed under low input voltages. Please refer to "STATIC CHARACTERISTIC" sections for details.
6. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
8. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
9. This series meets the typical life expectancy of >62,000 hours of operation when Tcase, particularly point (or TMP, per DLC), is about 80℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com.
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HLG-150H-12A BLOCK DIAGRAM — BLOCK DIAGRAM

HLG-150H-12A DIMMING OPERATION — DIMMING OPERATION

HLG-150H-12A Illustration (page 5) — Illustration (page 5)

HLG-150H-12A STATIC CHARACTERISTICS — STATIC CHARACTERISTICS

HLG-150H-12A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HLG-150H-12A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

HLG-150H-12A Dimensions (mm) — Dimensions (mm)

HLG-150H-12A WATERPROOF CONNECTION — WATERPROOF CONNECTION

Typical applications

LED street lighting
LED high-bay lighting
Parking space lighting
LED fishing lamp
LED greenhouse lighting
Type “HL” for use in ClassⅠ, Division 2 Hazardous (Classified) Location.

Downloads

Certificates5

UL Certificate (HLG-150H)(EN) PDF Download

TUV Certificate (HLG-150H)(EN) PDF Download

EMC Certificate (HLG-150H)(EN) PDF Download

PSE Certificate (HLG-150H)(EN) PDF Download

CCC Certificate(HLG-150H)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HLG-150H-12A for 12V LED strip lighting where I need to fine-tune brightness?

Yes. The HLG-150H-12A delivers 12V at up to 12.5A (150W) and includes a built-in potentiometer for adjusting output voltage and current. This lets you dial in the ideal operating point for your 12V LED strips. Note that it carries an IP65 water-resistant rating, so it should be sheltered from direct submersion.

Is the HLG-150H-12A a good choice for 12V LED channel letter signage?

It works well for channel letter signs that use 12V LED modules. The adjustable output lets you match voltage and current precisely to the modules, and 150W is sufficient for small to medium sign installations. IP65 protection is adequate when the driver is housed inside a weatherproof sign cabinet.

Can I power 12V LED landscape path lights with the HLG-150H-12A?

Yes, provided the total load stays within 150W. The adjustable output is useful for landscape lighting because you can optimize current delivery to your specific fixtures. However, since the HLG-150H-12A is rated IP65 rather than IP67, mount it in a sheltered junction box rather than directly in the ground.

How many meters of 12V LED strip can the HLG-150H-12A support?

The HLG-150H-12A provides up to 150W at 12V. Divide 150W by your strip's wattage per meter to find maximum length. For example, a strip rated at 10W/m could run up to 15 meters (150W / 10W per meter = 15m). Always check your strip's rated power per meter and stay within the 150W limit.

Is the HLG-150H-12A weatherproof enough for a covered patio installation?

Yes. The IP65 rating protects against dust and low-pressure water jets, which is sufficient for sheltered outdoor locations like covered patios, carports, or awnings. For fully exposed installations where standing water or submersion is possible, consider the IP67-rated HLG-150H-12 or HLG-150H-12B instead.

What does the 'A' suffix mean on the HLG-150H-12A compared to the base model?

The 'A' suffix indicates a built-in potentiometer for adjusting output voltage and current. The base HLG-150H-12 has fixed output. The -12A variant also carries an IP65 water-resistant rating instead of the base model's IP67 waterproof rating. Both deliver the same 150W, 12V, 12.5A at their default settings.
