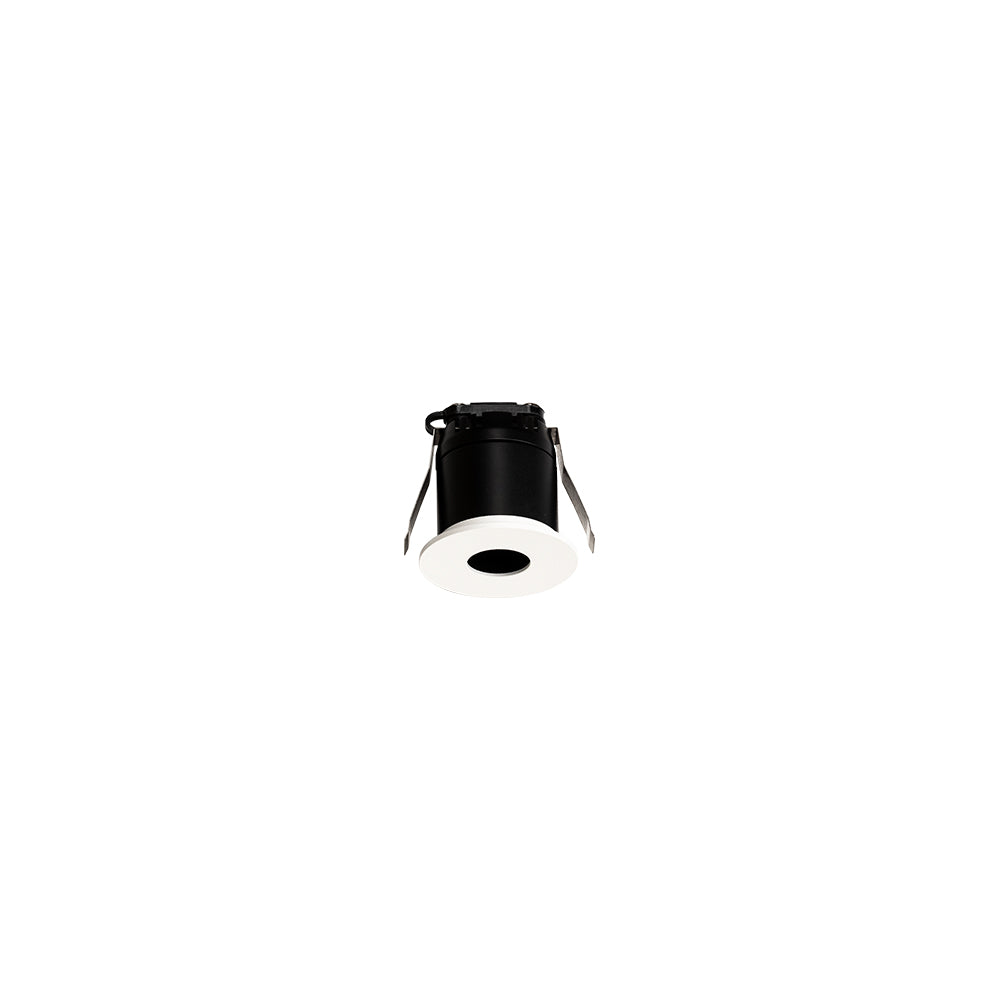

What type of downlight is the Archilight Atom 1 Round?

The Archilight Atom 1 Round is a recessed LED downlight designed for interior lighting applications. It has a compact 35 x 35 x 38 mm body, a white finish, and a 30-degree beam angle across the family.

What are the available color temperature options in this product family?

This parent model is offered in four color temperature variants: 2700K, 3000K, 4000K, and 5000K. That gives buyers the option to select a warmer or cooler light output while keeping the same form factor, beam angle, power rating, and finish.

Is the driver included with the Archilight Atom 1 Round?

No, the driver is not included with this product family. Buyers should account for a separate compatible driver when specifying the fixture.

Is this downlight dimmable?

Yes, this product family is listed as dimmable with an optional dimming control setup. Dimming capability depends on using an appropriate external driver and control combination.

What are the key light output and performance specifications?

Each variant in this family uses 2.1 W of power and delivers 185 lumens. The fixtures are rated CRI 90, which supports strong color rendering, and have a 50,000-hour lifetime with a 5-year warranty.

What cut-out does this recessed downlight require?

The child variants in this family show a 35 mm cut-out requirement. That matches the compact size of the fitting and helps keep specification consistent across all listed color temperature options.

1 2

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

Archilight Atom 1 Round Recessed Downlight

SKU:

TI-LBE-9550A-2K7-30D-W

Log in to see price Trade pricing & online ordering for account holders

LED Colour

Warm White 2700K Warm White 3000K Natural White 4000K Cool White 5000K

Beam Angle

30 Degree

Product variants

Notify me when it's back in stock

Light has always fascinated people. For us it has become inspiration and passion. Being a synonym and symbol of life Light always directs our thought. Desires and work in such a way as to be able to live, breath-exist in our luminaries, appropriate lighting illuminates shapes and colors getting them out of darkness and investing reality with new significance. The bright side of the world is, therefore, within your arm's reach.

The products of Archilight lighting are normally made with aluminum, especially in die casting and extruding, and in order to achieve optimum corrosion resistance property, the aluminum components contain very less copper and they have been chromatized before coated with UV-stablized polyester powder and baked at 210 degree, that is why our fitting can stand and last longer in the extreme environment.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	Cut-out
Archilight Atom 4 Recessed Downlight	8.4W	90	Optional	64 Millimeter	View
Archilight Atom 3 Recessed Downlight	6.3W	90	Optional	32 Millimeter	View
Archilight Atom 2 Recessed Downlight	4.2W	90	Optional	32 Millimeter	View
Archilight Atom 1 Square Recessed Downlight	2.1W	90	Optional	35 Millimeter	View
