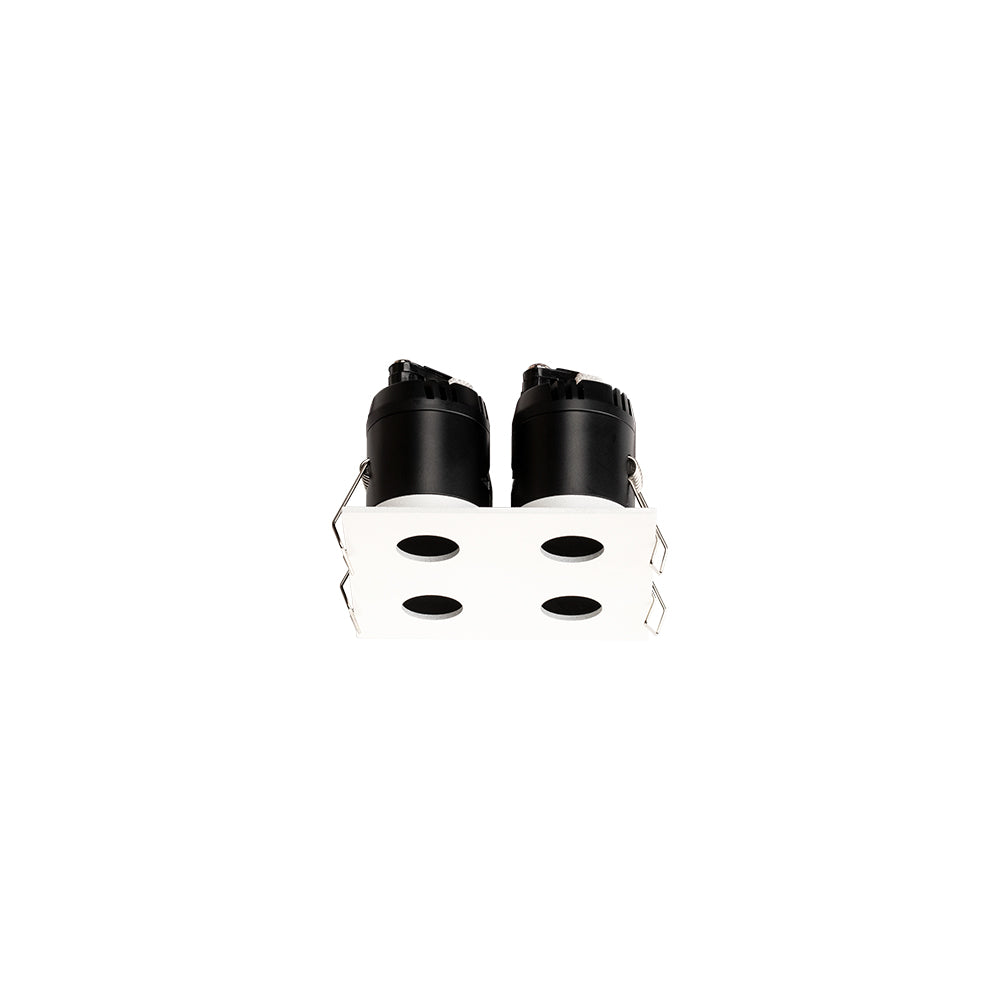

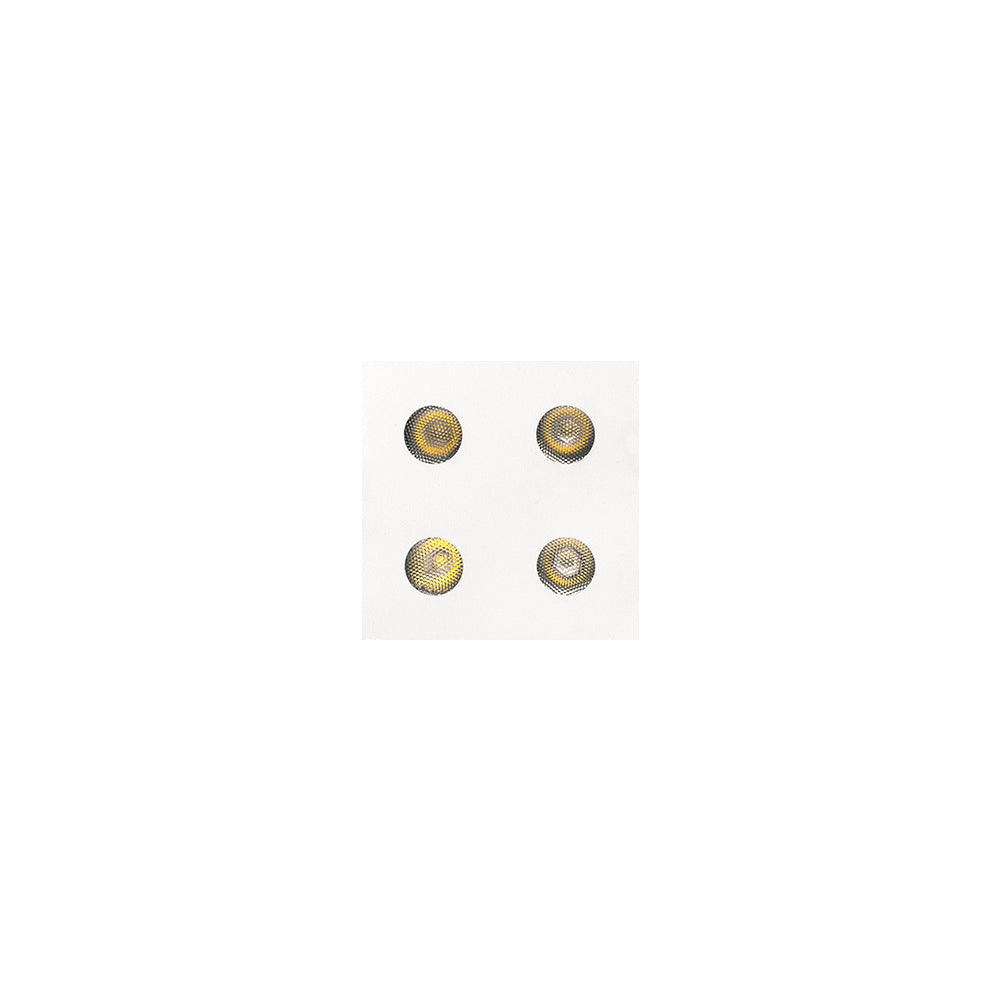

Archilight Atom 4 Recessed Downlight
Please Login for Pricing
Description
Description
Light has always fascinated people. For us it has become inspiration and passion. Being a synonym and symbol of life Light always directs our thought. Desires and work in such a way as to be able to live, breath-exist in our luminaries, appropriate lighting illuminates shapes and colors getting them out of darkness and investing reality with new significance. The bright side of the world is, therefore, within your arm's reach.
The products of Archilight lighting are normally made with aluminum, especially in die casting and extruding, and in order to achieve optimum corrosion resistance property, the aluminum components contain very less copper and they have been chromatized before coated with UV-stablized polyester powder and baked at 210 degree, that is why our fitting can stand and last longer in the extreme environment.
Specifications
Specifications
-
BrandArchilight
-
SeriesArchilight Atom Series
-
Power Rating8.4 Watt
-
Standards MetCB,CE
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length6.8 cm
-
Width6.8 cm
-
Height3.8 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main specifications of the Archilight Atom 4 Recessed Downlight family?
The Archilight Atom 4 Recessed Downlight is a recessed LED downlight family with an 8.4 W power rating, CRI 90, and a 50,000-hour rated lifetime. The fitting is finished in white and measures 68 x 68 x 38 mm with a weight of 0.5 kg. Across the listed variants, light output is 740 lm and the beam angle is 30 degrees.
What colour temperature options are available in this Atom 4 family?
This parent model is offered in four colour temperature variants: 2700K, 3000K, 4000K, and 5000K. That gives buyers a choice from warmer to cooler light while keeping the same product format, output class, beam angle, CRI, and finish. The available differences shown for this family are colour temperature only, not housing colour or wattage.
What cut-out size should this downlight family match?
The listed Atom 4 variants show a 64 mm cut-out requirement, with both minimum and maximum cut-out values given as 64 mm. That makes this family best suited to projects where the ceiling opening is already specified at 64 mm. The outer trim dimensions remain 68 x 68 mm across the parent model.
Does the Archilight Atom 4 Recessed Downlight include a driver, and is dimming supported?
The product data shows that a driver is not included with this downlight family. Dimming is listed as optional, so dimming capability depends on using a suitable compatible setup rather than being included as standard in the product itself. For buyer evaluation, this means driver selection should be considered as part of the overall fixture specification.
Where is the Archilight Atom 4 Recessed Downlight best suited for use?
Based on the product type and categories, this is an interior recessed LED downlight intended for architectural and commercial lighting applications. Its compact size, recessed format, 30-degree beam, and CRI 90 make it appropriate where controlled directional light and good colour quality are important. Typical buyer use cases would include indoor retail, hospitality, display, and general interior lighting projects.
What does the rated lifetime and warranty mean for this downlight family?
The Atom 4 family is rated for 50,000 hours of life and carries a 5-year warranty period in the provided product data. For project buyers, that supports use in long-service interior lighting applications where maintenance intervals matter. The same lifetime and warranty values are shown consistently across the listed family variants.
Other Archilight Atom Series Models
4 other models| Model | Power | CRI | Dimming | Cut-out | |
|---|---|---|---|---|---|
| Archilight Atom 3 Recessed Downlight | 6.3W | 90 | Optional | 32 Millimeter | View |
| Archilight Atom 2 Recessed Downlight | 4.2W | 90 | Optional | 32 Millimeter | View |
| Archilight Atom 1 Square Recessed Downlight | 2.1W | 90 | Optional | 35 Millimeter | View |
| Archilight Atom 1 Round Recessed Downlight | 2.1W | 90 | Optional | 35 Millimeter | View |
