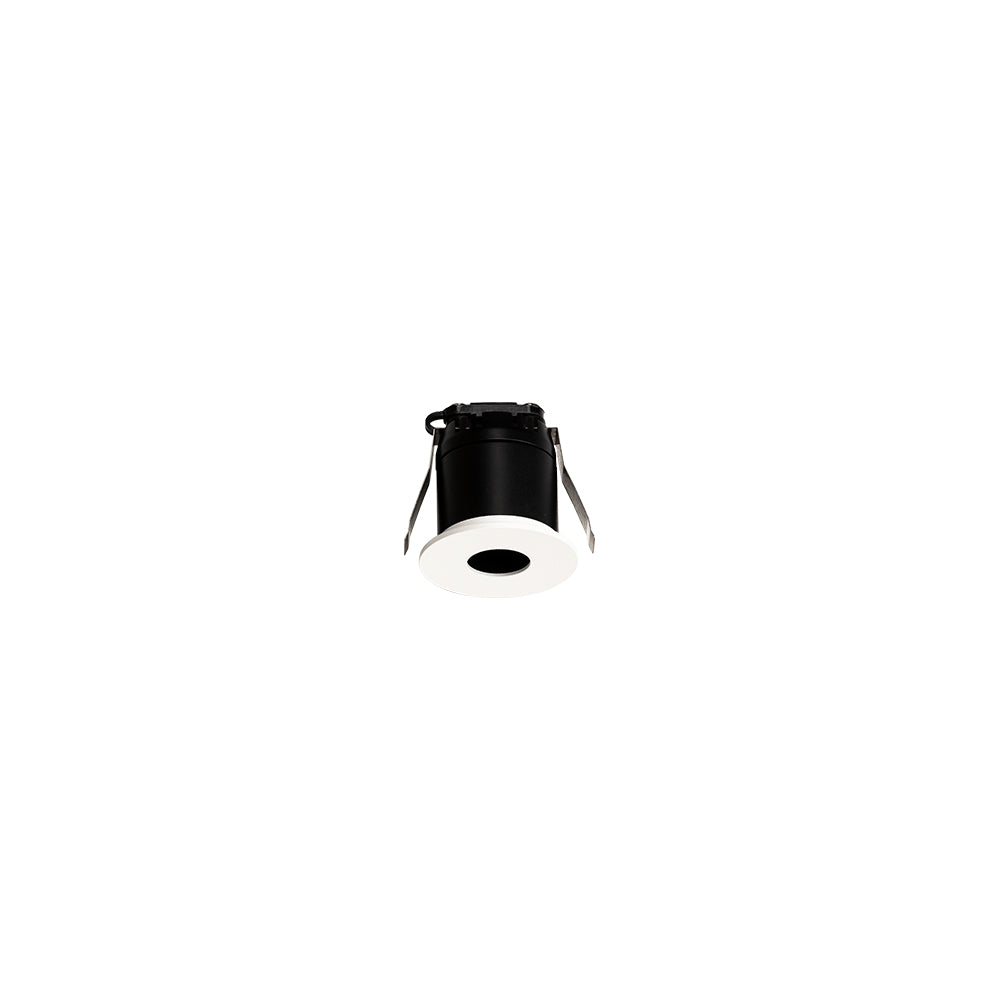

Archilight Atom 1 Round Recessed Downlight
Log in to see priceOverview
Recessed Downlight
Specifications
Specifications
- Order code
- TI-LBE-9550A
- Input
- 700mA
- Power rating
- 2.1W
- Beam angle
- 30°
- Brightness
- 221 lm
- Efficacy
- ≥105.2 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 6000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Dimmable (Dimmer Optional)
- Tiltable
- Fixed
- Mounting
- Recessed
- Driver
- Driver Not Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- White
Certifications & ratings
- Certification marks
- CE, CB, TÜV, CCC, SAA, IC-F
Technical drawings
Downloads
Datasheet1
FAQ
What type of downlight is the Archilight Atom 1 Round?
The Archilight Atom 1 Round is a recessed LED downlight designed for interior lighting applications. It has a compact Φ35 mm body, a white finish, and a 30-degree beam angle across the family.
What are the available color temperature options in this product family?
This parent model is offered in four color temperature variants: 2700K, 3000K, 4000K, and 6000K. That gives buyers the option to select a warmer or cooler light output while keeping the same form factor, beam angle, power rating, and finish.
Is the driver included with the Archilight Atom 1 Round?
No, the driver is not included with this product family. Buyers should account for a separate compatible driver when specifying the fixture.
Is this downlight dimmable?
Yes, this product family is listed as dimmable with an optional dimming control setup. Dimming capability depends on using an appropriate external driver and control combination.
What are the key light output and performance specifications?
Each variant in this family uses 2.1 W of power and delivers 221 lumens. The fixtures are rated CRI ≥90, which supports strong color rendering, and have a 50,000-hour lifetime with a 5-year warranty.
What cut-out does this recessed downlight require?
The child variants in this family show a 35 mm cut-out requirement. That matches the compact size of the fitting and helps keep specification consistent across all listed color temperature options.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Atom Series Models
4 other models| Model | Power | CRI | Dimming | Cut-out | |
|---|---|---|---|---|---|
| Archilight Atom 4 Recessed Downlight | 8.4W | 90 | Optional | 64 Millimeter | View |
| Archilight Atom 3 Recessed Downlight | 6.3W | 90 | Optional | 32 Millimeter | View |
| Archilight Atom 2 Recessed Downlight | 4.2W | 90 | Optional | 32 Millimeter | View |
| Archilight Atom 1 Square Recessed Downlight | 2.1W | 90 | Optional | 35 Millimeter | View |
