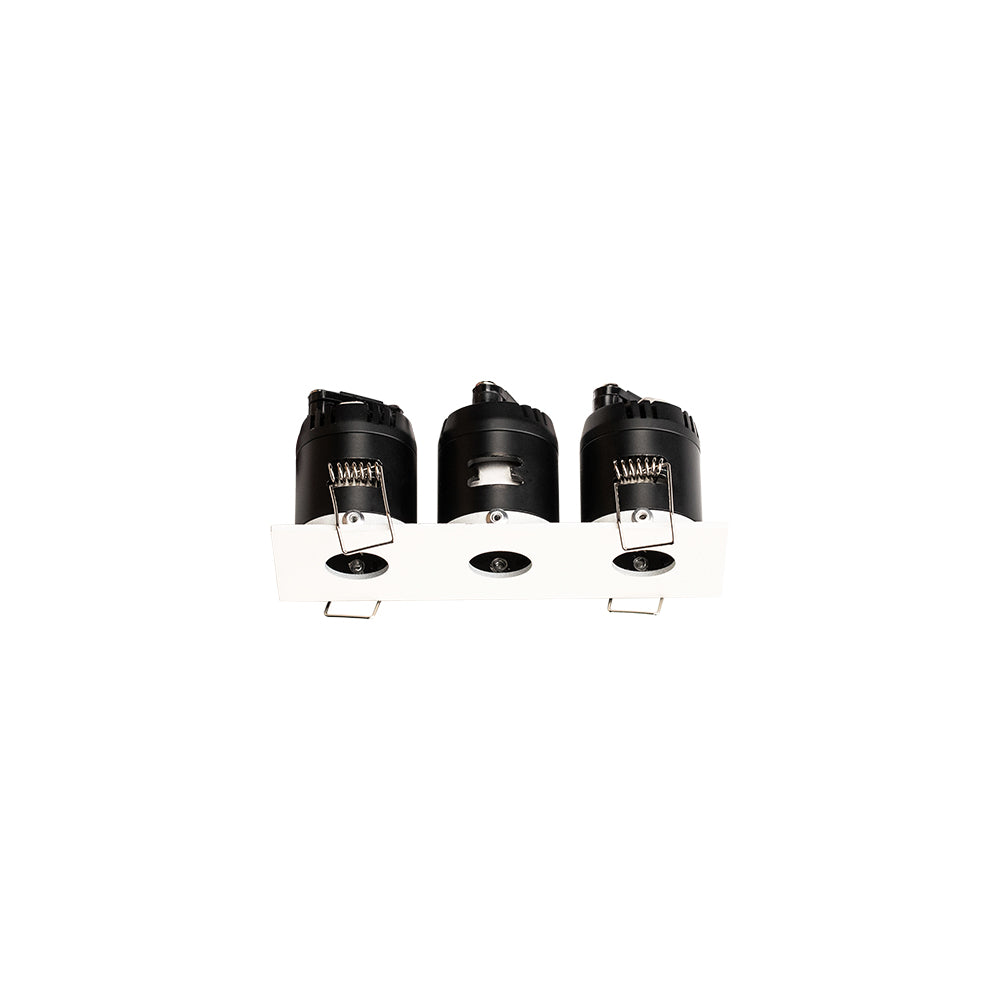

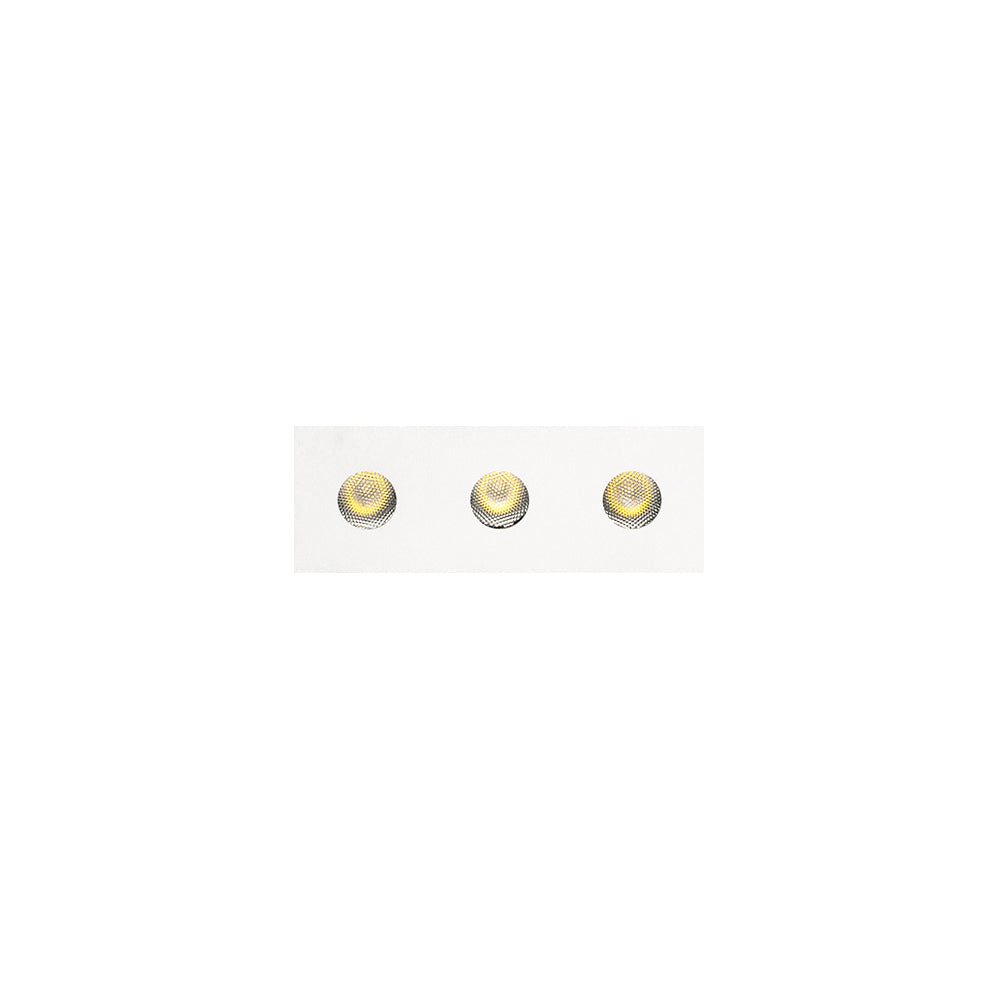

Archilight Atom 3 Recessed Downlight
Please Login for Pricing
Description
Description
Light has always fascinated people. For us it has become inspiration and passion. Being a synonym and symbol of life Light always directs our thought. Desires and work in such a way as to be able to live, breath-exist in our luminaries, appropriate lighting illuminates shapes and colors getting them out of darkness and investing reality with new significance. The bright side of the world is, therefore, within your arm's reach.
The products of Archilight lighting are normally made with aluminum, especially in die casting and extruding, and in order to achieve optimum corrosion resistance property, the aluminum components contain very less copper and they have been chromatized before coated with UV-stablized polyester powder and baked at 210 degree, that is why our fitting can stand and last longer in the extreme environment.
Specifications
Specifications
-
BrandArchilight
-
SeriesArchilight Atom Series
-
Power Rating6.3 Watt
-
Standards MetCB,CE
-
Operating Temperature-25°C~50°C
-
Warranty5 Year
-
Length9.9 cm
-
Width3.5 cm
-
Height3.8 cm
-
Weight0.5 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the main differences between Archilight Atom 3 variants?
The family differences shown here are the color temperature options: 2700K, 3000K, 4000K, and 5000K. Across those variants, the listed core specs stay consistent at 6.3W power, 555 lm output, 90 CRI, a 30 degree beam angle, white finish, optional dimming, and no included driver.
Is a driver included with the Archilight Atom 3 Recessed Downlight?
No, the driver is not included with this product family. The parent data shows a 700 mA power input requirement, so it is intended to be paired with a separate compatible constant-current LED driver, and dimming is optional when matched with suitable control gear.
What kind of light output does the Archilight Atom 3 provide?
Each listed variant delivers 555 lumens with a 30 degree beam angle. That combination is typically suited to more focused recessed lighting where beam control matters, while the 90 CRI rating supports better color rendering in interior spaces.
Which color temperature should I choose for this downlight family?
This family is available in four CCT options, from warmer 2700K and 3000K through more neutral or cooler 4000K and 5000K. That gives buyers flexibility to match the same fixture platform to different interior lighting schemes without changing the overall product format or output class.
What are the physical size and service-life specs for the Archilight Atom 3?
The parent model is listed at 99 mm length, 35 mm width, and 38 mm height, with a weight of 0.5 kg. The family also carries a rated lifetime of 50,000 hours and a 5-year warranty.
Is the Archilight Atom 3 intended for indoor or outdoor use?
The product is categorized as an interior recessed LED downlight, so it is positioned for indoor lighting applications. No outdoor, wet-location, or ingress-protection rating is provided in the data shown here, so those conditions should not be assumed from this listing alone.
Other Archilight Atom Series Models
4 other models| Model | Power | CRI | Dimming | Cut-out | |
|---|---|---|---|---|---|
| Archilight Atom 4 Recessed Downlight | 8.4W | 90 | Optional | 64 Millimeter | View |
| Archilight Atom 2 Recessed Downlight | 4.2W | 90 | Optional | 32 Millimeter | View |
| Archilight Atom 1 Square Recessed Downlight | 2.1W | 90 | Optional | 35 Millimeter | View |
| Archilight Atom 1 Round Recessed Downlight | 2.1W | 90 | Optional | 35 Millimeter | View |
