Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

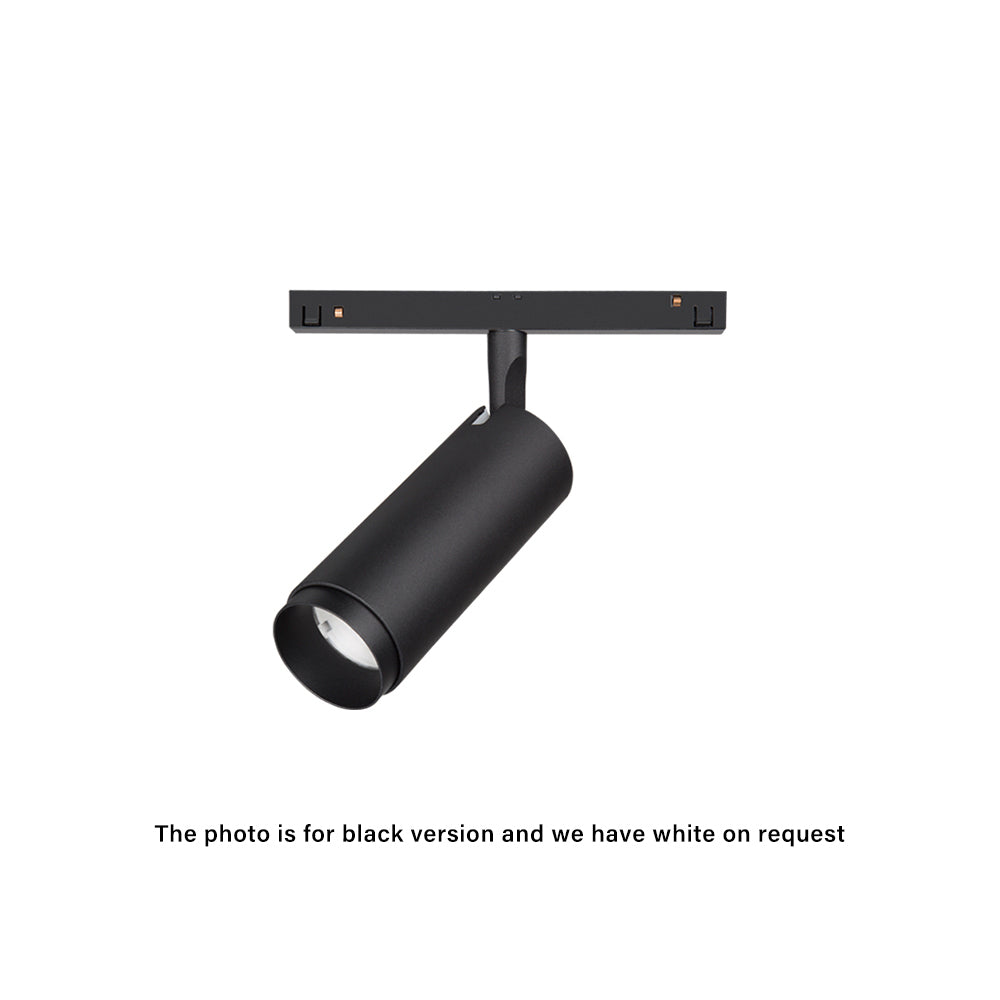

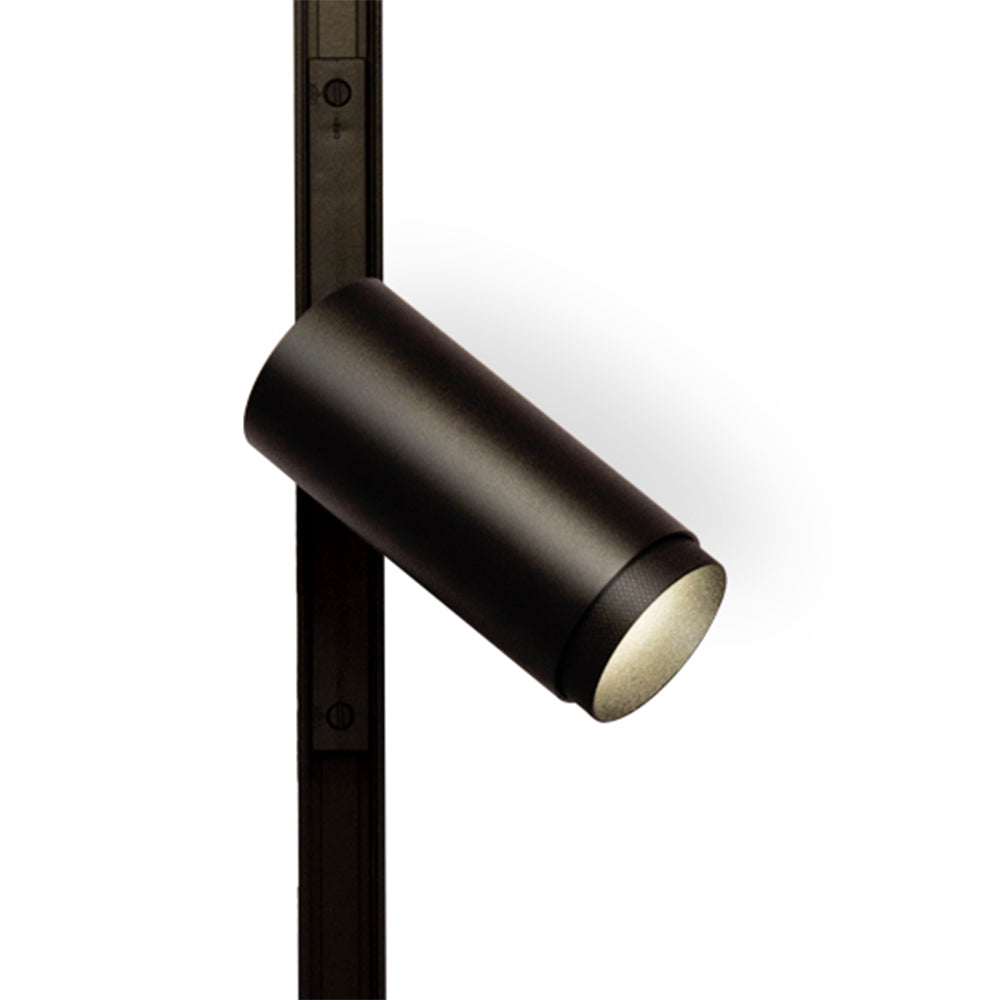

Archilight Dot 55 White and Gold Tracklight Light 15W

SKU KC-017003B01-15-36D-2700K-WG

Log in to see price Trade pricing & online ordering for account holders

Configure — 6 variants

KC-017003B01-15-36D-2700K-WG

LED Colour

Beam Angle

6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Dot 55 White and Gold Tracklight Light 15WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour
KC-017003B01-15-36D-2700K-WG	15-36°	Warm White 2700K
KC-017003B01-15-36D-3000K-WG	15-36°	Warm White 3000K
KC-017003B01-15-36D-4000K-WG	15-36°	Natural White 4000K
KC-017003B01-36-60D-2700K-WG	36-60°	Warm White 2700K
KC-017003B01-36-60D-3000K-WG	36-60°	Warm White 3000K
KC-017003B01-36-60D-4000K-WG	36-60°	Natural White 4000K

General

Input: 48 V
Power rating: 15 W
Brightness: 1155 lm
Efficacy: ≥77 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Bluetooth APP Control (Default) or DALI (Optional)
Tiltable: Adjustable
Mounting: Motion Magnetic Track Series
Driver: 48V Driver not Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, SAA, Class II, IP20

Technical drawings

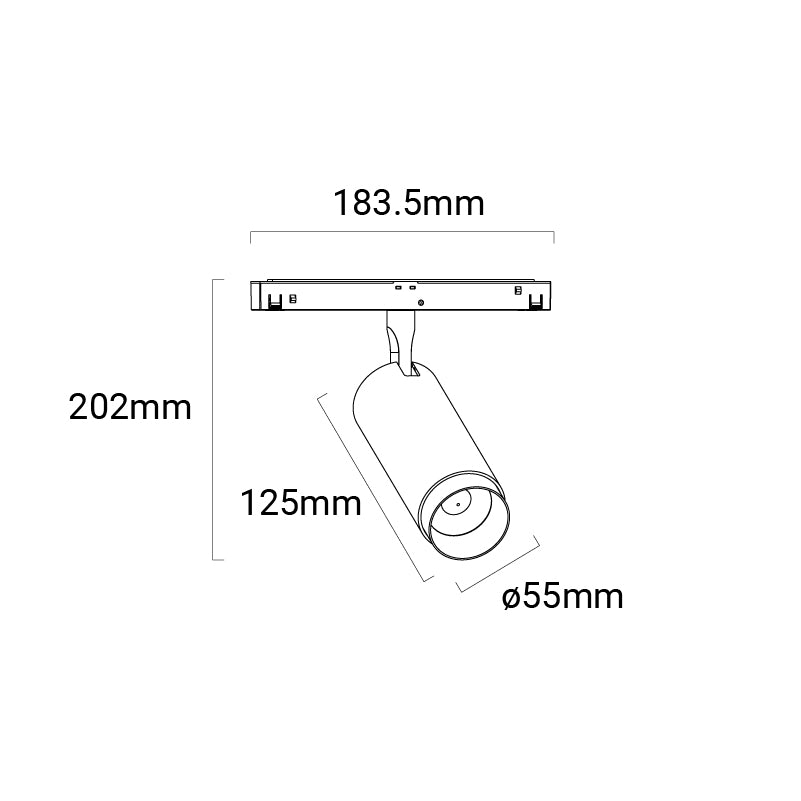

Archilight Dot 55 White and Gold Tracklight Light 15W Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Dot 55 White and Gold Tracklight Light 15W datasheetDot_55.pdf PDF Download

FAQ

What type of light is the Archilight Dot 55 White and Gold Tracklight Light 15W?

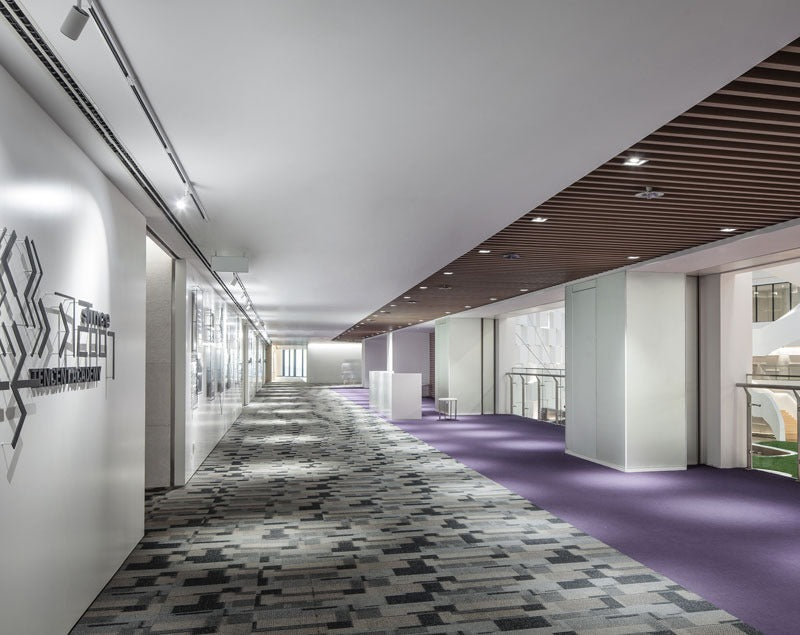

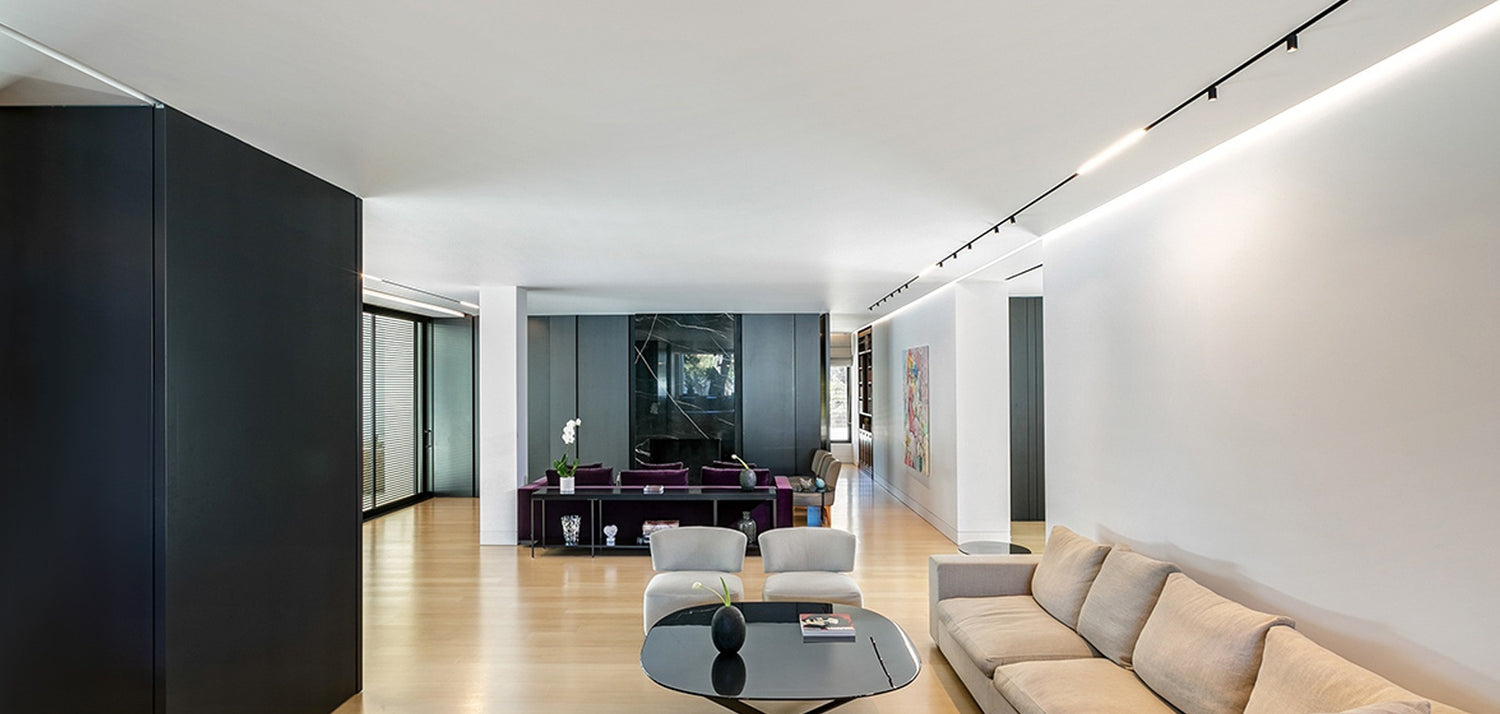

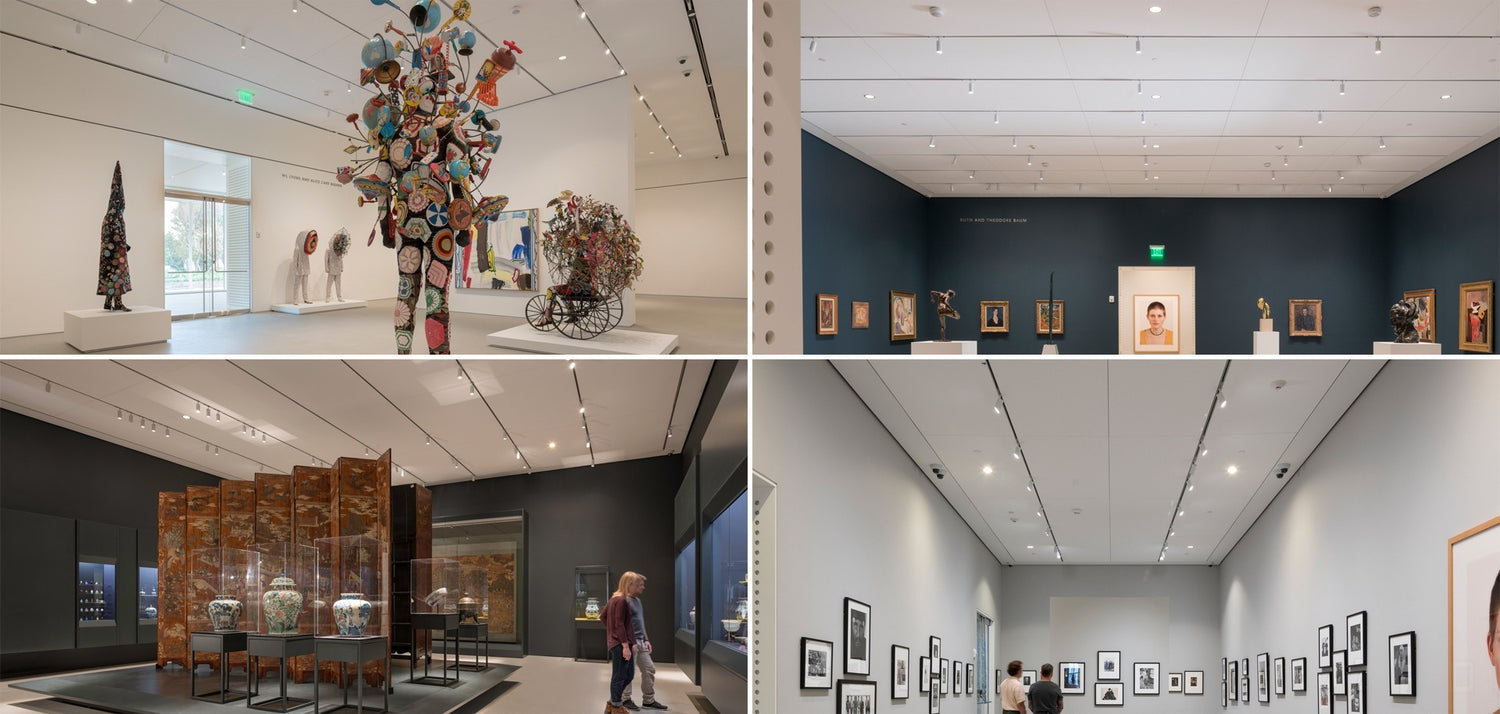

This product is a magnetic track spotlight from the Archilight Dot series. It is designed for interior applications including residential, hospitality, office, and retail spaces. The white and gold finish gives it a decorative look suited to premium track lighting layouts.

What are the main variant options available in this parent product family?

This parent family varies by colour temperature and beam angle. Available colour temperatures are 2700K, 3000K, 4000K, and 5000K, and the beam angle options are 15-36 degrees and 36-60 degrees. These options let buyers choose between warmer or cooler light and narrower or wider beam spread.

How bright is the Archilight Dot 55 15W track light?

The listed child variants in this family are rated at 1275 lumens. Power consumption is 15W across the range. This makes it suitable for accent and directional lighting where controlled output is important.

What light quality can I expect from this track light family?

This product family uses LED chips with CRI greater than 90, which supports strong colour rendering. The description also states a low glare rating of UGR less than 19. Together, these specs make it appropriate for spaces where visual comfort and accurate colour appearance matter.

Is the driver included with this product?

No, the driver is not included with this product family. The parent data and all listed child variants show the driver status as driver not included. Buyers should account for that when planning a complete magnetic track lighting system.

Is this track light dimmable?

This product family is listed with dimming control set to none. That means no dimming function is specified for the parent model or the child variants shown here. If dimming is required, that should be confirmed against a different compatible product family.

What track system is this light compatible with?

The product description states that it pairs with any Motion series track. That makes it part of the Archilight magnetic track lighting range rather than a standalone ceiling light. Compatibility should therefore be considered within the Motion series track system.

What is the expected service life and warranty for this product family?

The parent model is rated for a 50,000-hour lifetime and includes a 5-year warranty period. These values are also consistent across the listed child variants. This helps make the family suitable for long-use commercial and architectural lighting projects.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Dot 55 White Track Light BLE 15W	15W	90	Optional	19	View
Archilight Dot 55 Black Track Light DDM 15W	15W	90	Optional	19	View
Archilight Dot 55 Black Track Light BLE 15W	15W	90	Optional	19	View
Archilight Dot 55 White Tracklight Light 15W	15W	90	Non Dimmable	19	View
Archilight Dot 55 Black and Gold Tracklight Light 15W	15W	90	Non Dimmable	19	View
Archilight Dot 55 Black Tracklight Light 15W	15W	90	Non Dimmable	19	View
