Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

Archilight Dot 55 White Tracklight Light 15W

SKU KC-017003B01-15-36D-2700K-W
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 6 variants

KC-017003B01-15-36D-2700K-W
LED Colour
Beam Angle
6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Dot 55 White Tracklight Light 15WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED Colour
KC-017003B01-15-36D-2700K-W15-36°Warm White 2700K
KC-017003B01-15-36D-3000K-W15-36°Warm White 3000K
KC-017003B01-15-36D-4000K-W15-36°Natural White 4000K
KC-017003B01-36-60D-2700K-W36-60°Warm White 2700K
KC-017003B01-36-60D-3000K-W36-60°Warm White 3000K
KC-017003B01-36-60D-4000K-W36-60°Natural White 4000K

General

Input
48 V
Power rating
15 W
Brightness
1155 lm
Efficacy
≥77 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)
Tiltable
Adjustable
Mounting
Motion Magnetic Track Series
Driver
48V Driver not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, Class II, IP20

Technical drawings

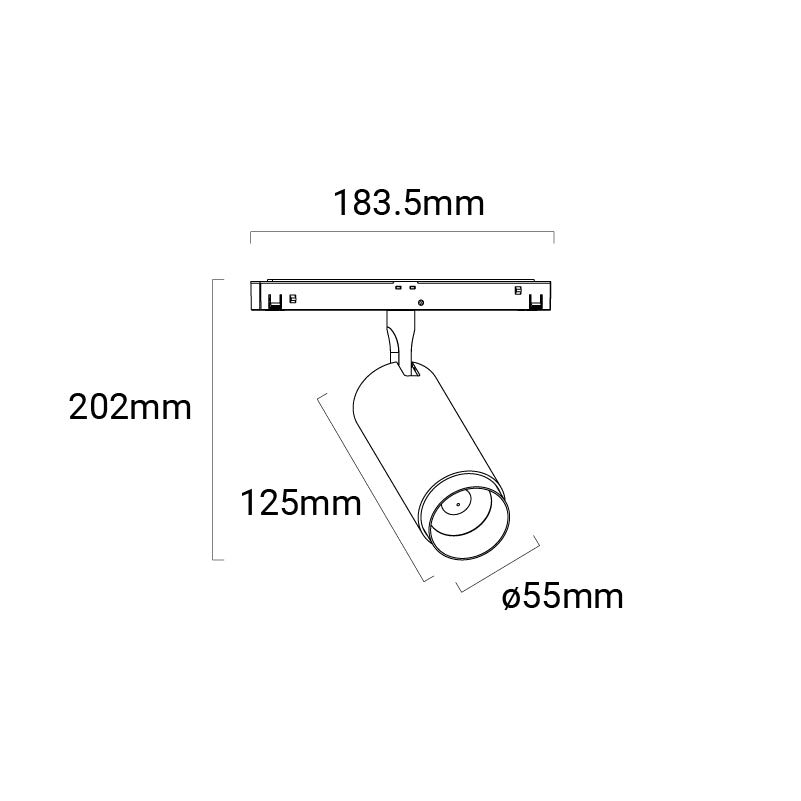

Archilight Dot 55 White Tracklight Light 15W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What is the Archilight Dot 55 White Tracklight Light 15W designed for?

This magnetic track light is designed for interior applications including residential, hospitality, office, and retail spaces. It is a flexible round spotlight intended for use on Motion series track systems where directional accent or general feature lighting is needed.

What variant options are available in this parent product family?

This parent family is offered in multiple colour temperature options: 2700K, 3000K, 4000K, and 5000K. It also comes in two beam angle ranges, 15/36 and 36/60, while keeping the same 15W power rating, white finish, and CRI 90 performance across the family.

How bright is the Archilight Dot 55 White Tracklight Light 15W?

The listed child variants in this family provide 1275 lumens output at 15W. That makes this model suitable for focused lighting applications where efficient light output and directional control are important.

What light quality can I expect from this track light family?

The Dot 55 family uses a high quality LED source with CRI greater than 90, which supports strong colour rendering in interior spaces. It also has a stated low glare rating of UGR below 19, making it appropriate for applications where visual comfort matters.

Is a driver included with this product?

No, the driver is not included with this product family. The parent data lists it as a 48V power input model, so driver requirements should be considered as part of the wider compatible track system specification.

How durable is the Archilight Dot 55 White Tracklight Light 15W?

This product family is rated for a 50,000 hour lifetime and includes a 5 year warranty period. Those figures make it a suitable option for commercial and residential projects where long service life is important.
