Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight

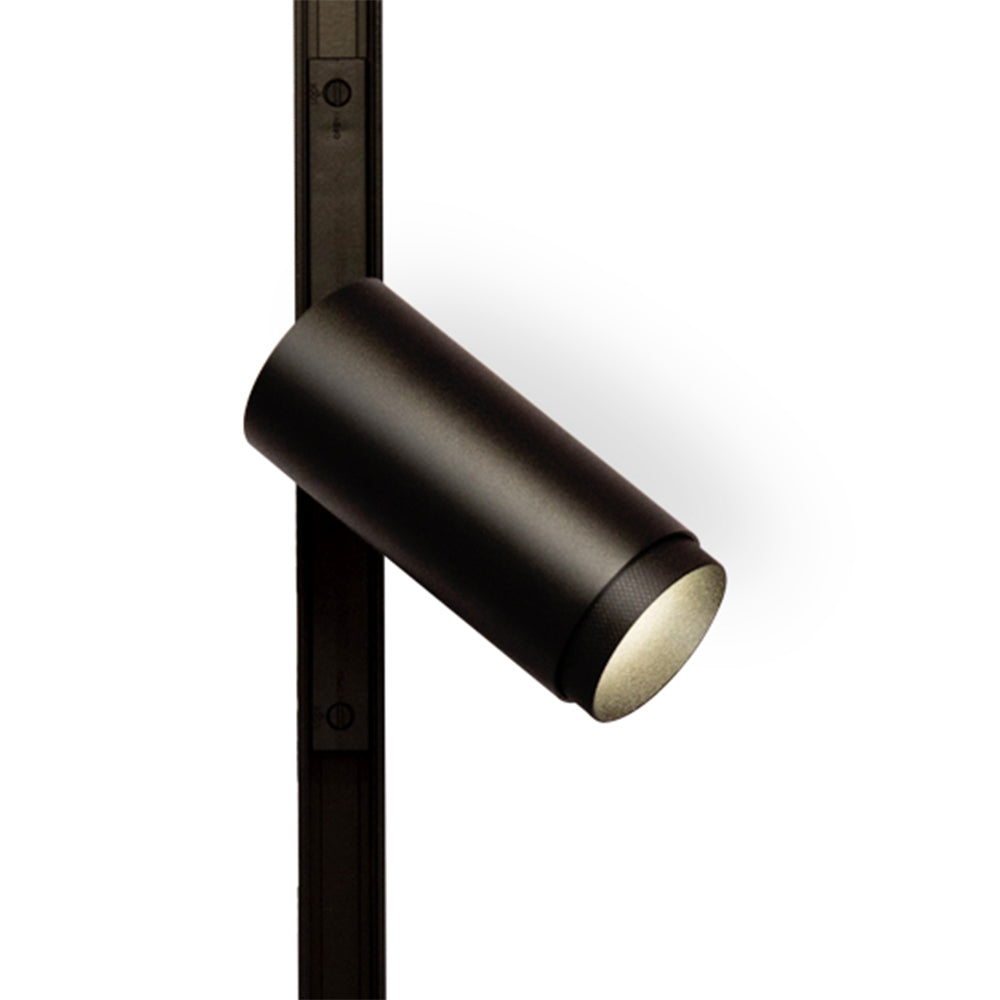

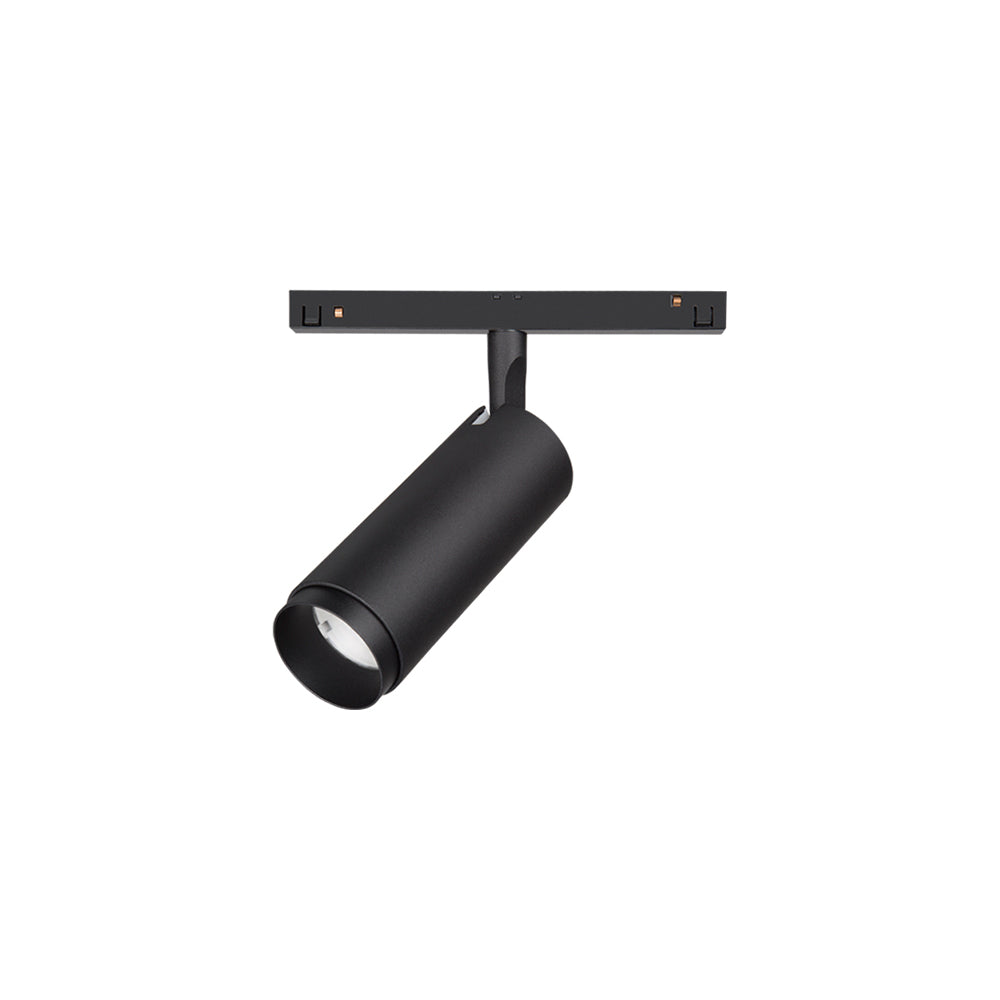

Archilight Dot 55 Black and Gold Tracklight Light 15W

SKU KC-017003B01-15-36D-2700K-BG
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 6 variants

KC-017003B01-15-36D-2700K-BG
LED Colour
Beam Angle
6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Dot 55 Black and Gold Tracklight Light 15WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED Colour
KC-017003B01-15-36D-2700K-BG15-36°Warm White 2700K
KC-017003B01-15-36D-3000K-BG15-36°Warm White 3000K
KC-017003B01-15-36D-4000K-BG15-36°Natural White 4000K
KC-017003B01-36-60D-2700K-BG36-60°Warm White 2700K
KC-017003B01-36-60D-3000K-BG36-60°Warm White 3000K
KC-017003B01-36-60D-4000K-BG36-60°Natural White 4000K

General

Input
48 V
Power rating
15 W
Brightness
1155 lm
Efficacy
≥77 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)
Tiltable
Adjustable
Mounting
Motion Magnetic Track Series
Driver
48V Driver not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, Class II, IP20

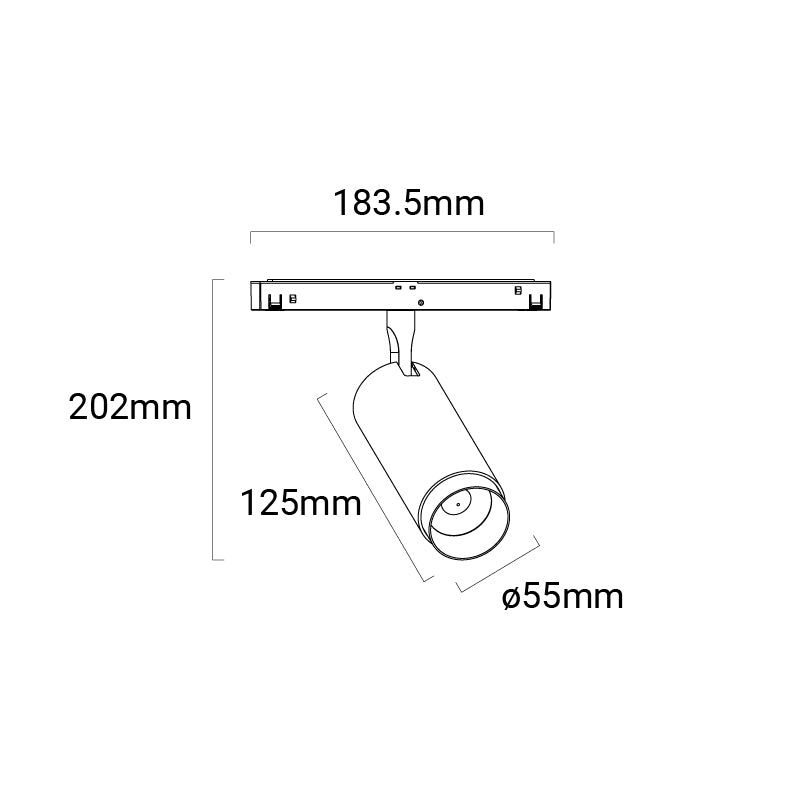

Technical drawings

Archilight Dot 55 Black and Gold Tracklight Light 15W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What type of product is the Archilight Dot 55 Black and Gold 15W?

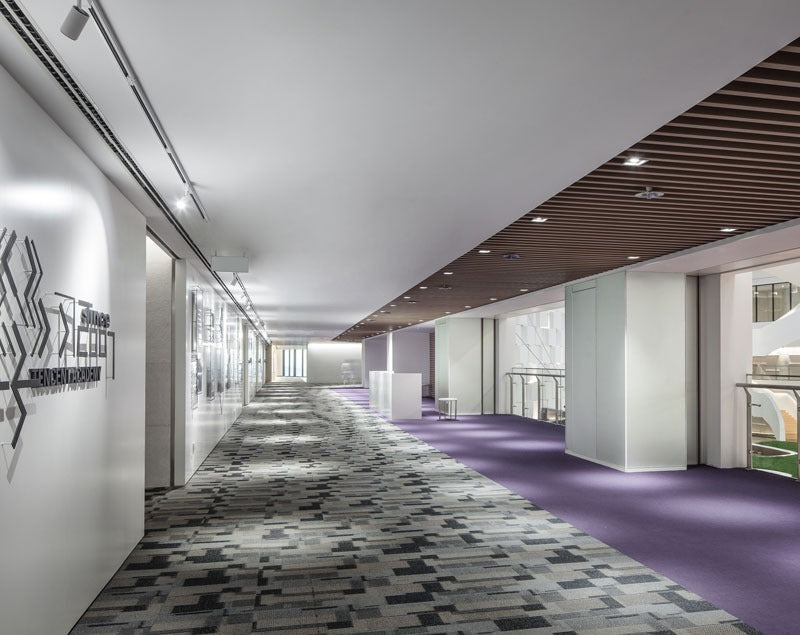

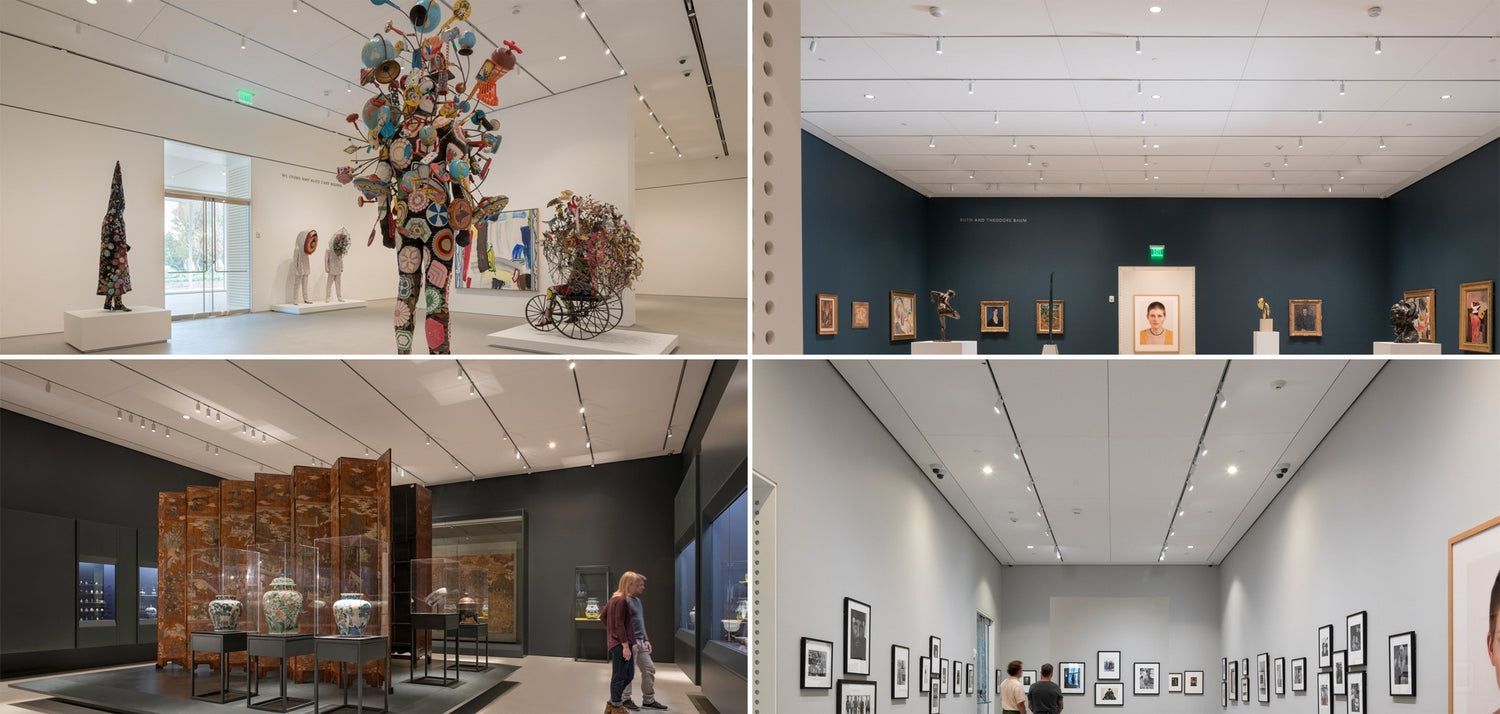

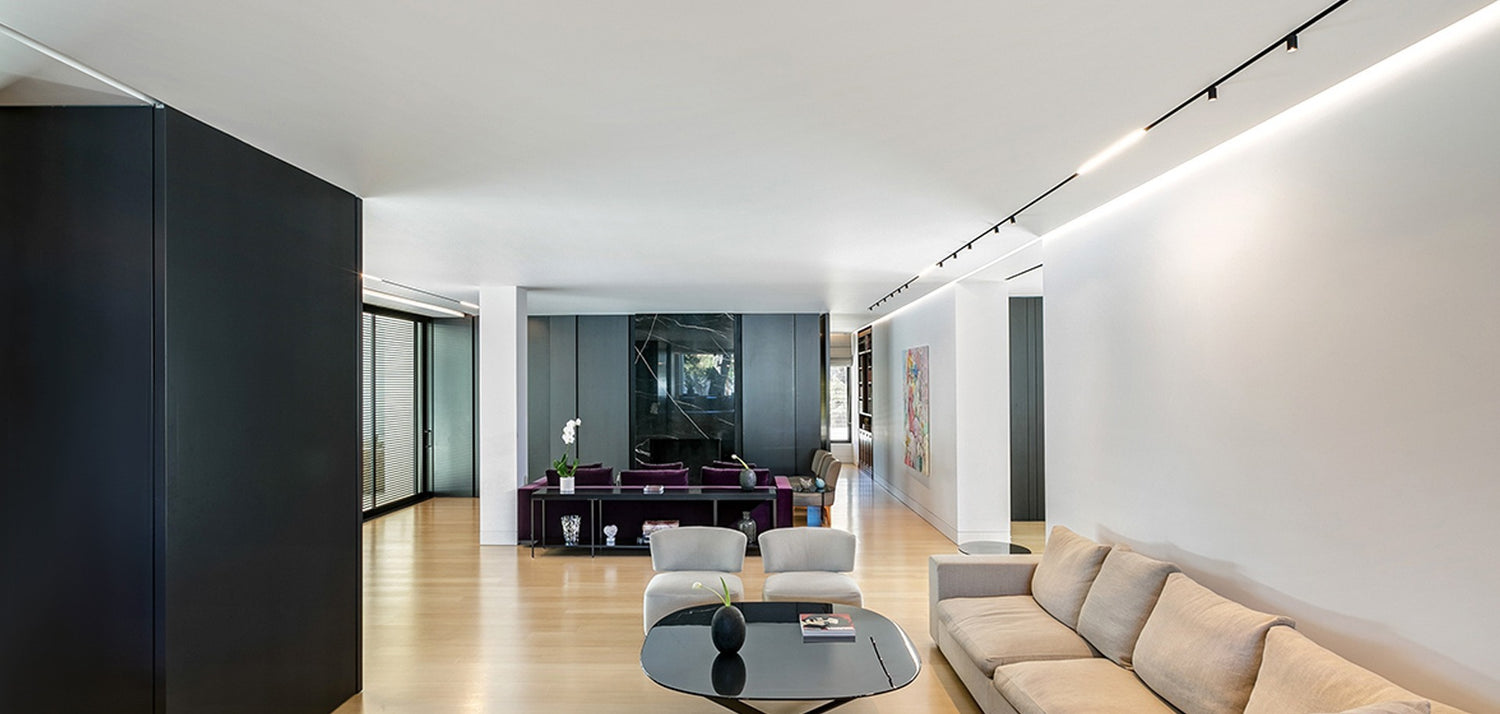

This is a magnetic track light module from the Archilight Dot series, designed as a flexible round spotlight for interior applications. It is intended for use across residential, hospitality, office, and retail spaces.

What track system is this light compatible with?

The Dot 55 is designed to pair with Archilight Motion series track systems. It is a 48V power input product, so it should be selected within that magnetic track system family.

What variant options are available in this parent product family?

This family is available in four colour temperature options: 2700K, 3000K, 4000K, and 5000K. It also comes in two beam-angle variants, shown in the product data as 15_36 and 36_60, while maintaining the same 15W power rating and black and gold finish across the family.

Is the driver included, and is this light dimmable?

No, the driver is not included with this product family. The listed dimming control is none, so these variants are not specified as dimmable.

What are the key lighting performance specs for this track light family?

Each variant in this family is rated at 15W and 1275 lumens with a CRI of 90. The Dot series is also described as having a low glare rating of UGR below 19, making it suitable for spaces where visual comfort matters.

What are the size, lifespan, and warranty details?

The parent model dimensions are 190 mm high, 183.5 mm long, and 85 mm wide, with a listed weight of 0.5 kg. It has a rated lifetime of 50,000 hours and comes with a 5-year warranty.
