Archilight

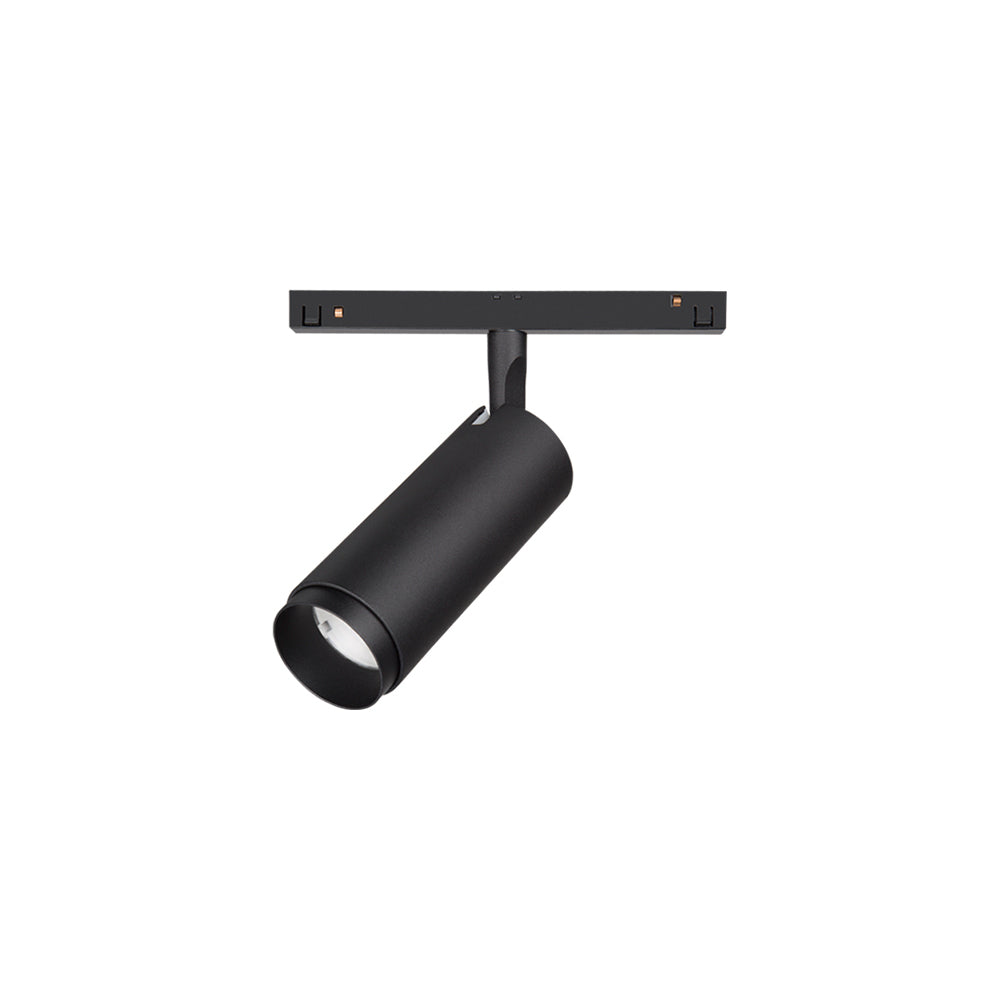

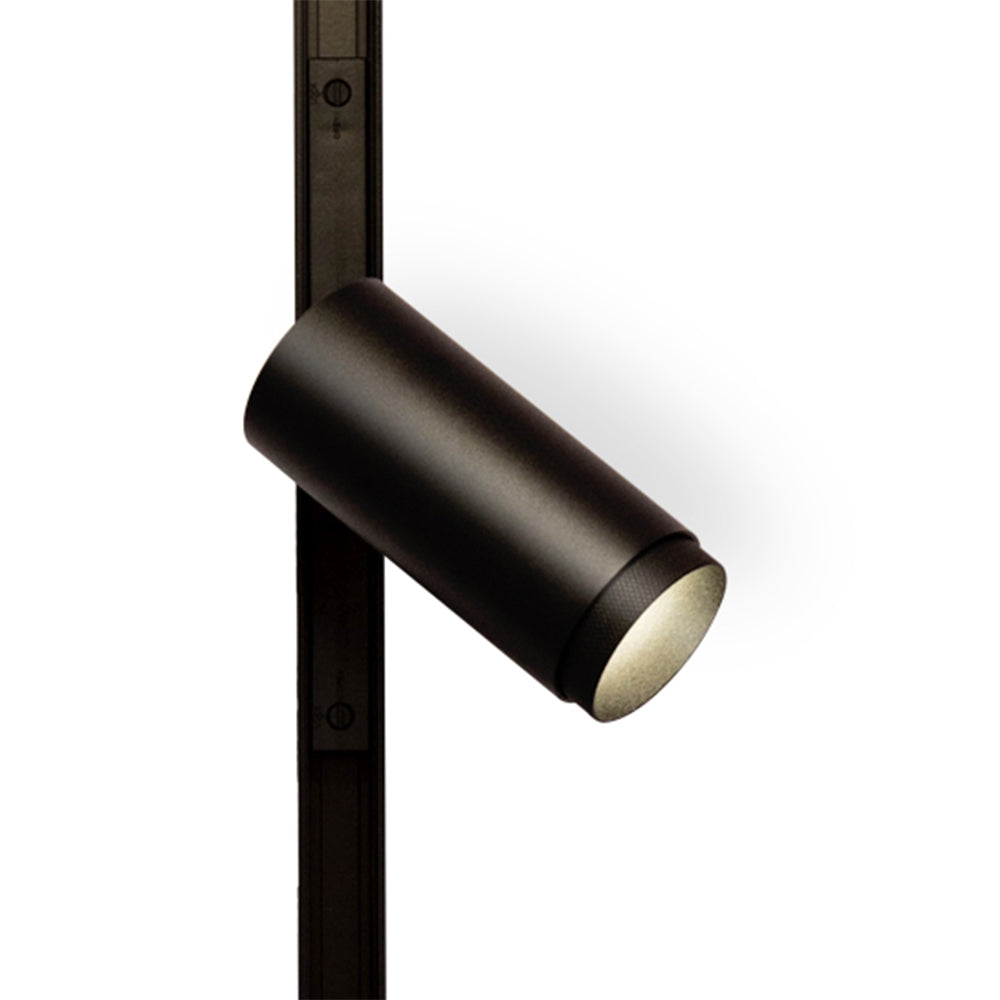

Archilight Dot 55 Black Tracklight Light 15W

SKU KC-017003B01-15-36D-2700K-B
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 6 variants

KC-017003B01-15-36D-2700K-B
LED Colour
Beam Angle
6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Dot 55 Black Tracklight Light 15WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED Colour
KC-017003B01-15-36D-2700K-B15-36°Warm White 2700K
KC-017003B01-15-36D-3000K-B15-36°Warm White 3000K
KC-017003B01-15-36D-4000K-B15-36°Natural White 4000K
KC-017003B01-36-60D-2700K-B36-60°Warm White 2700K
KC-017003B01-36-60D-3000K-B36-60°Warm White 3000K
KC-017003B01-36-60D-4000K-B36-60°Natural White 4000K

General

Input
48 V
Power rating
15 W
Brightness
1155 lm
Efficacy
≥77 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)
Tiltable
Adjustable
Mounting
Motion Magnetic Track Series
Driver
48V Driver not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, CCC, SAA, Class II, IP20

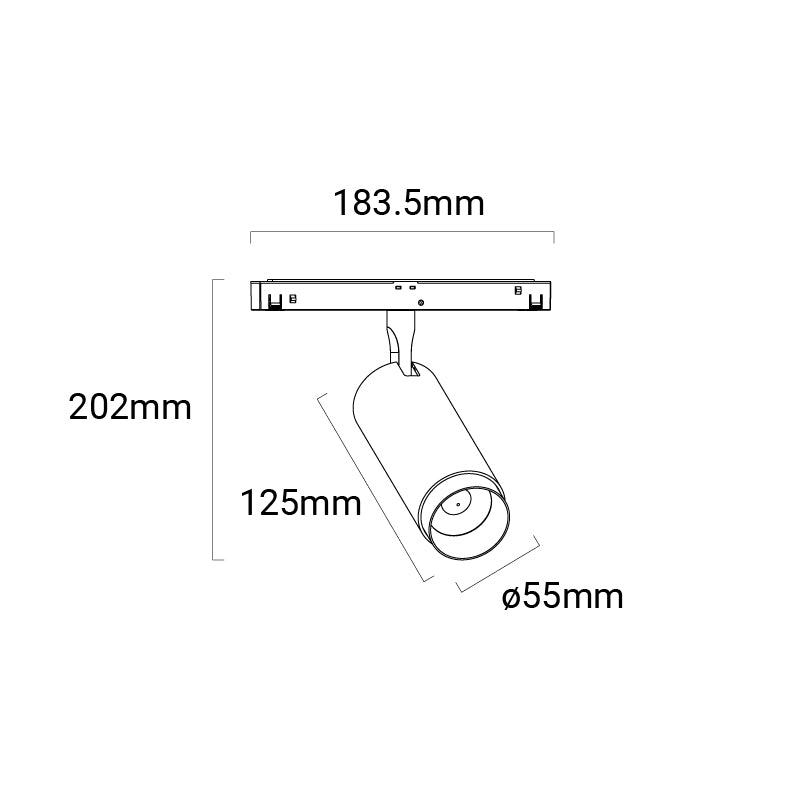

Technical drawings

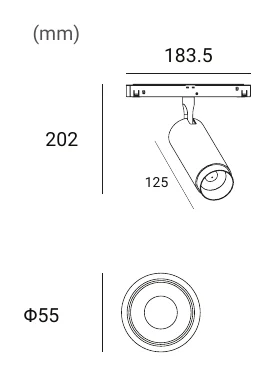

Archilight Dot 55 Black Tracklight Light 15W Dimensions (mm)
Dimensions (mm)

Downloads

FAQ

What applications is the Archilight Dot 55 Black Tracklight Light 15W suited for?

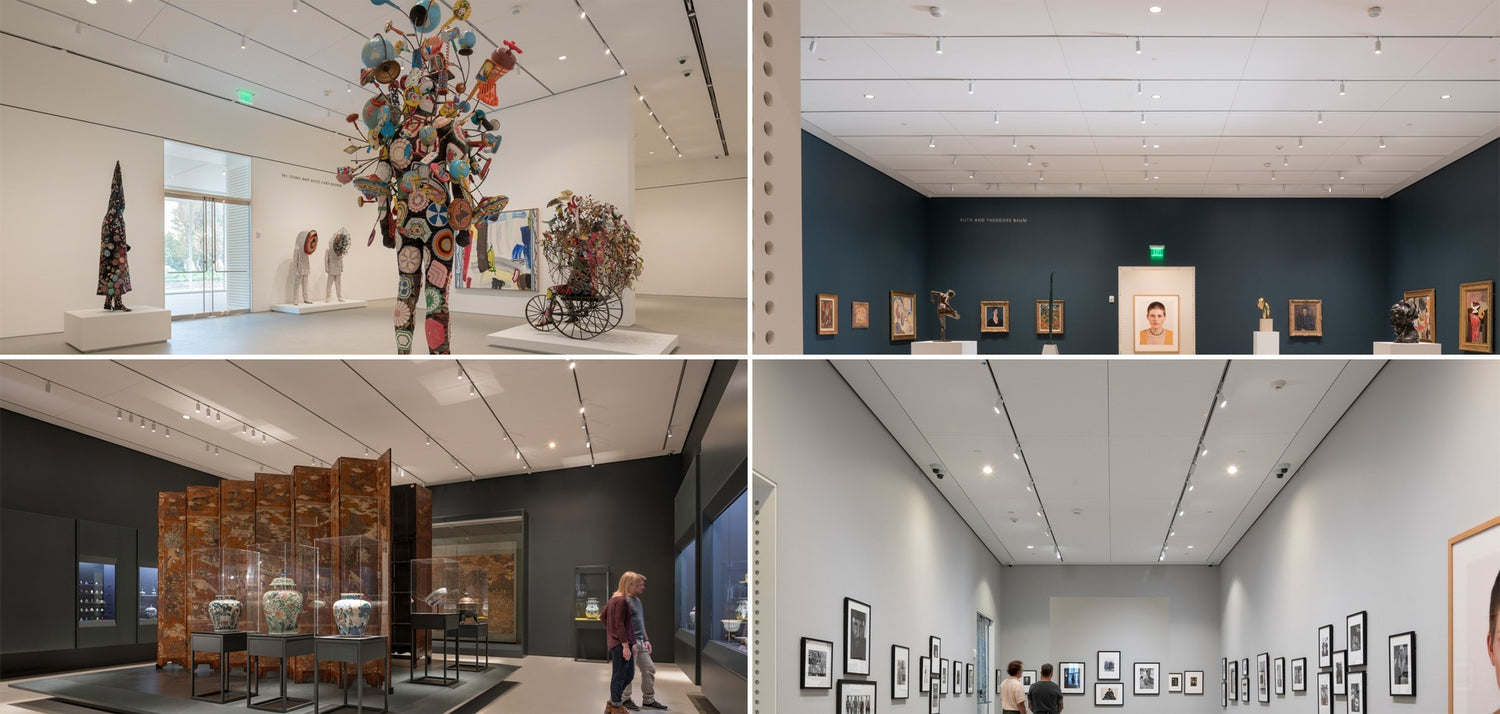

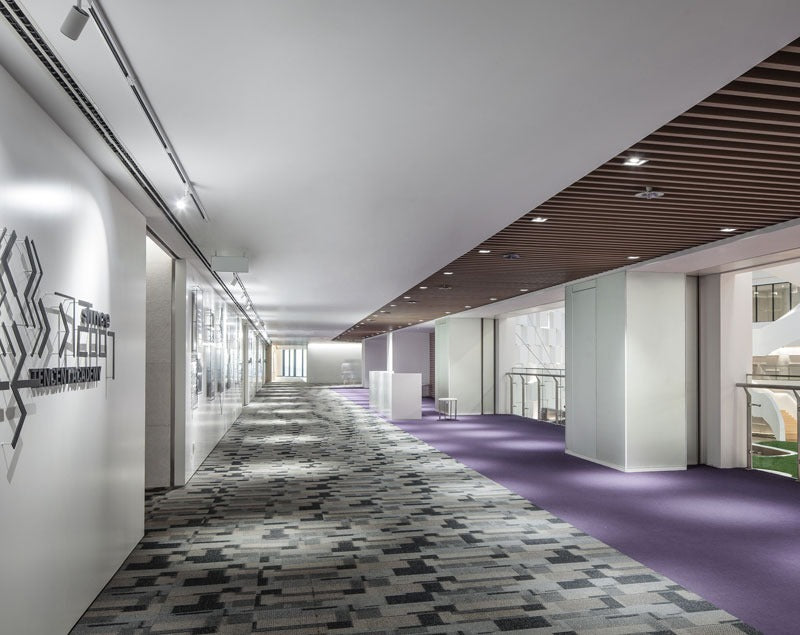

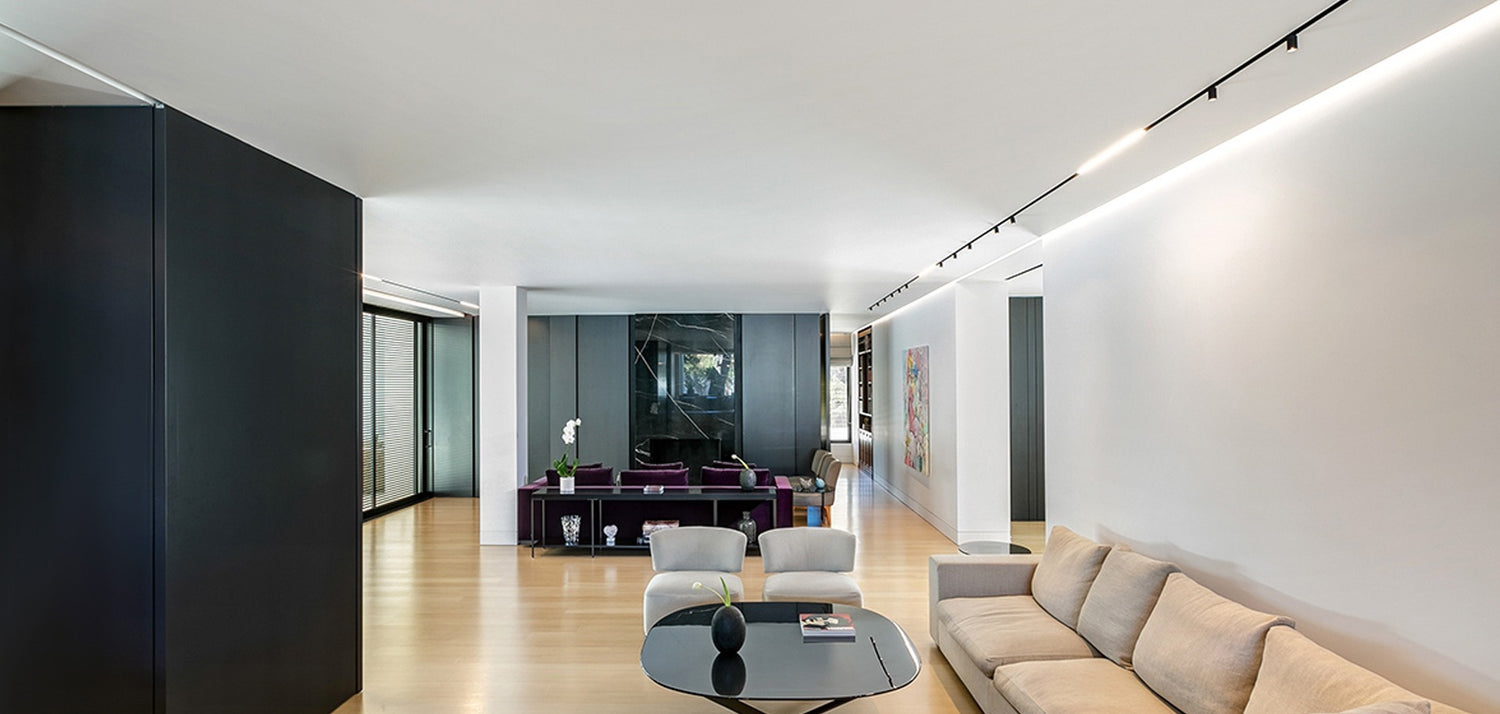

This magnetic track spotlight is designed for interior applications including residential, hospitality, office, and retail spaces. Its high CRI above 90 and low glare rating below 19 make it suitable for spaces where visual comfort and accurate colour rendering matter.

What beam angle options are available in this product family?

The Dot 55 Black 15W family is offered in two beam angle groups: 15_36 and 36_60. These variants let buyers choose between narrower and broader light distribution options within the same parent range.

What colour temperature options are available for this parent model?

This family is available in 2700K, 3000K, 4000K, and 5000K variants. That gives you a choice from warmer light tones through to cooler, crisper white light depending on the project requirement.

Is the driver included, and is this light dimmable?

The driver is not included with this product family. The listed dimming control is none, so these variants are not specified as dimmable.

What are the main performance specifications of the Dot 55 Black 15W family?

Each variant in this family is rated at 15W and delivers 1275 lumens, with CRI 90 and a 50,000-hour lifetime. The product also carries a 5-year warranty, which supports use in long-term commercial and residential projects.

What track system is this light compatible with?

This product is intended to pair with Motion series track systems. It is part of the magnetic track light category and is specified for 48V power input within that system type.
