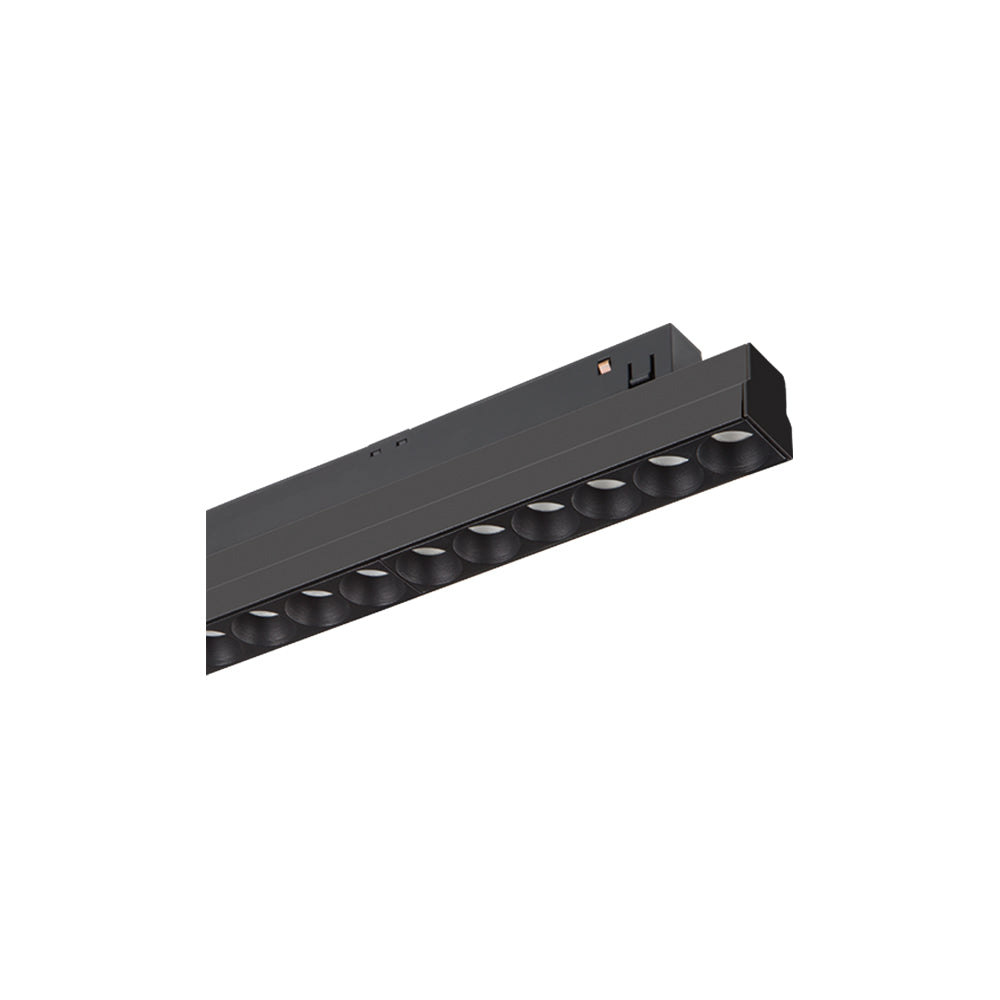

Archilight Grid 231 Black Tracklight Light 20W

Q: What is the Archilight Grid 231 Black Tracklight Light 20W designed for?

This magnetic track light is designed for interior applications where a clean, low-visibility fitting is preferred. Its flush rectangular form suits residential, hospitality, office, and retail spaces, and it is intended to pair with Motion series track.

Q: What options are available across this product family?

The family offers multiple beam angles and colour temperatures under the same 20W black Grid 231 format. Available beam angles are 23, 36, and 60 degrees, while colour temperature options are 2700K, 3000K, 4000K, and 5000K.

Q: How bright is the Archilight Grid 231 Black 20W range?

All listed variants in this parent family are rated at 1600 lumens with a 20W power rating. That gives buyers a consistent light output while choosing between different beam spreads and colour temperatures.

Q: What beam angle should I choose for this track light?

This family is available in 23 degree, 36 degree, and 60 degree beam angles. A narrower beam is typically better for more focused highlighting, while a wider beam is better for broader light distribution across a space or display area.

Q: What colour temperature choices are available in this range?

This parent range is available in 2700K, 3000K, 4000K, and 5000K options. These choices let buyers select a warmer or cooler appearance while keeping the same product format, wattage, finish, and lumen output.

Q: What are the key performance specifications of this product family?

This range uses a high quality LED source with CRI greater than 90 and a low glare rating of UGR less than 19. It is rated for 50,000 hours of life and comes with a 5 year warranty, supporting long-term use in commercial and interior lighting projects.

Q: Does this track light include a driver or dimming function?

No, the listed parent model is marked as driver not included and dimming control as none. Buyers should treat this family as a non-dimmable 48V power input magnetic track light module unless a separate system specification states otherwise.

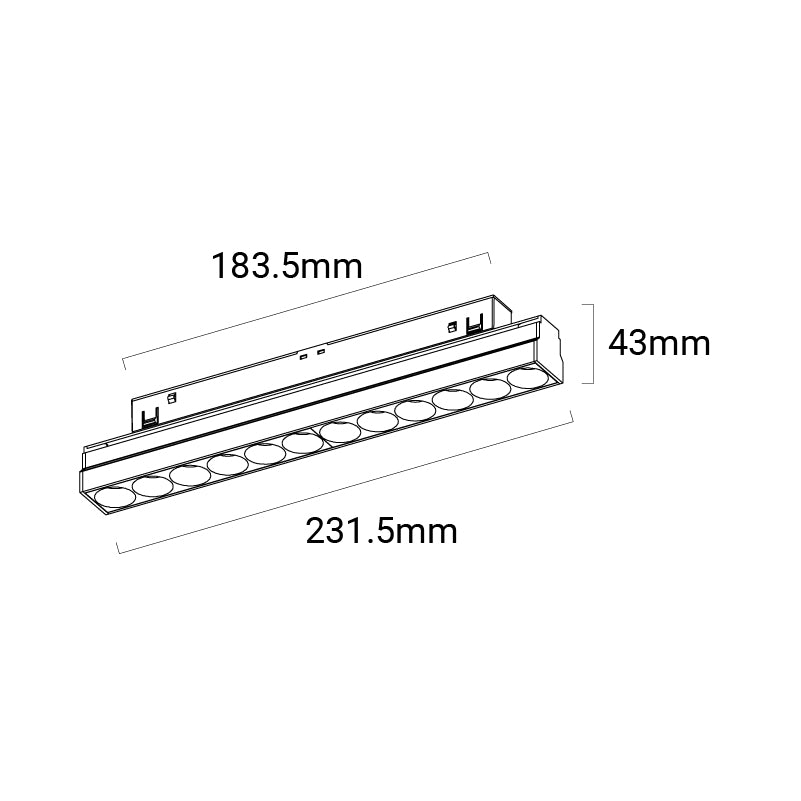

Q: What size is the Archilight Grid 231 Black Tracklight Light 20W?

The parent product dimensions are 231.5 mm long, 43 mm high, and 183.5 mm wide. It also has a listed weight of 0.5 kg, which can be useful when comparing track light module formats within a project.

SKU:

KC-017021A12-23D-2700K-B

Log in to see price Trade pricing & online ordering for account holders

Configure — 12 variants

KC-017021A12-23D-2700K-B

LED Colour

Finish Colour

Beam Angle

12 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Notify me when it's back in stock

The Grid series magnetic track light has a range of wattage, beam and colour temperature options. This rectangular spotlight sits flush in the track, making it almost invisible. It has the highest quality LED chip with high colour rending index (CRI>90) and low glare rating (UGR<19), and can be used in any application, including residential, hospitality, office and retail. Pair with any Motion series track.

Frequently Asked Questions

What is the Archilight Grid 231 Black Tracklight Light 20W designed for?

This magnetic track light is designed for interior applications where a clean, low-visibility fitting is preferred. Its flush rectangular form suits residential, hospitality, office, and retail spaces, and it is intended to pair with Motion series track.

What options are available across this product family?

The family offers multiple beam angles and colour temperatures under the same 20W black Grid 231 format. Available beam angles are 23, 36, and 60 degrees, while colour temperature options are 2700K, 3000K, 4000K, and 5000K.

How bright is the Archilight Grid 231 Black 20W range?

All listed variants in this parent family are rated at 1600 lumens with a 20W power rating. That gives buyers a consistent light output while choosing between different beam spreads and colour temperatures.

What beam angle should I choose for this track light?

This family is available in 23 degree, 36 degree, and 60 degree beam angles. A narrower beam is typically better for more focused highlighting, while a wider beam is better for broader light distribution across a space or display area.

What colour temperature choices are available in this range?

This parent range is available in 2700K, 3000K, 4000K, and 5000K options. These choices let buyers select a warmer or cooler appearance while keeping the same product format, wattage, finish, and lumen output.

What are the key performance specifications of this product family?

This range uses a high quality LED source with CRI greater than 90 and a low glare rating of UGR less than 19. It is rated for 50,000 hours of life and comes with a 5 year warranty, supporting long-term use in commercial and interior lighting projects.

Does this track light include a driver or dimming function?

No, the listed parent model is marked as driver not included and dimming control as none. Buyers should treat this family as a non-dimmable 48V power input magnetic track light module unless a separate system specification states otherwise.

What size is the Archilight Grid 231 Black Tracklight Light 20W?

The parent product dimensions are 231.5 mm long, 43 mm high, and 183.5 mm wide. It also has a listed weight of 0.5 kg, which can be useful when comparing track light module formats within a project.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Grid 231 Black Track Light DDM 20W	20W	90	Optional	19	View
Archilight Grid 231 Black Track Light BLE 20W	20W	90	Optional	19	View
Archilight Grid 231 White Tracklight Light 20W	20W	90	None	19	View
