Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

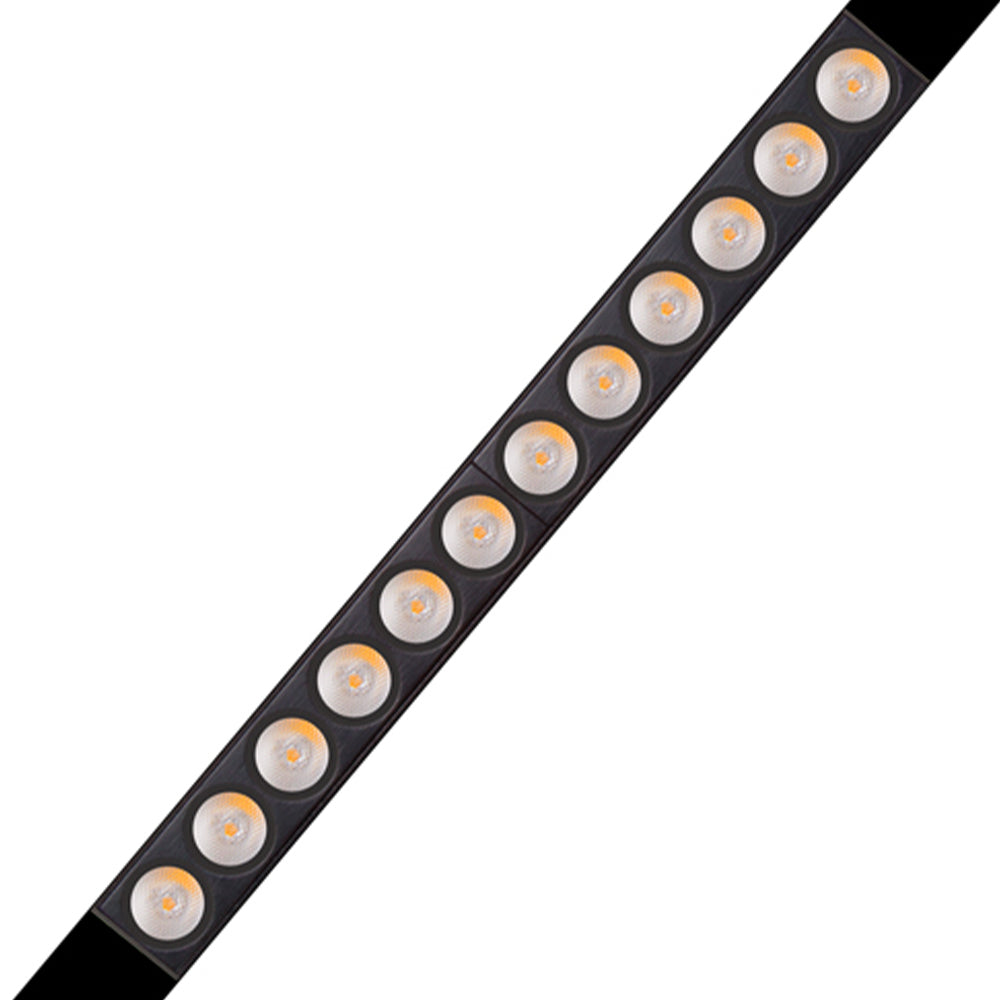

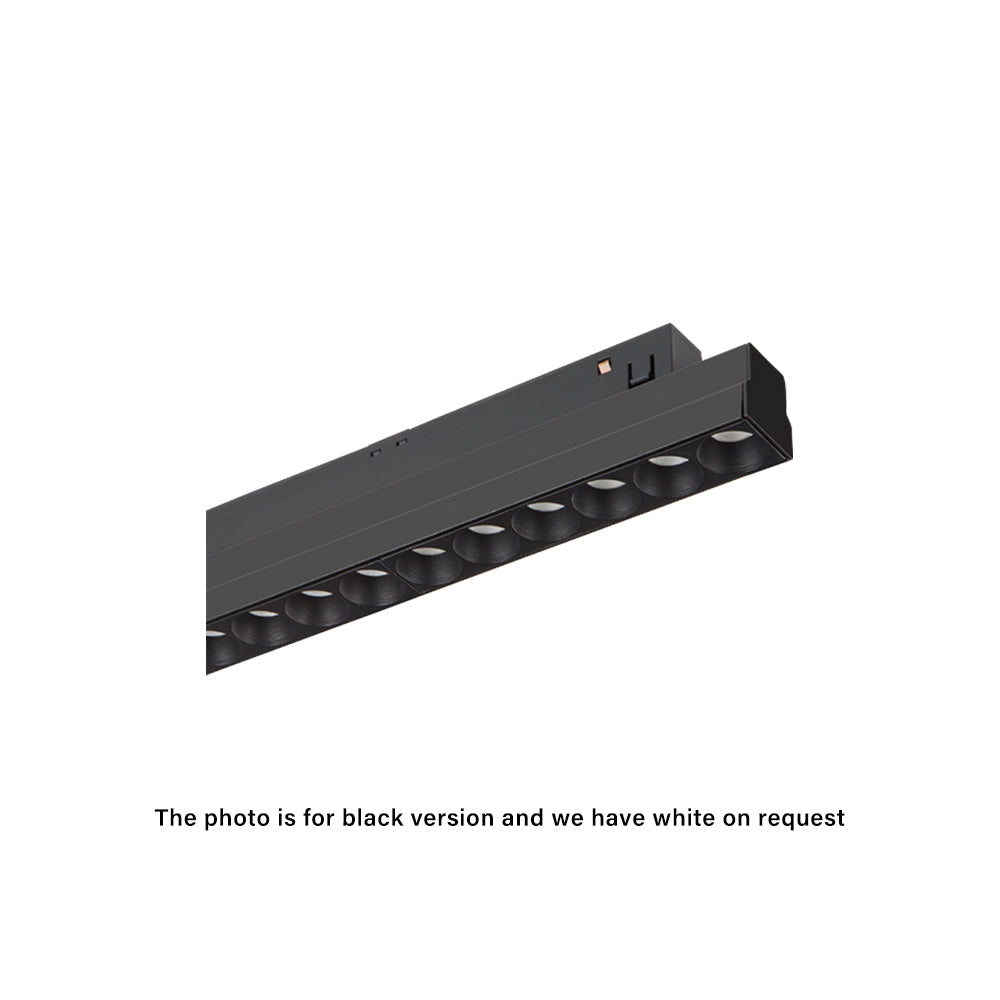

Archilight Grid 231 White Tracklight Light 20W

SKU KC-017021A12-23D-2700K-W

Log in to see price Trade pricing & online ordering for account holders

Configure — 9 variants

KC-017021A12-23D-2700K-W

LED Colour

Beam Angle

9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Grid 231 White Tracklight Light 20WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour
KC-017021A12-23D-2700K-W	23°	Warm White 2700K
KC-017021A12-23D-3000K-W	23°	Warm White 3000K
KC-017021A12-23D-4000K-W	23°	Natural White 4000K
KC-017021A12-36D-2700K-W	36°	Warm White 2700K
KC-017021A12-36D-3000K-W	36°	Warm White 3000K
KC-017021A12-36D-4000K-W	36°	Natural White 4000K

Specifications

Input: 48V
Power rating: 20W
Brightness: 1700 lm
Efficacy: ≥85 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Bluetooth APP Control (Default) or DALI (Optional)
Tiltable: Not Adjustable
Mounting: Motion Magnetic Track Series
Driver: 48V Driver not Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, Class II

Technical drawings

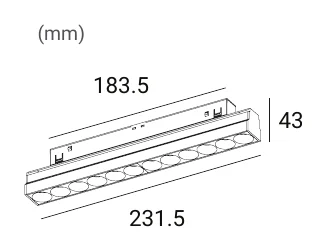

Archilight Grid 231 White Tracklight Light 20W Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Grid 231 White Tracklight Light 20W datasheetGrid_231.pdf PDF Download

FAQ

What is the Archilight Grid 231 White Tracklight Light 20W designed for?

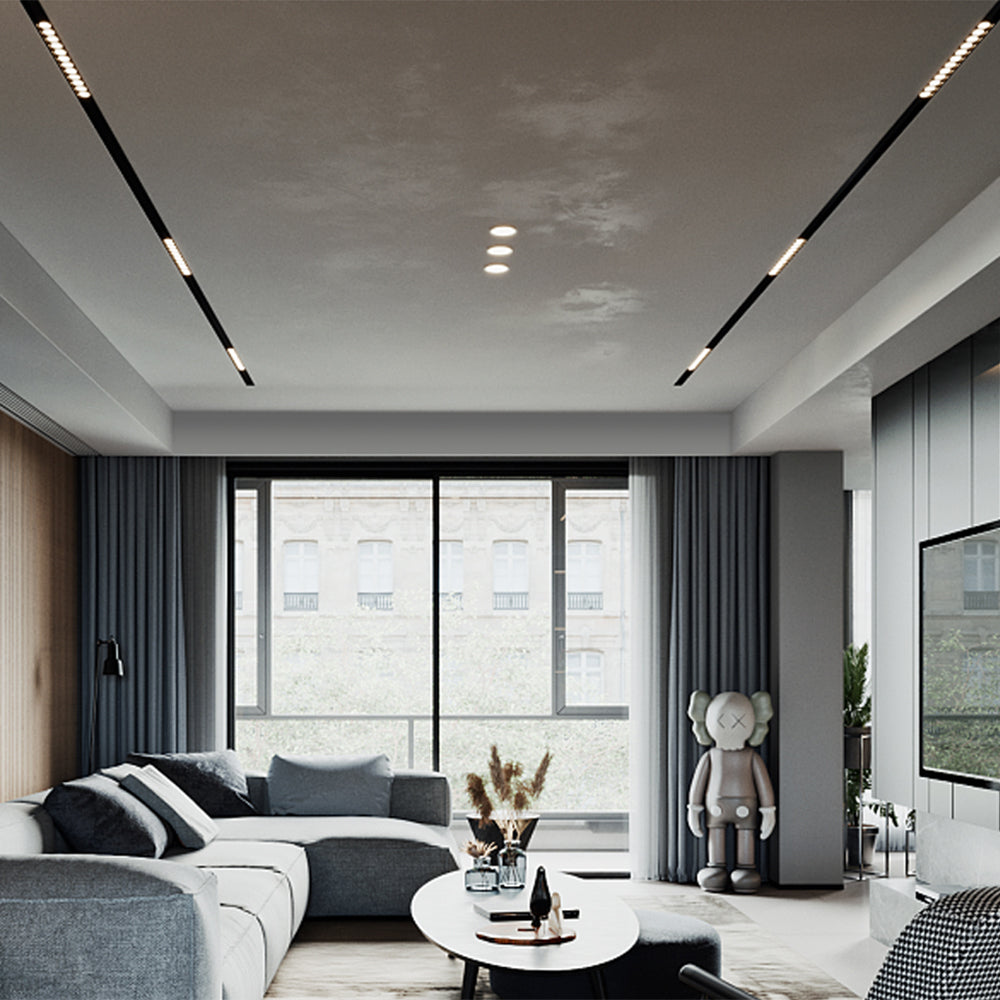

This magnetic track light module is designed for interior applications where a clean, low-visibility fitting is preferred. Its flush rectangular form suits residential, hospitality, office, and retail spaces that need focused architectural lighting.

What variant options are available in this product family?

Across the Grid 231 White 20W family, buyers can choose from beam angles of 23, 36, or 60 degrees. Colour temperature options available across the family are 2700K, 3000K, 4000K, and 5000K.

How bright is the Archilight Grid 231 White 20W range?

The child variants listed for this parent model are rated at 1600 lumens. That means the main choice across the family is beam spread and colour temperature rather than a change in lumen output.

What are the key performance specifications of this track light?

This product family is rated at 20W with CRI 90, a 50,000-hour lifetime, and a 5-year warranty. The product description also states a low glare rating of UGR below 19, making it suitable for more visually comfortable commercial and residential environments.

Is the driver included with this product?

No, the driver is not included with this product family. The parent data also shows no dimming control, so this range should be treated as non-dimmable unless a separate approved system configuration is specified elsewhere.

Which track system is this light compatible with?

The product description states that it pairs with Motion series track. This makes it a suitable option for projects already using that magnetic track platform.

What size is the Archilight Grid 231 White Tracklight Light 20W?

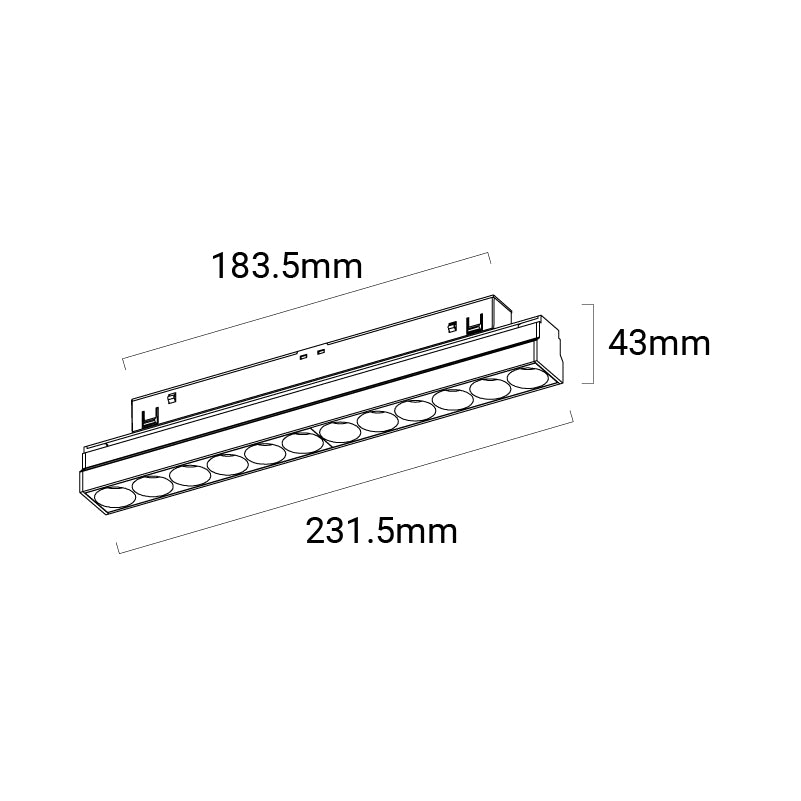

The parent model dimensions are 231.5 mm wide, 183.5 mm long, and 43 mm high, with a listed weight of 0.5 kg. These dimensions help it sit flush in the track while maintaining a slim, minimal appearance.

How do I choose between the 23, 36, and 60 degree beam angles?

The 23 degree option is the narrowest beam and is generally better for tighter accent lighting. The 36 degree option offers a more balanced spread, while the 60 degree option is the widest choice for broader illumination within the same 20W family.
