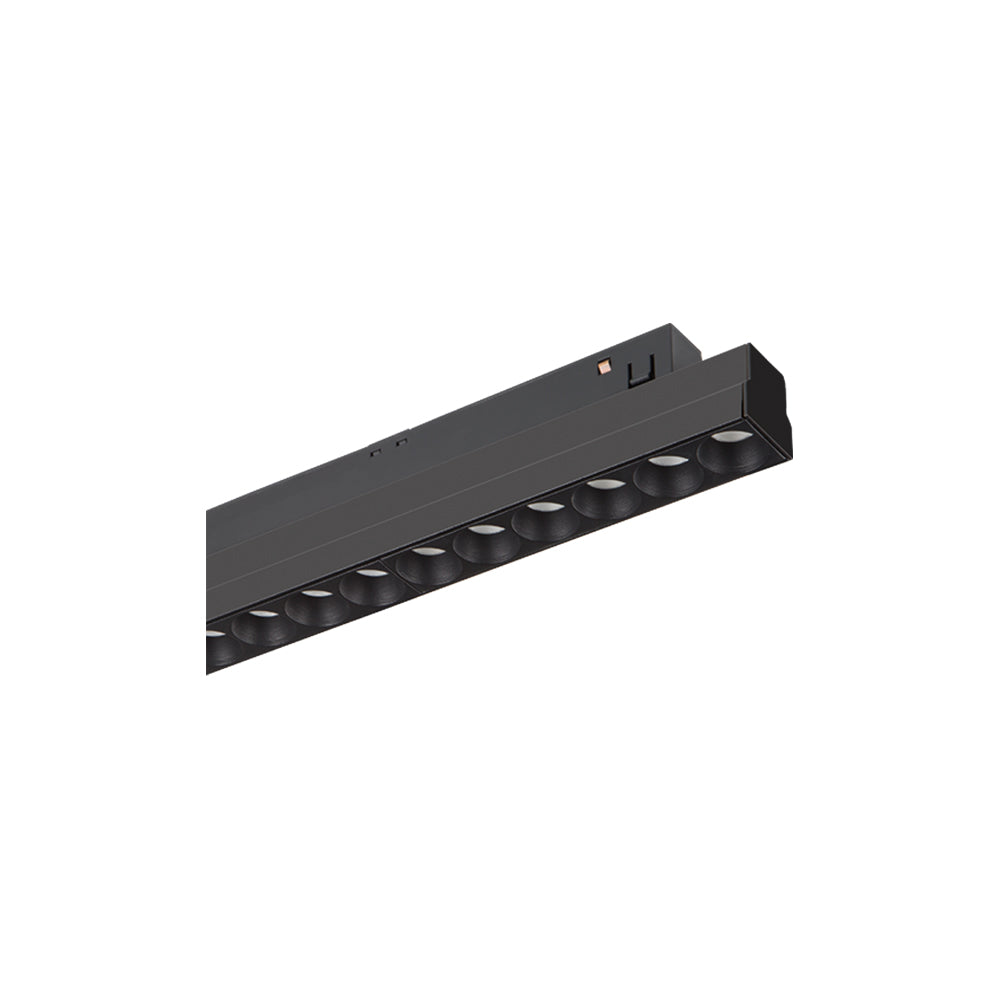

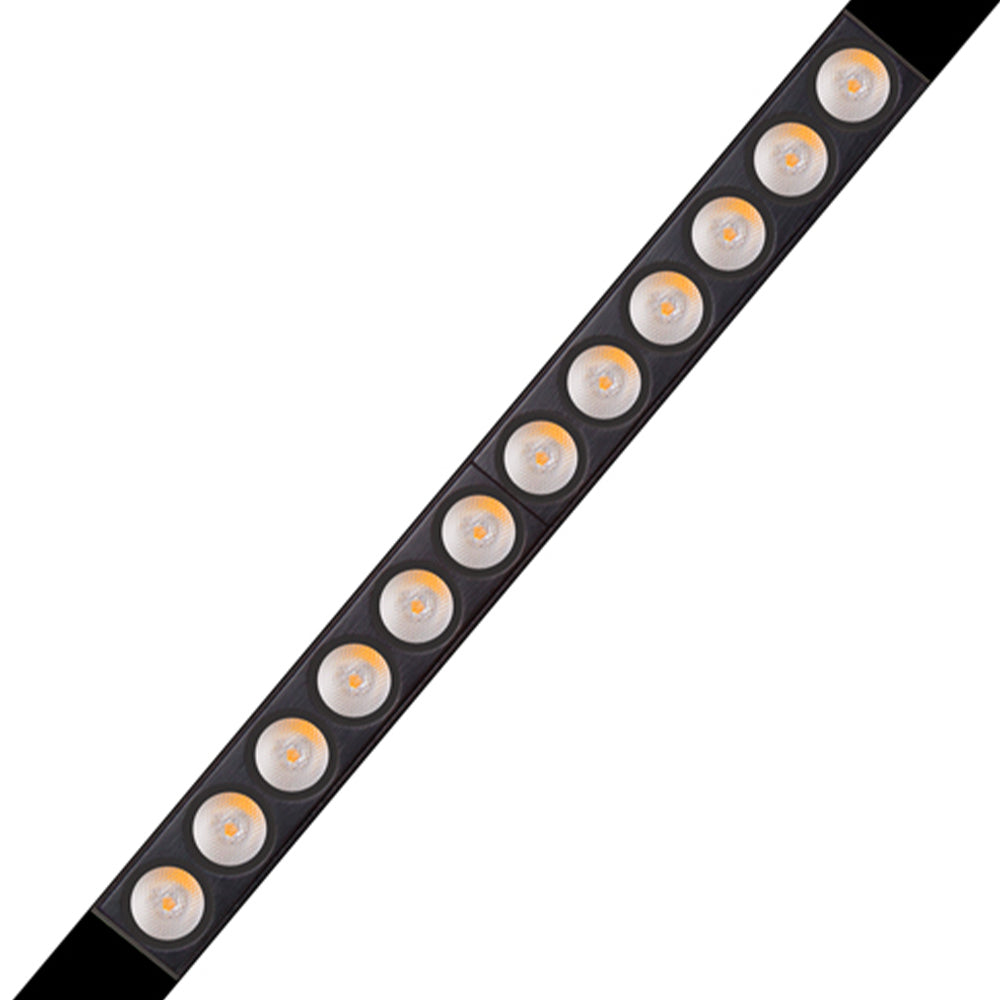

Archilight Grid 231 Black Tracklight Light 20W

SKU KC-017021A12-23D-2700K-B

Log in to see price Trade pricing & online ordering for account holders

Configure — 9 variants

KC-017021A12-23D-2700K-B

LED Colour

Beam Angle

9 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Grid 231 Black Tracklight Light 20WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour
KC-017021A12-23D-2700K-B	23°	Warm White 2700K
KC-017021A12-23D-3000K-B	23°	Warm White 3000K
KC-017021A12-23D-4000K-B	23°	Natural White 4000K
KC-017021A12-36D-2700K-B	36°	Warm White 2700K
KC-017021A12-36D-3000K-B	36°	Warm White 3000K
KC-017021A12-36D-4000K-B	36°	Natural White 4000K

Specifications

Input: 48V
Power rating: 20W
Brightness: 1700 lm
Efficacy: ≥85 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Bluetooth APP Control (Default) or DALI (Optional)
Tiltable: Not Adjustable
Mounting: Motion Magnetic Track Series
Driver: 48V Driver not Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, Class II

Technical drawings

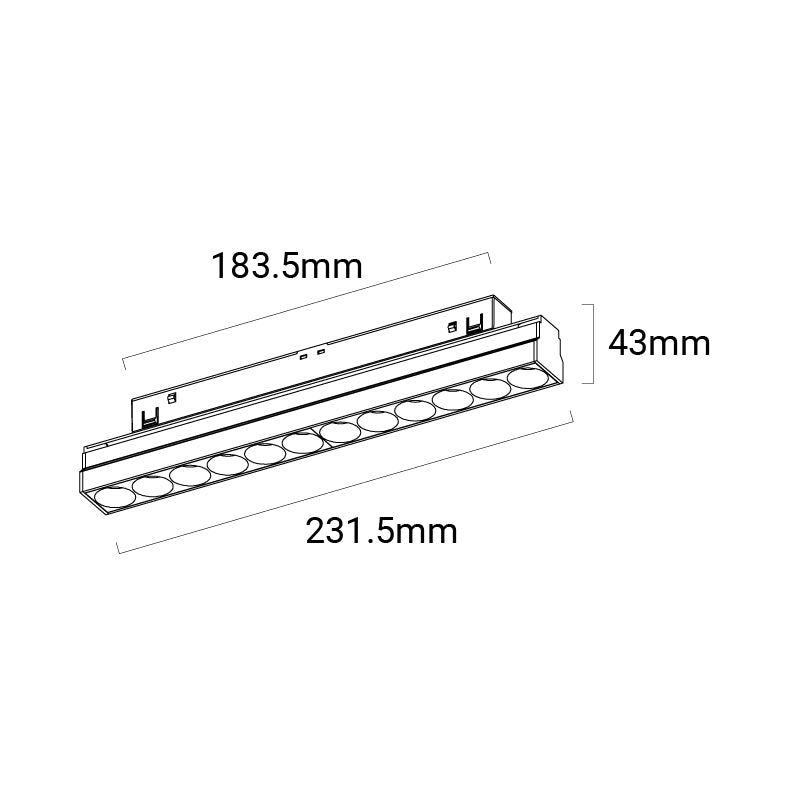

Archilight Grid 231 Black Tracklight Light 20W Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Grid 231 Black Tracklight Light 20W datasheetGrid_231.pdf PDF Download

FAQ

What is the Archilight Grid 231 Black Tracklight Light 20W designed for?

This magnetic track light is designed for interior applications where a clean, low-visibility fitting is preferred. Its flush rectangular form suits residential, hospitality, office, and retail spaces, and it is intended to pair with Motion series track.

What options are available across this product family?

The family offers multiple beam angles and colour temperatures under the same 20W black Grid 231 format. Available beam angles are 23, 36, and 60 degrees, while colour temperature options are 2700K, 3000K, 4000K, and 5000K.

How bright is the Archilight Grid 231 Black 20W range?

All listed variants in this parent family are rated at 1600 lumens with a 20W power rating. That gives buyers a consistent light output while choosing between different beam spreads and colour temperatures.

What beam angle should I choose for this track light?

This family is available in 23 degree, 36 degree, and 60 degree beam angles. A narrower beam is typically better for more focused highlighting, while a wider beam is better for broader light distribution across a space or display area.

What colour temperature choices are available in this range?

This parent range is available in 2700K, 3000K, 4000K, and 5000K options. These choices let buyers select a warmer or cooler appearance while keeping the same product format, wattage, finish, and lumen output.

What are the key performance specifications of this product family?

This range uses a high quality LED source with CRI greater than 90 and a low glare rating of UGR less than 19. It is rated for 50,000 hours of life and comes with a 5 year warranty, supporting long-term use in commercial and interior lighting projects.

Does this track light include a driver or dimming function?

No, the listed parent model is marked as driver not included and dimming control as none. Buyers should treat this family as a non-dimmable 48V power input magnetic track light module unless a separate system specification states otherwise.

What size is the Archilight Grid 231 Black Tracklight Light 20W?

The parent product dimensions are 231.5 mm long, 43 mm high, and 183.5 mm wide. It also has a listed weight of 0.5 kg, which can be useful when comparing track light module formats within a project.
