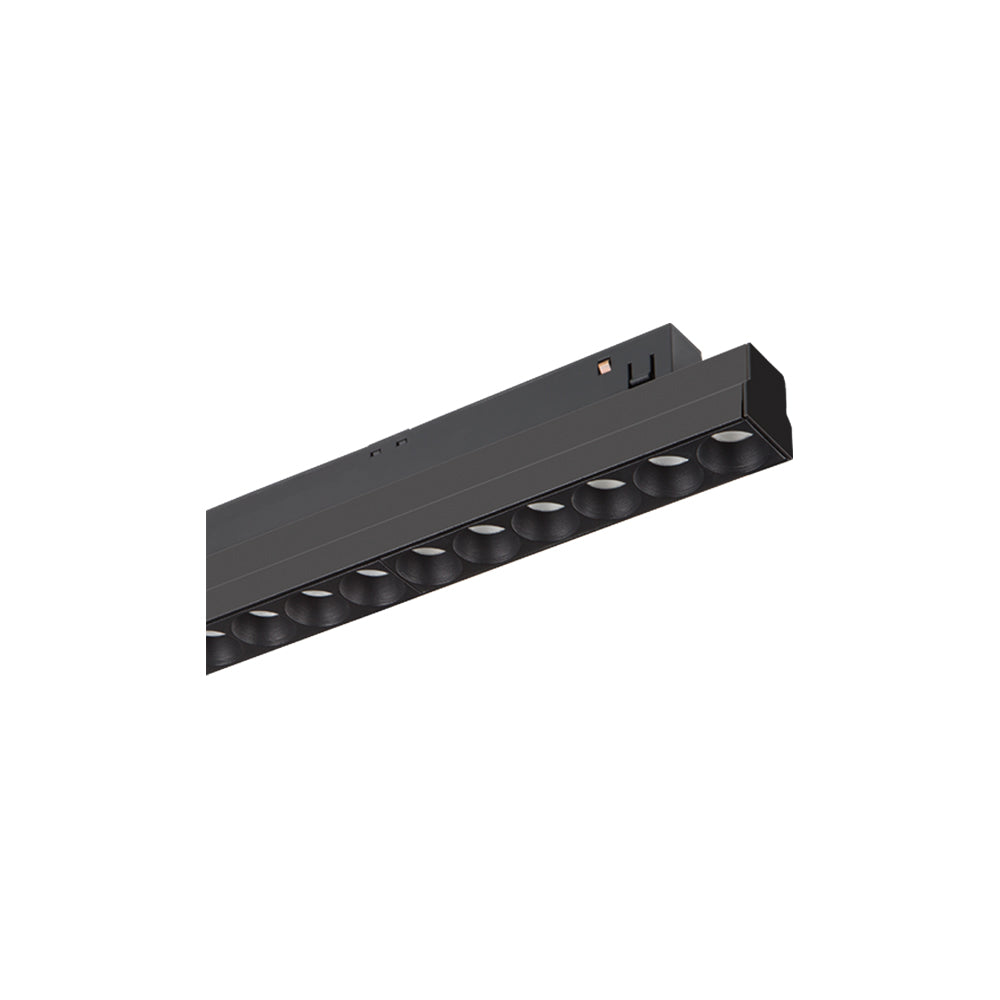

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Archilight Grid 231 Black Track Light BLE 20W

SKU KC-017021A12-36D-3000K-B-BLE

Log in to see price Trade pricing & online ordering for account holders

Configure — 2 variants

KC-017021A12-36D-3000K-B-BLE

LED Colour

2 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Specifications

Archilight Grid 231 Black Track Light BLE 20WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	LED Colour
KC-017021A12-36D-3000K-B-BLE	Warm White 3000K
KC-017021A12-36D-4000K-B-BLE	Natural White 4000K

Specifications

Input: 48V
Power rating: 20W
Beam angle: 15° / 36° / 25*45°
Brightness: 1700 lm
Efficacy: ≥85 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Bluetooth APP Control (Default) or DALI (Optional)
Tiltable: Not Adjustable
Mounting: Motion Magnetic Track Series
Driver: 48V Driver not Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, CCC, Class II

Technical drawings

Archilight Grid 231 Black Track Light BLE 20W Dimensions (mm) — Dimensions (mm)

Downloads

Datasheet1

Archilight Grid 231 Black Track Light BLE 20W datasheetGrid_231.pdf PDF Download

FAQ

What is the Archilight Grid 231 Black Track Light BLE 20W designed for?

This is a magnetic track light module for interior applications where a clean, minimal appearance is important. Its rectangular body sits flush in the track, making it suitable for residential, hospitality, office, and retail spaces.

Which track system is this light compatible with?

This model is intended to pair with Archilight Motion series track systems. It is part of a magnetic track lighting range, so it should be selected for use within that compatible system family.

What are the key performance specifications of this track light family?

The family has a 20W power rating, CRI 90, and a rated lifetime of 50,000 hours. It also carries a 5-year warranty and uses a 48V power input platform.

Is the Archilight Grid 231 Black Track Light supplied with a driver, and can it be dimmed?

The driver is not included with this product family. Dimming is optional, so dimming capability depends on the compatible control setup selected for the project.

What beam angle is available in the listed variants?

The listed child variants both use a 36-degree beam angle. That makes this parent family suitable where a controlled, directional light distribution is needed.

How do the variants in this parent family differ?

Based on the provided child data, the listed variants share the same 20W rating, black finish, CRI 90, 36-degree beam angle, driver requirement, dimming option, lifetime, and warranty. The stated difference is light output, with variants listed at 3000 lm and 4000 lm.

What are the dimensions and weight of the Archilight Grid 231 family?

The parent product dimensions are 231.5 mm wide, 183.5 mm long, and 43 mm high. The stated product weight is 0.5 kg.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Grid 231 Black Track Light DDM 20W	20W	90	Optional	19	View
Archilight Grid 231 White Tracklight Light 20W	20W	90	Non Dimmable	19	View
Archilight Grid 231 Black Tracklight Light 20W	20W	90	Non Dimmable	19	View
