Archilight Grid 231 White Tracklight Light 20W

Q: What is the Archilight Grid 231 White Tracklight Light 20W designed for?

This magnetic track light module is designed for interior applications where a clean, low-visibility fitting is preferred. Its flush rectangular form suits residential, hospitality, office, and retail spaces that need focused architectural lighting.

Q: What variant options are available in this product family?

Across the Grid 231 White 20W family, buyers can choose from beam angles of 23, 36, or 60 degrees. Colour temperature options available across the family are 2700K, 3000K, 4000K, and 5000K.

Q: How bright is the Archilight Grid 231 White 20W range?

The child variants listed for this parent model are rated at 1600 lumens. That means the main choice across the family is beam spread and colour temperature rather than a change in lumen output.

Q: What are the key performance specifications of this track light?

This product family is rated at 20W with CRI 90, a 50,000-hour lifetime, and a 5-year warranty. The product description also states a low glare rating of UGR below 19, making it suitable for more visually comfortable commercial and residential environments.

Q: Is the driver included with this product?

No, the driver is not included with this product family. The parent data also shows no dimming control, so this range should be treated as non-dimmable unless a separate approved system configuration is specified elsewhere.

Q: Which track system is this light compatible with?

The product description states that it pairs with Motion series track. This makes it a suitable option for projects already using that magnetic track platform.

Q: What size is the Archilight Grid 231 White Tracklight Light 20W?

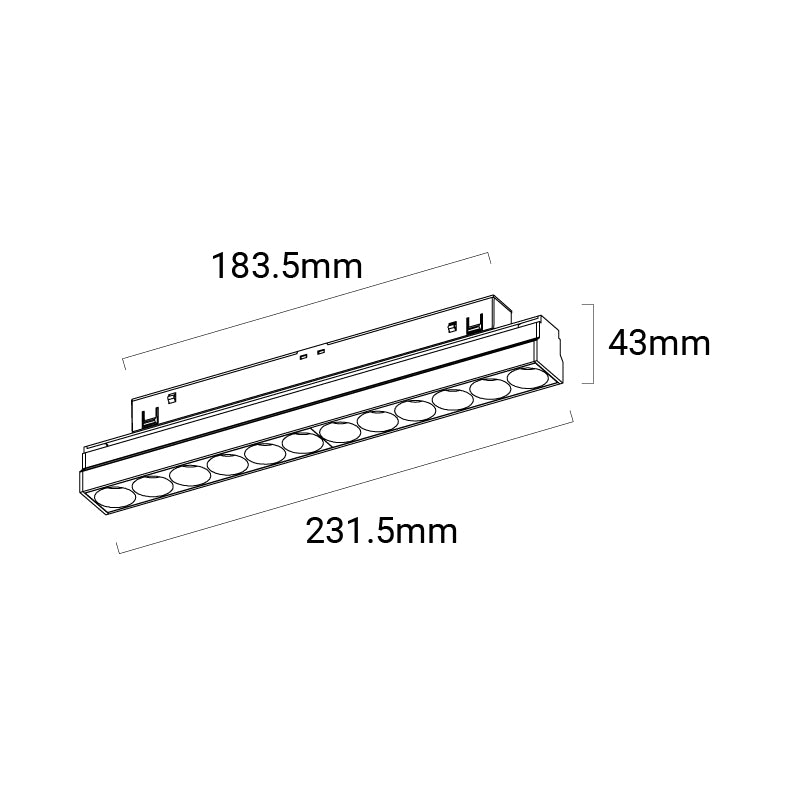

The parent model dimensions are 231.5 mm wide, 183.5 mm long, and 43 mm high, with a listed weight of 0.5 kg. These dimensions help it sit flush in the track while maintaining a slim, minimal appearance.

Q: How do I choose between the 23, 36, and 60 degree beam angles?

The 23 degree option is the narrowest beam and is generally better for tighter accent lighting. The 36 degree option offers a more balanced spread, while the 60 degree option is the widest choice for broader illumination within the same 20W family.

SKU:

KC-017021A12-23D-2700K-W

Log in to see price Trade pricing & online ordering for account holders

Configure — 12 variants

KC-017021A12-23D-2700K-W

LED Colour

Finish Colour

Beam Angle

12 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Notify me when it's back in stock

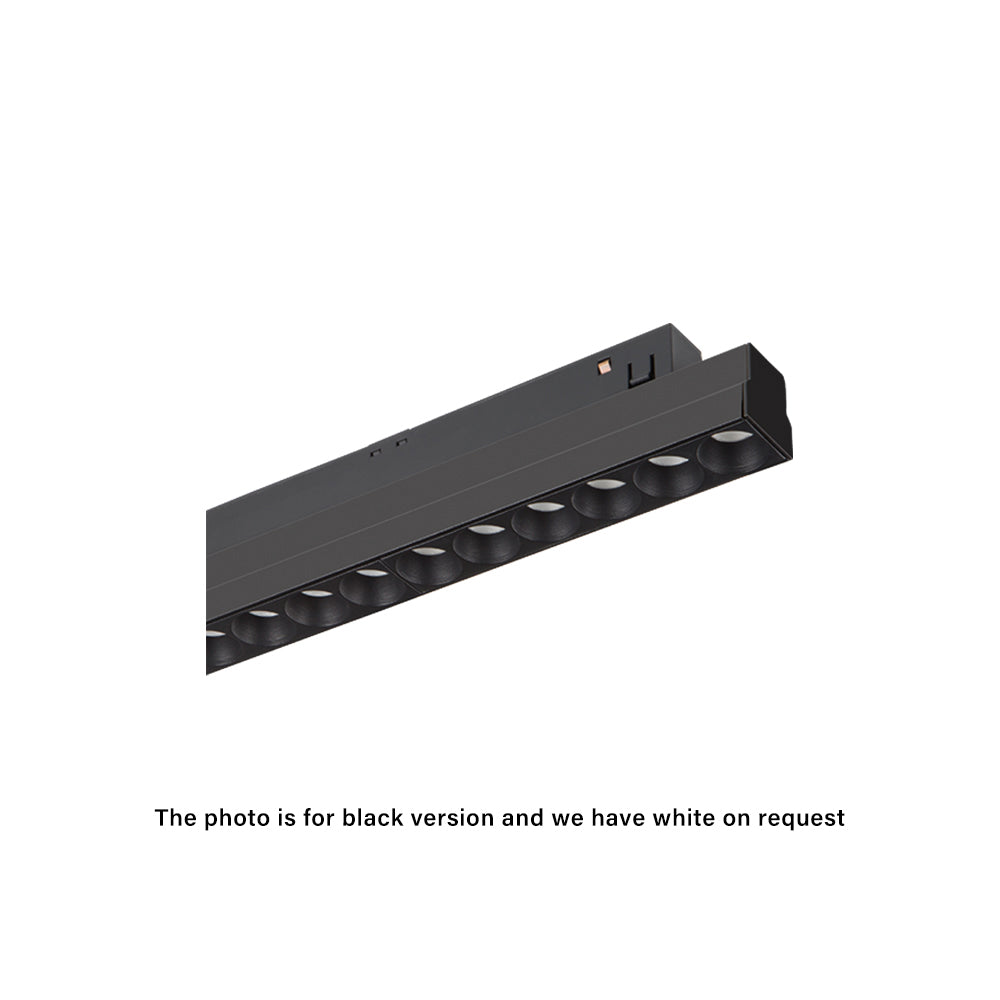

The Grid series magnetic track light has a range of wattage, beam and colour temperature options. This rectangular spotlight sits flush in the track, making it almost invisible. It has the highest quality LED chip with high colour rending index (CRI>90) and low glare rating (UGR<19), and can be used in any application, including residential, hospitality, office and retail. Pair with any Motion series track.

Frequently Asked Questions

What is the Archilight Grid 231 White Tracklight Light 20W designed for?

This magnetic track light module is designed for interior applications where a clean, low-visibility fitting is preferred. Its flush rectangular form suits residential, hospitality, office, and retail spaces that need focused architectural lighting.

What variant options are available in this product family?

Across the Grid 231 White 20W family, buyers can choose from beam angles of 23, 36, or 60 degrees. Colour temperature options available across the family are 2700K, 3000K, 4000K, and 5000K.

How bright is the Archilight Grid 231 White 20W range?

The child variants listed for this parent model are rated at 1600 lumens. That means the main choice across the family is beam spread and colour temperature rather than a change in lumen output.

What are the key performance specifications of this track light?

This product family is rated at 20W with CRI 90, a 50,000-hour lifetime, and a 5-year warranty. The product description also states a low glare rating of UGR below 19, making it suitable for more visually comfortable commercial and residential environments.

Is the driver included with this product?

No, the driver is not included with this product family. The parent data also shows no dimming control, so this range should be treated as non-dimmable unless a separate approved system configuration is specified elsewhere.

Which track system is this light compatible with?

The product description states that it pairs with Motion series track. This makes it a suitable option for projects already using that magnetic track platform.

What size is the Archilight Grid 231 White Tracklight Light 20W?

The parent model dimensions are 231.5 mm wide, 183.5 mm long, and 43 mm high, with a listed weight of 0.5 kg. These dimensions help it sit flush in the track while maintaining a slim, minimal appearance.

How do I choose between the 23, 36, and 60 degree beam angles?

The 23 degree option is the narrowest beam and is generally better for tighter accent lighting. The 36 degree option offers a more balanced spread, while the 60 degree option is the widest choice for broader illumination within the same 20W family.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	CRI	Dimming	UGR
Archilight Grid 231 Black Track Light DDM 20W	20W	90	Optional	19	View
Archilight Grid 231 Black Track Light BLE 20W	20W	90	Optional	19	View
Archilight Grid 231 Black Tracklight Light 20W	20W	90	None	19	View
