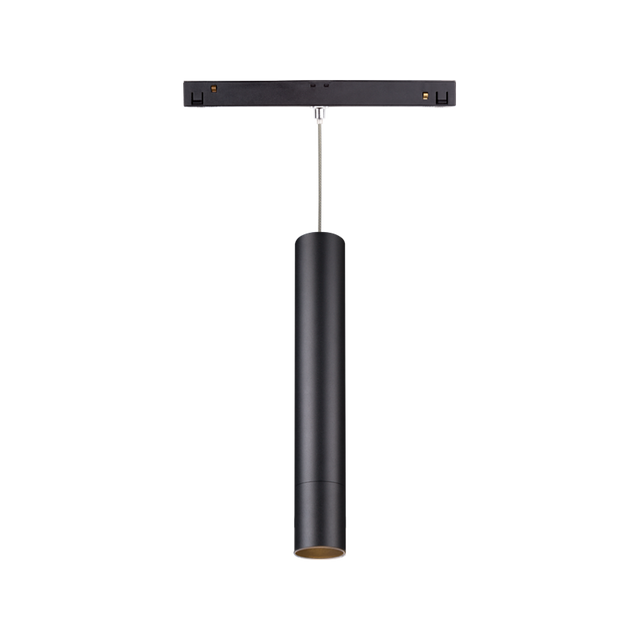

Archilight Tito Black Track Light BLE 10W
Notify me when it's back in stock
Specifications
Specifications
- Order code
- KC-017032A33
- Input
- 48 V
- Power rating
- 10 W
- Beam angle
- 15° / 23° / 36°
- Brightness
- 940 lm
- Efficacy
- ≥94 lm/W
- Colour render index(CRI)
- ≥90
- Colour temperature
- 2700K / 3000K / 4000K / 2700K - 6000K
- UGR
- <19
- IP level
- IP20
- Temperature range
- -25°C~50°C
- Dimming control
- Bluetooth APP Control (Default) or DALI (Optional)
- Tiltable
- Fixed
- Mounting
- Motion Magnetic Track Series
- Driver
- 48V Driver Not Included
- Warranty
- 5 years
- Lifetime
- 50,000hrs
- Material
- Aluminum
- Finish
- White, Black, Red, Green, Yellow, Blue
Certifications & ratings
- Certification marks
- CE, CB, TÜV, Class II
Technical drawings
Downloads
Datasheet1
FAQ
What applications is the Archilight Tito Black Track Light BLE 10W suited for?
This magnetic track light is designed for interior feature lighting above benchtops, tables, and display areas. It is suitable for residential, hospitality, office, and retail environments where focused accent lighting is needed.
What track system is this product compatible with?
The Tito series is intended to pair with Motion series track systems. It belongs to the magnetic track lighting family, so it is best considered as part of a Motion track lighting setup rather than a standalone fitting.
Does the Archilight Tito Black Track Light BLE 10W include a driver and can it be dimmed?
The 48V driver is not included with this product. Dimming is supported via Bluetooth APP Control (default) or DALI (optional).
What light quality can buyers expect from this track light?
This model uses a high quality LED chip with a CRI greater than 90, which supports strong colour rendering in commercial and residential spaces. The 3000K variant delivers 940 lumens.
What are the key physical and performance specifications of this product family?
The parent model is rated at 10W and uses 48V power input. It features a 15° / 23° / 36° beam angle and is constructed from aluminum.
What is the expected service life and warranty period?
The Tito Black Track Light BLE 10W is rated for a 50,000 hour lifetime. It also comes with a 5 year warranty period, which makes it suitable for long-term specification in commercial and residential projects.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Other Archilight Tito Series Models
5 other models| Model | Power | CRI | Dimming | UGR | |
|---|---|---|---|---|---|
| Archilight Tito Yellow Tracklight Light 10W | 10W | 90 | Non Dimmable | 19 | View |
| Archilight Tito White Tracklight Light 10W | 10W | 90 | Non Dimmable | 19 | View |
| Archilight Tito Red Tracklight Light 10W | 10W | 90 | Non Dimmable | 19 | View |
| Archilight Tito Green Tracklight Light 10W | 10W | 90 | Non Dimmable | 19 | View |
| Archilight Tito Black Tracklight Light 10W | 10W | 90 | Non Dimmable | 19 | View |
