Archilight

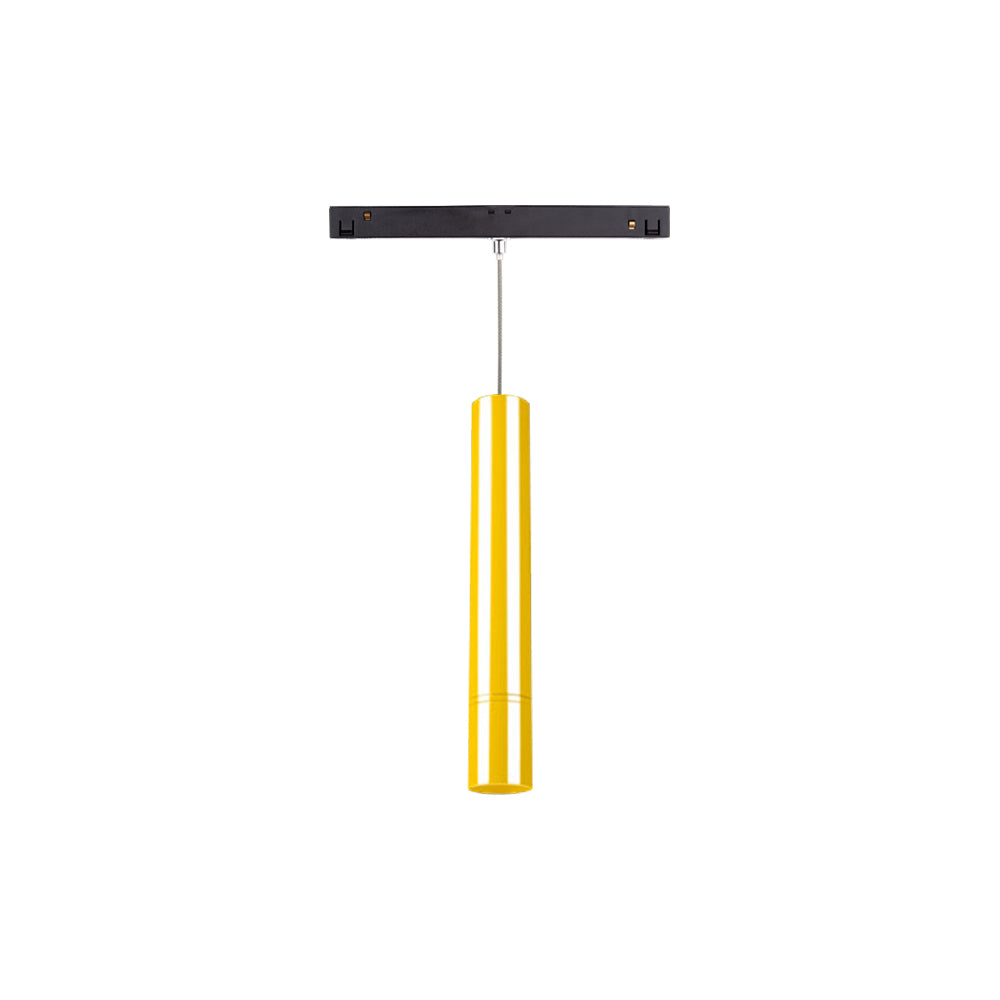

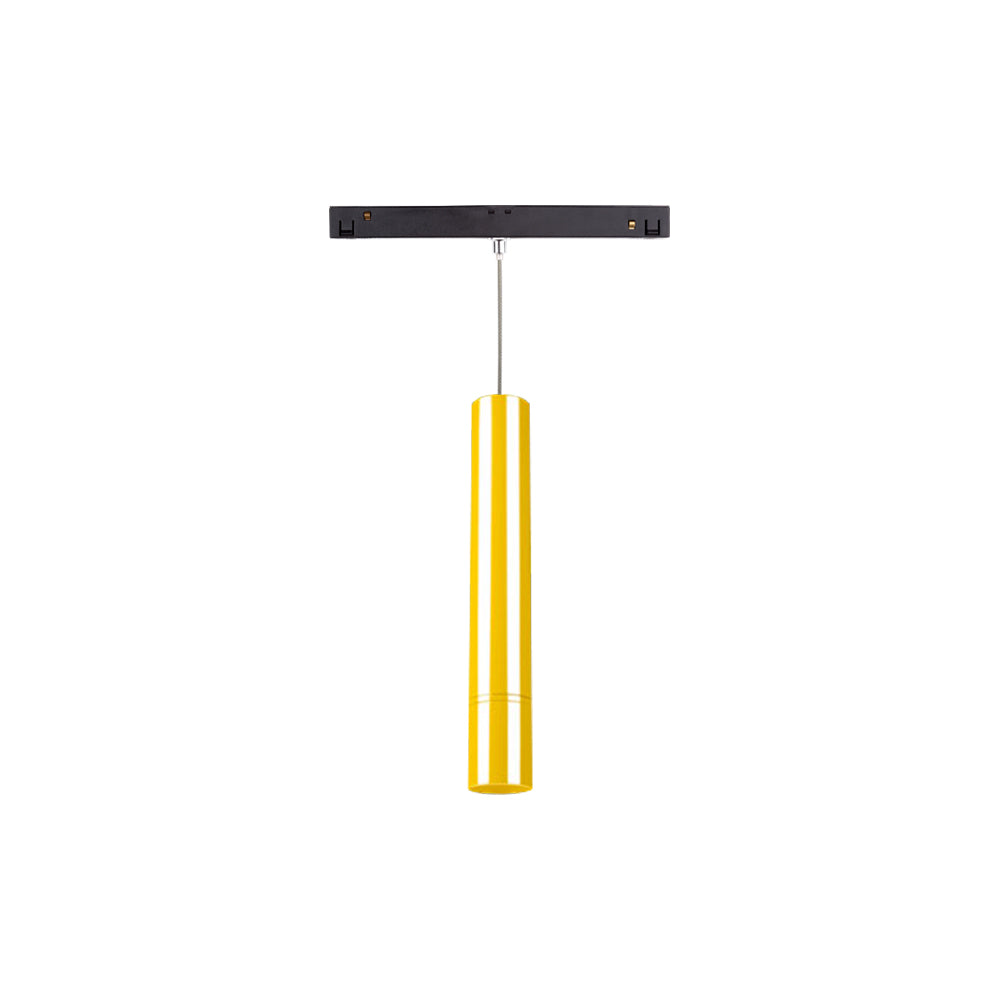

Archilight Tito Yellow Tracklight Light 10W

SKU KC-017032A33-23D-2700K-Y
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Configure — 6 variants

KC-017032A33-23D-2700K-Y
LED Colour
Beam Angle
6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.
Available to order
|

Specifications

Archilight Tito Yellow Tracklight Light 10WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKUBeam AngleLED Colour
KC-017032A33-23D-3000K-Y23°Warm White 3000K
KC-017032A33-23D-4000K-Y23°Natural White 4000K
KC-017032A33-36D-2700K-Y36°Warm White 2700K
KC-017032A33-36D-3000K-Y36°Warm White 3000K
KC-017032A33-36D-4000K-Y36°Natural White 4000K

Specifications

Input
48 V
Power rating
10 W
Brightness
940 lm
Efficacy
≥94 lm/W
Colour render index(CRI)
≥90
UGR
<19
IP level
IP20
Temperature range
-25°C~50°C
Dimming control
Bluetooth APP Control (Default) or DALI (Optional)
Tiltable
Fixed
Mounting
Motion Magnetic Track Series
Driver
48V Driver Not Included
Warranty
5 years
Lifetime
50,000hrs
Material
Aluminum

Certifications & ratings

Certification marks
CE, CB, TÜV, Class II

Technical drawings

Archilight Tito Yellow Tracklight Light 10W Finish colour
Finish colour
Archilight Tito Yellow Tracklight Light 10W BLUETOOTH DIMMABLE VERSIONS
BLUETOOTH DIMMABLE VERSIONS
Archilight Tito Yellow Tracklight Light 10W Finish colour
Finish colour

Downloads

FAQ

What is the Archilight Tito Yellow Tracklight Light 10W best suited for?

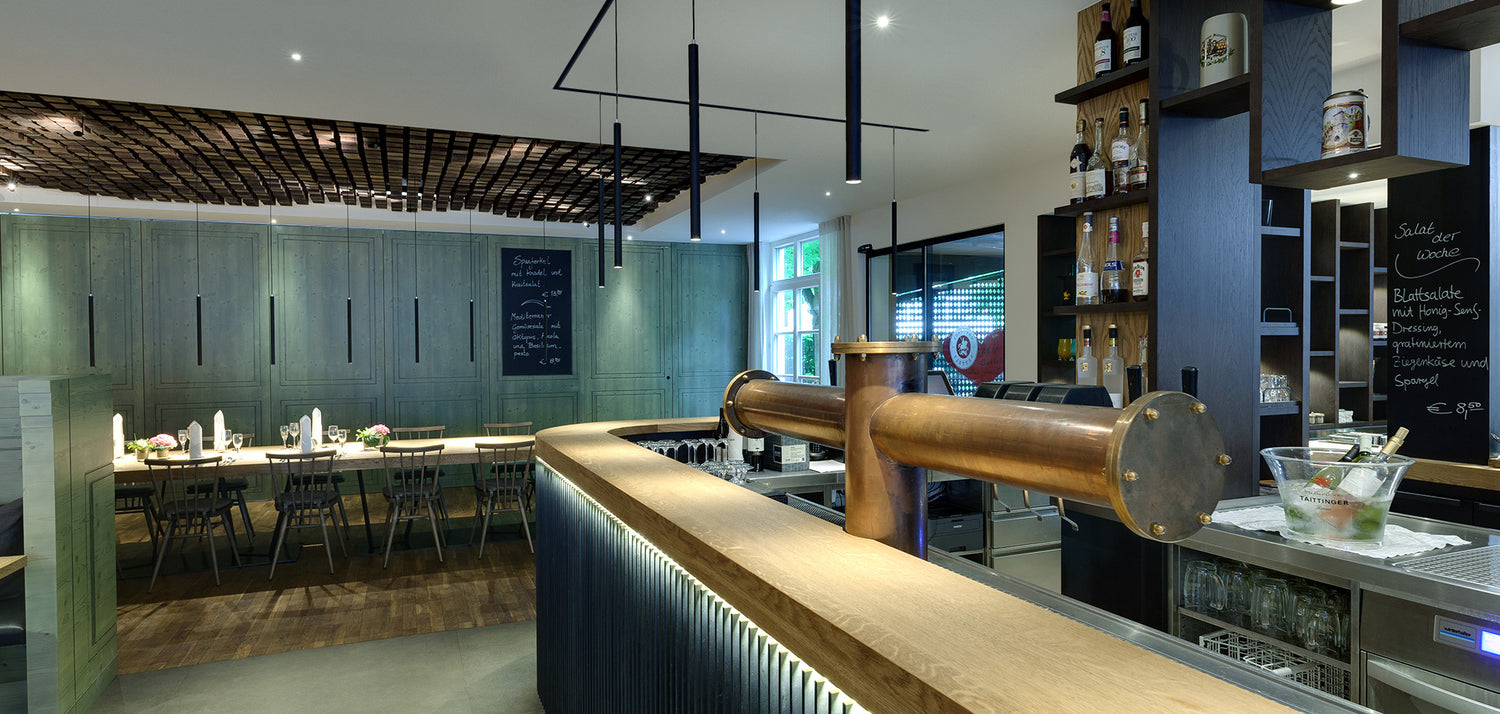

This magnetic track light is designed for interior applications where a feature light is needed above benchtops, tables, displays, and similar focal areas. It is suitable for residential, hospitality, office, and retail spaces. The yellow trim also makes it useful where a more distinctive decorative finish is wanted.

What options are available across the Tito Yellow 10W family?

This parent family includes beam angle options of 23 degrees and 36 degrees. It also comes in four colour temperature variants: 2700K, 3000K, 4000K, and 5000K. Across those variants, the listed output remains 700 lm with 10W power and CRI 90.

Is the Tito Yellow Tracklight Light dimmable?

The listed dimming control for this family is none. That means this product range is not specified as dimmable in the provided data. Buyers needing dimming should check for an alternative product family with dimming support.

Does the Archilight Tito Yellow Tracklight Light 10W include a driver?

No, the driver is listed as not included for this product family. The input specification shown is 48V power input. This is important for buyers comparing complete fitting packages versus light modules only.

What track system is this light compatible with?

The product description states that the Tito series should be paired with any Motion series track. That makes it part of the magnetic track lighting system rather than a standalone ceiling light. Compatibility should therefore be considered at the Motion track system level.

What are the key performance specifications of this track light family?

This family is rated at 10W and uses a high colour rendering LED with CRI greater than 90, with the structured product data listing CRI 90. It has a stated lifetime of 50,000 hours and a 5-year warranty period. Each child variant is also listed at 700 lumens.

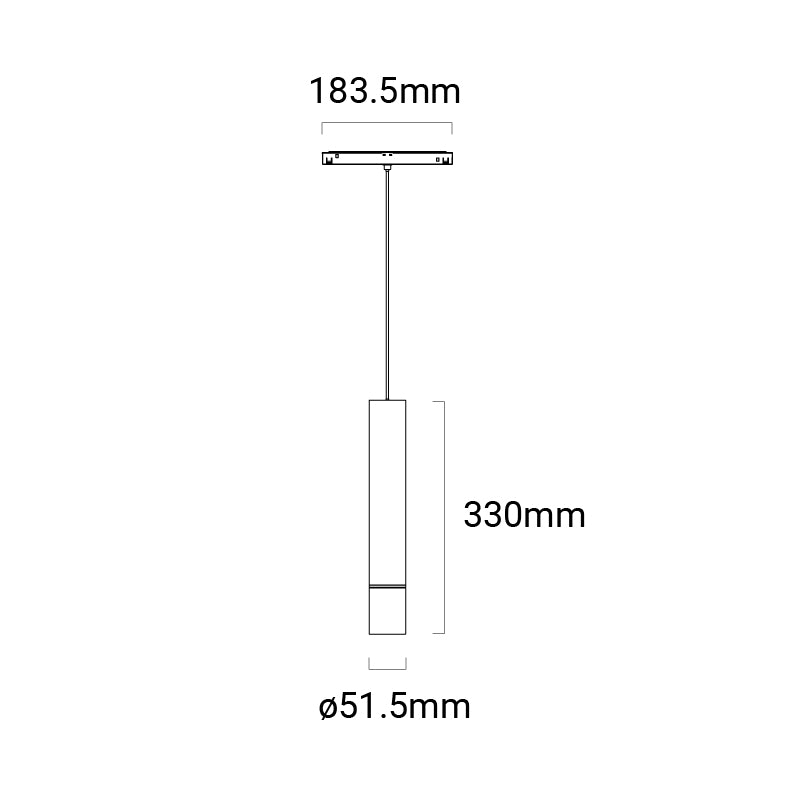

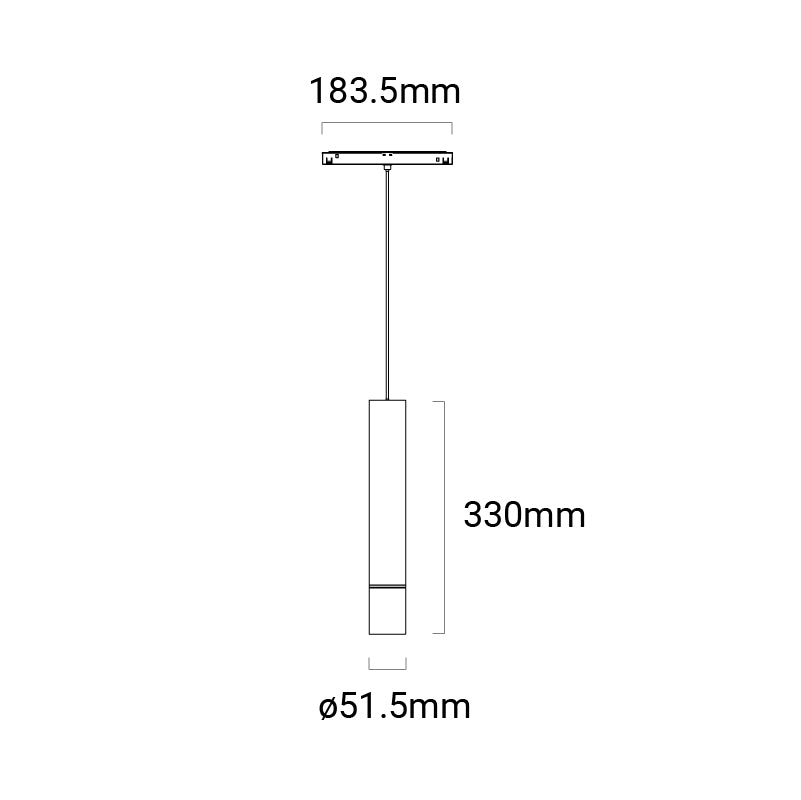

What are the physical dimensions of the Archilight Tito Yellow Tracklight Light 10W?

The parent model is listed as 330 mm high, 183.5 mm long, and 51.5 mm wide. Its weight is 0.5 kg. These dimensions help when assessing scale for display, feature, or commercial interior lighting layouts.

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

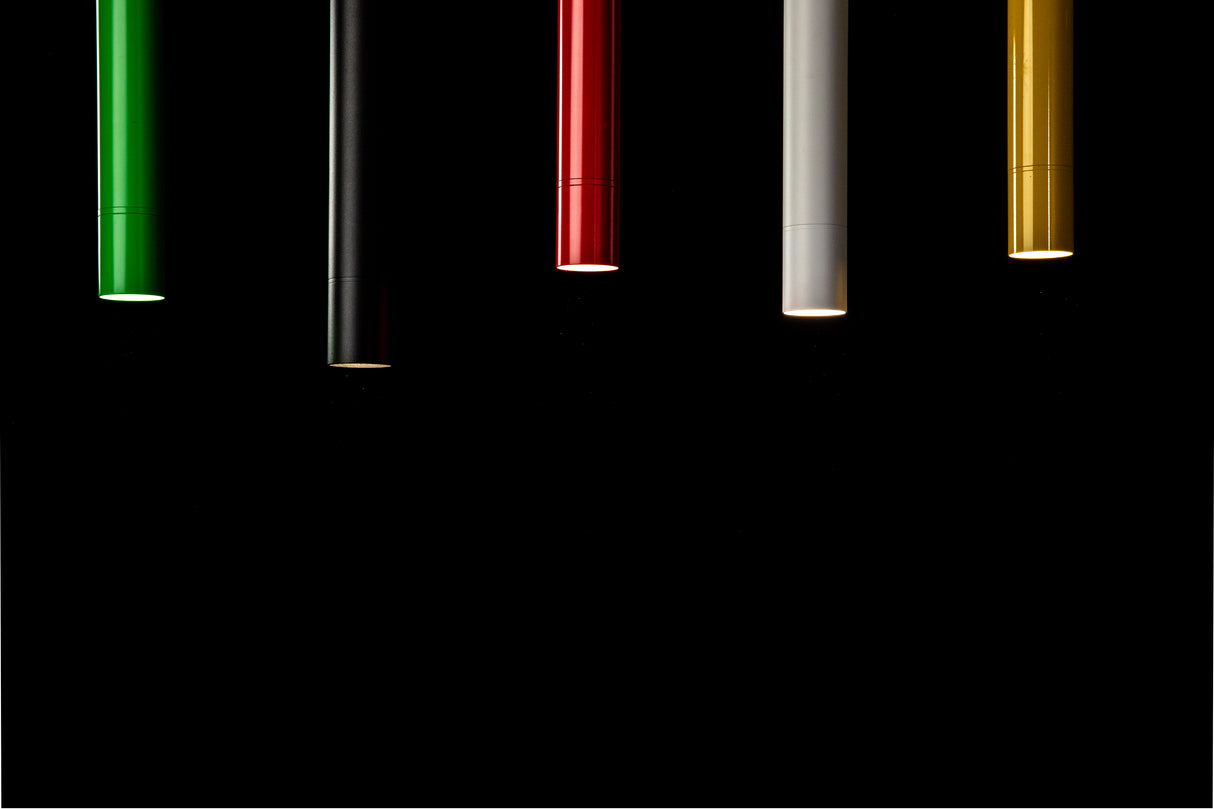

Other Archilight Tito Series Models
