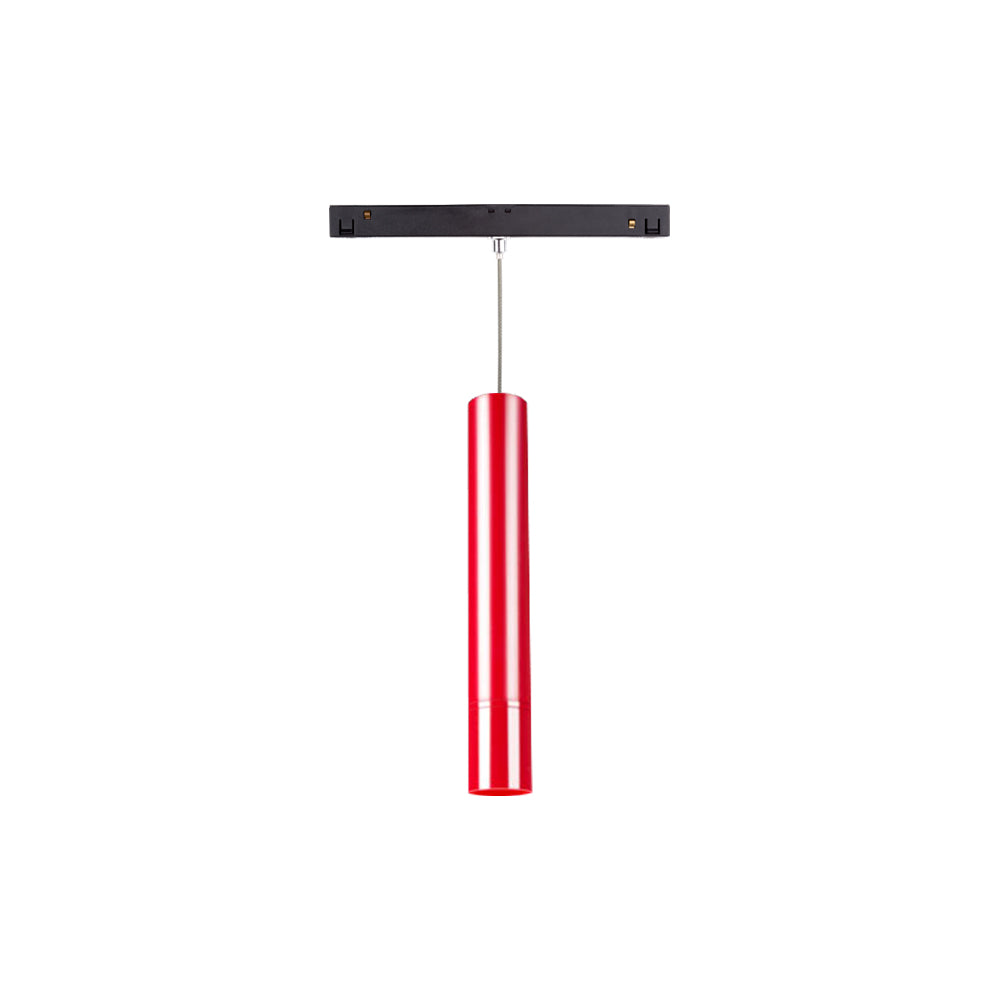

Archilight Tito Red Tracklight Light 10W

SKU KC-017032A33-23D-2700K-R

Log in to see price Trade pricing & online ordering for account holders

Configure — 6 variants

KC-017032A33-23D-2700K-R

LED Colour

Beam Angle

6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Tito Red Tracklight Light 10WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour
KC-017032A33-23D-4000K-R	23°	Natural White 4000K
KC-017032A33-36D-2700K-R	36°	Warm White 2700K
KC-017032A33-36D-3000K-R	36°	Warm White 3000K
KC-017032A33-36D-4000K-R	36°	Natural White 4000K

Specifications

Input: 48 V
Power rating: 10 W
Brightness: 940 lm
Efficacy: ≥94 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Bluetooth APP Control (Default) or DALI (Optional)
Tiltable: Fixed
Mounting: Motion Magnetic Track Series
Driver: 48V Driver Not Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, Class II

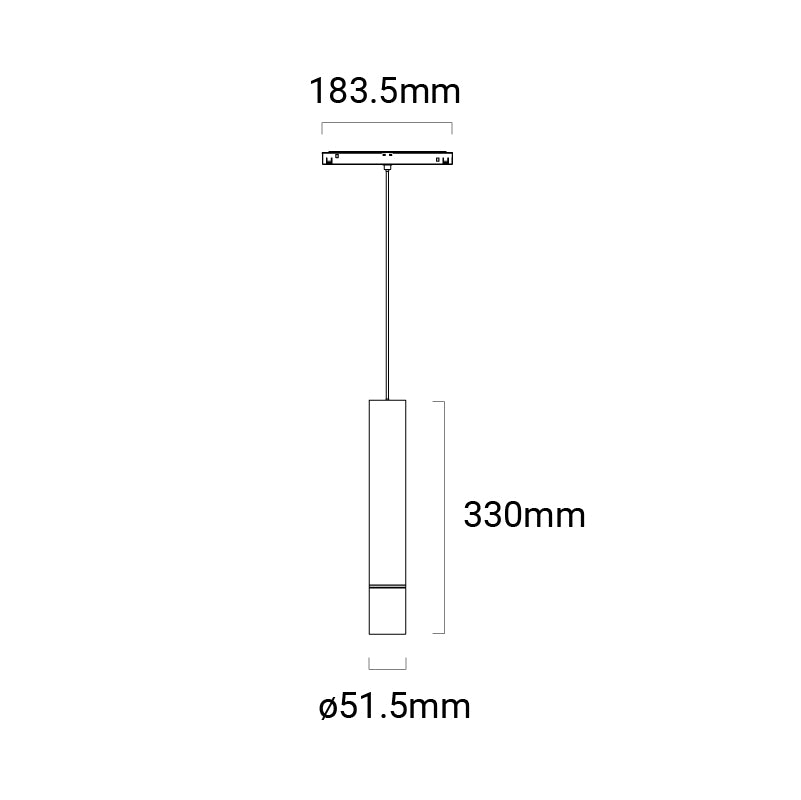

Technical drawings

Archilight Tito Red Tracklight Light 10W Finish colour — Finish colour

Archilight Tito Red Tracklight Light 10W BLUETOOTH DIMMABLE VERSIONS — BLUETOOTH DIMMABLE VERSIONS

Downloads

Datasheet1

Archilight Tito Red Tracklight Light 10W datasheetTito.pdf PDF Download

FAQ

What is the Archilight Tito Red Tracklight Light 10W designed for?

The Tito series is a magnetic track light intended for feature lighting above benchtops, tables, and display areas. It is suitable for residential, hospitality, office, and retail applications where focused accent lighting is needed.

What variant options are available in the Tito Red 10W family?

This parent model is available with two beam angles, 23 degree and 36 degree, and with four colour temperatures: 2700K, 3000K, 4000K, and 5000K. All listed variants share the same 10W power rating, red finish, CRI 90, 700 lm output, 50,000 hour lifetime, and 5 year warranty.

How do I choose between the 23 degree and 36 degree beam angles?

The 23 degree option is better for a tighter, more concentrated beam, which suits feature highlighting and more targeted illumination. The 36 degree option provides a broader spread, which is typically better when you want wider coverage across a surface or display.

What colour temperature options are offered for this product family?

The Tito Red 10W family is offered in 2700K, 3000K, 4000K, and 5000K. This gives buyers a choice from warmer light tones through to cooler, crisper light, depending on the project setting and visual preference.

Is the Tito Red Tracklight Light compatible with Motion track systems?

Yes. The product description states that it pairs with any Motion series track, so compatibility is intended across that track family. This FAQ applies to the Tito Red parent family rather than to a single SKU.

What are the core performance specifications of the Tito Red 10W family?

Across the listed variants, the product uses 10W of power, delivers 700 lumens, and has a CRI greater than 90 for strong colour rendering. It also has a rated lifetime of 50,000 hours, uses 48V power input, and comes with a 5 year warranty.

Does this product include a driver or dimming function?

No. The supplied parent and child data show that the driver is not included and dimming control is listed as none across the whole family. That means these family variants are not presented as dimmable versions in the data provided.
