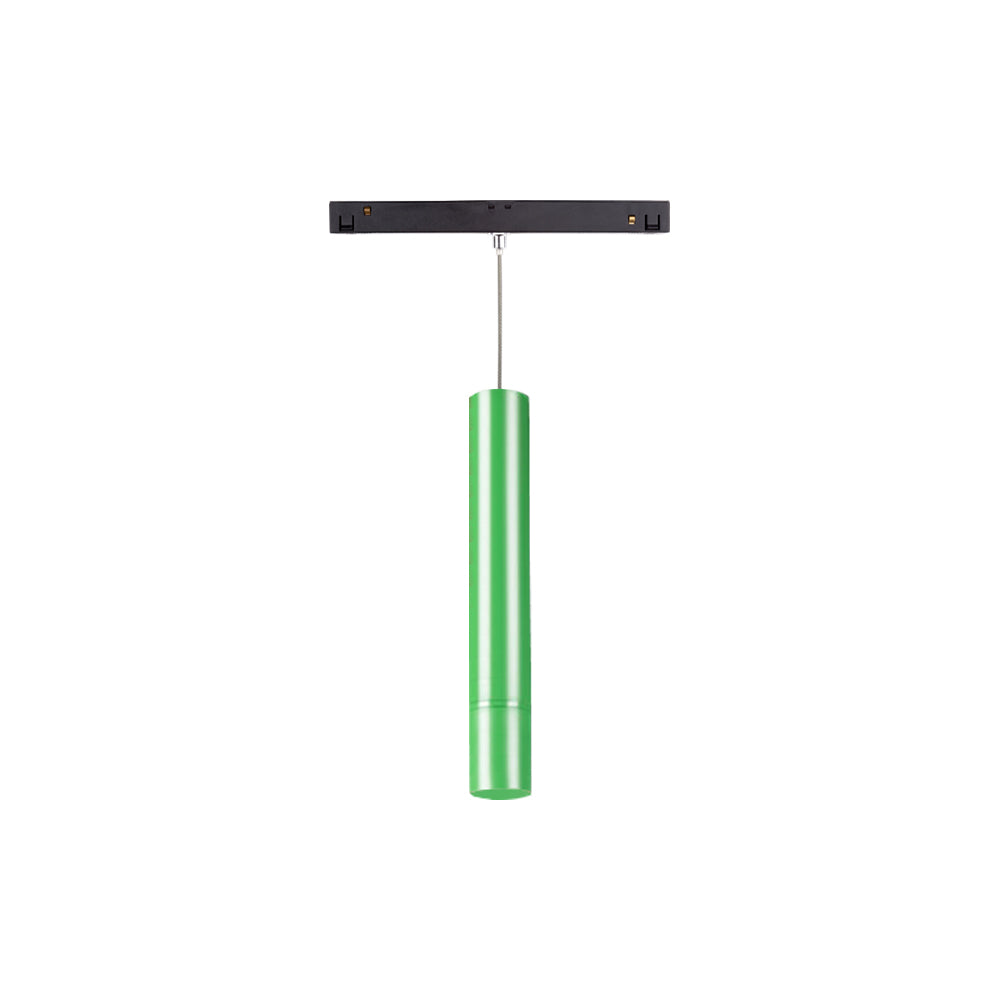

Archilight Tito Green Tracklight Light 10W

SKU KC-017032A33-23D-2700K-G

Log in to see price Trade pricing & online ordering for account holders

Configure — 6 variants

KC-017032A33-23D-2700K-G

LED Colour

Beam Angle

6 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Available to order

Specifications

Archilight Tito Green Tracklight Light 10WSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Beam Angle	LED Colour
KC-017032A33-23D-4000K-G	23°	Natural White 4000K
KC-017032A33-36D-2700K-G	36°	Warm White 2700K
KC-017032A33-36D-3000K-G	36°	Warm White 3000K
KC-017032A33-36D-4000K-G	36°	Natural White 4000K

Specifications

Input: 48 V
Power rating: 10 W
Brightness: 940 lm
Efficacy: ≥94 lm/W
Colour render index(CRI): ≥90
UGR: <19
IP level: IP20
Temperature range: -25°C~50°C
Dimming control: Bluetooth APP Control (Default) or DALI (Optional)
Tiltable: Fixed
Mounting: Motion Magnetic Track Series
Driver: 48V Driver Not Included
Warranty: 5 years
Lifetime: 50,000hrs
Material: Aluminum

Certifications & ratings

Certification marks: CE, CB, TÜV, Class II

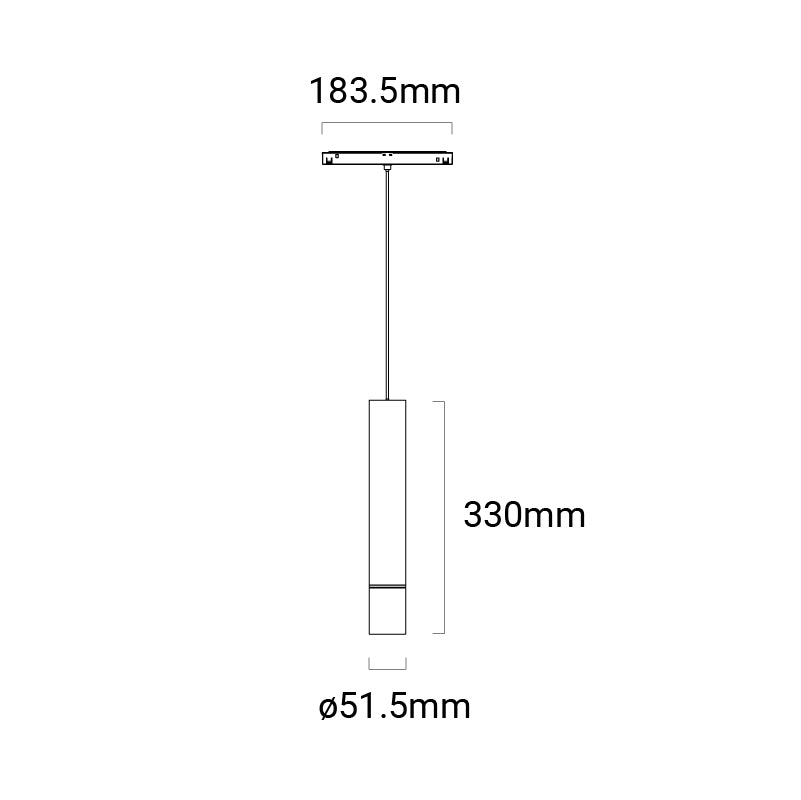

Technical drawings

Archilight Tito Green Tracklight Light 10W Finish colour — Finish colour

Archilight Tito Green Tracklight Light 10W BLUETOOTH DIMMABLE VERSIONS — BLUETOOTH DIMMABLE VERSIONS

Downloads

Datasheet1

Archilight Tito Green Tracklight Light 10W datasheetTito.pdf PDF Download

FAQ

What is the Archilight Tito Green Tracklight Light 10W designed for?

This magnetic track light is intended as a feature light above benchtops, tables, and display areas. It is suited to residential, hospitality, office, and retail projects where focused accent lighting is needed.

What options are available across the Tito Green Tracklight family?

Across this parent family, the light is available in 23 degree and 36 degree beam angles, with colour temperatures of 2700K, 3000K, 4000K, and 5000K. These options let buyers choose between a narrower or wider beam and a warmer or cooler light appearance while staying within the same 10W green-finish product family.

How bright is the Archilight Tito Green Tracklight Light 10W?

The listed child variants in this family are rated at 700 lumens with a 10W power rating. That makes it appropriate for accent and feature lighting where controlled, directional output is preferred over broad general illumination.

What light quality can I expect from this track light?

This family uses a high quality LED chip with a CRI of 90, which supports strong colour rendering. That makes it a good fit for applications where the appearance of surfaces, products, or finishes matters.

Is the Tito Green Tracklight compatible with Motion series track systems?

Yes. The product description states that it pairs with Motion series track, so this parent family is intended for use within that track system range.

Does this track light include a driver or dimming control?

No. The parent product data lists the driver as not included and the dimming control as none. It also specifies a 48V power input for the fitting.

What are the physical size and service-life specs for this product family?

The parent model is listed as 330 mm high, 183.5 mm long, 51.5 mm wide, and 0.5 kg in weight. It also has a 50,000 hour lifetime rating and a 5 year warranty period.
