Vimar VM-14195 Wi-Fi access point 230V 2M white
Log in to see priceOverview
VM-14195 is Vimar PLANA 14195, wi-Fi access point 230V 2M white.
Wi-Fi 72,2 Mb/s Access Point with 2 10-100 Mb/s LAN ports, input for remote Wi-Fi radio on/off push button, supply voltage 230 V~ 50/60 Hz, white - 2 modules
Specifications
Technical data
- Product type
- WLAN access point
- Max. data transmission rate
- 54
- Frequency band
- 2.4 GHz
- Radio protocol
- IEEE 802.11 b/g/n
- Ethernet
- Yes
- Number of ports 10/100 Mbps LAN
- 2
- Firewall
- No
- Connection for external antenna
- No
- Bridge function
- Yes
- Repeater function
- No
- Power over Ethernet
- No
- Colour
- White
- Width
- 44.8 mm
- Height
- 4.9.00 mm
- Depth
- 51.7 mm
- Degree of protection (IP)
- IP40
- Built-in
- No
- Suitable for DIN rail (top hat rail) mounting
- No
- Pole fastening
- No
- Flush-mounted installation
- Yes
- Suitable for wall mounting
- Yes
- Socket outlet adaptor
- No
Packaging
- EAN
- 8007352589544
- Packed size (cm)
- 5.2 Γ 5.7 Γ 7.6
- Packed weight
- 84.3 g
- Pieces per box
- 5
Certifications
- Certifications
- WEEE Directive

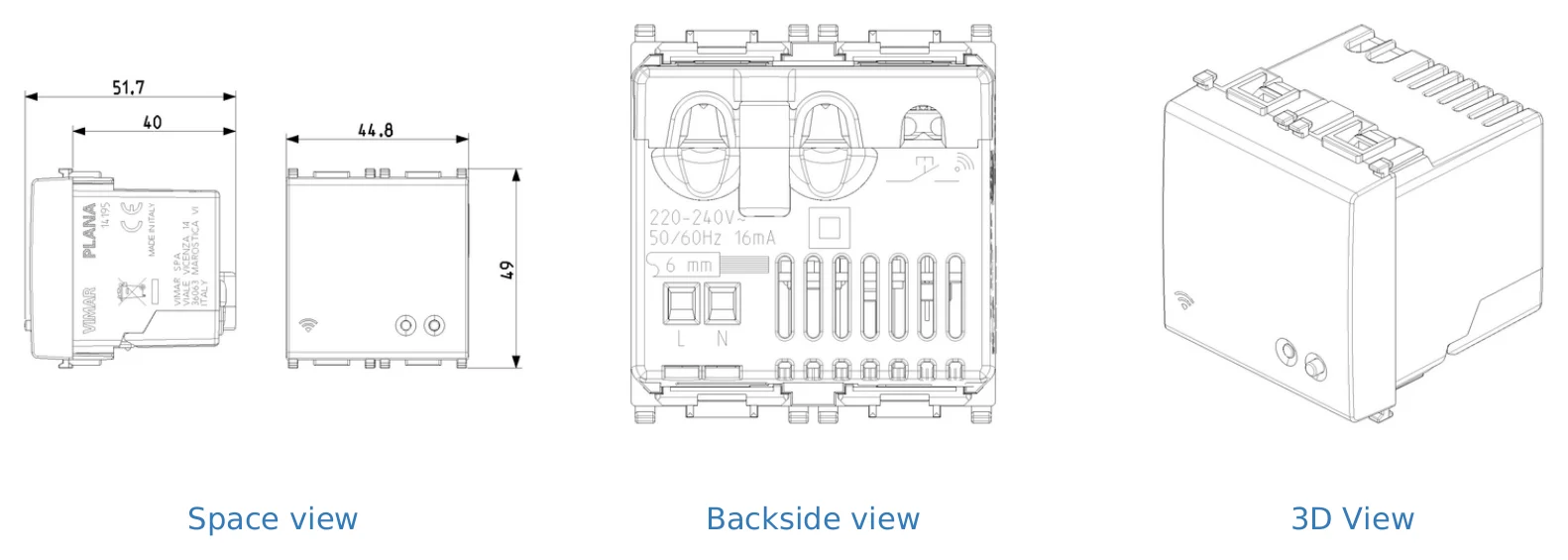

Technical drawings
Downloads
FAQ
What is the Vimar VM-14195 used for?
The Vimar VM-14195 is a Wi-Fi access point designed for smart home and building environments. It provides wireless network access and also includes two 10/100 Mb/s LAN ports, making it suitable for projects that need both Wi-Fi coverage and basic wired network connectivity.
What are the main technical specifications of the Vimar VM-14195?
This model supports Wi-Fi with a maximum data rate of 72.2 Mb/s and includes two 10/100 Mb/s LAN ports. It operates on 230 V at 50/60 Hz, has a Wi-Fi radio on/off push button, and comes in a white 2-module format.
Is the Vimar VM-14195 suitable for professional smart building projects?
Yes. Based on its product family and categories, this model is positioned for smart home and building applications, including Vimar By-me Plus contexts. Its compact 2-module design and integrated wired plus wireless networking features make it relevant for professional installations where space and system consistency matter.
What environmental conditions can the Vimar VM-14195 handle?
The VM-14195 is rated for an operating temperature range from -25Β°C to 70Β°C. That wide range makes it suitable for environments where equipment may be exposed to significant temperature variation, as long as the overall installation conditions match the product's intended use.
How does the Vimar VM-14195 differ from a basic network device?
Unlike a device that only offers either wired or wireless networking, the VM-14195 combines Wi-Fi access point functionality with two 10/100 Mb/s LAN ports. It also includes a dedicated Wi-Fi radio on/off push button and is built in a 230 V, 2-module format intended for integrated building system applications.
