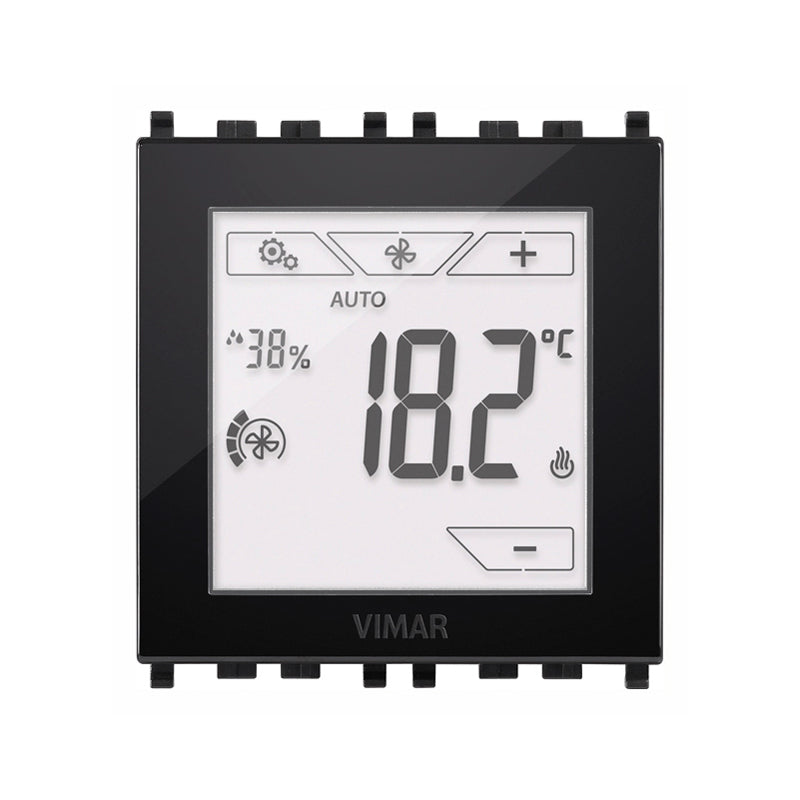

Vimar VM-02951 Domotic Touch-thermostat 2M Black

Touch screen2/4 pipeEcometer function

SKU VM-02951

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

VM-02951 is Vimar 02951, domotic touch-thermostat 2M black.

Touchscreen home automation system thermostat for ambient temperature control (heating and air-conditioning), 2 and 4 pipe system management, 3-speed and proportional fan-coil control, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, 1 input for flush- mounting or wired NTC temperature sensor, RGB LED backlighting, can be interfaced with actuator with proportional analogue outputs 01466 to make a class V modulating room thermostat (contribution 3%), to be completed with Eikon, Arké or Plana cover plates, black - 2 modules

Features

Ambient humidity control and display
Also for managing underfloor systems - both single and two- tier - in heating and in cooling mode
Highly reactive capacitive touch screen
Ecometer function: for greater energy awareness
Compatible with the Eikon, Arké and Plana series, the glass- look reflex design is available in three different colours

Specifications

VM-02951Specifications from the official datasheet

Technical data

Product type: Room temperature controller for bus system
Bus system KNX: No
Bus system KNX-RF (Radio Frequency): No
Bus system radio frequency: No
Bus system LON: No
Bus system Powernet: No
Radio frequency bidirectional: No
Assembly arrangement: Basic element
Mounting method: Flush-mounted
With local operation: Yes
With anti-theft/dismantling protection: No
With LED indication: No
With display: Yes
Material: Plastic
Surface finishing: Glossy
Colour: Black
RAL-number (similar): 9004
Transparent: No
Manual set point setting: Yes
Presence button: No
Parallel-service possible: No
Degree of protection (IP): IP40
With bus connection: Yes
Class of the temperature control: V

Packaging

EAN: 8007352512405
Packed size (cm): 11.2 × 9.6 × 9.8
Packed weight: 128.9 g
Pieces per box: 18

Certifications

Certifications: CE marking (EU), WEEE Directive

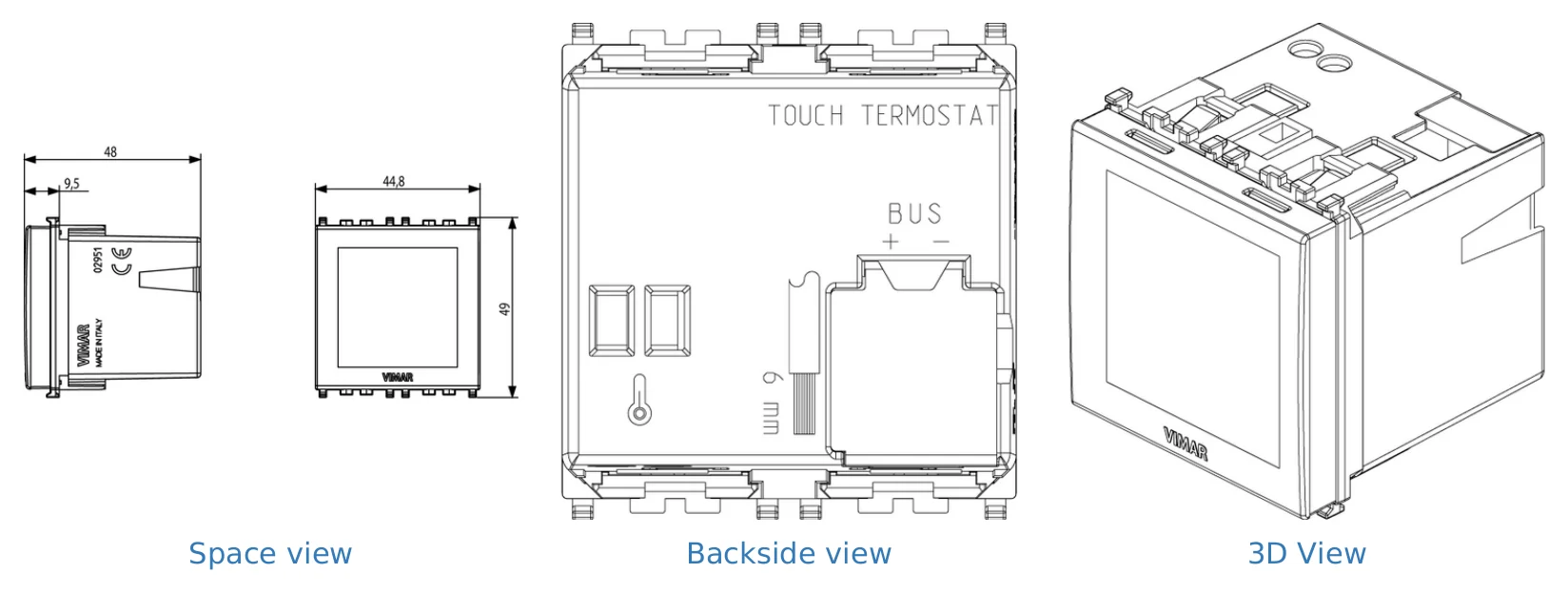

Technical drawings

Downloads

Certificates2

Vimar Electrotechnical Expert Certificate PDF Download

Vimar WEEE Directive Certificate PDF Download

FAQ

What is the Vimar VM-02951 used for?

The Vimar VM-02951 is a touchscreen room thermostat for ambient temperature control in home automation environments. It is designed to manage heating and air-conditioning applications and supports both 2-pipe and 4-pipe system management.

Is this thermostat suitable for fan-coil systems?

Yes. This model supports 3-speed fan-coil control as well as proportional fan-coil control. That makes it a fit for projects that need room-level temperature regulation with fan-coil-based heating or cooling.

What temperature control modes does the VM-02951 support?

This thermostat supports ON/OFF mode and PID mode. In ON/OFF mode it is classified as a class I temperature control device with a 1% contribution, while in PID mode it is class IV with a 2% contribution.

Can the Vimar VM-02951 work with an external temperature sensor?

Yes. It includes 1 input for a flush-mounting or wired NTC temperature sensor. This gives the model added flexibility in installations that require temperature sensing beyond the thermostat's main control point.

What makes this model different from a basic non-touch thermostat?

The VM-02951 combines a touchscreen interface with RGB LED backlighting for a more modern control experience. It is also built for domotic applications and supports broader HVAC management features such as 2-pipe or 4-pipe operation and fan-coil control.

What environmental range is specified for this thermostat?

The stated temperature range for this model is from -25 °C to 70 °C. Product buyers should use that specification when evaluating whether it matches the environmental conditions of the intended project.

Is the Vimar VM-02951 compatible with proportional control applications?

Yes. The product can be interfaced with actuator 01466 for proportional analogue output applications, allowing it to function as a class V modulating room thermostat. This is relevant for projects that require more refined control than simple ON/OFF operation.
