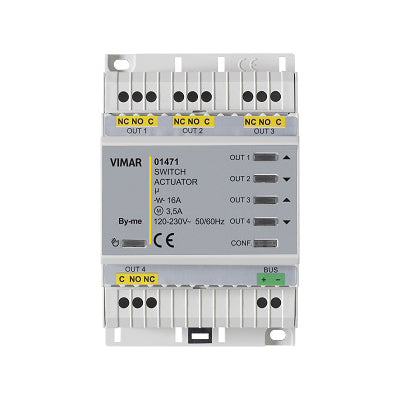

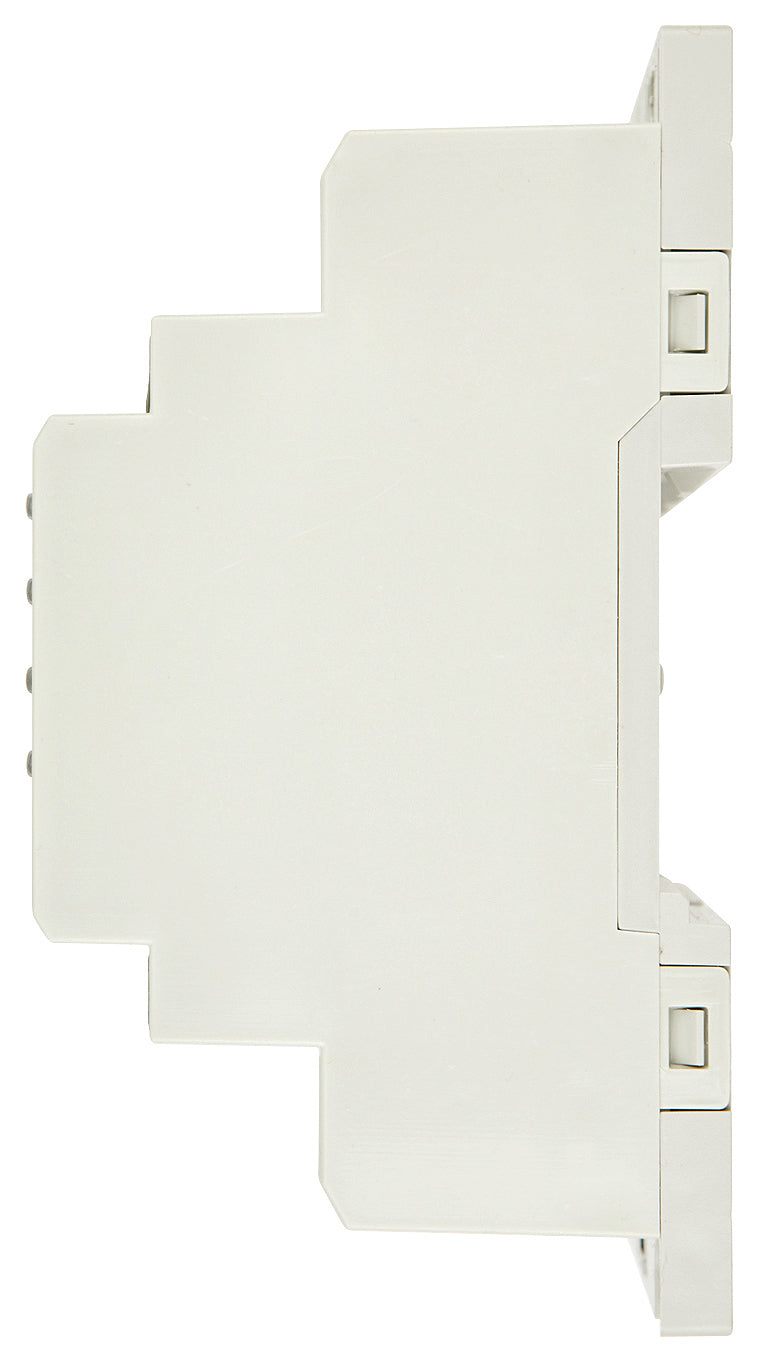

Vimar VM-01471 Multifunct.autom.actuator 4OUT relay

Din Rail16A By-me Plus Actuator4 output
SKU VM-01471
Log in to see price Trade pricing & online ordering for account holders
In stock
|

Overview

VM-01471 is Vimar 01471, multifunct.autom.actuator 4OUT relay.

Actuator with 4 programmable 16 A 120-230 V~ change-over relay outputs, for lighting and laths orientation and fan-coil control, local control push buttons, By-me home automation, for DIN (60715 TH35) rail installation, occupies 4 17,5 mm modules

Specifications

VM-01471Specifications from the official datasheet

Technical data

Product type
Switch actuator for bus system
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Radio frequency bidirectional
No
Width in number of modular spacings
4
Local operation/hand operation
Yes
With LED indication
Yes
Suitable for C-load
No
Max. number of switching contacts
4
Rated current
16 A
Rated operating voltage
120 - 230 V
Different phases connectable
No
With bus connection
Yes
Bus module detachable
Yes
Modular expandability
No
Degree of protection (IP)
IP20

Packaging

EAN
8007352539426
Packed size (cm)
11.7 Γ— 10.8 Γ— 7.1
Packed weight
241.3 g
Pieces per box
60

Certifications

Certifications
CE marking (EU), UK PSTI compliance, IMQ (Italy), RoHS UAE, WEEE Directive

Technical drawings

VM-01471 Drawings
Drawings

Downloads

FAQ

What is the Vimar VM-01471 used for?

The Vimar VM-01471 is a multifunction actuator designed for By-me home automation systems. It provides 4 programmable relay outputs for applications such as lighting control, laths orientation, and fan-coil control in building automation environments.

How many outputs does the Vimar VM-01471 have?

This model includes 4 programmable change-over relay outputs. Each output is rated for 16 A and supports operation in the 120-230 V~ range, making it suitable for several controlled loads within one device.

Is the Vimar VM-01471 suitable for dimming control?

No, the VM-01471 is a non-dimmable actuator. It is intended for relay-based switching and control functions rather than variable dimming of connected loads.

Which automation system is this actuator compatible with?

The Vimar VM-01471 is designed for the Vimar By-me home automation system. It is intended for projects that use By-me control architecture for managing functions like lighting, shading-related movement, and fan-coil operation.

Can the Vimar VM-01471 be used in demanding temperature conditions?

Yes, this actuator is specified for an ambient temperature range from -25 Β°C to 70 Β°C. That range makes it suitable for a broad set of indoor technical and building automation environments where temperature tolerance matters.

What are the physical and product support details for the Vimar VM-01471?

The device is made for DIN rail installation and occupies 4 modules of 17.5 mm each. It weighs 0.2413 kg and comes with a 3-year warranty period, which is useful for planning panel space and product lifecycle expectations.
