What is the Vimar VM-01455 used for?

The Vimar VM-01455 is a load control module designed for monitoring and managing electrical loads in smart home and building automation environments. It is part of the Vimar By-me Plus ecosystem and supports load measurement through three toroidal current sensor inputs.

What power range can the VM-01455 measure?

This model supports measurable powers from 25 W up to 100 kW. That range makes it suitable for tracking relatively small loads as well as substantially higher-power circuits in building applications.

Does the Vimar VM-01455 include a current sensor?

Yes, the VM-01455 is supplied with the Vimar 01457 toroidal current sensor. The product description specifies that the included sensor is part of the package for this model.

What power supply types is the VM-01455 compatible with?

The module supports single-phase power supply at 120-230 V, 50/60 Hz and three-phase power supply at 230/400 V, 50/60 Hz. This gives it flexibility for use in a range of commercial and building control environments.

What are the mounting and size characteristics of the Vimar VM-01455?

The VM-01455 is designed for DIN rail installation on a 60715 TH35 rail. It occupies 1 x 17.5 mm module, which helps minimize panel space usage in control cabinet applications.

Is the Vimar VM-01455 suitable for demanding temperature conditions?

This model is rated for operation from -25 °C to 70 °C. That operating range supports use in environments where equipment may be exposed to both low and elevated temperatures.

1 3

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Vimar

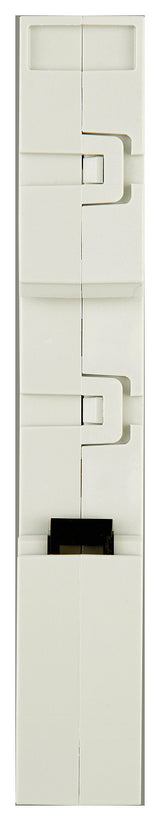

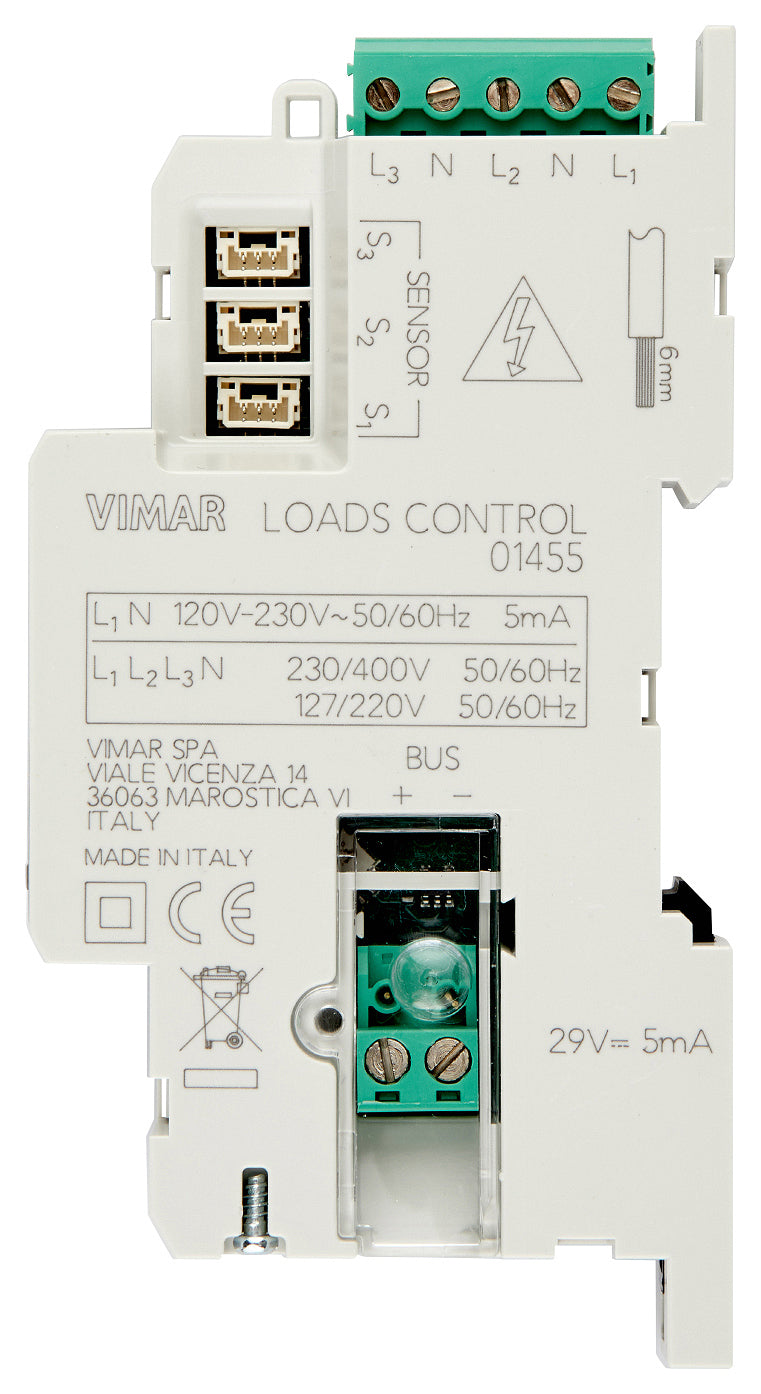

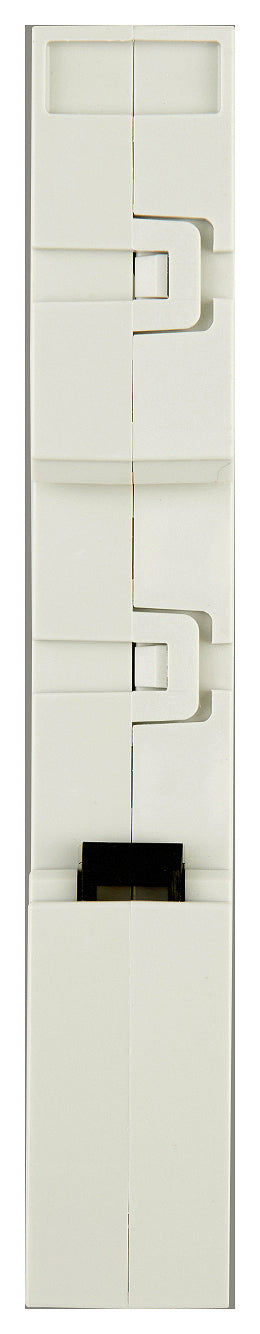

Vimar VM-01455 Loads control module 3IN current sensor

Measurable power 25W-100 kW1 phase/3 phase

SKU VM-01455

Log in to see price Trade pricing & online ordering for account holders

Notify me when it's back in stock

Load control module, 3 inputs for toroidal current sensor, measurable powers 25 W-100 kW, single phase power supply 120-230 V 50/60 Hz three phase 230/400 V 50/60 Hz, installation on DIN rail (60715 TH35), occupies 1 x 17.5 mm module. Supplied with toroidal current sensor 01457
