Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

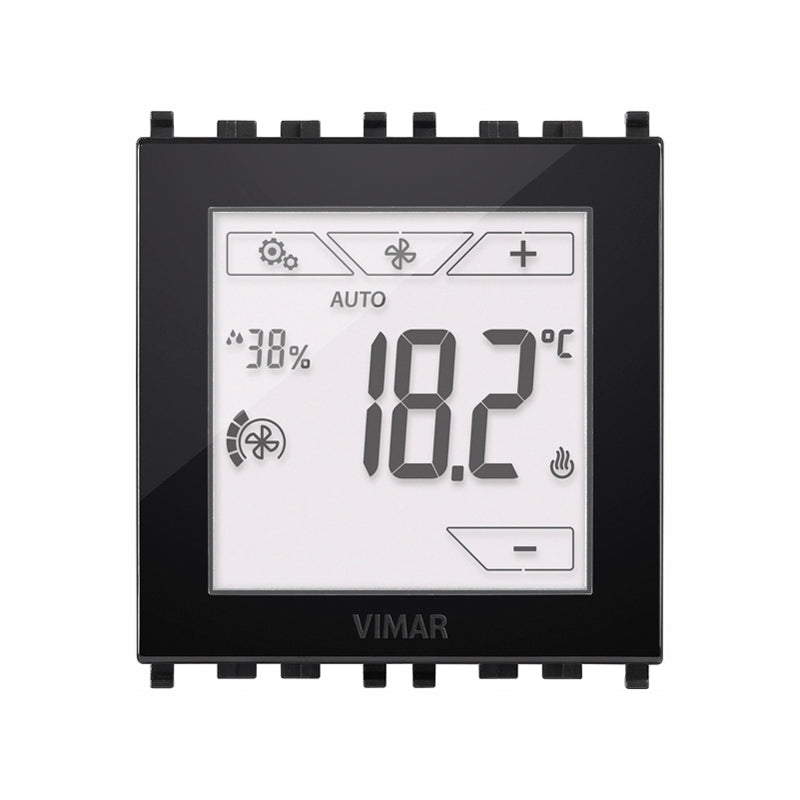

Vimar VM-02951 Domotic Touch-thermostat 2M Black

Touch screen, 2/4 pipe, Ecometer function

SKU:

VM-02951

Notify me when it's back in stock

Description

Touchscreen home automation system thermostat for ambient temperature control (heating and air-conditioning), 2 and 4 pipe system management, 3-speed and proportional fan-coil control, class I temperature control device (contribution 1%) in ON/OFF mode, class IV (contribution 2%) in PID mode, 1 input for flush-mounting or wired NTC temperature sensor, RGB LED backlighting, can be interfaced with actuator with proportional analogue outputs 01466 to make a class V modulating room thermostat (contribution 3%), to be completed with Eikon, Arké or Plana cover plates, black - 2 modules

Specifications

Brand

Vimar
Operating Temperature

-25°C~70°C
Warranty

3 Year
Length

11.2 cm
Width

9.6 cm
Height

9.8 cm
Weight

0.13 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Vimar VM-02951 used for?

The Vimar VM-02951 is a touchscreen room thermostat for ambient temperature control in home automation environments. It is designed to manage heating and air-conditioning applications and supports both 2-pipe and 4-pipe system management.

Is this thermostat suitable for fan-coil systems?

Yes. This model supports 3-speed fan-coil control as well as proportional fan-coil control. That makes it a fit for projects that need room-level temperature regulation with fan-coil-based heating or cooling.

What temperature control modes does the VM-02951 support?

This thermostat supports ON/OFF mode and PID mode. In ON/OFF mode it is classified as a class I temperature control device with a 1% contribution, while in PID mode it is class IV with a 2% contribution.

Can the Vimar VM-02951 work with an external temperature sensor?

Yes. It includes 1 input for a flush-mounting or wired NTC temperature sensor. This gives the model added flexibility in installations that require temperature sensing beyond the thermostat's main control point.

What makes this model different from a basic non-touch thermostat?

The VM-02951 combines a touchscreen interface with RGB LED backlighting for a more modern control experience. It is also built for domotic applications and supports broader HVAC management features such as 2-pipe or 4-pipe operation and fan-coil control.

What environmental range is specified for this thermostat?

The stated temperature range for this model is from -25 °C to 70 °C. Product buyers should use that specification when evaluating whether it matches the environmental conditions of the intended project.

Is the Vimar VM-02951 compatible with proportional control applications?

Yes. The product can be interfaced with actuator 01466 for proportional analogue output applications, allowing it to function as a class V modulating room thermostat. This is relevant for projects that require more refined control than simple ON/OFF operation.
