Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

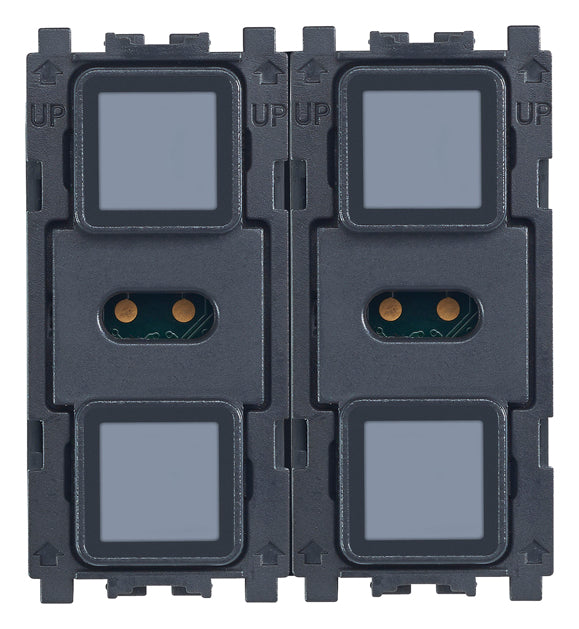

Vimar VM-21520.1 4-button home automation device

4 independent push buttonsRGB back lights

SKU VM-21520.1

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

VM-21520.1 is Vimar EIKON 21520.1, 4-button home automation device.

Home automation system control device, 4 independent push buttons or 2 rocker buttons, 4 independent RGB LEDs, to be completed with Eikon Tactil label and cover plate - 2 modules

Specifications

VM-21520.1Specifications from the official datasheet

Technical data

Product type: Push button
Material quality: Thermoplastic
Surface protection: Untreated
Surface finishing: Matt
Colour: Grey
RAL-number (similar): 7024
Transparent: No
Label space/information surface: Yes
Device width: 44.8 mm
Device height: 49 mm
Device depth: 44.3 mm

Packaging

EAN: 8007352607675
Packed size (cm): 11.2 × 9.6 × 9.8
Packed weight: 105.4 g

Certifications

Certifications: CE marking (EU), RoHS UAE, IMQ (Italy), WEEE Directive, UK PSTI compliance

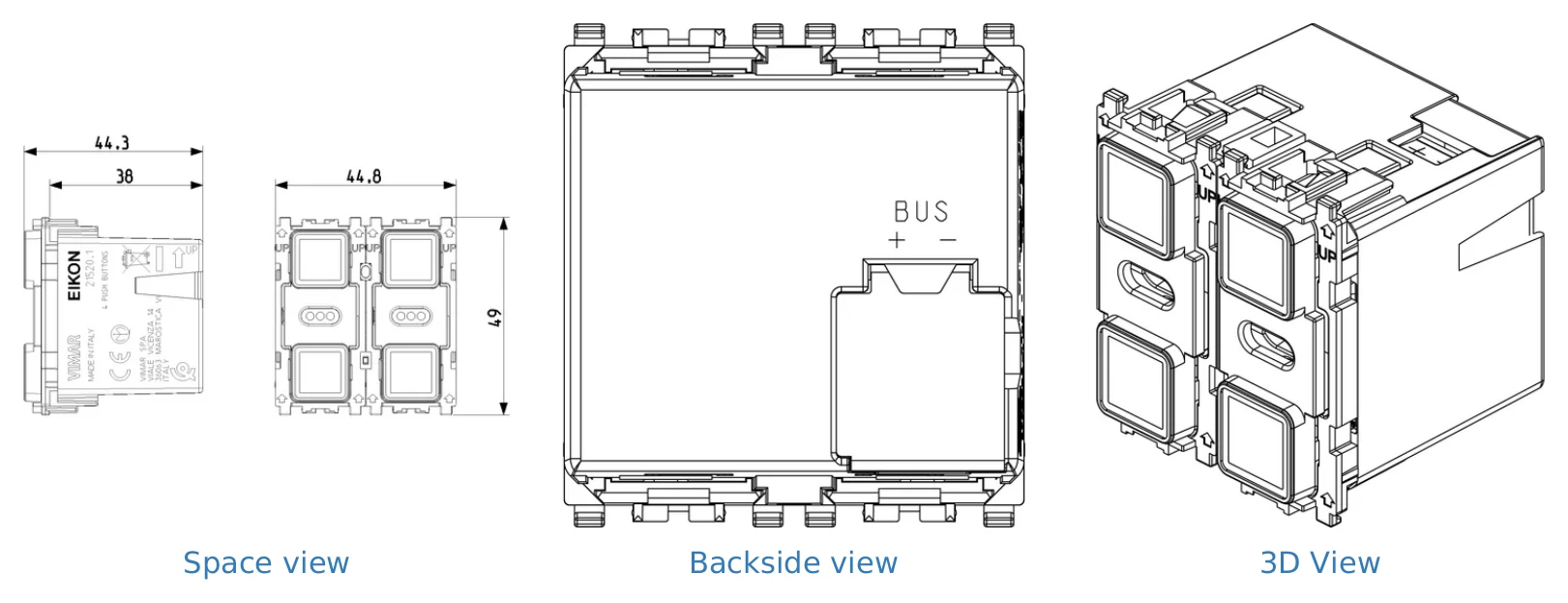

Technical drawings

Downloads

Installation manual1

VM_21520.1.pdf PDF Download

Certificates2

Vimar Electrotechnical Expert Certificate PDF Download

Vimar WEEE Directive Certificate PDF Download
