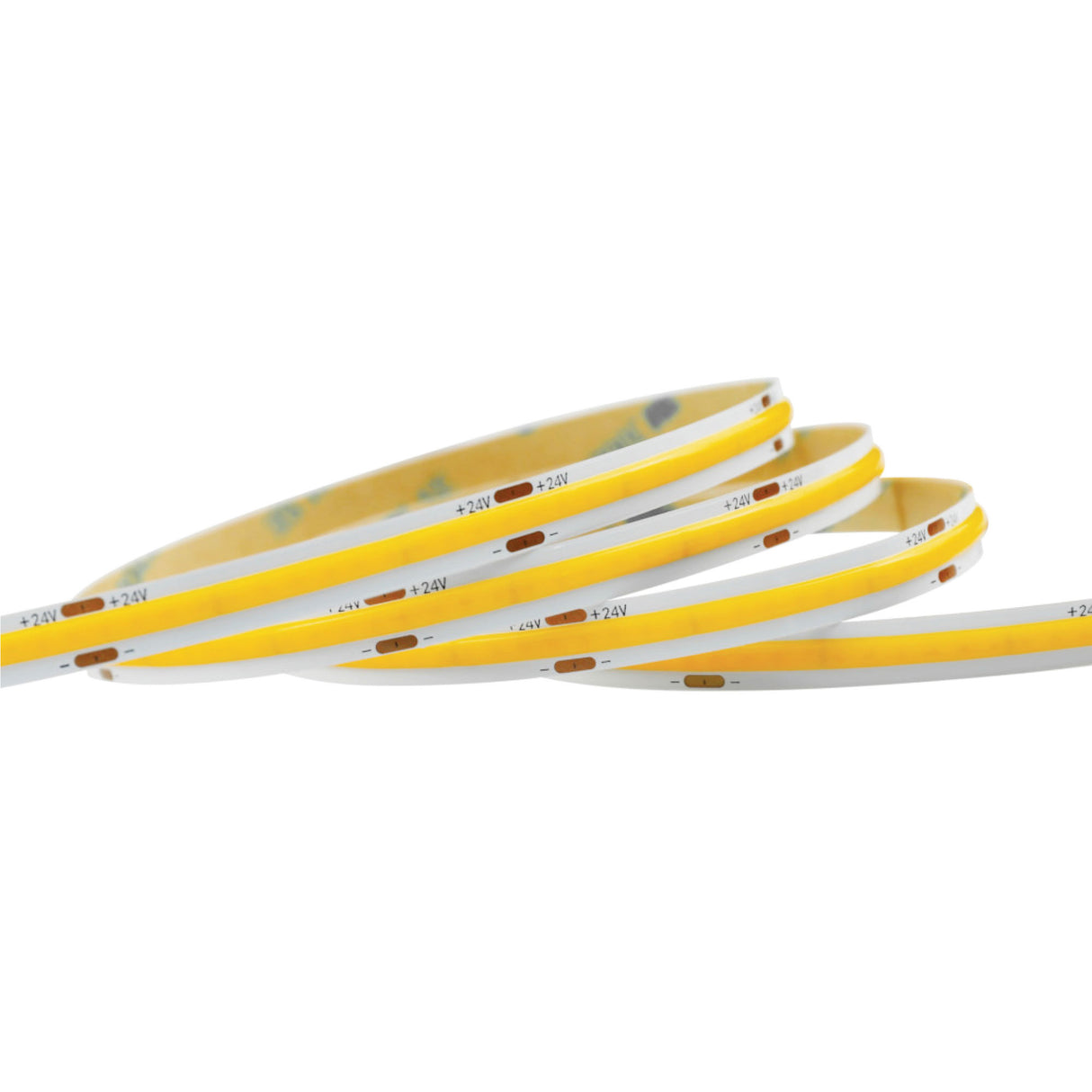

Archilight Pure Lume COB Strip - 8MM

SKU 8MM-COB-3202400MAS-CW
Log in to see price Trade pricing & online ordering for account holders

Request a quote for one or many products — we'll reply with pricing and availability.

Configure — 4 variants

8MM-COB-3202400MAS-CW
LED Colour
4 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

In stock
|

Overview

Features

  • High density COB LEDs
  • Linear lighting, without light spot, soft and uniform luminance
  • High CRI, high brightness and high efficiency
  • High temperature resistance, long lifespan
  • No bracket, better bending performance, seamless butting between two solder points
  • Luminous surface width of 4.5±0.3mm

Specifications

Archilight Pure Lume COB Strip - 8MMSpecifications from the official datasheetDownload datasheet PDF

Variants

SKULED ColourBrightnessLuminous Efficacy
8MM-COB-3202400MAS-CWCool White 6500K950 lm95lm/W
8MM-COB-3202400MAS-NWNatural White 4000K900 lm90lm/W
8MM-COB-3202400MAS-WWWarm White 3000K850 lm85lm/W
8MM-COB-3202400MAS-WW2700KWarm White 2700K800 lm80lm/W

Electrical Specification

LED Qty
320
Voltage
24V DC
Power
10W
PCB Layer
Double PCB
Width
8mm
Min. Cutting
50mm

Optical Specification

SDCM
≤3
Beam Angle
140°
Ra
≥90
Energy Efficiency Class
ERP F Class

Others

Warranty
3 Years
Height
1.6mm

Certifications & ratings

Certification marks
CE, CB, RoHS, UKCA, ETL, FCC, TÜV, BSCI, LM-80
Test conditions and notes3
  1. 1. All the data are based on IP20, 1 meter.
  2. 2. X stands for color: 2700K-WW2700K3000K-WW, 4000K-NW, 6500K-CW.
  3. 3. The tolerance of output data can be vary up to ±10%.

Technical drawings

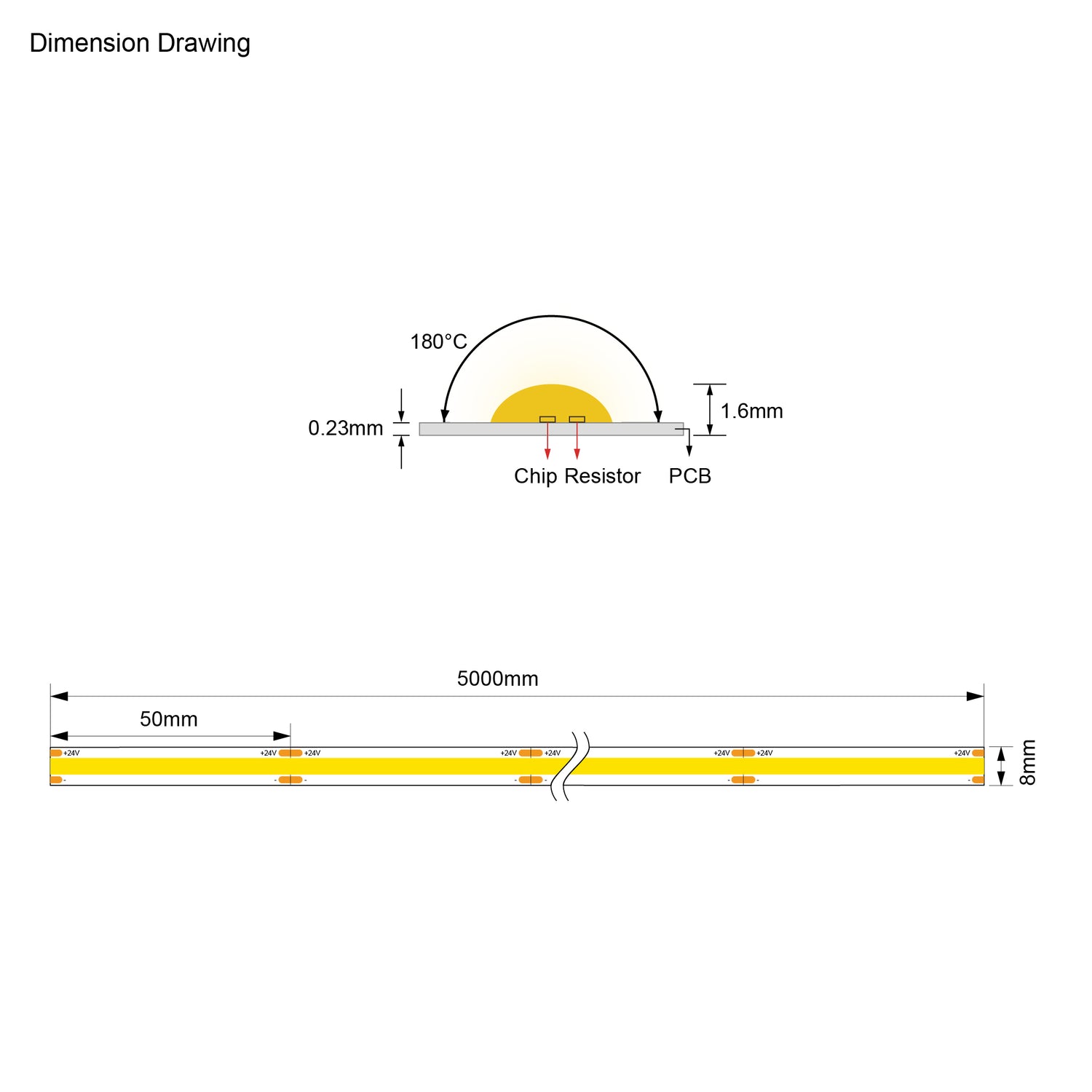

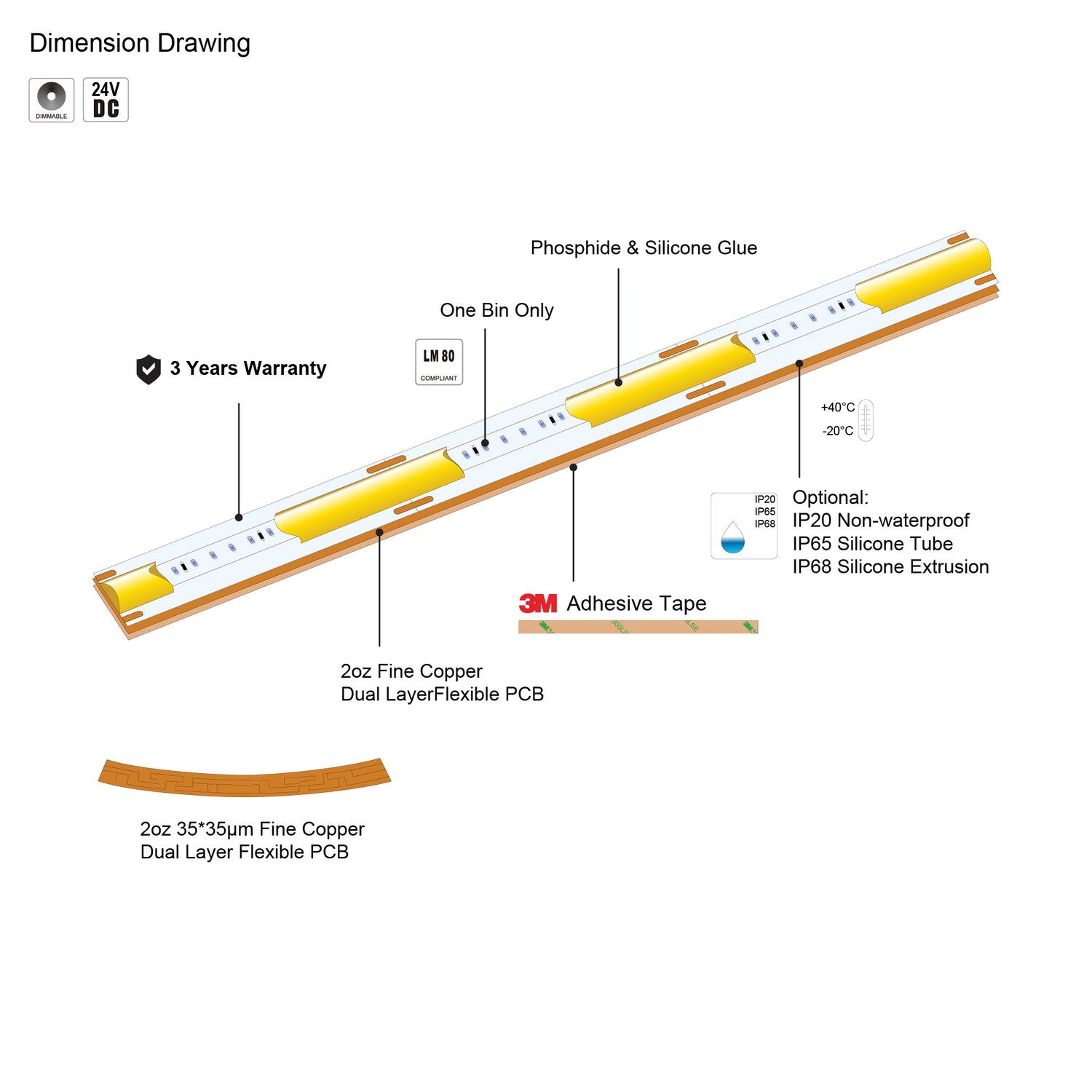

Archilight Pure Lume COB Strip - 8MM Dimension Drawing
Dimension Drawing
Archilight Pure Lume COB Strip - 8MM Light Distribution/Iso-illuminance Diagram
Light Distribution/Iso-illuminance Diagram
Archilight Pure Lume COB Strip - 8MM Available Accessories
Available Accessories
Archilight Pure Lume COB Strip - 8MM EXLP03
EXLP03
Archilight Pure Lume COB Strip - 8MM Installation
Installation
Archilight Pure Lume COB Strip - 8MM Wire connection option
Wire connection option
Archilight Pure Lume COB Strip - 8MM Liner removing
Liner removing
Archilight Pure Lume COB Strip - 8MM Installation
Installation
Archilight Pure Lume COB Strip - 8MM Connect the strip to strip if the length is not enough.
Connect the strip to strip if the length is not enough.
Archilight Pure Lume COB Strip - 8MM Connect with power supply
Connect with power supply
Archilight Pure Lume COB Strip - 8MM Notice
Notice
Archilight Pure Lume COB Strip - 8MM Packaging Diagram
Packaging Diagram

Downloads

FAQ

What is the Archilight Pure Lume COB Strip - 8MM designed for?

This COB LED strip is designed for professional linear lighting where a smooth, spot-free result is important. Its high-density LED layout produces soft, uniform illumination suitable for interior lighting applications where a clean lighting line is preferred.

What makes this COB strip different from standard LED strip lighting?

The Archilight Pure Lume COB Strip uses 320 LEDs per meter to create a continuous luminous line with no visible light spots. Compared with more conventional strip formats, it is intended to deliver a more seamless appearance, high brightness, and better visual uniformity.

What color temperature options are available in this product family?

This parent family is available in four color temperatures: 2700K, 3000K, 4000K, and 6500K. That gives buyers a choice from warmer ambient tones through to a cooler daylight-style output, while staying within the same 8mm COB strip platform.

Does brightness vary between the available versions?

Yes. Based on the listed variants, output ranges from 800 lm to 950 lm depending on the selected color temperature. The 2700K version is listed at 800 lm, 3000K at 850 lm, 4000K at 900 lm, and 6500K at 950 lm.

What are the main physical and electrical specifications of this strip?

This strip runs on 24V DC and is rated at 10W. It has an 8mm width, 1.6mm height, 1 meter listed length, and a minimum cutting increment of 50mm. The product description also specifies a double PCB construction.

Is a driver included with the Archilight Pure Lume COB Strip - 8MM?

No, the driver is not included with this product family. Buyers should account for a separate compatible driver when specifying the strip for a project.

Is this strip dimmable?

Dimming is listed as optional for this product family. That means dimming capability is supported, but any dimming result will depend on using suitable compatible control components in the overall system.

Is this LED strip suitable for demanding long-term use?

The product description highlights high-temperature resistance, high efficiency, and a long lifespan focus. It also includes a 3-year warranty, which supports its positioning for professional-use lighting applications.
