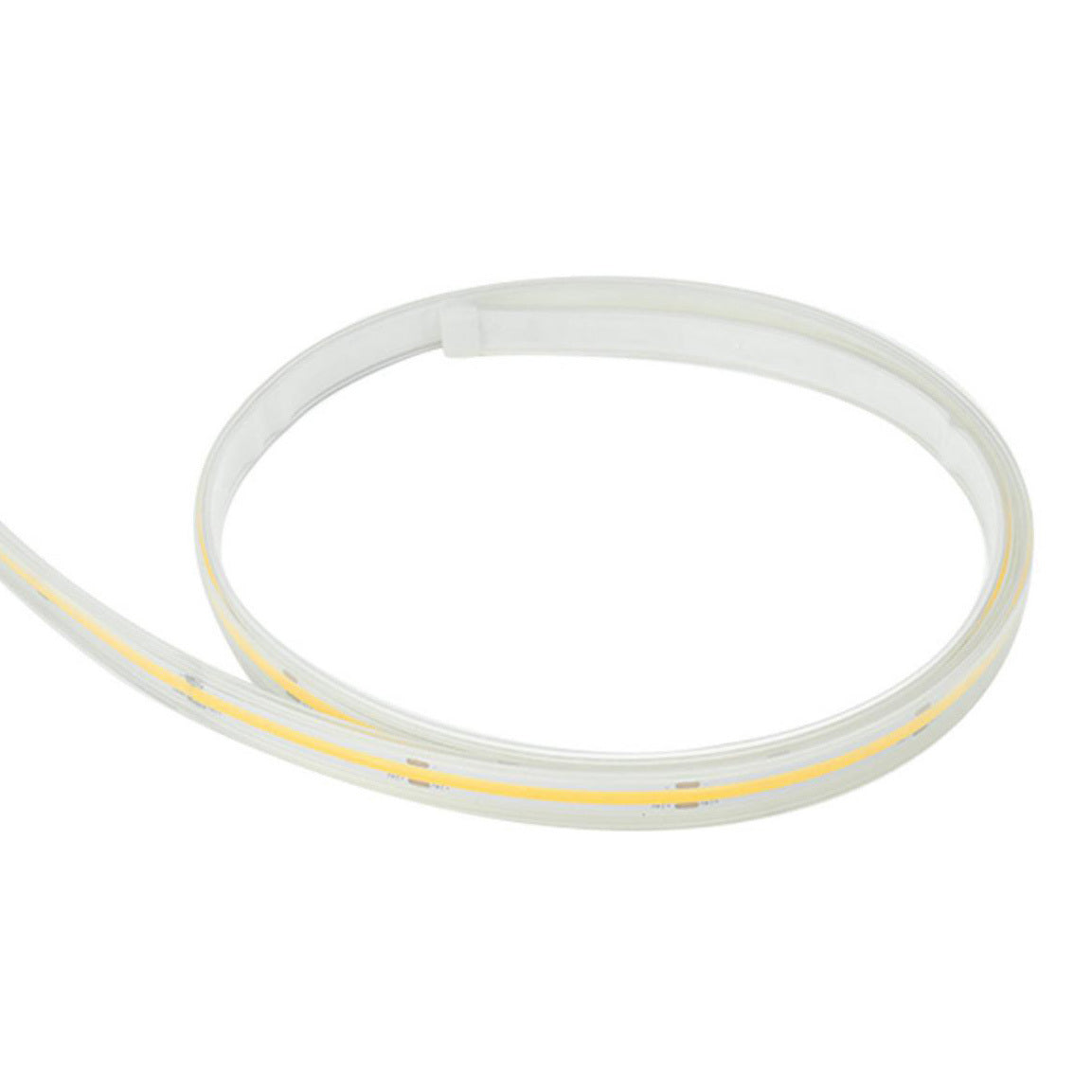

Archilight Pure Lume COB Strip - IP66

SKU 8MM-COB-3202466MAS-CW

Log in to see price Trade pricing & online ordering for account holders

Configure — 3 variants

8MM-COB-3202466MAS-CW

LED Colour

3 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

Notify me when it's back in stock

Enhance your lighting with the advanced Archilight COB Strips. Featuring high-density COB LEDs, these strips deliver seamless, bright illumination perfect for any application. Upgrade your space with the Archilight COB Strips. Perfect for achieving professional-grade, spot-free lighting with high efficiency and durability.

Features:

High-density COB LEDs
Linear lighting, without light spots, soft and uniform luminance
High CRI, high brightness, and high efficiency
High-temperature resistance, long lifespan
No bracket, better-bending performance, seamless butting between two solder points
3 Years Warranty

General Specification

LED Quantity

320 LED

Voltage

24V DC

Power

10W

PCB Layer

Double PCB

Width

10.5mm

Height

3.6mm

Minimum Cutting

50mm

Frequently Asked Questions

What type of light output does the Archilight Pure Lume COB Strip - IP66 provide?

This strip uses high-density COB LEDs to create continuous, spot-free linear lighting with soft, uniform luminance. It is designed for applications where a smooth, professional-looking light line is important. The product family also emphasizes high brightness and high efficiency.

What color temperature options are available in this product family?

The family is available in three color temperature options: 3000K, 4000K, and 6500K. These variants let buyers choose between warmer, more neutral, or cooler white light depending on the space and lighting goal. The parent product page can represent all three options at the family level.

How does brightness vary between the available variants?

Brightness differs by color temperature within this family. The 3000K version delivers 800 lumens, the 4000K version delivers 850 lumens, and the 6500K version delivers 900 lumens. All listed variants keep the same 10W power rating.

Is a driver included with the Archilight Pure Lume COB Strip - IP66?

No, a driver is not included with this product family. The parent specifications list the driver status as not included, so buyers should account for that when planning a complete lighting solution. This applies across the variants shown.

Can this COB strip be dimmed?

Yes, dimming is listed as optional for this product family. That means the strip supports dimming capability, but the exact result depends on the compatible control components selected for the overall system. The dimming designation is consistent across the listed variants.

What are the main physical and electrical specifications of this strip?

This product family runs on 24V DC and is rated at 10W. It has 320 LEDs, a 10.5mm width, a 3.6mm height, and a minimum cutting length of 50mm. The PCB is a double-layer design, and the parent model length is listed as 1000mm.

Is the Archilight Pure Lume COB Strip suitable for demanding indoor or outdoor environments?

This family is identified as an IP66 COB strip and is positioned across both interior and exterior lighting categories. The product description also highlights durability features such as high-temperature resistance and a long lifespan. That makes it a fit for projects that need reliable linear lighting in more demanding environments.

What warranty is offered for this product family?

The Archilight Pure Lume COB Strip - IP66 includes a 3-year warranty. That warranty period is shown on both the parent product model and the listed child variants. It provides consistent coverage across the family presented here.
