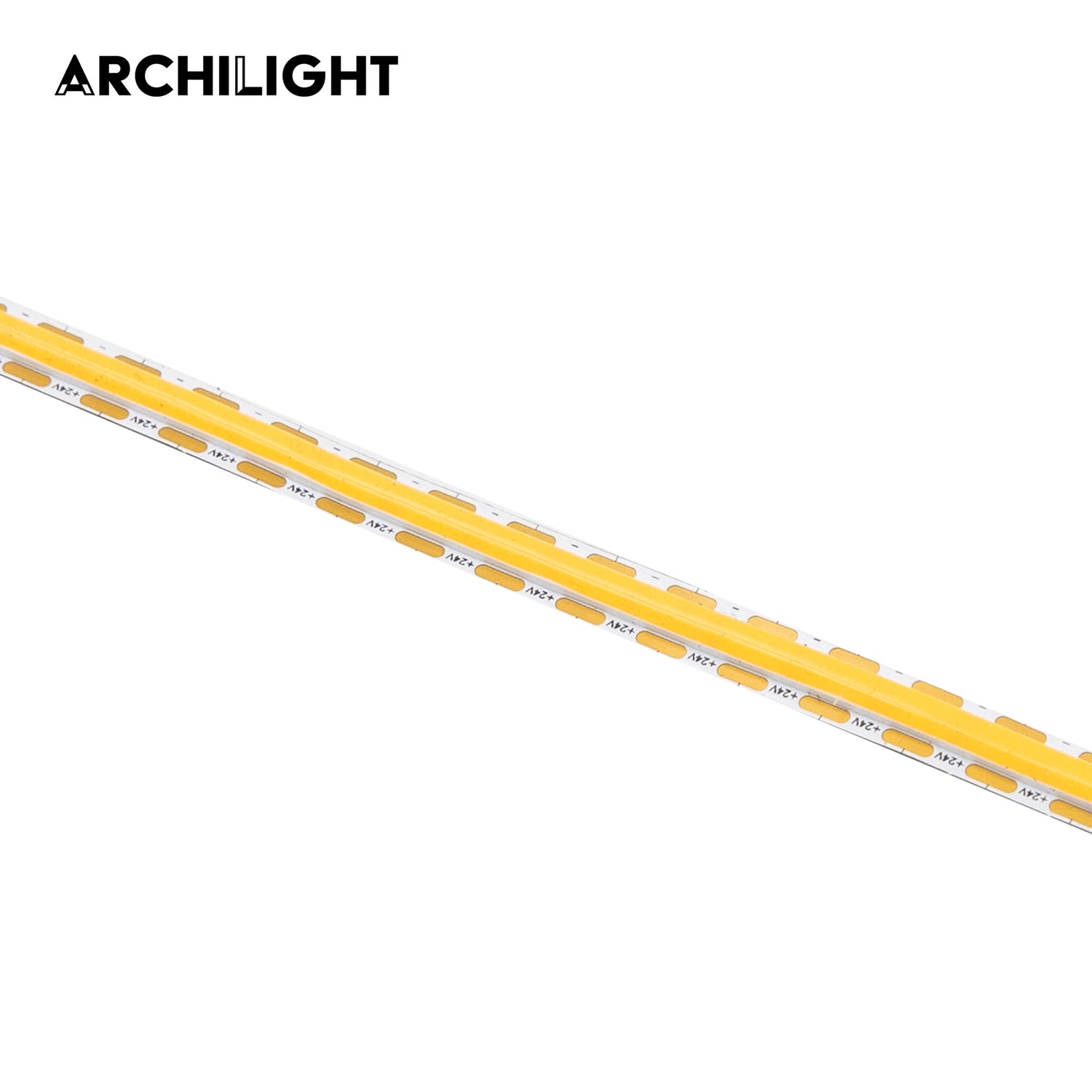

Archilight Pure Lume Pro Short-cut COB 8mm
Log in to see priceOverview
Features
- High positioning with high reliability, ultra-thin profile, and excellent flexibility for bending applications.
- Homogeneous and soft linear lighting performance over a continuous length of 5 m [16.4 ft.].
- Premium milky bounding wall structure design to enhance light uniformity.
- Thick copper PCB design, superior to typical market solutions, ensuring consistent voltage and brightness across the entire reel.
- Exclusively designed protective structure providing excellent bending resistance, high reliability, and stable performance.
- IP20 rating suitable for indoor applications.
- Rated lifetime of 50,000 hours with a 5-year warranty.
Specifications
Variants
| SKU | LED Colour | Brightness | Light Efficiency |
|---|---|---|---|
| 8MM-COB-4802400GLE-CW | Cool White 6500K | 1,200 lm | 100lm/W |
| 8MM-COB-4802400GLE-NW | Natural White 4000K | 1,200 lm | 100lm/W |
| 8MM-COB-4802400GLE-WW | Warm White 3000K | 1,080 lm | 85lm/W |
Specifications
- Dimension (L*W*H)
- 5000*8*2.7mm [197*0.31*0.11in.]
- IP Rating
- IP20
- Cuttable
- 8mm
General Parameters
- Standard Length
- 5M [16.4ft.] (power fed on one side)
- Min. Unit & Chip QTY
- 8.33mm [0.33in.] & 4 chips
- Light Source
- COB (Chip On Board)
- Chip QTY
- 480chips/M [146chips/ft.]
- PCB Type
- White FPC, OSP
- Operating Ambient
- Ta: -20~45°C [-4~113°F], Tstog: -20~60°C [-4~140°F]
- Warranty
- 5 years
- Lifespan
- 50kh (L70@Tc≤65°C [149°F], Tc is temperature of chip pin)
- Certification
- CE, CB, SAA, UL, RoHS
Photoelectric Parameters
- Power±10%
- 12W/M [3.7W/ft.]
- Input Voltage
- 24VDC
- Chip Current
- 4mA/chip
- SDCM
- ANSI Norm, 3 step in 1 bin
- CRI
- Ra≥90
- Beam Angle
- 150°
- Dimming Method
- PWM (dimmable driver like RF, Bluetooth, 0/1-10V, Triac, DALI, DMX, WIFI etc.)
POWER & BRIGHTNESS vs. LENGTH CHARACTERISTIC (POWER FED ON ONE SIDE)
- Length Of Single Product
- 1M [3.28ft.], 2M [6.56ft.], 3M [9.84ft.], 4M [13.1ft.], 5M [16.4ft.]
- Actual Measured Power
- 12.6W 24.4W 35.5W 44.2W 50.7W
- Power Maintenance Rate
- 100% 97% 94% 87.6% 80.5%
Test conditions and notes11
- 1. Luminous flux is specified based on a length of 1 m [3.28 ft.] and may be re-measured for other lengths.
- 2. According to Regulation (EU) 2019/2020, the energy efficiency class is F (CRI90) for 3000K / 4000K / 6500K in IP20.
- 3. Dimensions and optical parameters, including luminous flux, correlated color temperature (CCT), color rendering index (CRI), and SDCM, may vary depending on product configuration.
- 4. No additional heat sink is required due to the self-cooling design.

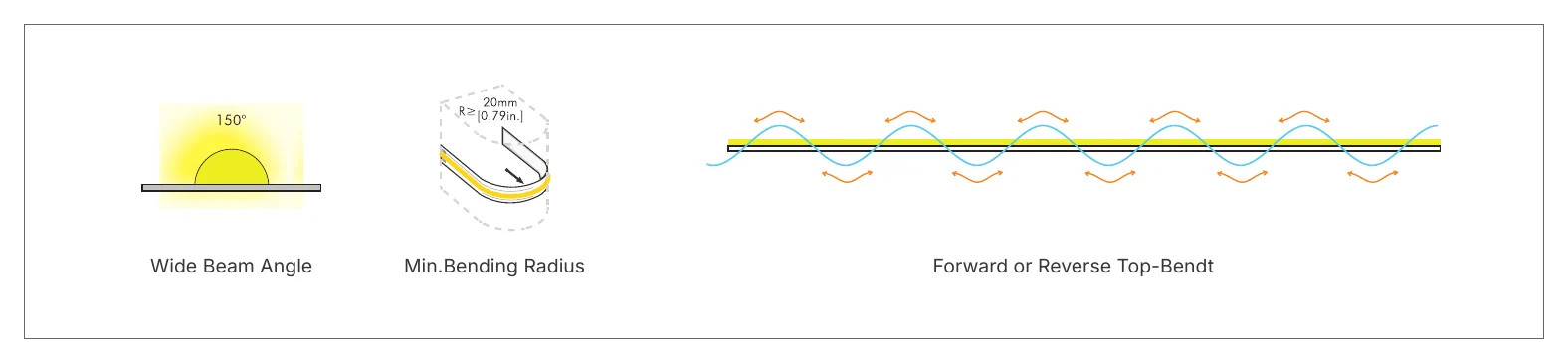

- 5. The product supports forward or backward top bending, with a minimum bending radius of 20 mm [0.8 in.].
- 6. 3M™ 300LSE yellow adhesive tape on the backside is provided as standard.
- 7. A 200 mm [7.9 in.] red (+) / black (–) AWG20 UL2468 PVC cable is supplied as standard.

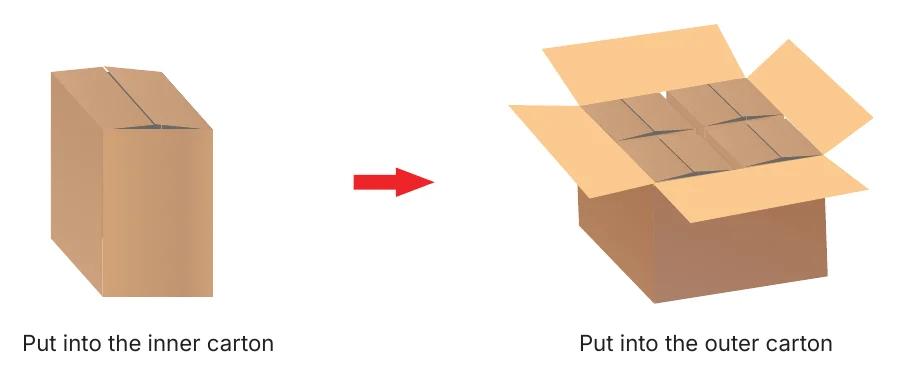

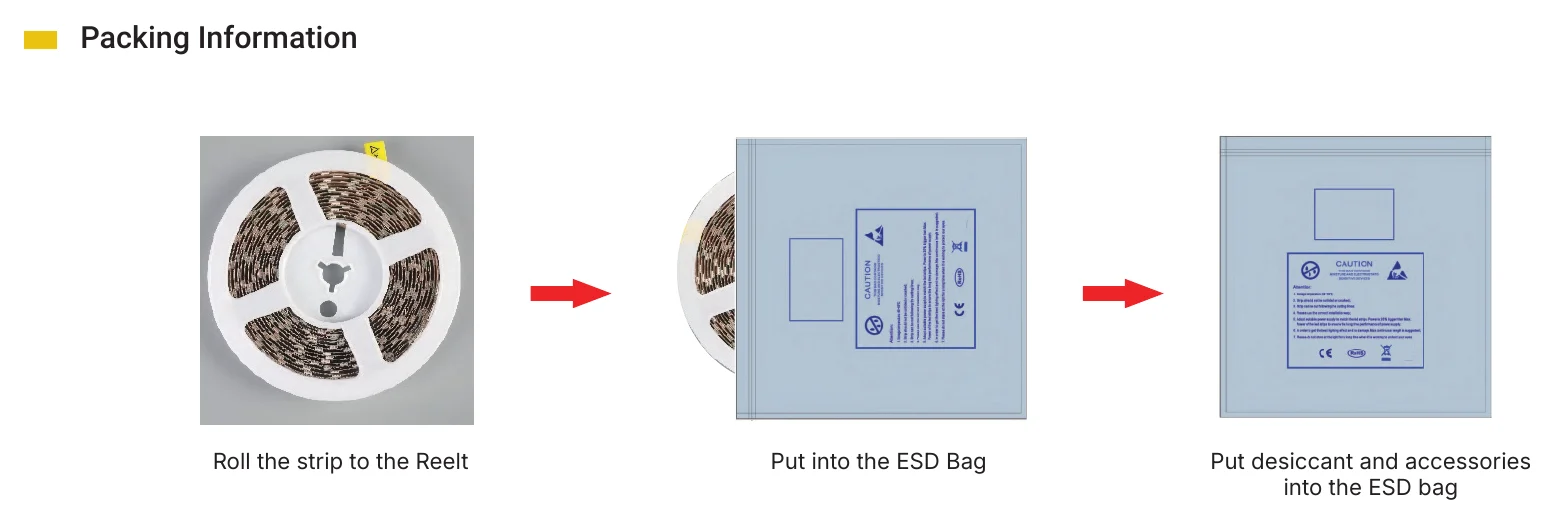

- 8. Transparent reel and silvery ESD bag are supplied as standard packaging.

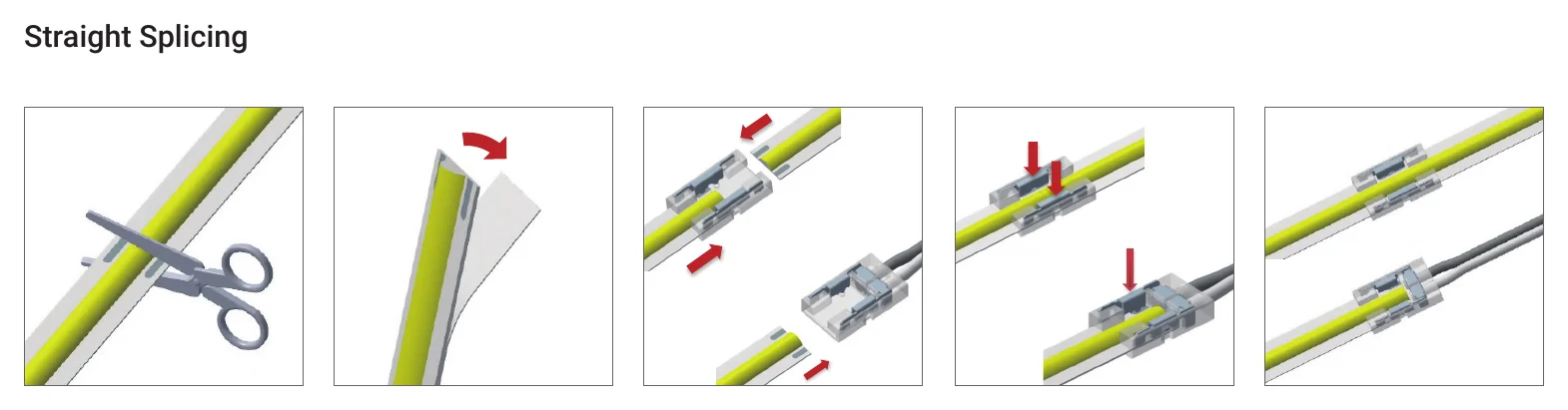

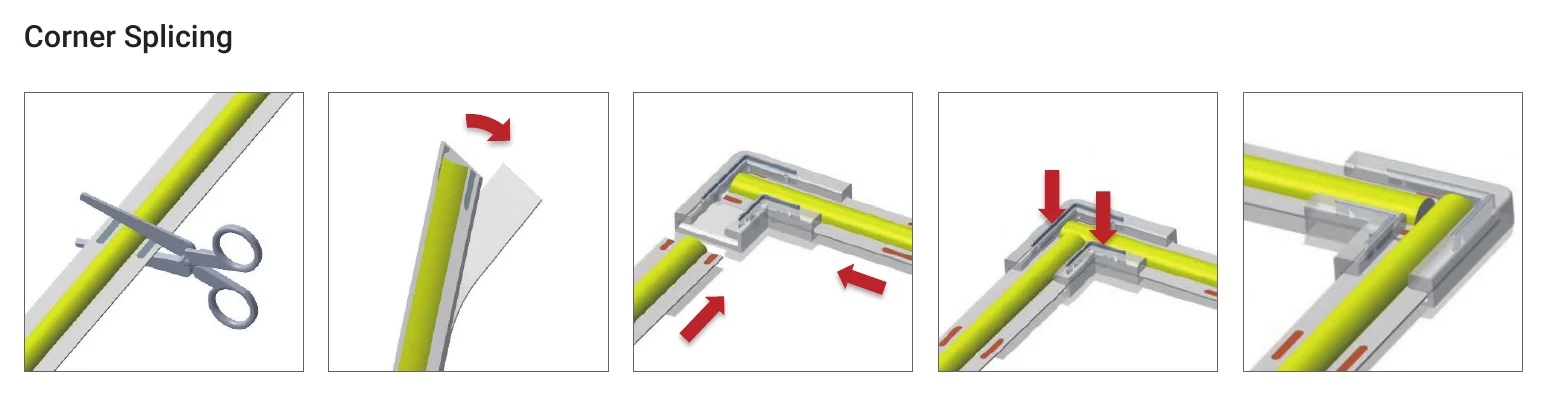

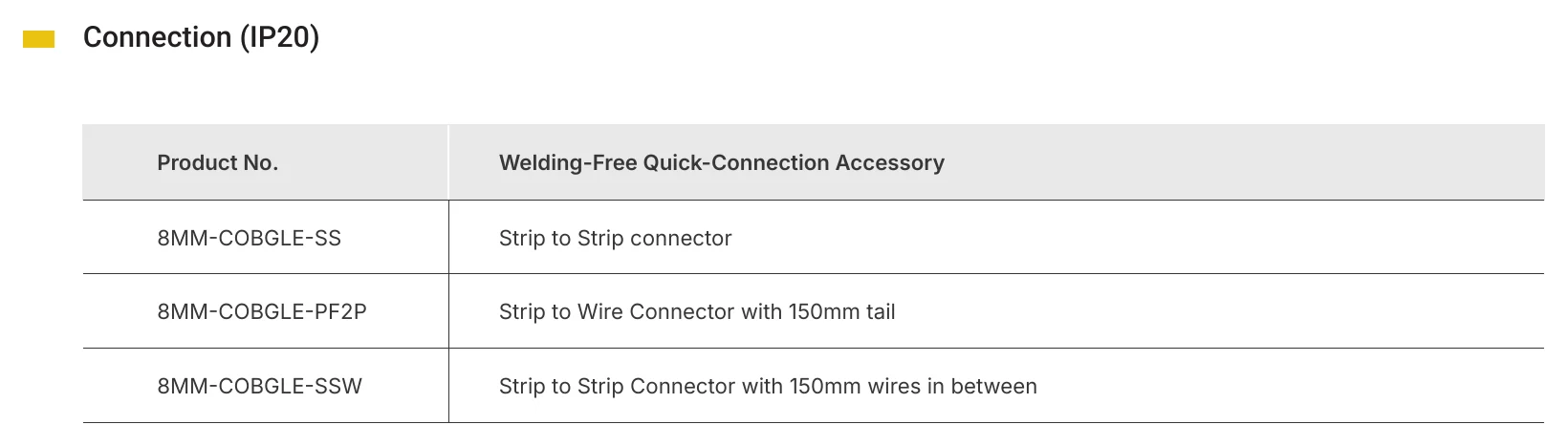

- 9. Installation and assembly accessories, including clips, screws, connectors, and cables, are optional and available upon request.
- 10. Power maintenance rate = actual measured power over a certain length ÷ (the same length × actual measured power per 1 m [3.28 ft.]). Brightness maintenance rate = actual measured brightness at the tail section ÷ actual measured brightness at the first section of the same length. (Full-power operation is generally uncommon for mixed-color products such as RGB, RGBW, RGBCCT, and RGBWCCT.)
- 11.Some parameters and configurations are customizable, do not hesitate to contact us for a more detailed discussion.

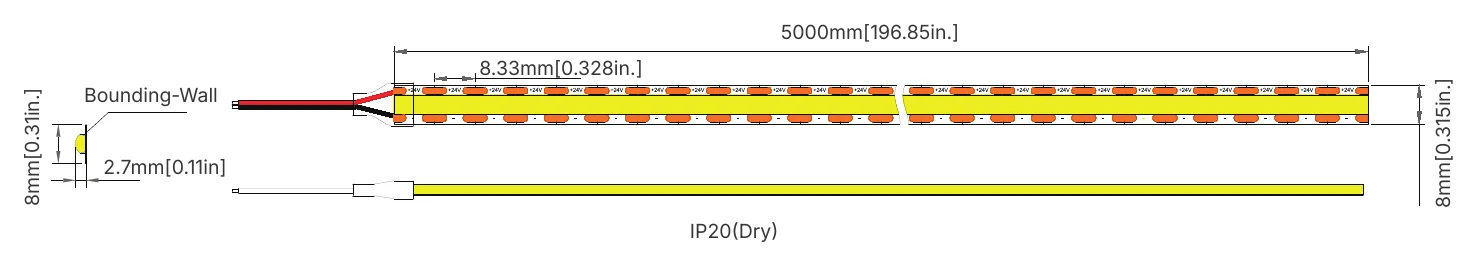

Technical drawings
Typical applications
- Ideal for indirect lighting applied at contour, corridor, stair, cove, handrail, skirting, barrier, etc.
Downloads
Datasheet1
FAQ
What is the Archilight Pure Lume Pro Short-cut COB 8mm designed for?
This COB LED strip is designed for high-end linear lighting where a smooth, continuous line of light is important. It suits architectural, hospitality, retail, and residential interior applications that need clean indirect illumination. Its dot-free output and 150 degree beam angle help create a soft, uniform lighting effect.
What makes this LED strip suitable for precise layouts and compact profiles?
Pure Lume Pro has an ultra-short cuttable length of 8.33mm, which gives more flexibility when matching exact run lengths. That helps reduce waste and makes it easier to adapt the strip to detailed layouts. The 8mm width and flexible construction also support use in compact profile designs.
What colour temperature options are available in this product family?
This parent family is available in Warm White 3000K, Neutral White 4000K, and Cool White 6500K variants. These options let buyers choose between a warmer ambience, a balanced neutral tone, or a cooler crisp appearance. The family is single-colour only and does not include tunable colour changing versions.
Are there output differences between the colour variants?
Yes. The 3000K Warm White variant is listed at 1080 lumens per metre, while the 4000K Neutral White and 6500K Cool White variants are listed at 1200 lumens per metre. All listed variants are rated at 12W per metre.
Is a driver included, and can this strip be dimmed?
A driver is not included with this product family. The strip operates on 24V DC constant voltage and is PWM dimmable. The product description states compatibility with dimming systems including RF, Bluetooth, 0/1-10V, TRIAC, DALI, DMX, and WiFi drivers.
What are the main performance specifications of this LED strip?
The strip uses 480 chips per metre and produces a dot-free light line with a 150 degree beam angle. It has CRI 90 or higher with 3-step SDCM colour consistency, which supports high visual quality in professional spaces. The rated lifespan is 50,000 hours to L70 and the product carries a 5-year warranty.
