Archilight Pure Lume COB Strip - 10MM

SKU 10mm-COB-4802400MAS-CW

Log in to see price Trade pricing & online ordering for account holders

Configure — 4 variants

10mm-COB-4802400MAS-CW

LED Colour

4 matching

Pick options to narrow the list, or tap a row to select. Dimmed chips have no matching combination.

Product variants

In stock

Overview

Features

High density COB LEDs
Linear lighting, without light spot, soft and uniform luminance
High CRI, high brightness and high efficiency
High temperature resistance, long lifespan
No bracket, better bending performance, seamless butting between two solder points
Luminous surface width of 4.5±0.3mm

Specifications

Archilight Pure Lume COB Strip - 10MMSpecifications from the official datasheetDownload datasheet PDF

Variants

SKU	Power Rating	LED Colour	Brightness	CRI	SDCM	Luminous Efficacy
10MM-COB-4802400MAS-CW	15 W	Cool White 6500K	1,420 lm	≥90	≤3	95lm/W
10MM-COB-4802400MAS-NW	15 W	Natural White 4000K	1,350 lm	≥90	≤3	90lm/W
10MM-COB-4802400MAS-RGB	10 W	RGB Multicolour	455 lm	/	/	/
10MM-COB-4802400MAS-WW	15 W	Warm White 3000K	1,200 lm	≥90	≤3	80lm/W

Specification

LED Qty: 480
Voltage: 24V DC
Beam Angle: 140°
Width: 10mm
Min. Cutting: 50mm

Certifications & ratings

Marked features: DIMMABLE, 3 Years Warranty, LM 80 COMPLIANT, IP20 IP66
Certification marks: CE, CB, RoHS, UKCA, UL, FCC, RCM, BSCI, TÜV

Test conditions and notes3

1. All the data are based on IP20, 1 meter.
2. X stands for colour: 3000K-WW,4000K-NW, 6500K-CW.
3. The tolerance of output data can be vary up to ±10%.

Technical drawings

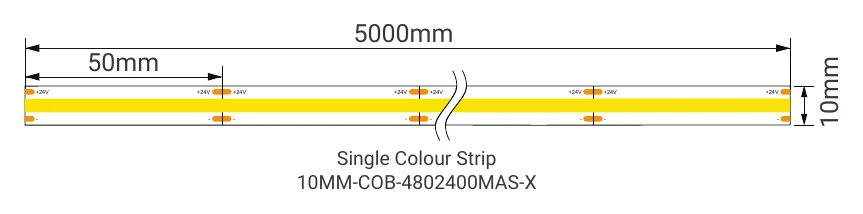

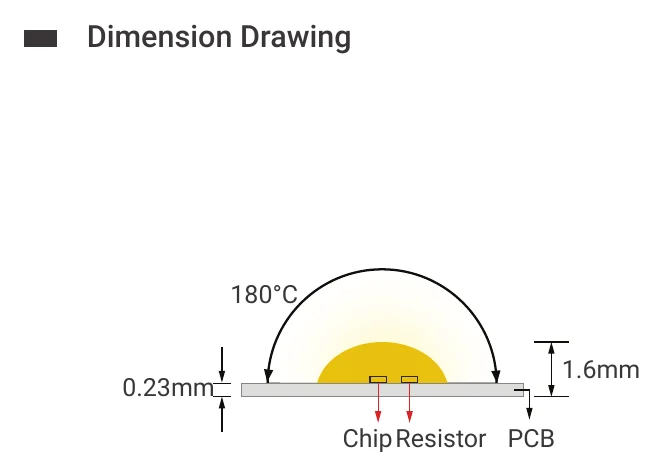

Archilight Pure Lume COB Strip - 10MM Dimension Drawing — Dimension Drawing

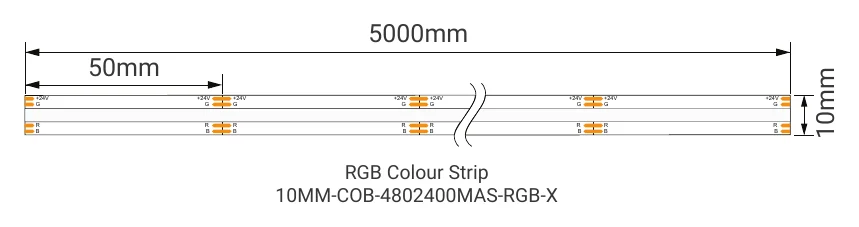

Archilight Pure Lume COB Strip - 10MM Dimension Drawing (2) — Dimension Drawing (2)

Archilight Pure Lume COB Strip - 10MM Dimension Drawing (3) — Dimension Drawing (3)

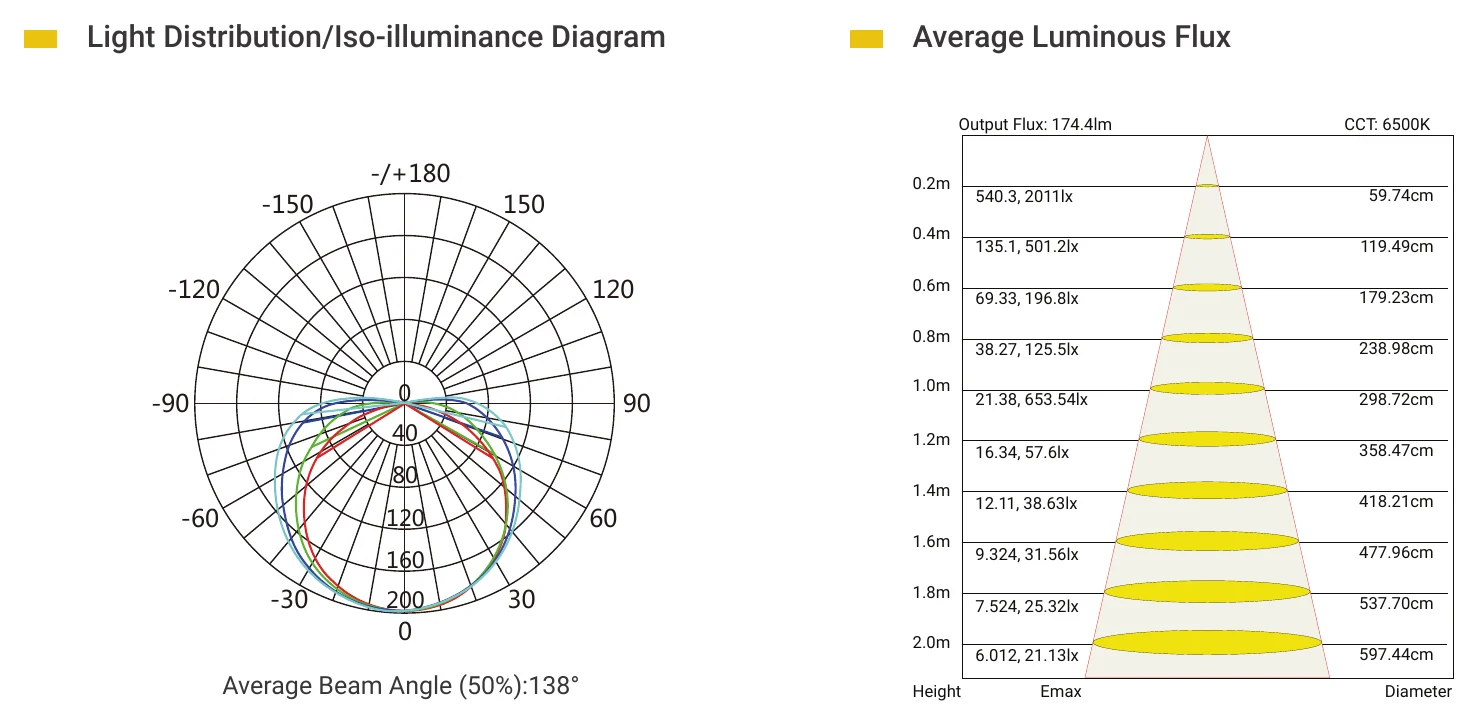

Archilight Pure Lume COB Strip - 10MM Light Distribution/Iso-illuminance Diagram — Light Distribution/Iso-illuminance Diagram

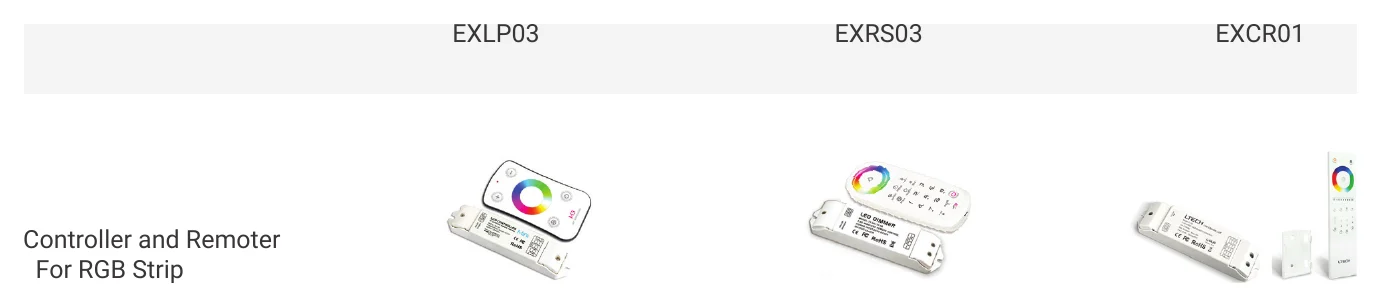

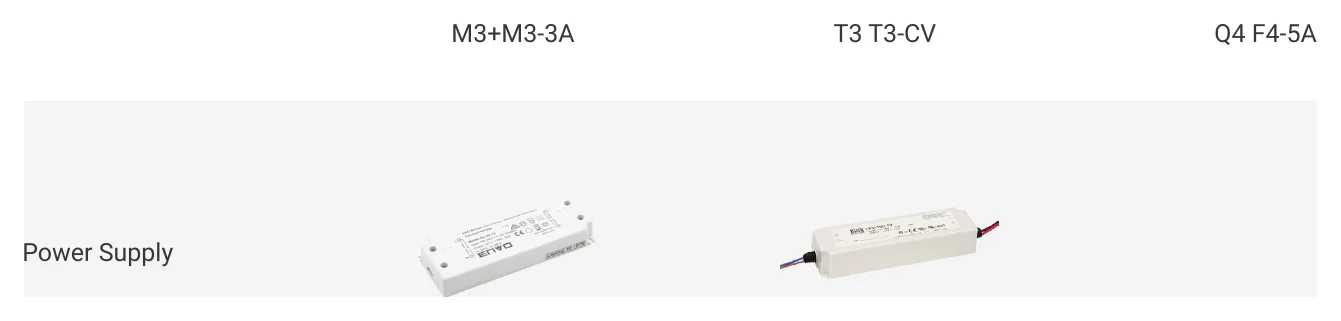

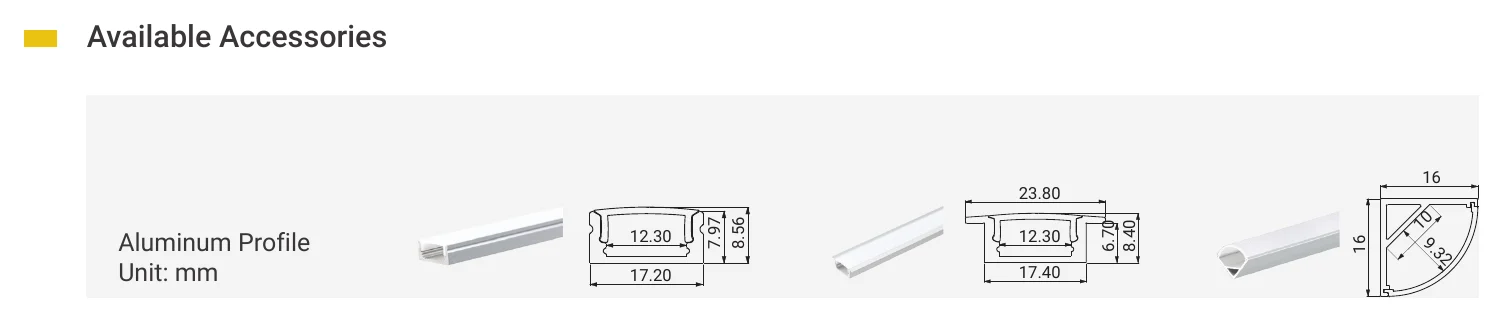

Archilight Pure Lume COB Strip - 10MM Available Accessories — Available Accessories

Archilight Pure Lume COB Strip - 10MM Available Accessories (2) — Available Accessories (2)

Archilight Pure Lume COB Strip - 10MM Available Accessories (3) — Available Accessories (3)

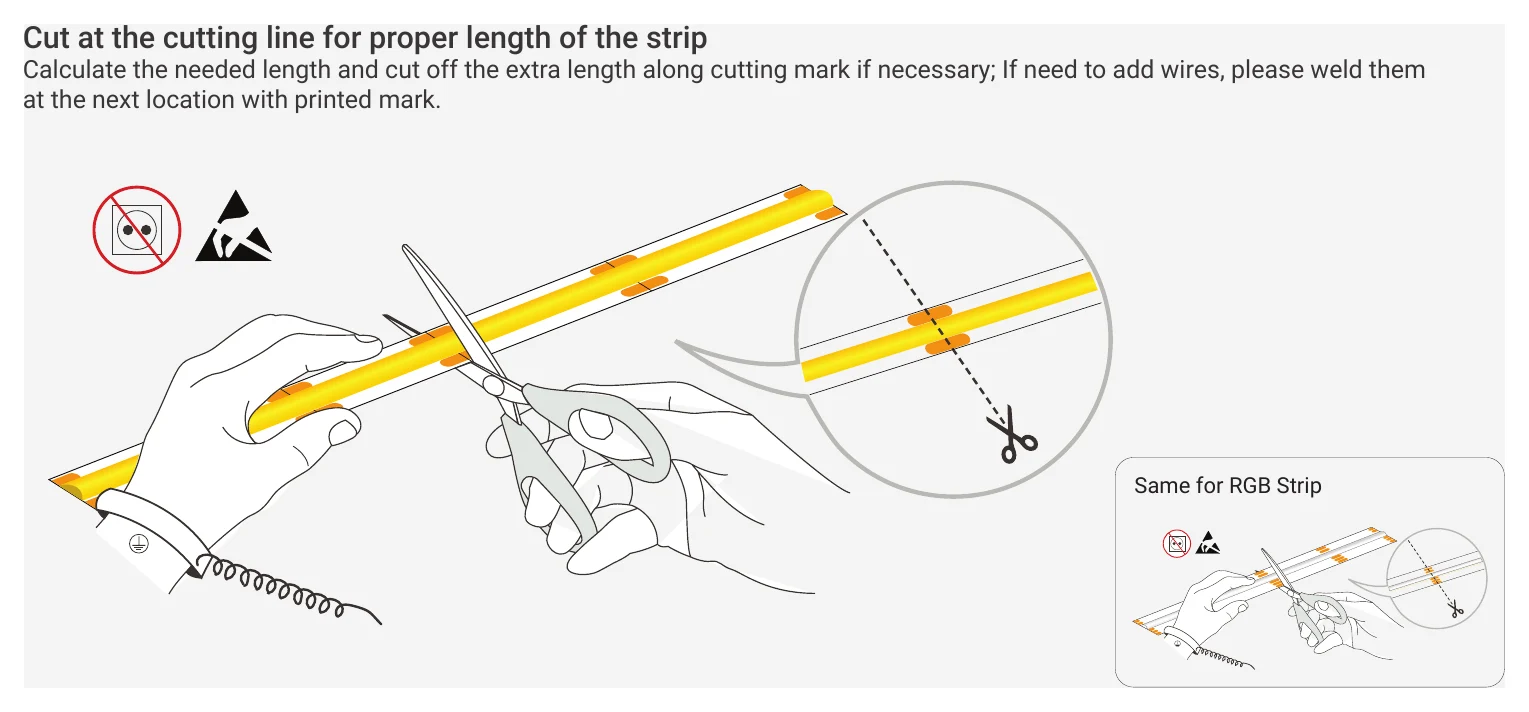

Archilight Pure Lume COB Strip - 10MM Cut at the cutting line for proper length of the strip — Cut at the cutting line for proper length of the strip

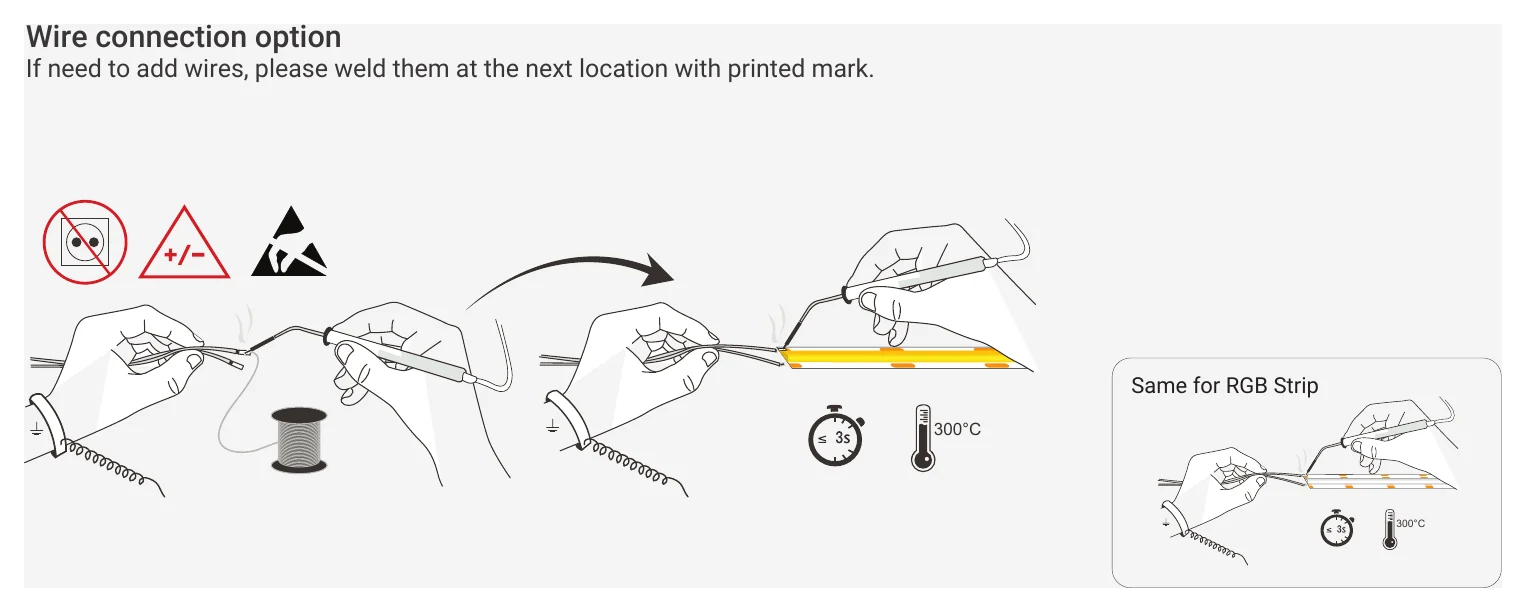

Archilight Pure Lume COB Strip - 10MM Wire connection option — Wire connection option

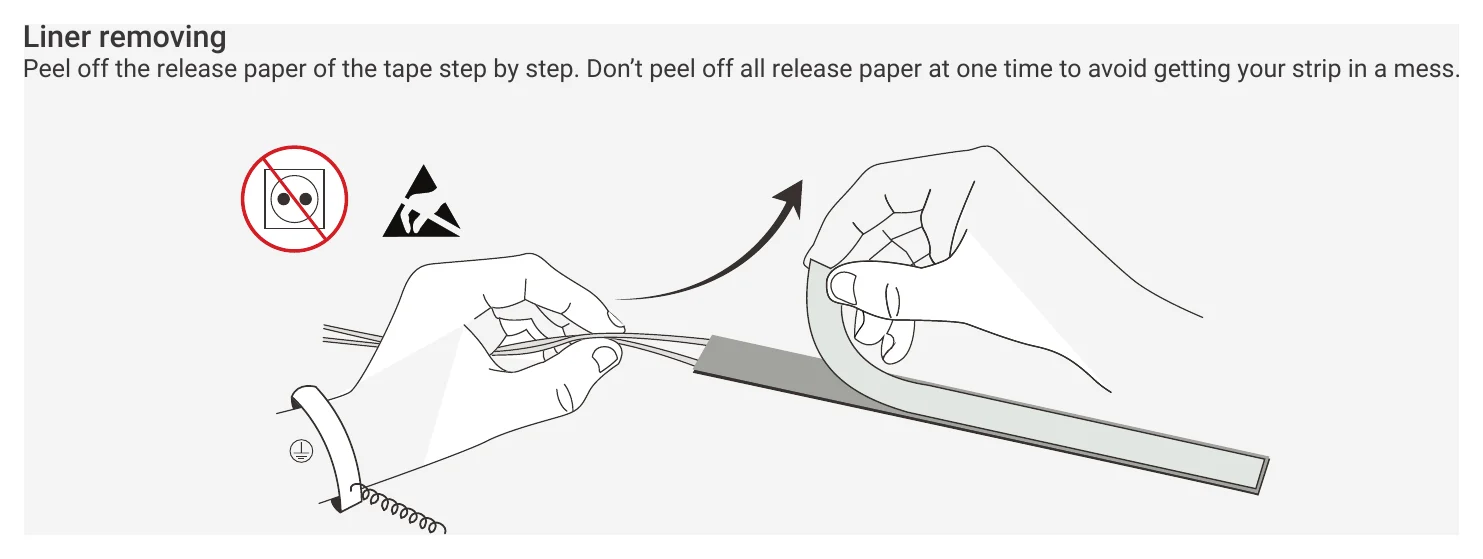

Archilight Pure Lume COB Strip - 10MM Liner removing — Liner removing

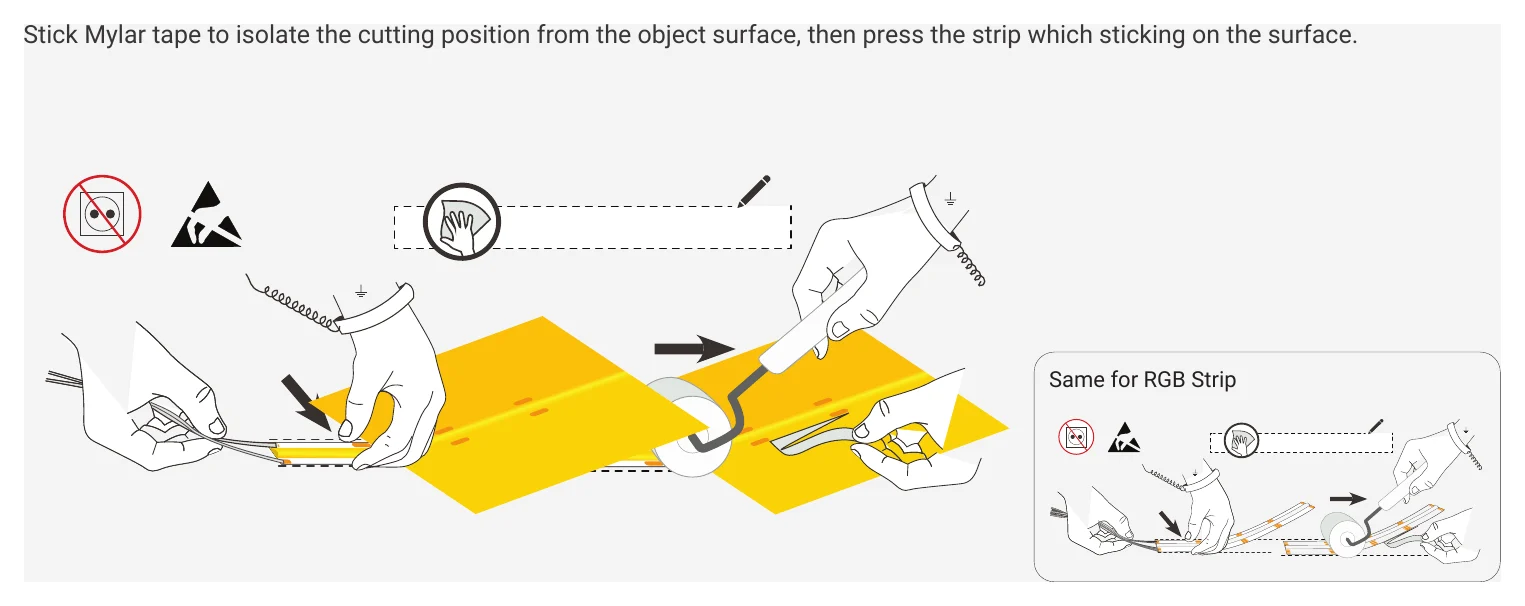

Archilight Pure Lume COB Strip - 10MM Liner removing (2) — Liner removing (2)

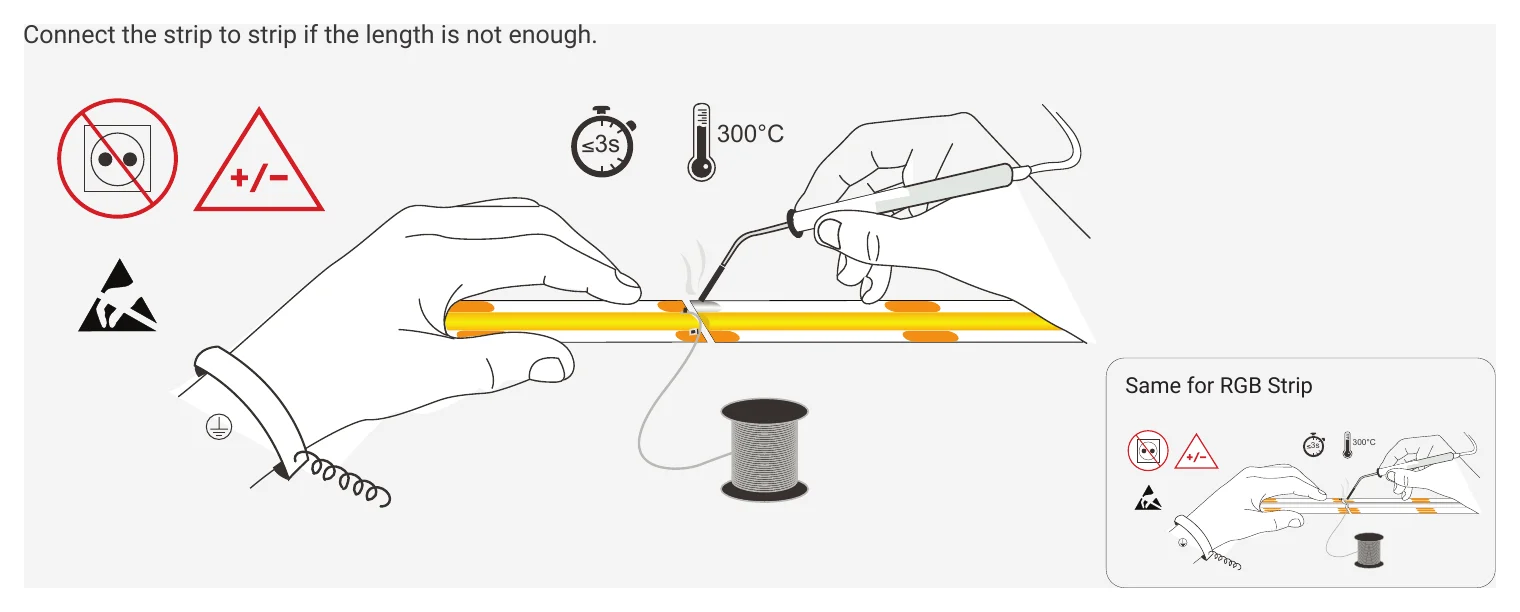

Archilight Pure Lume COB Strip - 10MM Connect the strip to strip if the length is not enough. — Connect the strip to strip if the length is not enough.

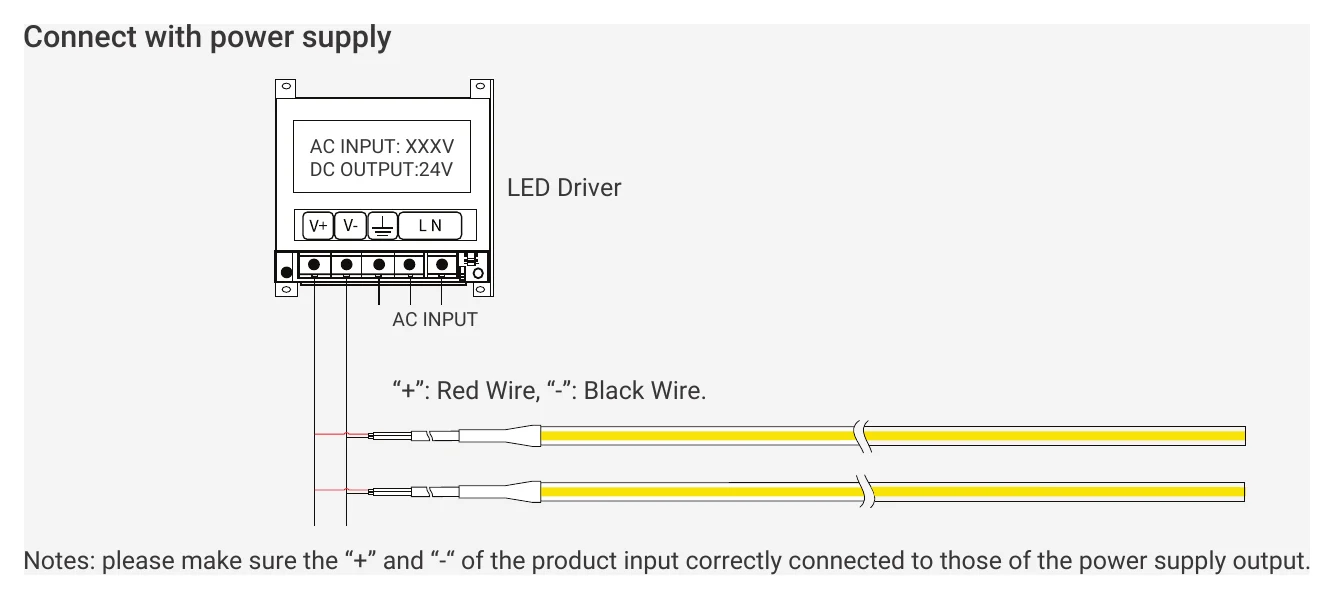

Archilight Pure Lume COB Strip - 10MM Connect with power supply — Connect with power supply

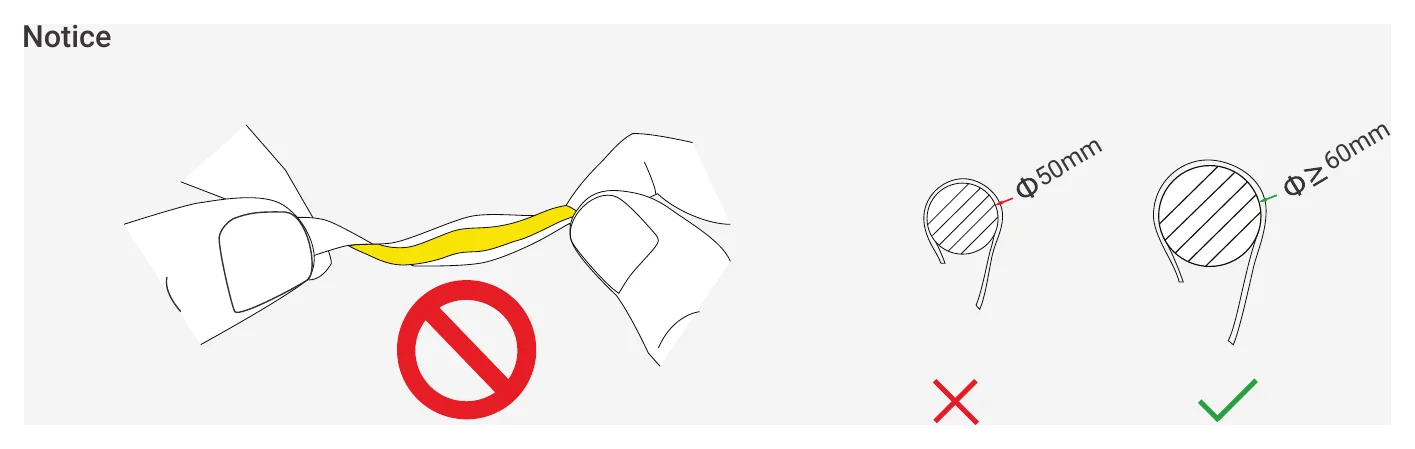

Archilight Pure Lume COB Strip - 10MM Notice — Notice

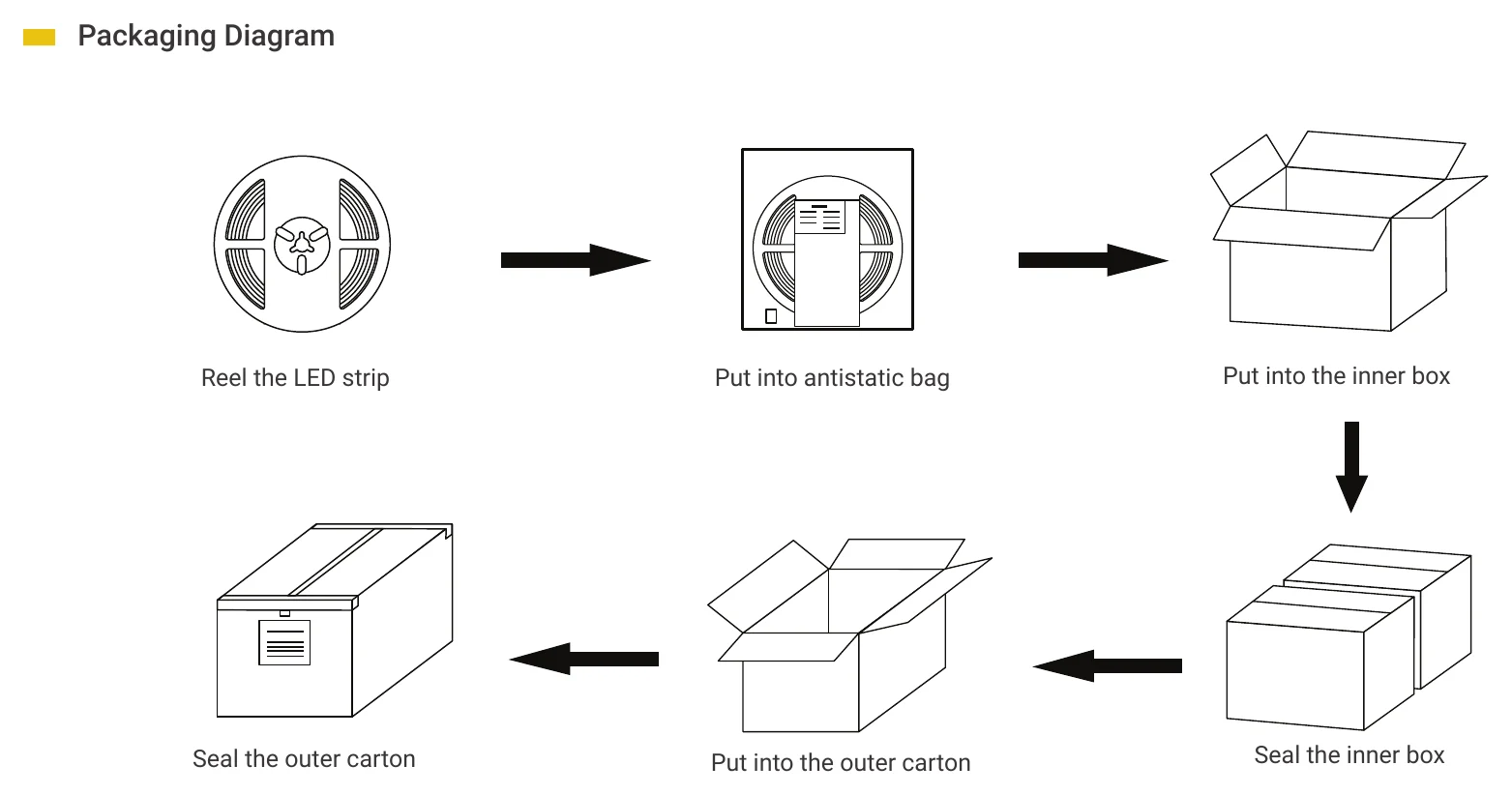

Archilight Pure Lume COB Strip - 10MM Packaging Diagram — Packaging Diagram

Downloads

Datasheet1

Archilight Pure Lume COB Strip - 10MM datasheet10MM_COB_4802400MAS_RGB_V604.pdf PDF Download

Catalogues1

LED Strip Selection Guide PDF Download

FAQ

What type of lighting effect does the Archilight Pure Lume COB Strip - 10MM provide?

This COB strip is designed to deliver linear, spot-free illumination with a soft and uniform light output. Its high-density 480 LED construction helps create a seamless luminous line for professional interior lighting applications.

What are the core specifications of this 10MM COB strip family?

The strip operates on 24V DC and the standard white variants are rated at 15W. It has a 10mm width, 1.6mm height, double-layer PCB construction, and a minimum cutting length of 50mm. The luminous surface width is specified as 4.5±0.3mm.

What colour temperature options are available in this product family?

This family includes warm white 3000K, neutral white 4000K, and cool white 6500K options, plus an RGB version. These choices let buyers select between warmer ambient tones, more neutral task-oriented light, cooler crisp light, or colour-changing output depending on the project.

How does brightness vary between the variants?

The listed white variants differ by output: 3000K delivers 1200 lm, 4000K delivers 1350 lm, and 6500K delivers 1500 lm. The RGB variant is lower output at 455 lm and is rated at 10W rather than 15W. That makes the white versions better suited where stronger functional illumination is needed.

Is a driver included, and is this strip dimmable?

A driver is not included with this product family. The strip is listed as dimmable, so dimming capability is supported when paired with suitable control gear selected for the application.

Is this COB strip built for durability in commercial or professional projects?

The product is described as having high temperature resistance, long lifespan characteristics, and a double PCB construction. It also carries a 3-year warranty, which supports its positioning as a professional-grade strip for interior lighting use.
