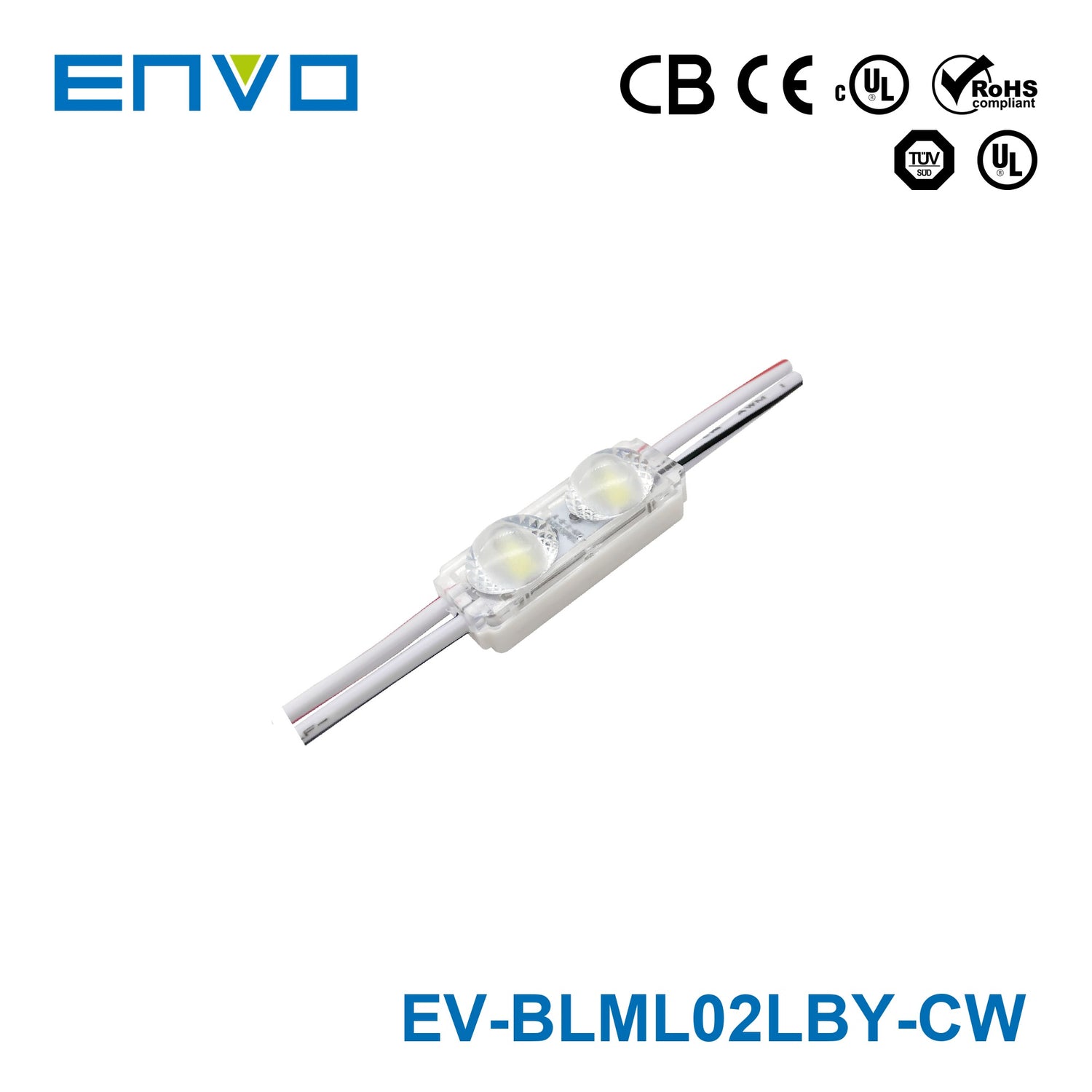

ENVO MiniLux LED Module Backlit - Duo LED

12V0.48WIP66

SKU EV-BLML02LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 3 in this family

EV-BLML02LBY-CW

EV-BLML01LBY-CW Single LED In stock

EV-BLML02LBY-CW Double LED In stock

EV-BLML03LBY-CW Triple LED Backorder

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The EV-BLML02LBY is an ENVO LED module (12VDC, 0.48W, operating temperature: -25~+60°C).

Key Features

✓ Input voltage: 12VDC
✓ Power: 0.48W
✓ Rated current: 0.04A
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ CRI: 80
✓ Beam angle: 180°
✓ Dimmable
✓ Ingress protection: IP66
✓ Operating temperature: -25~+60°C
✓ Safety certifications: CB, CE, RoHS, TÜV, UL, cUL
✓ 5 year warranty

Frequently Asked Questions

What applications is the ENVO MiniLux LED Module Backlit - Duo LED designed for?

This LED module family is designed for shallow-depth illuminated letters and light boxes. It is intended for signage applications where space is limited but bright, even backlighting is still needed. The stated application depth range is 3-8 cm.

What are the main differences between the variants in this product family?

The main difference across the family is color temperature. The available options are 3000K warm white, 4000K neutral white, and 7000K cool white. Core performance specifications such as 55 lm output, 0.48 W power rating, CRI 80, beam angle, dimmability, lifetime, and warranty remain the same across the listed variants.

How bright is each module in the ENVO MiniLux Duo LED family?

Each listed variant delivers 55 lumens per module. This output is paired with a 0.48 W power rating, making the family suitable for efficient backlit signage in compact spaces. The product description also notes the use of high output 2835 LEDs.

What beam spread does this LED module use?

This product family uses a 180° x 140° beam angle. According to the product description, the optic lens is designed to provide wide and uniform light distribution. That broad spread helps improve coverage in shallow sign cavities.

Is the ENVO MiniLux LED Module Backlit - Duo LED dimmable?

Yes, this product family is listed as dimmable. That makes it suitable for projects where adjustable light levels are required, provided the rest of the system is matched appropriately. The dimming capability is consistent across the listed child variants.

What are the expected service life and warranty for this product family?

The MiniLux Duo LED family is rated for a 50,000-hour lifetime and comes with a 5-year warranty. Those values are consistent across the listed variants. This makes the family a practical choice for long-term commercial signage use.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO MiniLux LED Module Backlit - Single LED	0.24W	—	—	Dimmable	View
ENVO MiniLux LED Module Backlit - Triple LED	0.72W	—	—	Dimmable	View
