Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

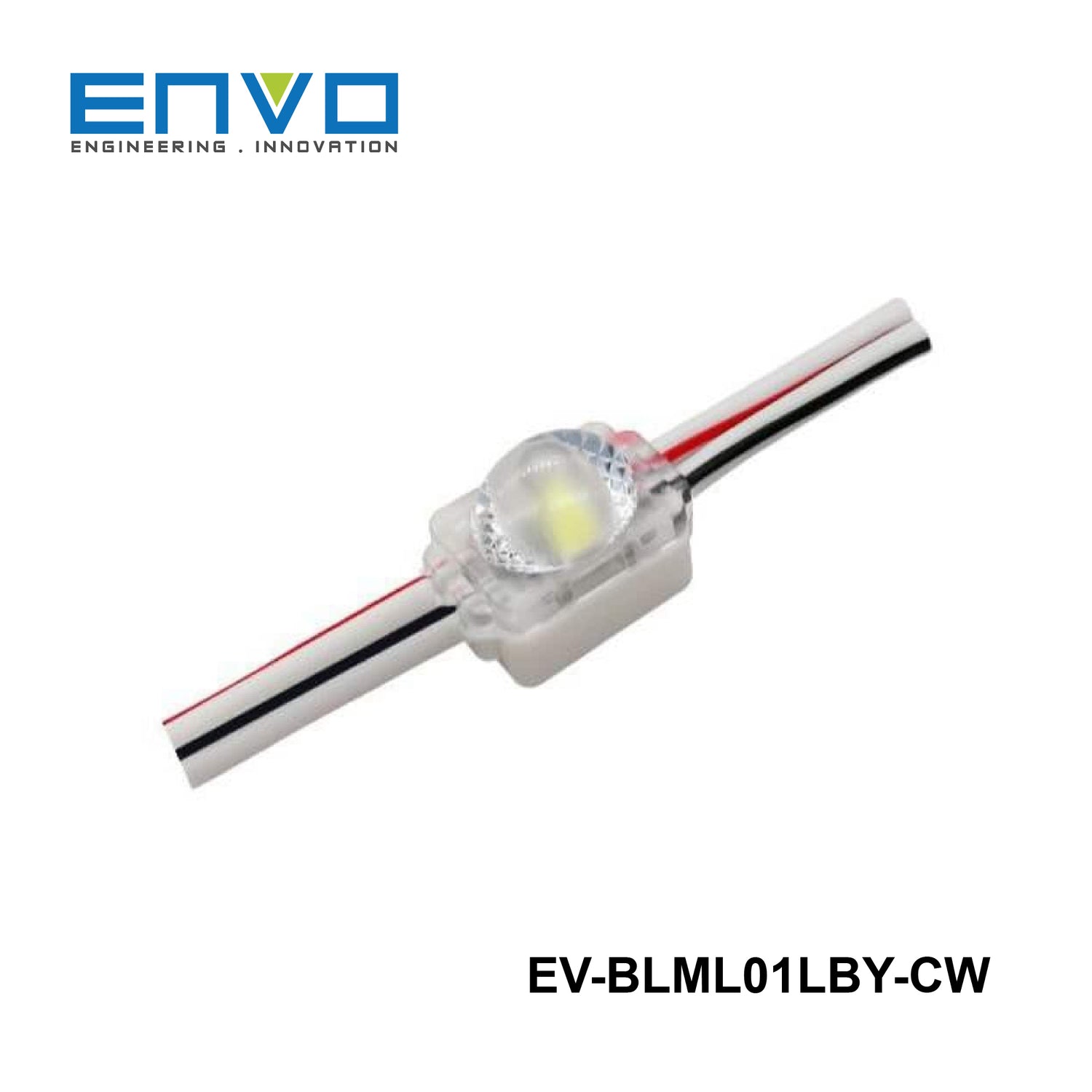

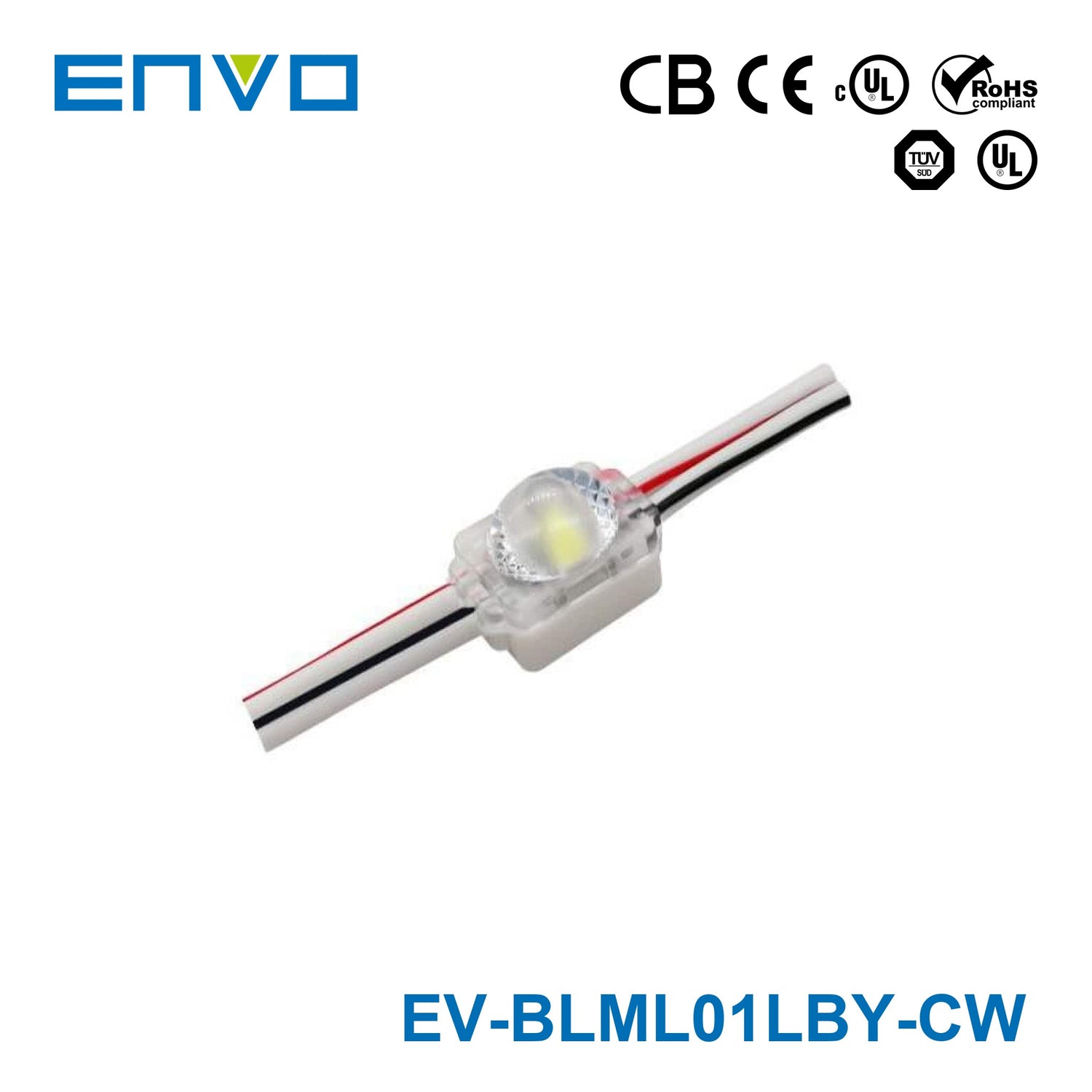

ENVO MiniLux LED Module Backlit - Single LED

12V 0.24W IP66

SKU:

EV-BLML01LBY-CW

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Compact and Brilliant Illumination

The MiniLux LED Modules by ENVO are designed to deliver efficient and precise lighting solutions for shallow depth applications such as illuminated letters and light boxes. Ideal for tight spaces, these modules ensure your signage is vibrant and clearly visible.

Key Features:

Powered by High Output 2835 LED: Achieve excellent brightness and efficiency with advanced 2835 LEDs, making your signage stand out.
Constant Voltage System: Provides stable lighting performance, ensuring consistent illumination across your project.
Diamondback 180°x140° Optic Lens: Features a wide-angle lens that offers expansive and uniform light distribution, maximizing coverage and minimizing shadows.
Efficient String Configuration: Each string contains 40 modules, designed for easy installation and adaptability to suit various project requirements.

Application:

The MiniLux LED Modules are ideal for illuminated letters and light boxes with depths ranging from 3-8 cm, providing effective lighting solutions in compact spaces.

Enhance your signage with the MiniLux LED Modules by ENVO, where compact design meets powerful performance to deliver superior lighting solutions tailored to your specific needs.

Specifications

Brand

Envo
Series

MiniLux
Power Rating

0.24 Watt
Rated Current

0.02 Ampere
Standards Met

CB,CE,cUL,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

1.4 cm
Width

0.9 cm
Height

0.88 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the ENVO MiniLux LED Module Backlit designed for?

This LED module family is intended for shallow-depth illuminated letters and light boxes. It is suited to signage depths from 3-8 cm where compact size and even backlighting are important. The wide optic helps spread light across tight sign cavities with fewer dark areas.

What is the difference between the available color temperature options in this MiniLux family?

The main difference across the variants is color temperature. The family is available in 3000K warm white, 4000K neutral white, and 7000K cool white, while the listed power, beam angle, CRI, dimming capability, lifetime, and warranty remain the same. This lets buyers choose the light appearance that best matches the signage design.

What are the core performance specs of the ENVO MiniLux LED Module Backlit family?

Each module is rated at 0.24 W and uses a 12V power input. The family has a 180° x 140° beam angle, CRI 80, and a rated lifetime of 50,000 hours. The listed warranty period is 5 years.

Is this LED module suitable for shallow or space-constrained signage builds?

Yes. The module is specifically described for shallow-depth applications such as letters and light boxes with 3-8 cm depth. Its compact body, listed at 14 mm long, 9 mm wide, and 8.8 mm high, makes it a strong fit where internal space is limited.

Does this MiniLux LED module provide broad light coverage for sign faces?

Yes. This family uses a Diamondback optic lens with a 180° x 140° beam angle to deliver wide light distribution. That broad spread is intended to improve uniformity and reduce visible shadowing in backlit signage.

Is the ENVO MiniLux LED Module Backlit dimmable, and is it built for long service life?

Yes, the family is listed as dimmable. It is also rated for 50,000 hours of life and backed by a 5-year warranty, which makes it suitable for projects where durability and maintenance intervals matter.
