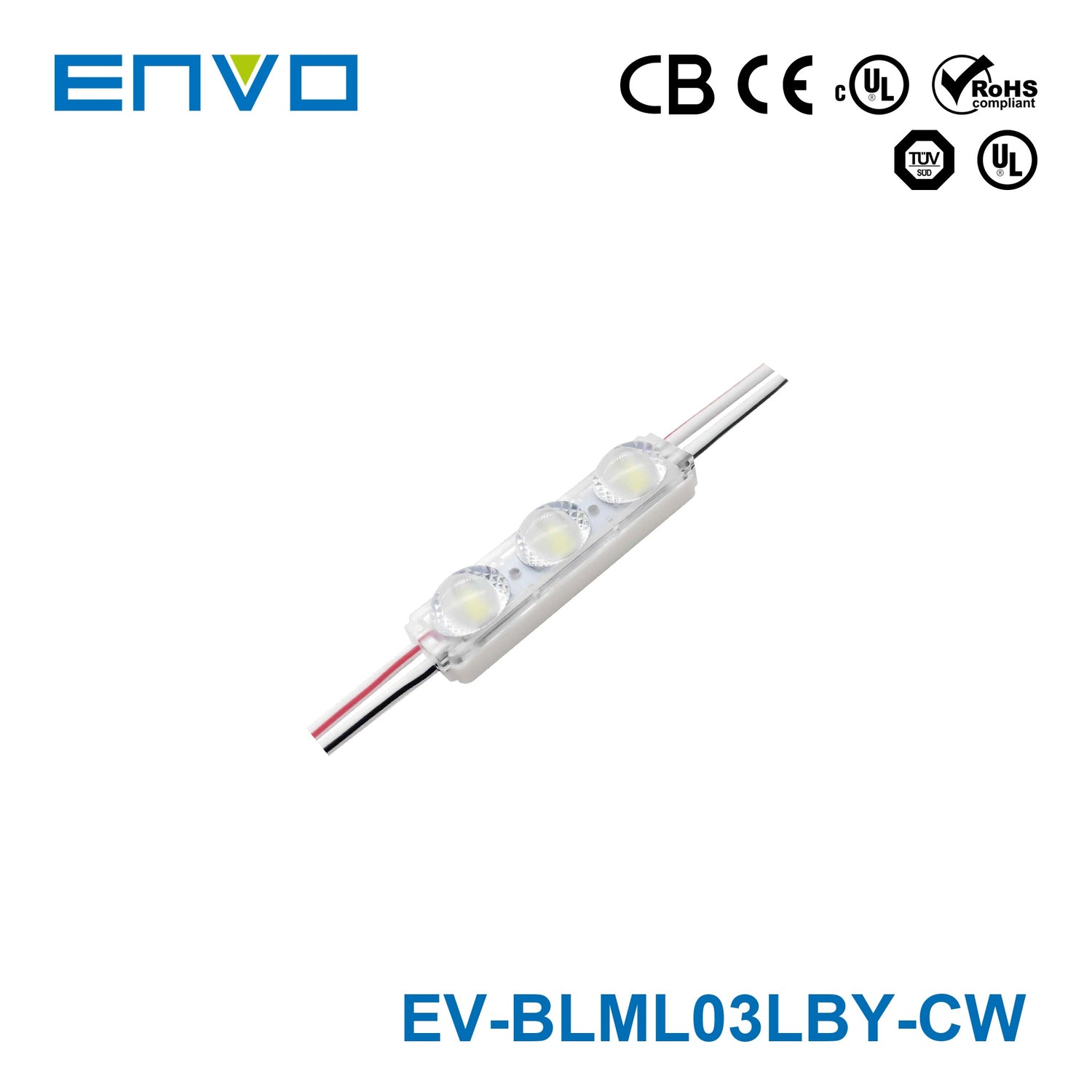

Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

ENVO MiniLux LED Module Backlit - Triple LED

12V 0.72W IP66

SKU:

EV-BLML03LBY-CW

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Compact and Brilliant Illumination

The MiniLux LED Modules by ENVO are designed to deliver efficient and precise lighting solutions for shallow depth applications such as illuminated letters and light boxes. Ideal for tight spaces, these modules ensure your signage is vibrant and clearly visible.

Key Features:

Powered by High Output 2835 LED: Achieve excellent brightness and efficiency with advanced 2835 LEDs, making your signage stand out.
Constant Voltage System: Provides stable lighting performance, ensuring consistent illumination across your project.
Diamondback 180°x140° Optic Lens: Features a wide-angle lens that offers expansive and uniform light distribution, maximizing coverage and minimizing shadows.
Efficient String Configuration: Each string contains 40 modules, designed for easy installation and adaptability to suit various project requirements.

Application:

The MiniLux LED Modules are ideal for illuminated letters and light boxes with depths ranging from 3-8 cm, providing effective lighting solutions in compact spaces.

Enhance your signage with the MiniLux LED Modules by ENVO, where compact design meets powerful performance to deliver superior lighting solutions tailored to your specific needs.

Specifications

Brand

Envo
Series

MiniLux
Power Rating

0.72 Watt
Rated Current

0.06 Ampere
Standards Met

CB,CE,cUL,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

3.8 cm
Width

0.9 cm
Height

0.9 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the ENVO MiniLux LED Module Backlit - Triple LED designed for?

This LED module family is designed for illuminated letters and light boxes where space is limited. It is intended for shallow-depth signage applications, with the product description specifying use in depths from 3-8 cm. Its compact 38 x 9 x 9 mm form factor makes it suitable for tight backlit sign cavities.

What are the main differences between the available variants in this product family?

The main variant difference in this family is color temperature. The available options are 3000K warm white, 4000K neutral white, and 7000K cool white. Based on the provided child data, all variants share the same 0.72 W power rating, 85 lm brightness, 80 CRI, 180 x 140 beam angle, 50,000-hour life, and 5-year warranty.

How bright is each ENVO MiniLux Triple LED module?

Each variant in this family is rated at 85 lumens per module. That output is paired with a 0.72 W power rating, supporting efficient illumination for compact signage applications. This makes the family suitable for projects that need strong light output in shallow depths.

What beam spread does this LED module use?

This family uses a 180 x 140 beam angle with a Diamondback optic lens. That wide distribution is intended to improve coverage across sign faces and help reduce shadowing in shallow light boxes or channel letters. It is designed for even illumination where space for module setback is limited.

Is the ENVO MiniLux LED Module Backlit - Triple LED dimmable?

Yes, this product family is listed as dimmable. That gives buyers flexibility when a project needs adjustable light levels rather than fixed full-output operation. Dimming capability applies across the parent family based on the provided specifications.

What input voltage does this LED module family use?

The parent product model specifies a 12V power input. This makes it part of a constant-voltage LED module family intended for stable lighting performance. Buyers should match the product with compatible 12V systems when evaluating it for signage applications.

What is the expected service life and warranty for this product family?

This LED module family is rated for a 50,000-hour lifetime. It also carries a 5-year warranty based on the provided product data. Those specifications make it a fit for commercial signage projects where long-term reliability is important.

Model	Power	Brightness	CCT	Dimming
ENVO MiniLux LED Module Backlit - Duo LED	0.48W	—	—	Dimmable	View
ENVO MiniLux LED Module Backlit - Single LED	0.24W	—	—	Dimmable	View
