Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

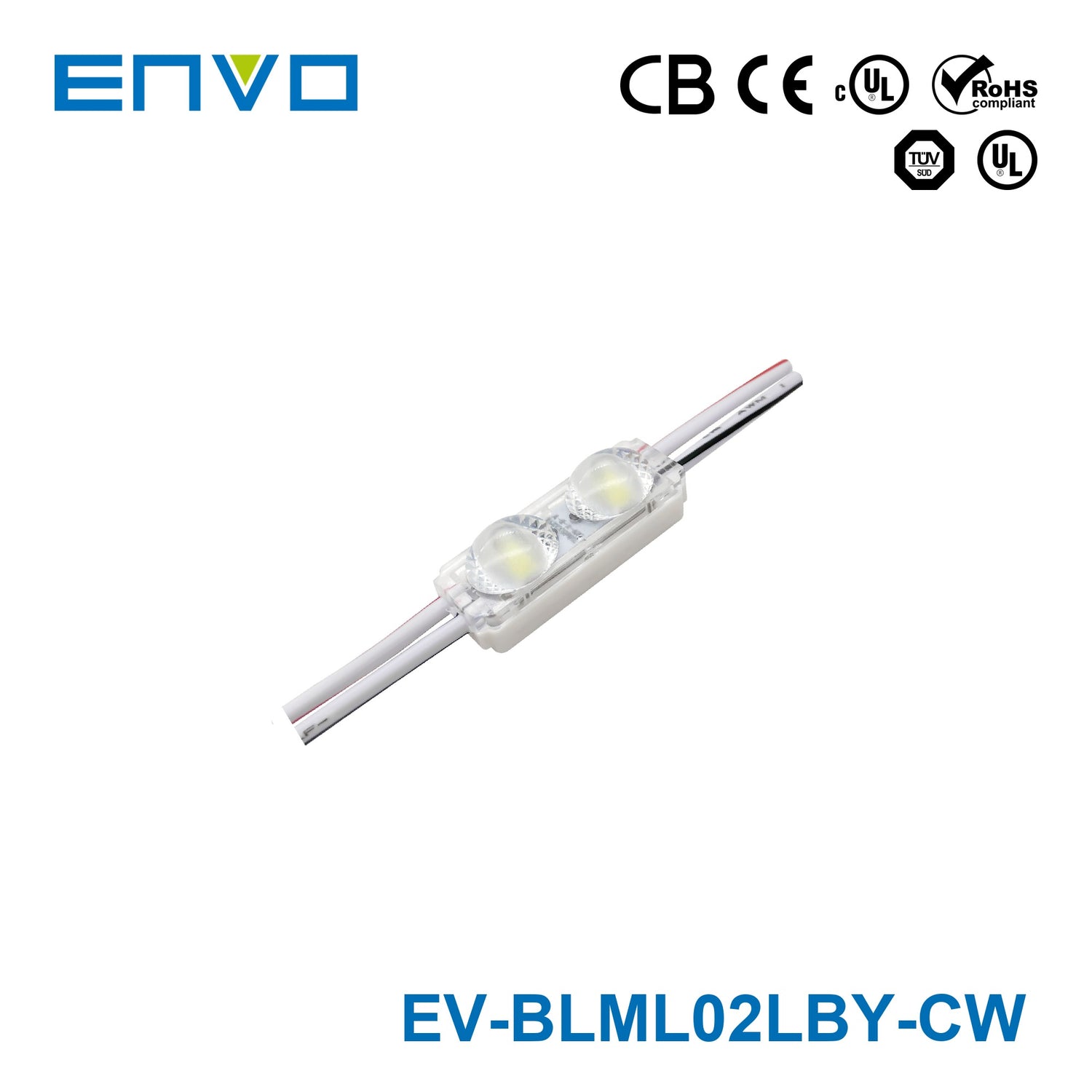

ENVO MiniLux LED Module Backlit - Duo LED

12V 0.48W IP66

SKU:

EV-BLML02LBY-CW

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Compact and Brilliant Illumination

The MiniLux LED Modules by ENVO are designed to deliver efficient and precise lighting solutions for shallow depth applications such as illuminated letters and light boxes. Ideal for tight spaces, these modules ensure your signage is vibrant and clearly visible.

Key Features:

Powered by High Output 2835 LED: Achieve excellent brightness and efficiency with advanced 2835 LEDs, making your signage stand out.
Constant Voltage System: Provides stable lighting performance, ensuring consistent illumination across your project.
Diamondback 180°x140° Optic Lens: Features a wide-angle lens that offers expansive and uniform light distribution, maximizing coverage and minimizing shadows.
Efficient String Configuration: Each string contains 40 modules, designed for easy installation and adaptability to suit various project requirements.

Application:

The MiniLux LED Modules are ideal for illuminated letters and light boxes with depths ranging from 3-8 cm, providing effective lighting solutions in compact spaces.

Enhance your signage with the MiniLux LED Modules by ENVO, where compact design meets powerful performance to deliver superior lighting solutions tailored to your specific needs.

Specifications

Brand

Envo
Series

MiniLux
Power Rating

0.48 Watt
Rated Current

0.04 Ampere
Standards Met

CB,CE,cUL,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

2.6 cm
Width

0.9 cm
Height

0.9 cm
Weight

0 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the ENVO MiniLux LED Module Backlit - Duo LED designed for?

This LED module family is designed for shallow-depth illuminated letters and light boxes. It is intended for signage applications where space is limited but bright, even backlighting is still needed. The stated application depth range is 3-8 cm.

What are the main differences between the variants in this product family?

The main difference across the family is color temperature. The available options are 3000K warm white, 4000K neutral white, and 7000K cool white. Core performance specifications such as 55 lm output, 0.48 W power rating, CRI 80, beam angle, dimmability, lifetime, and warranty remain the same across the listed variants.

How bright is each module in the ENVO MiniLux Duo LED family?

Each listed variant delivers 55 lumens per module. This output is paired with a 0.48 W power rating, making the family suitable for efficient backlit signage in compact spaces. The product description also notes the use of high output 2835 LEDs.

What beam spread does this LED module use?

This product family uses a 180° x 140° beam angle. According to the product description, the optic lens is designed to provide wide and uniform light distribution. That broad spread helps improve coverage in shallow sign cavities.

Is the ENVO MiniLux LED Module Backlit - Duo LED dimmable?

Yes, this product family is listed as dimmable. That makes it suitable for projects where adjustable light levels are required, provided the rest of the system is matched appropriately. The dimming capability is consistent across the listed child variants.

What are the expected service life and warranty for this product family?

The MiniLux Duo LED family is rated for a 50,000-hour lifetime and comes with a 5-year warranty. Those values are consistent across the listed variants. This makes the family a practical choice for long-term commercial signage use.

Model	Power	Brightness	CCT	Dimming
ENVO MiniLux LED Module Backlit - Single LED	0.24W	—	—	Dimmable	View
ENVO MiniLux LED Module Backlit - Triple LED	0.72W	—	—	Dimmable	View
