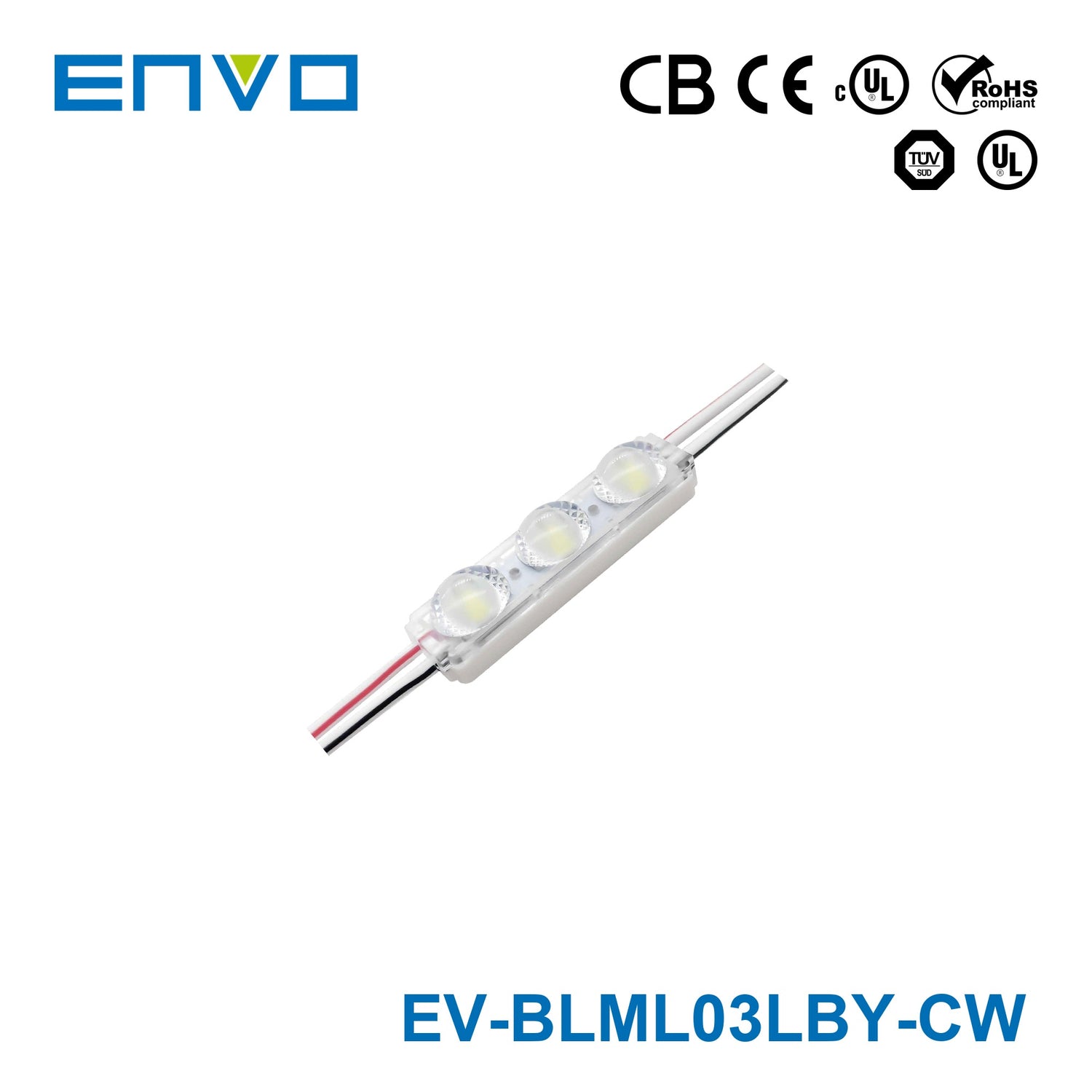

ENVO MiniLux LED Module Backlit - Triple LED
Log in to see priceThe EV-BLML03LBY is an ENVO LED module (12VDC, 0.72W, operating temperature: -25~+60°C).
Key Features
- ✓ Input voltage: 12VDC
- ✓ Power: 0.72W
- ✓ Rated current: 0.06A
- ✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
- ✓ CRI: 80
- ✓ Beam angle: 180°
- ✓ Dimmable
- ✓ Ingress protection: IP66
- ✓ Operating temperature: -25~+60°C
- ✓ Safety certifications: CB, CE, RoHS, TÜV, UL, cUL
- ✓ 5 year warranty
-
BrandEnvo
-
SeriesMiniLux
-
Power Rating0.72 Watt
-
Rated Current0.06 Ampere
-
Standards MetCB,CE,cUL,ROHS,TUV,UL
-
Operating Temperature-25°C~60°C
-
Warranty5 Year
-
Length3.8 cm
-
Width0.9 cm
-
Height0.9 cm
-
Weight0 kg
::specification::
Frequently Asked Questions
What applications is the ENVO MiniLux LED Module Backlit - Triple LED designed for?
This LED module family is designed for illuminated letters and light boxes where space is limited. It is intended for shallow-depth signage applications, with the product description specifying use in depths from 3-8 cm. Its compact 38 x 9 x 9 mm form factor makes it suitable for tight backlit sign cavities.
What are the main differences between the available variants in this product family?
The main variant difference in this family is color temperature. The available options are 3000K warm white, 4000K neutral white, and 7000K cool white. Based on the provided child data, all variants share the same 0.72 W power rating, 85 lm brightness, 80 CRI, 180 x 140 beam angle, 50,000-hour life, and 5-year warranty.
How bright is each ENVO MiniLux Triple LED module?
Each variant in this family is rated at 85 lumens per module. That output is paired with a 0.72 W power rating, supporting efficient illumination for compact signage applications. This makes the family suitable for projects that need strong light output in shallow depths.
What beam spread does this LED module use?
This family uses a 180 x 140 beam angle with a Diamondback optic lens. That wide distribution is intended to improve coverage across sign faces and help reduce shadowing in shallow light boxes or channel letters. It is designed for even illumination where space for module setback is limited.
Is the ENVO MiniLux LED Module Backlit - Triple LED dimmable?
Yes, this product family is listed as dimmable. That gives buyers flexibility when a project needs adjustable light levels rather than fixed full-output operation. Dimming capability applies across the parent family based on the provided specifications.
What input voltage does this LED module family use?
The parent product model specifies a 12V power input. This makes it part of a constant-voltage LED module family intended for stable lighting performance. Buyers should match the product with compatible 12V systems when evaluating it for signage applications.
What is the expected service life and warranty for this product family?
This LED module family is rated for a 50,000-hour lifetime. It also carries a 5-year warranty based on the provided product data. Those specifications make it a fit for commercial signage projects where long-term reliability is important.
