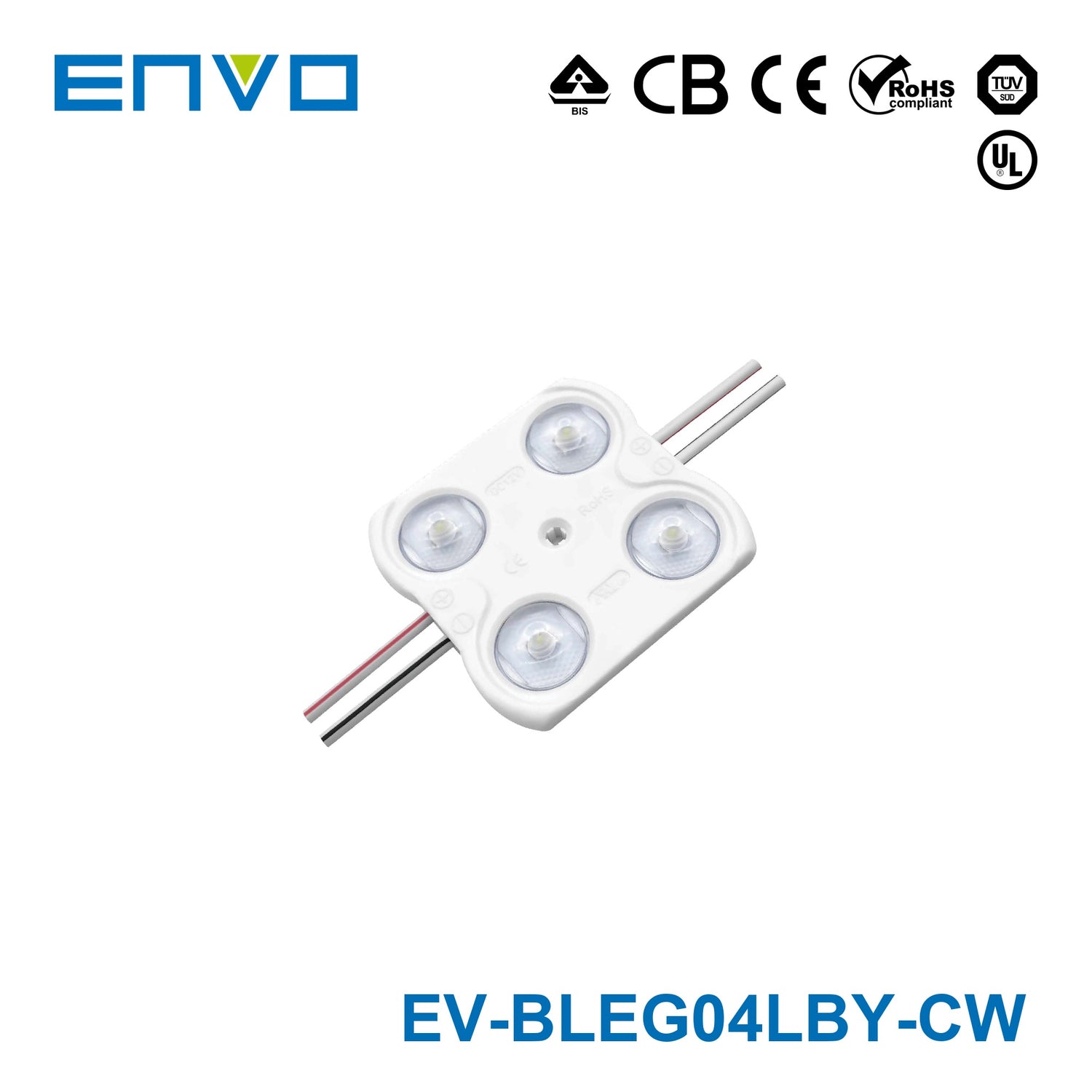

ENVO EcoGlo LED Module Backlit - Quad LED

12V1.6WIP65

SKU EV-BLEG04LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

EV-BLEG04LBY-CW

EV-BLEG01LBY-CW Single LED Backorder

EV-BLEG02LBY-CW Double LED In stock

EV-BLEG03LBY-CW Triple LED In stock

EV-BLEG04LBY-CW Quad LED In stock

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

The EV-BLEG04LBY is an ENVO LED module (12VDC, 1.6W, operating temperature: -25~+60°C).

Key Features

✓ Input voltage: 12VDC
✓ Power: 1.6W
✓ Rated current: 0.13A
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ CRI: 75
✓ Beam angle: 170°
✓ Dimmable
✓ Ingress protection: IP65
✓ Operating temperature: -25~+60°C
✓ Safety certifications: BIS, CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO EcoGlo LED Module Backlit - Quad LED used for?

This LED module family is designed for illuminated letters and light boxes in commercial and public signage applications. It is positioned for backlit signage in places such as airports, metros, banks, buildings, and shopping malls where reliable, economical illumination is needed.

What sign depths is this LED module suitable for?

According to the product description, the EcoGlo Quad LED modules are intended for illuminated letters and light boxes with depths from 4 cm to 15 cm. That range makes them suitable for a variety of backlit signage formats where broad, even light spread is important.

What are the main performance specs of this LED module family?

Each variant in this family is rated at 1.6 W and produces 160 lumens. The modules use a 170 degree beam angle, have a CRI of 75, are dimmable, and are rated for a 50,000 hour lifetime with a 5 year warranty.

What is the difference between the available variants in this parent family?

The main difference across the child variants is color temperature. This family is offered in 3000K warm white, 4000K neutral white, and 7000K cool white, while the listed beam angle, power rating, brightness, CRI, dimming, lifetime, and warranty remain the same across those options.

Is this LED module designed for wide and even light coverage?

Yes. The product description states that it uses a Diamondback 170 degree optic lens, which is intended to provide expansive and even light distribution while reducing shadows in backlit signage applications.

What certifications does the ENVO EcoGlo LED Module family have?

The product description lists CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications for this family. These certifications indicate that the product is positioned to meet recognized quality, safety, and environmental standards.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO EcoGlo LED Module Backlit - Double LED	0.8W	—	—	Dimmable	View
ENVO EcoGlo LED Module Backlit - Triple LED	1.2W	—	—	Dimmable	View
ENVO EcoGlo LED Module Backlit - Single LED	0.4W	—	—	Dimmable	View
