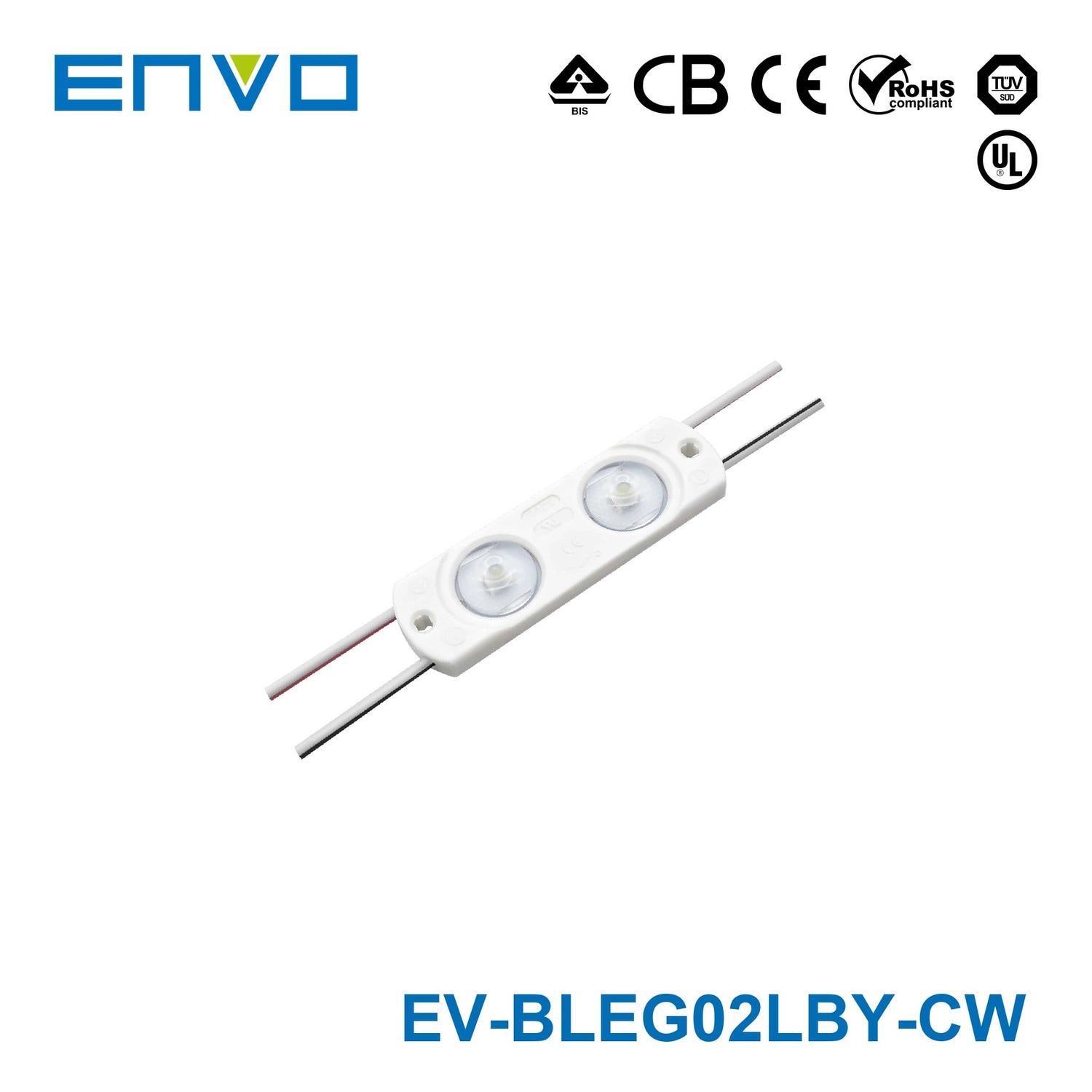

ENVO EcoGlo LED Module Backlit - Double LED

12V 0.8W IP65

SKU:

EV-BLEG02LBY-CW

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Efficient and Economical Illumination

The EcoGlo LED Modules by ENVO are designed to deliver cost-effective and efficient lighting solutions for illuminated letters and light boxes. Perfect for use in high-traffic areas such as airports, metros, banks, buildings, and shopping malls, these modules provide reliable illumination without compromising on quality.

Key Features:

High Output 2835 LED Technology: Powered by advanced 2835 LEDs, the EcoGlo modules offer bright and efficient lighting, ensuring your signage is visible and attractive.
Constant Voltage Operation: Provides stable lighting performance, enhancing the durability and reliability of the LEDs for long-term use.
Diamondback 170° Optic Lens: Features a wide-angle lens that ensures expansive and even light distribution, maximizing coverage and minimizing shadows.
Economic and Cost-Effective: Designed to be budget-friendly while maintaining high performance, making it an ideal choice for projects with cost constraints.
Flexible Installation: Each string contains 20 modules, allowing for easy and adaptable installation to suit various project needs.
Certified Quality and Safety: The EcoGlo LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified, demonstrating ENVO's commitment to high standards of quality, safety, and environmental responsibility.

Application:

These modules are ideal for illuminated letters and light boxes with depths ranging from 4-15 cm, providing effective lighting solutions for a variety of commercial and public settings.

Illuminate your signage with the EcoGlo LED Modules by ENVO, where efficiency meets economy to deliver superior lighting solutions tailored to your specific needs.

Specifications

Brand

Envo
Series

EcoGlo
Power Rating

0.8 Watt
Rated Current

0.06 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

5.6 cm
Width

1.75 cm
Height

0.62 cm
Weight

0.01 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the ENVO EcoGlo LED Module Backlit - Double LED designed for?

This LED module family is designed for illuminated letters and light boxes in commercial and public signage applications. It is suited to settings such as airports, metros, banks, buildings, and shopping malls where reliable backlit illumination is needed. The product description specifies use in signage depths from 4-15 cm.

What light color options are available in this product family?

This parent family is available in three correlated color temperature options based on the child variants: 3000K, 4000K, and 7000K. That allows buyers to choose a warmer, more neutral, or cooler appearance while keeping the same core module format and performance level. All listed variants share the same beam angle, power rating, CRI, lifetime, dimming capability, and warranty period.

What are the core performance specs shared across all variants?

All listed variants in this family are rated at 0.8 W and 80 lm per module. They also share a 170-degree beam angle, CRI of 75, dimmable operation, a 50,000-hour lifetime, and a 5-year warranty. These common specs make the main difference between variants the light color temperature.

Is the ENVO EcoGlo Double LED module dimmable?

Yes, the parent model is specified as dimmable, and the child variants also show dimmable control. That means the family supports light output adjustment when used in a compatible dimming setup. The dimming capability is consistent across the variants provided.

How wide is the light spread from this LED module?

This product family has a 170-degree beam angle. The wide optic is intended to support broad and even light distribution in backlit signage applications. This can help improve coverage while reducing visible shadowing in illuminated letters and light boxes.

What voltage input is this LED module family rated for?

The parent product data identifies the power input as 12V. This is part of the shared parent-level specification for the family. Buyers should match the module family with compatible 12V system requirements.

What are the physical dimensions of the module?

The parent model dimensions are 56.0 mm long, 17.5 mm wide, and 6.2 mm high. The listed weight is 9.4 g per module. These dimensions are useful when evaluating fit for compact backlit letter and light box applications.

Is this LED module family intended for long-term commercial use?

Yes, this family is positioned for commercial signage use and carries a rated lifetime of 50,000 hours with a 5-year warranty. The description also highlights constant-voltage operation and multiple certifications including CE, RoHS, UL, TUV, BIS, CB, and LM-80. Together, those details support its use where dependable long-service illumination is important.
