Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

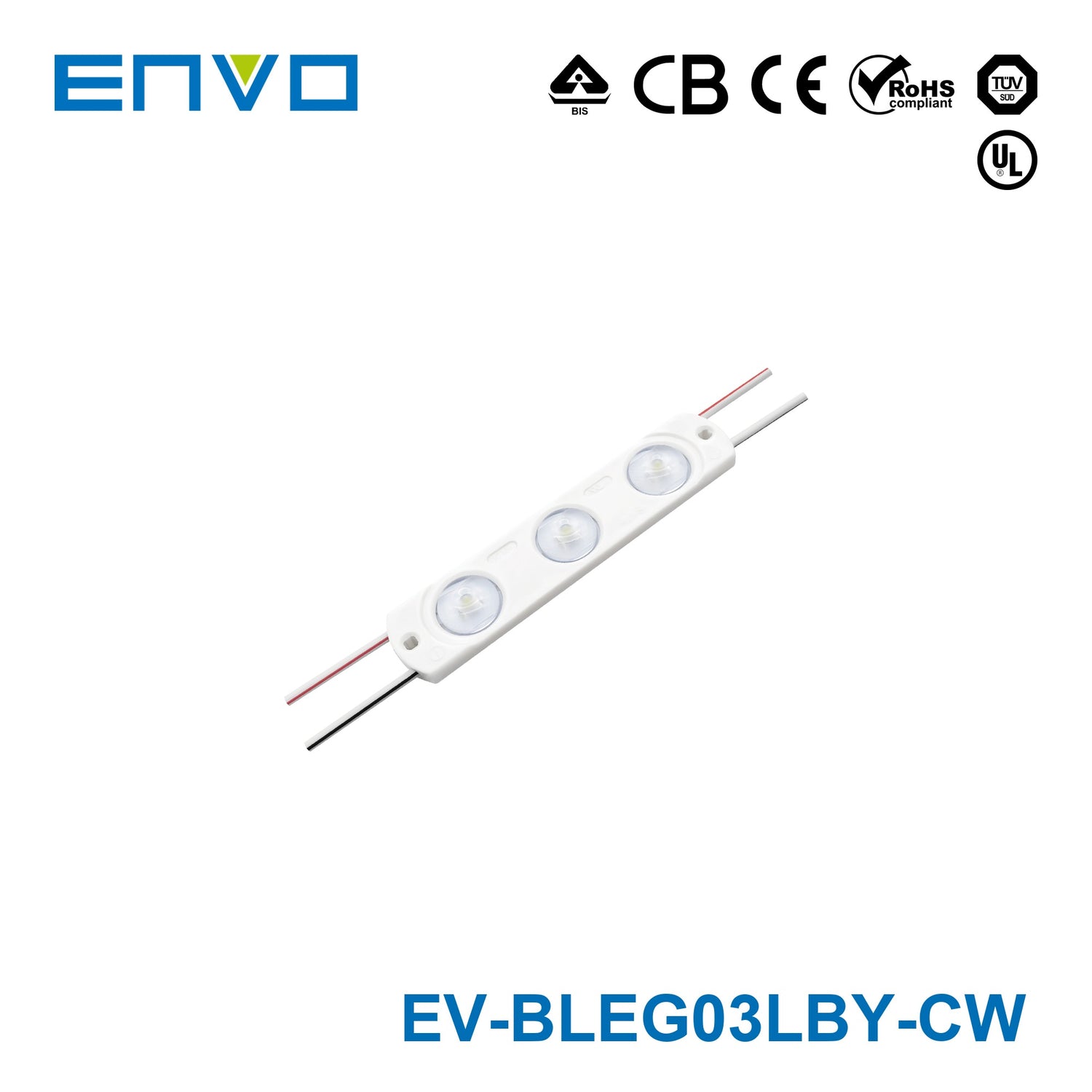

ENVO EcoGlo LED Module Backlit - Triple LED

12V 1.2W IP65

SKU:

EV-BLEG03LBY-CW

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Efficient and Economical Illumination

The EcoGlo LED Modules by ENVO are designed to deliver cost-effective and efficient lighting solutions for illuminated letters and light boxes. Perfect for use in high-traffic areas such as airports, metros, banks, buildings, and shopping malls, these modules provide reliable illumination without compromising on quality.

Key Features:

High Output 2835 LED Technology: Powered by advanced 2835 LEDs, the EcoGlo modules offer bright and efficient lighting, ensuring your signage is visible and attractive.
Constant Voltage Operation: Provides stable lighting performance, enhancing the durability and reliability of the LEDs for long-term use.
Diamondback 170° Optic Lens: Features a wide-angle lens that ensures expansive and even light distribution, maximizing coverage and minimizing shadows.
Economic and Cost-Effective: Designed to be budget-friendly while maintaining high performance, making it an ideal choice for projects with cost constraints.
Flexible Installation: Each string contains 20 modules, allowing for easy and adaptable installation to suit various project needs.
Certified Quality and Safety: The EcoGlo LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified, demonstrating ENVO's commitment to high standards of quality, safety, and environmental responsibility.

Application:

These modules are ideal for illuminated letters and light boxes with depths ranging from 4-15 cm, providing effective lighting solutions for a variety of commercial and public settings.

Illuminate your signage with the EcoGlo LED Modules by ENVO, where efficiency meets economy to deliver superior lighting solutions tailored to your specific needs.

Specifications

Brand

Envo
Series

EcoGlo
Power Rating

1.2 Watt
Rated Current

0.1 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

8 cm
Width

1.75 cm
Height

0.62 cm
Weight

0.01 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the ENVO EcoGlo LED Module Backlit - Triple LED designed for?

This LED module family is designed for illuminated letters and light boxes in commercial and public environments. The product description specifically positions it for signage in places such as airports, metros, banks, buildings, and shopping malls. It is intended for applications with box or letter depths from 4-15 cm.

What light color options are available in this EcoGlo Triple LED family?

This parent product family is available in three correlated color temperature options: 3000K, 4000K, and 7000K. These correspond to warm white, neutral white, and cool white style outputs within the same product range. The shared performance specs remain the same across the listed variants.

What are the main performance specs for this LED module family?

Each listed variant uses 1.2 W of power and delivers 120 lumens of brightness. The family also has a 170 degree beam angle, CRI 75, and dimmable operation. Rated lifetime is 50,000 hours with a 5-year warranty.

How does the wide 170 degree beam angle benefit signage applications?

The 170 degree beam angle is intended to provide broad light distribution across illuminated letters and light boxes. According to the product description, the optic lens is designed to maximize coverage and help minimize shadows. This makes it suitable for backlit signage where even illumination is important.

Is this LED module suitable for long-term commercial use?

Yes, this family is positioned for commercial signage projects that need reliable ongoing performance. It has a rated life of 50,000 hours and a 5-year warranty, and the description states the products are 100% tested during production. The product description also lists multiple certifications including CE, RoHS, UL, TUV, BIS, CB, and LM-80.

What are the physical dimensions of the ENVO EcoGlo Triple LED module?

The parent model dimensions are 80.0 mm long, 17.5 mm wide, and 6.2 mm high. The listed weight is 12.3 g. These measurements can help buyers assess fit within compatible signage housings and light box depths.

Model	Power	Brightness	CCT	Dimming
ENVO EcoGlo LED Module Backlit - Double LED	0.8W	—	—	Dimmable	View
ENVO EcoGlo LED Module Backlit - Quad LED	1.6W	—	—	Dimmable	View
ENVO EcoGlo LED Module Backlit - Single LED	0.4W	—	—	Dimmable	View
