Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

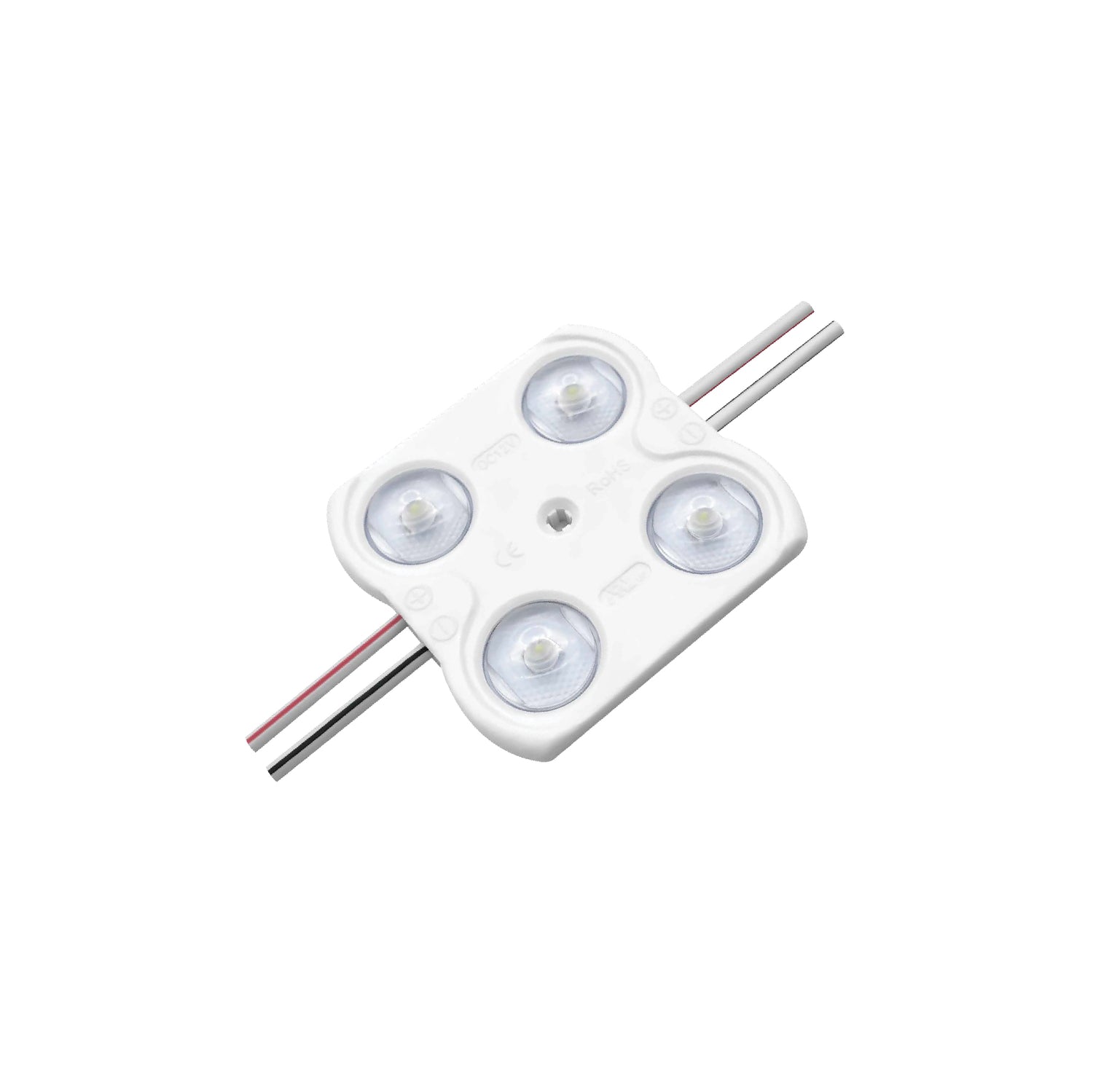

ENVO EcoGlo LED Module Backlit - Quad LED

12V 1.6W IP65

SKU:

EV-BLEG04LBY-CW

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Please for Pricing

Notify me when it's back in stock

Description

Exceptional Materials: 99.99% pure gold thread paired with a pure copper bracket coated in silver for optimal performance and durability.

Uncompromising Quality: 100% testing during production ensures reliability and precision in every product.

Efficient and Economical Illumination

The EcoGlo LED Modules by ENVO are designed to deliver cost-effective and efficient lighting solutions for illuminated letters and light boxes. Perfect for use in high-traffic areas such as airports, metros, banks, buildings, and shopping malls, these modules provide reliable illumination without compromising on quality.

Key Features:

High Output 2835 LED Technology: Powered by advanced 2835 LEDs, the EcoGlo modules offer bright and efficient lighting, ensuring your signage is visible and attractive.
Constant Voltage Operation: Provides stable lighting performance, enhancing the durability and reliability of the LEDs for long-term use.
Diamondback 170° Optic Lens: Features a wide-angle lens that ensures expansive and even light distribution, maximizing coverage and minimizing shadows.
Economic and Cost-Effective: Designed to be budget-friendly while maintaining high performance, making it an ideal choice for projects with cost constraints.
Flexible Installation: Each string contains 20 modules, allowing for easy and adaptable installation to suit various project needs.
Certified Quality and Safety: The EcoGlo LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified, demonstrating ENVO's commitment to high standards of quality, safety, and environmental responsibility.

Application:

These modules are ideal for illuminated letters and light boxes with depths ranging from 4-15 cm, providing effective lighting solutions for a variety of commercial and public settings.

Illuminate your signage with the EcoGlo LED Modules by ENVO, where efficiency meets economy to deliver superior lighting solutions tailored to your specific needs.

Specifications

Brand

Envo
Series

EcoGlo
Power Rating

1.6 Watt
Rated Current

0.13 Ampere
Standards Met

BIS,CB,CE,ROHS,TUV,UL
Operating Temperature

-25°C~60°C
Warranty

5 Year
Length

4.5 cm
Width

4.3 cm
Height

0.62 cm
Weight

0.02 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the ENVO EcoGlo LED Module Backlit - Quad LED used for?

This LED module family is designed for illuminated letters and light boxes in commercial and public signage applications. It is positioned for backlit signage in places such as airports, metros, banks, buildings, and shopping malls where reliable, economical illumination is needed.

What sign depths is this LED module suitable for?

According to the product description, the EcoGlo Quad LED modules are intended for illuminated letters and light boxes with depths from 4 cm to 15 cm. That range makes them suitable for a variety of backlit signage formats where broad, even light spread is important.

What are the main performance specs of this LED module family?

Each variant in this family is rated at 1.6 W and produces 160 lumens. The modules use a 170 degree beam angle, have a CRI of 75, are dimmable, and are rated for a 50,000 hour lifetime with a 5 year warranty.

What is the difference between the available variants in this parent family?

The main difference across the child variants is color temperature. This family is offered in 3000K warm white, 4000K neutral white, and 7000K cool white, while the listed beam angle, power rating, brightness, CRI, dimming, lifetime, and warranty remain the same across those options.

Is this LED module designed for wide and even light coverage?

Yes. The product description states that it uses a Diamondback 170 degree optic lens, which is intended to provide expansive and even light distribution while reducing shadows in backlit signage applications.

What certifications does the ENVO EcoGlo LED Module family have?

The product description lists CE, RoHS, UL, TUV, BIS, CB, and LM-80 certifications for this family. These certifications indicate that the product is positioned to meet recognized quality, safety, and environmental standards.

Model	Power	Brightness	CCT	Dimming
ENVO EcoGlo LED Module Backlit - Double LED	0.8W	—	—	Dimmable	View
ENVO EcoGlo LED Module Backlit - Triple LED	1.2W	—	—	Dimmable	View
ENVO EcoGlo LED Module Backlit - Single LED	0.4W	—	—	Dimmable	View
