ENVO EcoGlo LED Module Backlit - Single LED

12V0.4WIP65

SKU EV-BLEG01LBY-CW

Log in to see price Trade pricing & online ordering for account holders

Select model — 4 in this family

EV-BLEG01LBY-CW

EV-BLEG01LBY-CW Single LED Backorder

EV-BLEG02LBY-CW Double LED In stock

EV-BLEG03LBY-CW Triple LED In stock

EV-BLEG04LBY-CW Quad LED In stock

LED Colour

Cool White 7000K Natural White 4000K Warm White 3000K

Product variants

Plan your sign — free Auto-place this module & size the driver. Open →

Notify me when it's back in stock

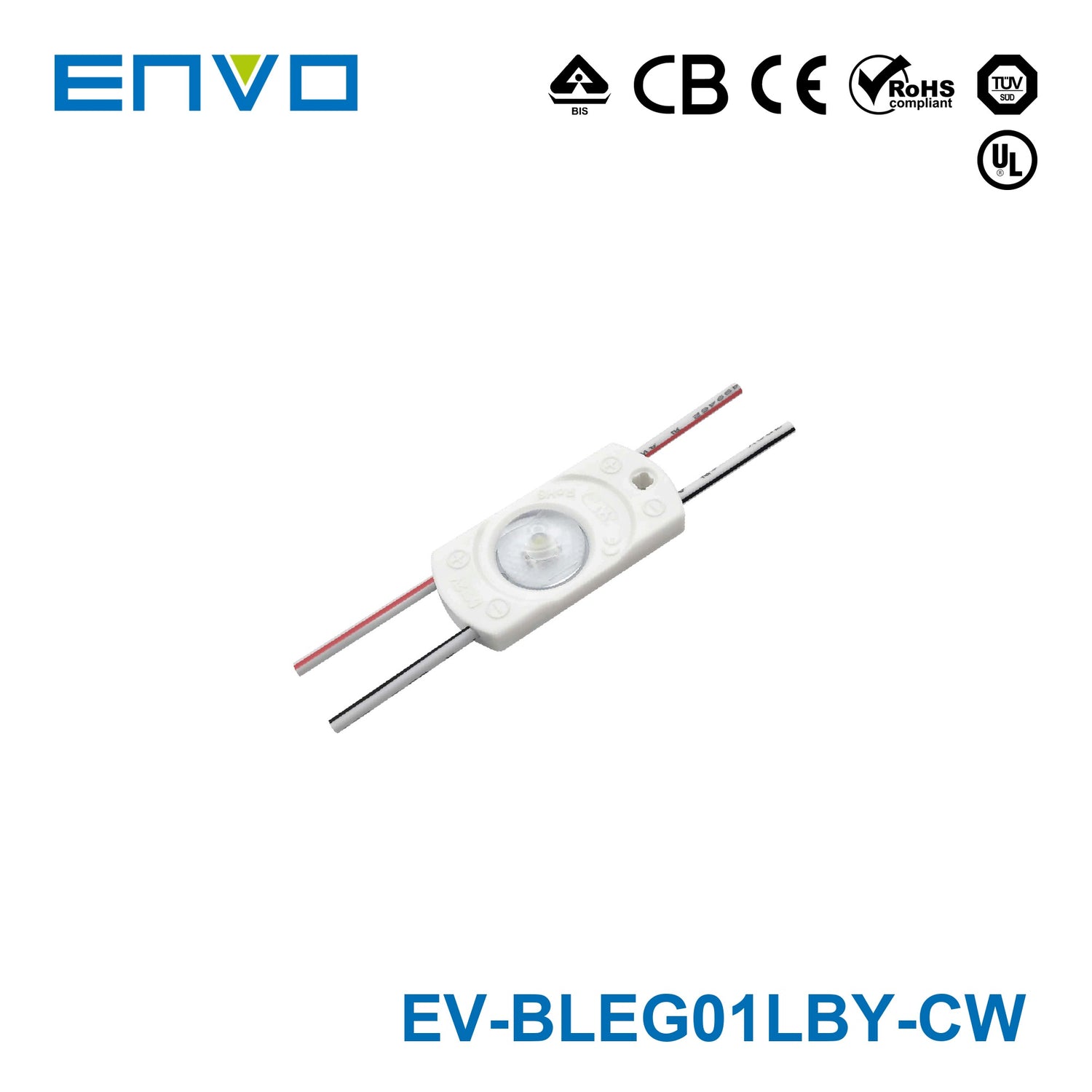

The EV-BLEG01LBY is an ENVO LED module (12VDC, 0.4W, operating temperature: -25~+60°C).

Key Features

✓ Input voltage: 12VDC
✓ Power: 0.4W
✓ Rated current: 0.03A
✓ Available in Cool White (CW), Neutral White (NW), Warm White (WW)
✓ CRI: 75
✓ Beam angle: 170°
✓ Dimmable
✓ Ingress protection: IP65
✓ Operating temperature: -25~+60°C
✓ Safety certifications: BIS, CB, CE, RoHS, TÜV, UL
✓ 5 year warranty

Frequently Asked Questions

What is the ENVO EcoGlo LED Module Backlit - Single LED used for?

This LED module family is designed for illuminated letters and light boxes. It is suited to commercial and public signage applications such as airports, metros, banks, buildings, and shopping malls. The product description states it is intended for sign depths from 4-15 cm.

What are the main performance specs across this EcoGlo LED module family?

Each variant in this family uses 0.4 W of power and delivers 40 lumens per module. The modules have a 170 degree beam angle, a CRI of 75, and a rated lifetime of 50,000 hours. They are also backed by a 5 year warranty.

What is the difference between the available variants in this parent product?

The main difference between the child variants is color temperature. The family includes 3000K warm white, 4000K neutral white, and 7000K cool white options. Beam angle, power rating, brightness, dimming capability, lifetime, CRI, and warranty are the same across the listed variants.

Is the ENVO EcoGlo LED Module dimmable?

Yes, the parent model is listed as dimmable, and the child variants also show dimmable control. That means the family is intended for applications where adjustable light output may be required. Actual dimming performance will depend on the overall system used with the modules.

How wide is the light spread from this LED module?

This family uses a 170 degree beam angle with a Diamondback optic lens for broad light distribution. That wide spread is intended to improve coverage and reduce shadowing in backlit signage and light box applications. It is a good fit where even illumination across a face or letter is important.

What certifications does the ENVO EcoGlo LED Module family have?

According to the product description, the EcoGlo LED Modules are CE, RoHS, UL, TUV, BIS, CB, and LM-80 certified. These certifications indicate the product family has been positioned around recognized quality, safety, and environmental standards. This can be useful for commercial buyers comparing compliant signage lighting options.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Brightness	CCT	Dimming
ENVO EcoGlo LED Module Backlit - Double LED	0.8W	—	—	Dimmable	View
ENVO EcoGlo LED Module Backlit - Quad LED	1.6W	—	—	Dimmable	View
ENVO EcoGlo LED Module Backlit - Triple LED	1.2W	—	—	Dimmable	View
