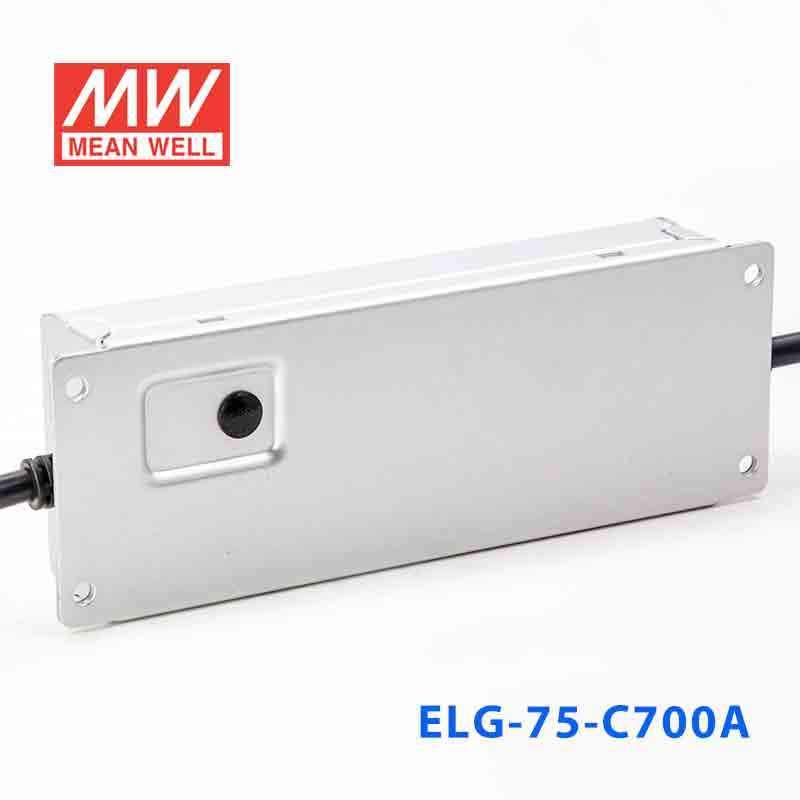

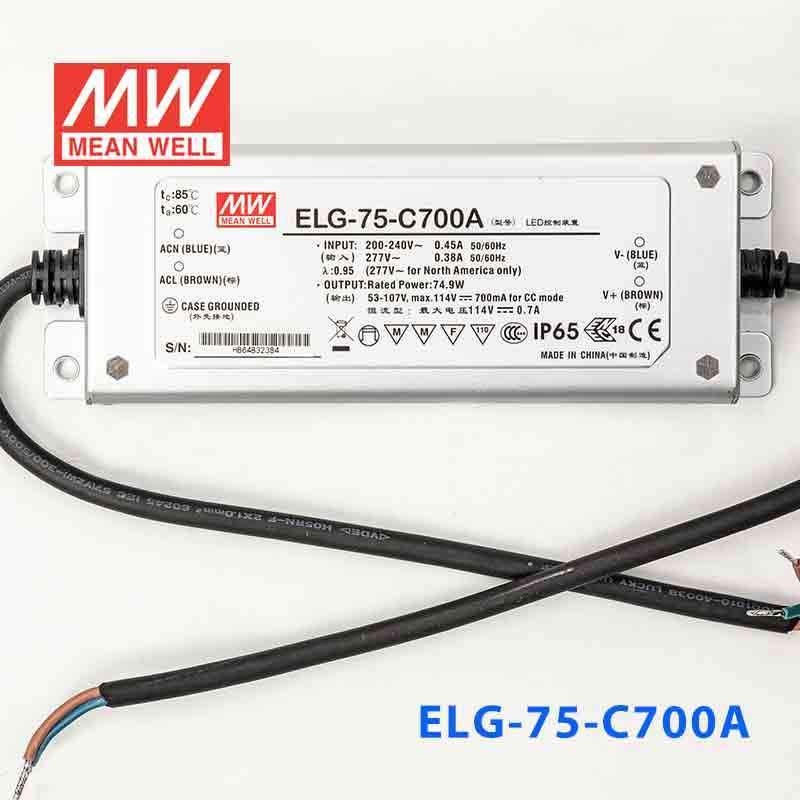

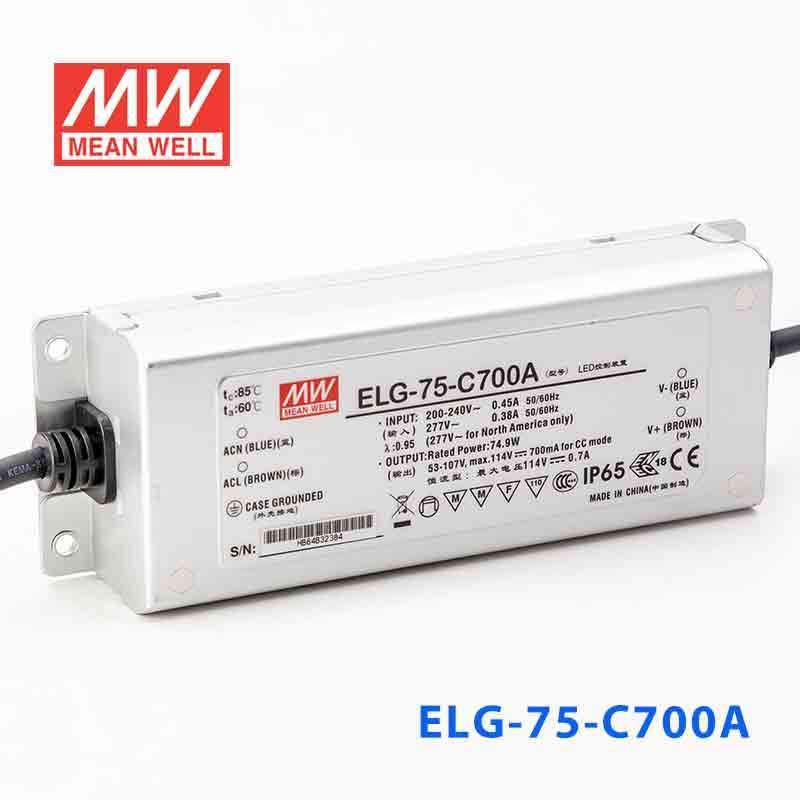

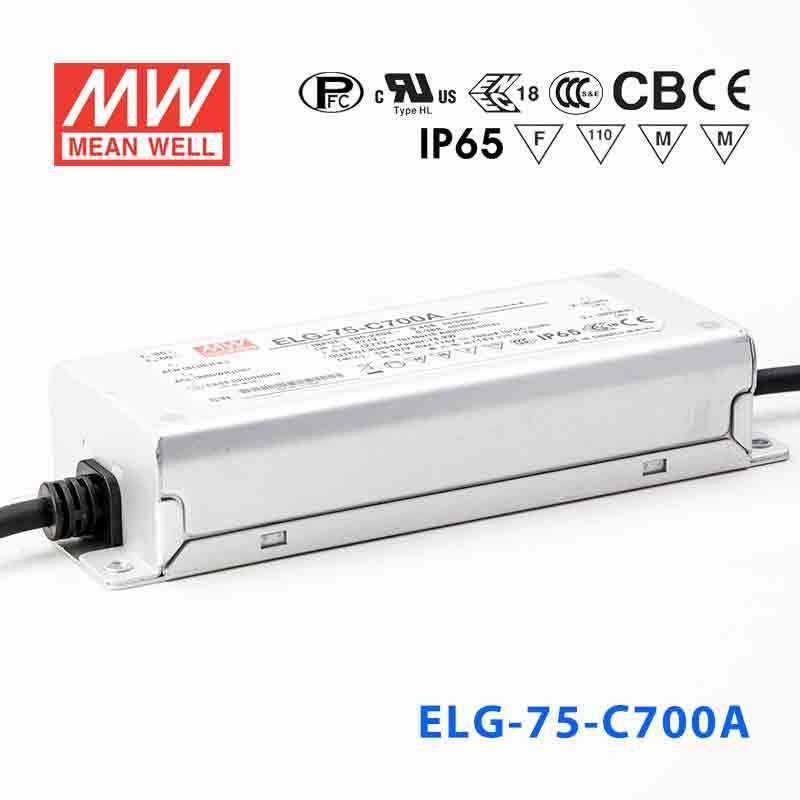

Overview

ELG-75-C700A is the model of this series: rated current 700mA, typical efficiency 91%.

ELG-75-C series is a 75W LED AC/DC driver featuring the constant current mode and high voltage output. ELG-75-C operates from 100~305VAC and offers models with different rated current ranging between 350mA and 1400mA. Thanks to the high efficiency up to 91%, with the fanless design, the entire series is able to operate for -40℃~+85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. ELG-75-C is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Current mode output
Metal housing design with functional Ground
Built-in active PFC function
No load / Standby power consumption <0.5W
IP67 / IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming (dim-to-off) ; Smart timer dimming; DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

ELG-75-C700ASpecifications from the official datasheet (2026-07-06 edition)

OUTPUT

RATED CURRENT: 700mA
RATED POWER 200VAC ~ 305VAC^Note.5: 74.9W
RATED POWER 100VAC ~ 180VAC^Note.5: 59.5W
CONSTANT CURRENT REGION^Note.2: 53 ~ 107V
OPEN CIRCUIT VOLTAGE(max.): 114V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type only (via built-in potentiometer)
CURRENT ADJ. RANGE: 350 ~ 700mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms/115VAC,230VAC

INPUT

VOLTAGE RANGE^Note.3: 100 ~ 305VAC 142 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97/115VAC, PF≧0.95/230VAC, PF≧0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧50%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 91%
AC CURRENT (Typ.): 0.7A / 115VAC 0.45A / 230VAC 0.38A/277VAC
INRUSH CURRENT(Typ.): COLD START 50A(twidth=350μs measured at 50% Ipeak)/230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 5 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption <0.5W for Blank / A-Type Standby power consumption <0.5W for B / AB / DA -Type

PROTECTION

SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 115 ~ 140V Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”), CSA C22.2 No. 250.13-12;BS EN/EN/AS/NZS 61347-1, BS EN/EN/AS/NZS 61347-2-13 independent, BS EN/EN62384;EAC TP TC 004;BIS IS15885(for 700A/700B/700DA/1050A only);IP65 or IP67; GB/T19510.1, GB/T19510.213;KC61347-1,KC61347-2-13 approved
DALI STANDARDS: Compliance to IEC62386-101,102,(207 by request) for DA Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015,BS EN/EN61000-3-2 Class C (@load≧50%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1;EAC TP TC 020; KC KN15,KN61547
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, light industry level(surge immunity:Line-Earth: 6KV,Line-Line:4KV); EAC TP TC 020; KC KN15,KN61547

OTHERS

MTBF: 3523.7K hrs min. Telcordia SR-332 (Bellcore) 305.3Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: 180*63*35.5 mm (L*W*H)
PACKING: 0.8Kg;16pcs/13.4Kg/0.67CUFT

Certifications & ratings

Type: Type HL

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at first cold start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
10. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED power supply can only be used behind a switch without permanently connected to the mains.
11. For A/AB type need to consider build in using to comply with Type HL application.

Technical drawings

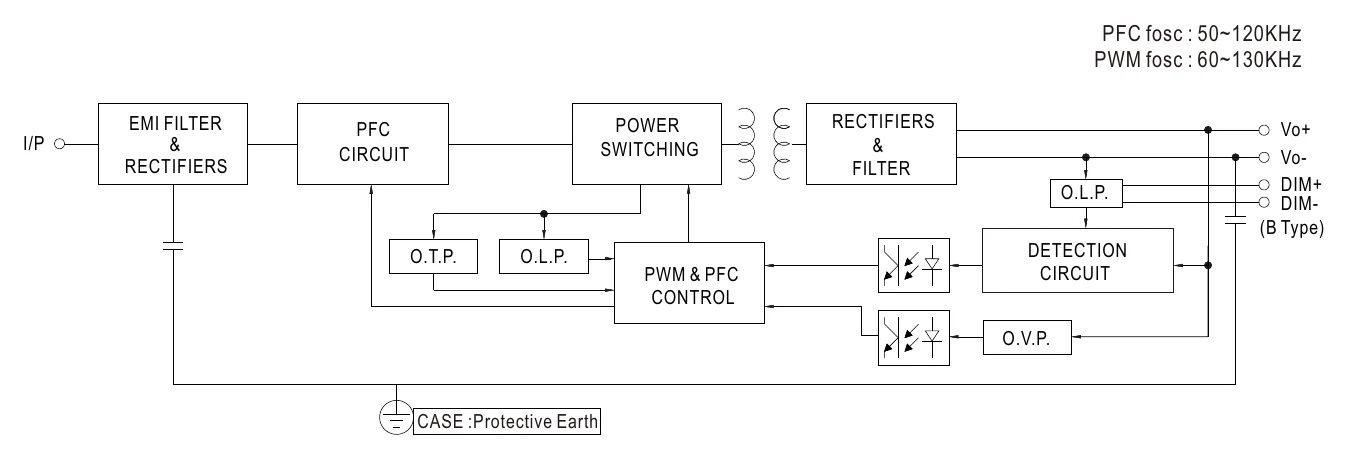

ELG-75-C700A BLOCK DIAGRAM — BLOCK DIAGRAM

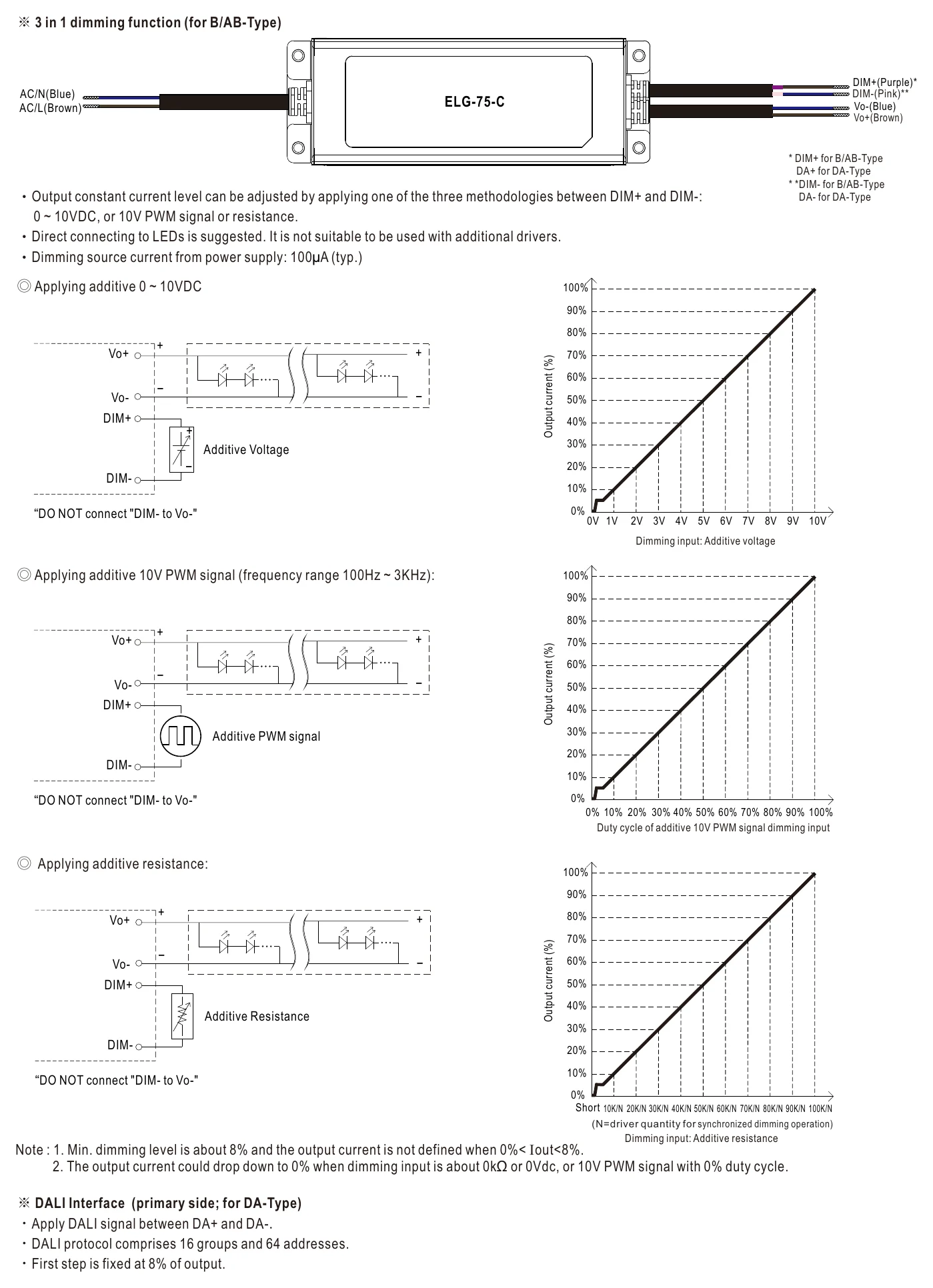

ELG-75-C700A DIMMING OPERATION — DIMMING OPERATION

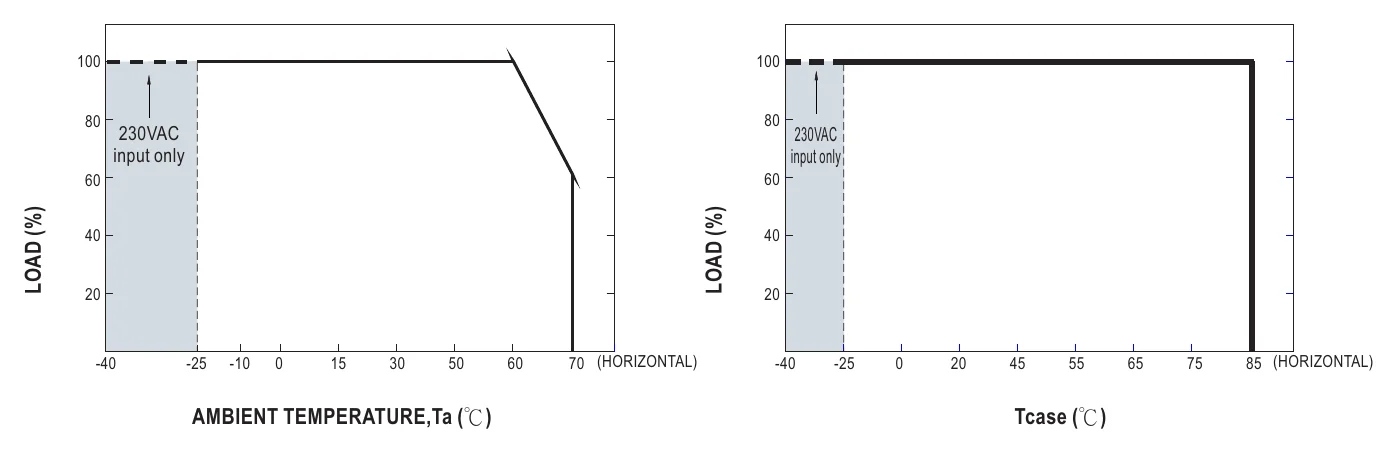

ELG-75-C700A OUTPUT LOAD vs TEMPERATURE(Note.7) — OUTPUT LOAD vs TEMPERATURE(Note.7)

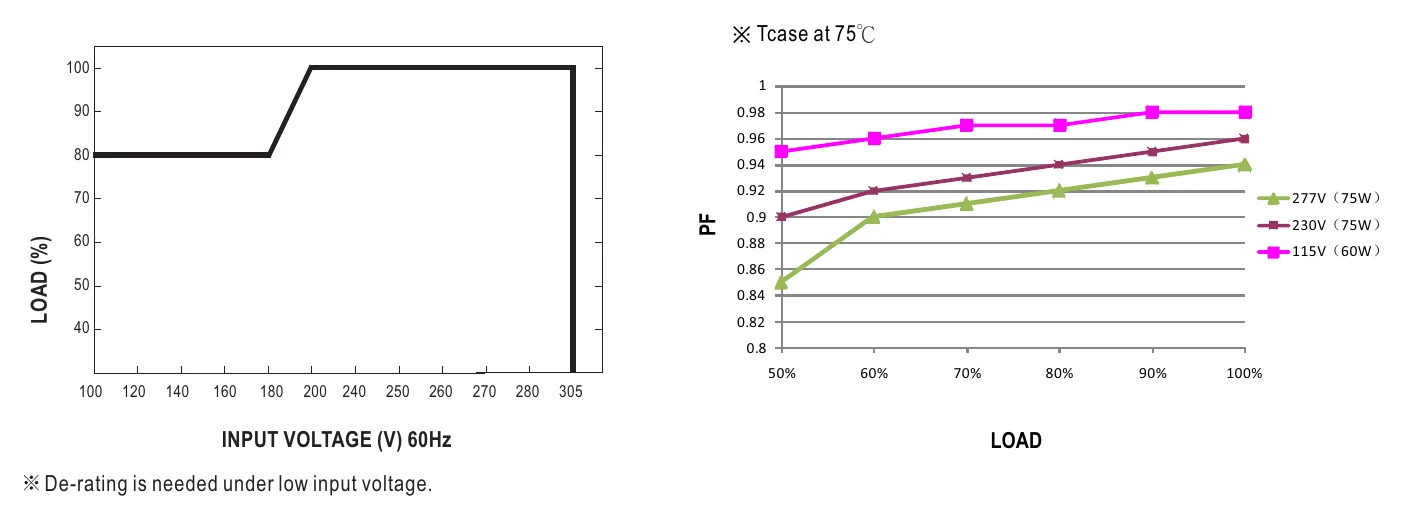

ELG-75-C700A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

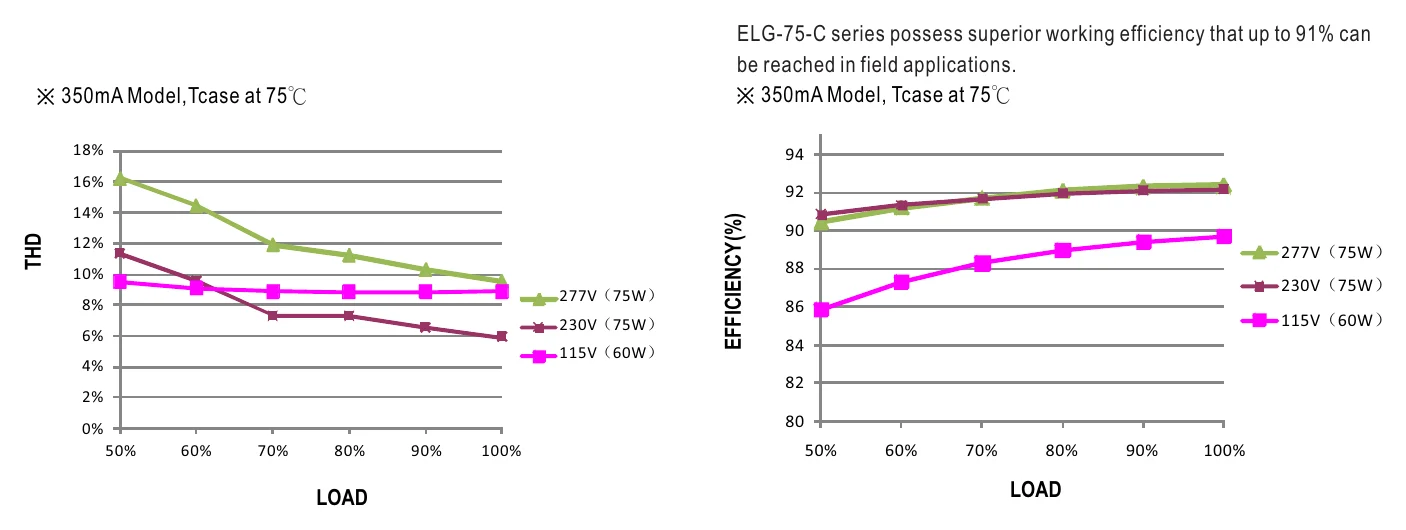

ELG-75-C700A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

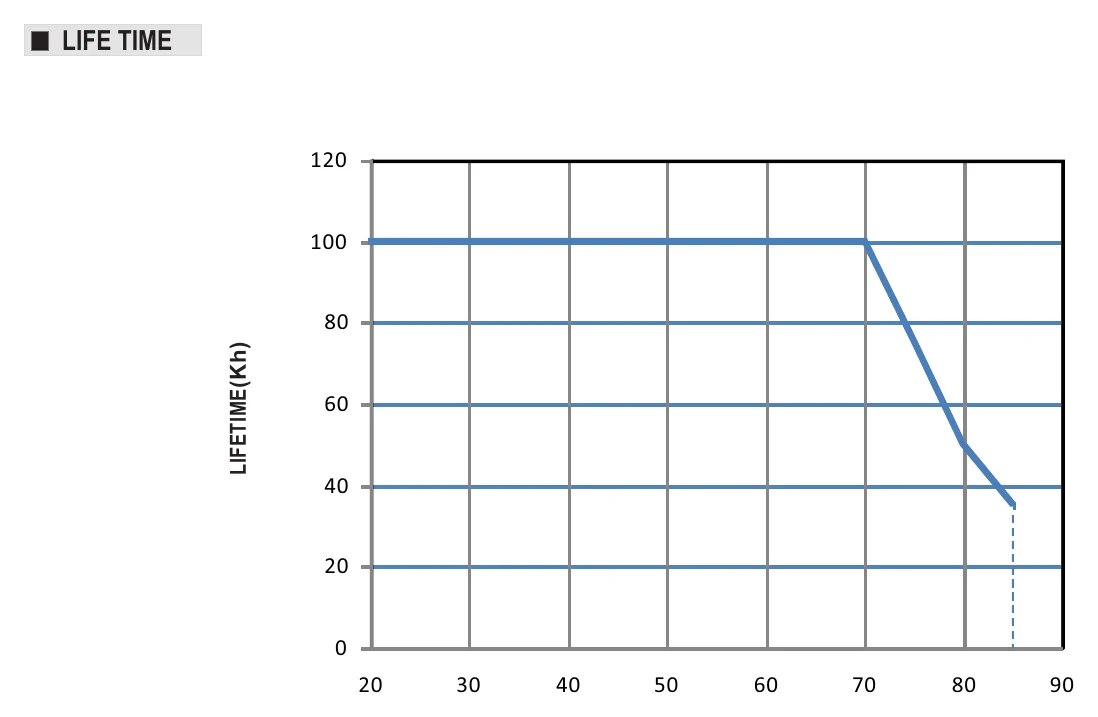

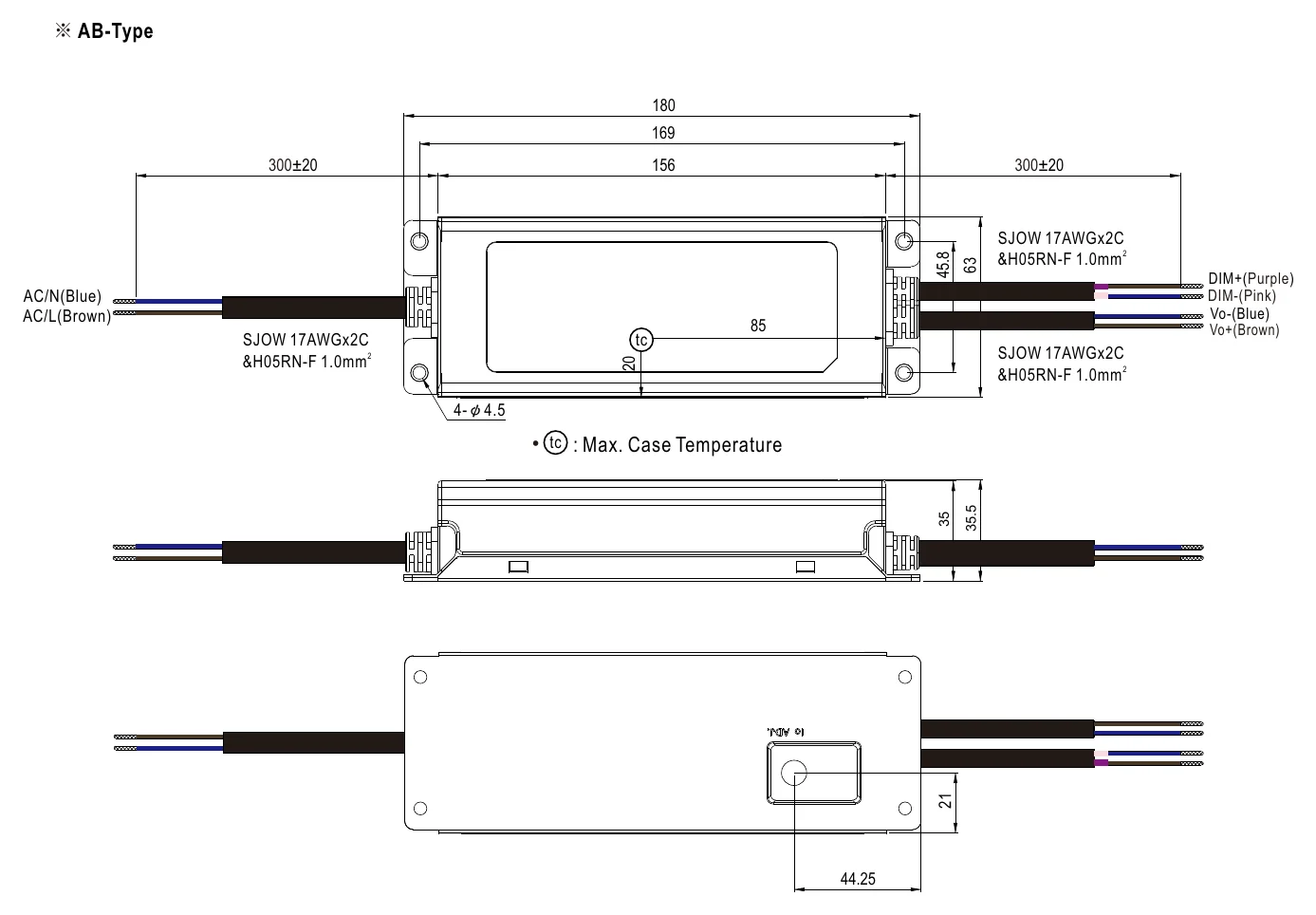

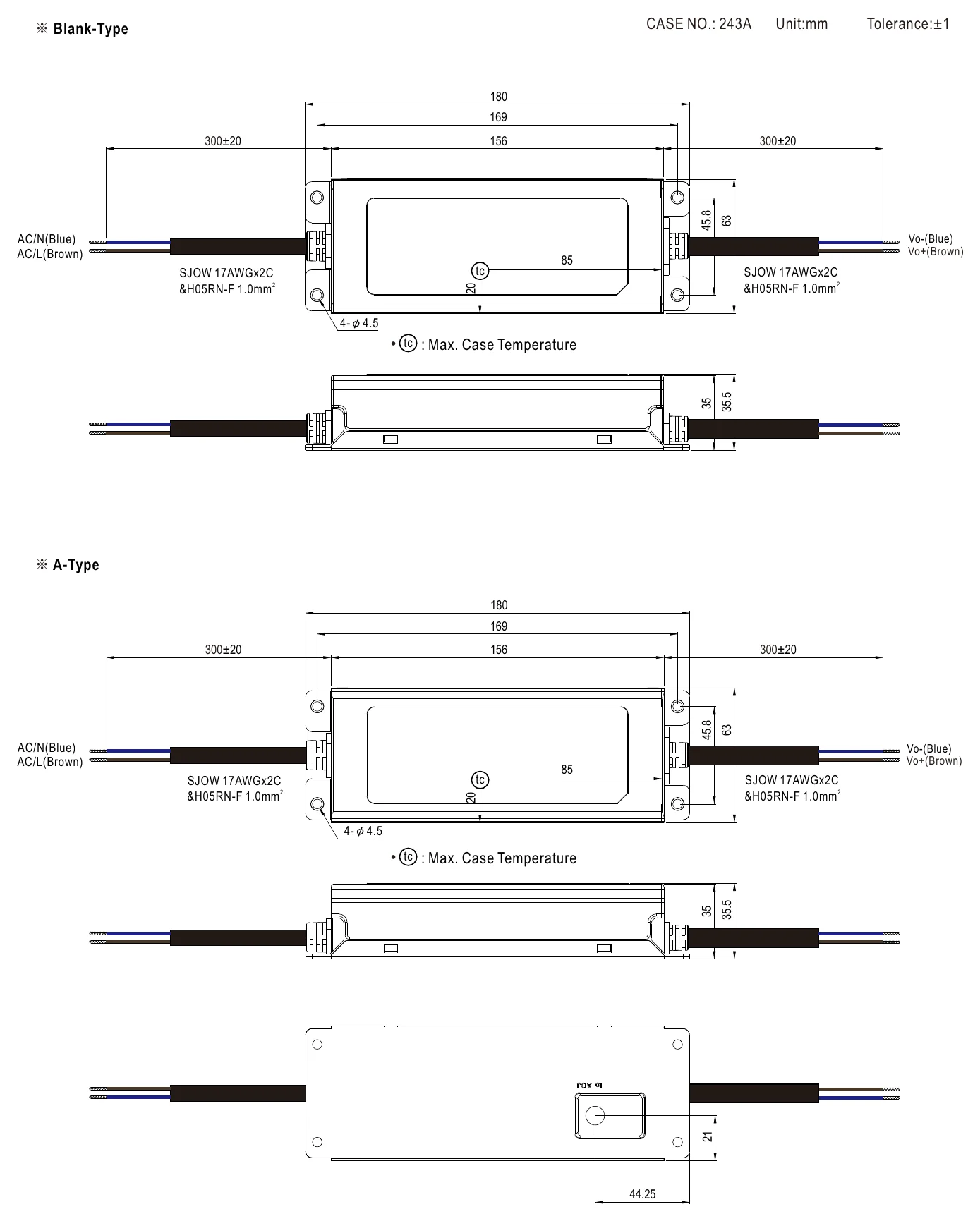

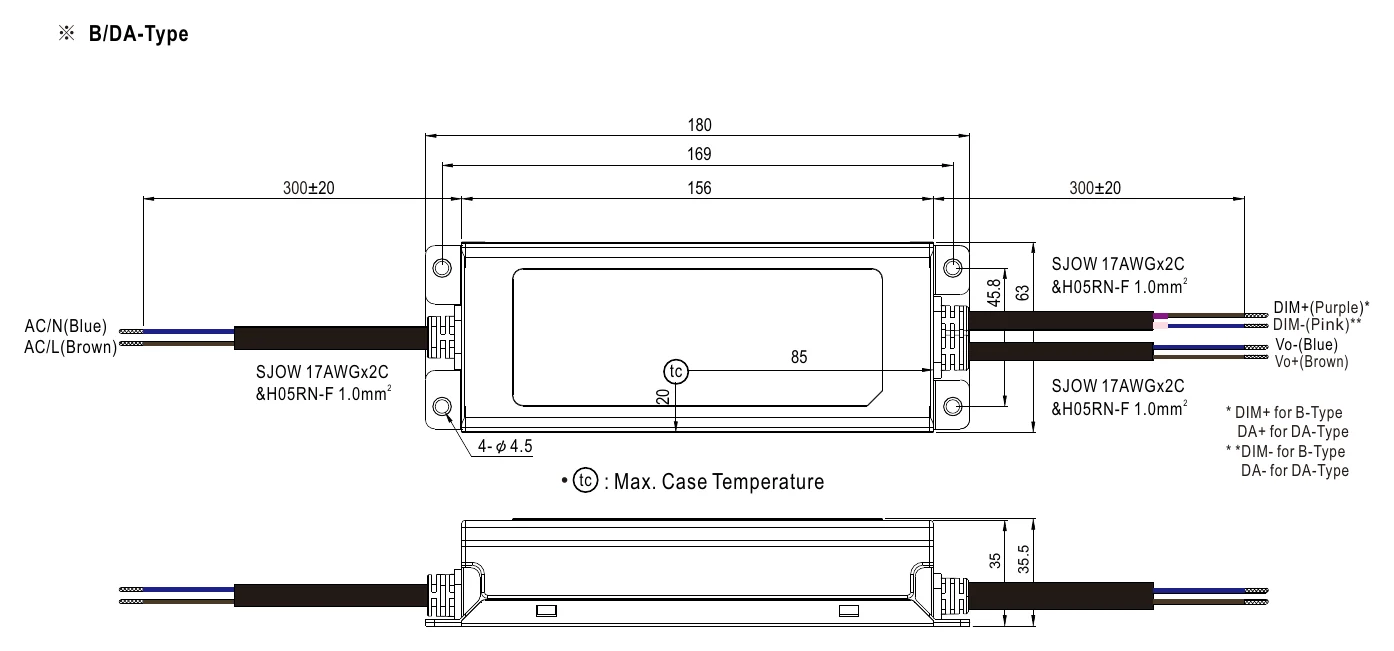

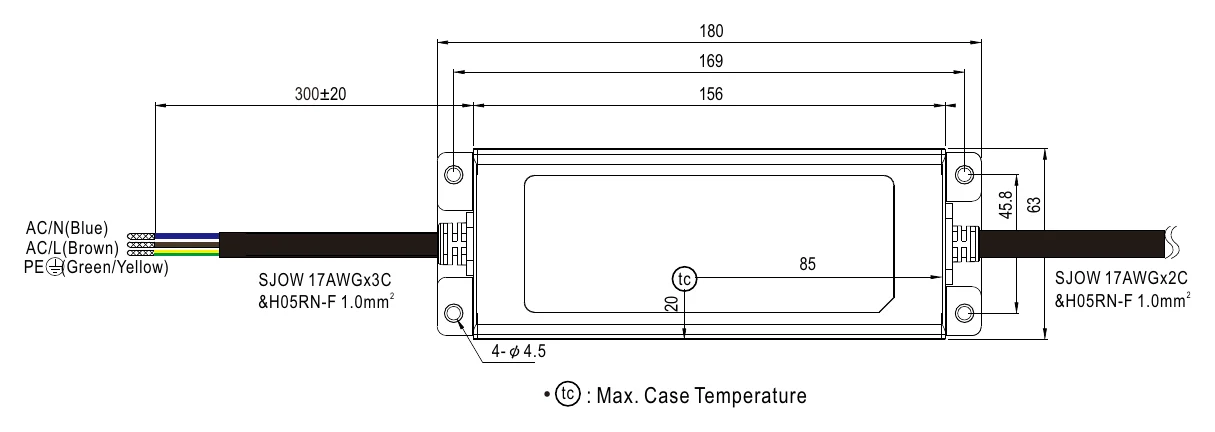

ELG-75-C700A MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

ELG-75-C700A Illustration (page 9) — Illustration (page 9)

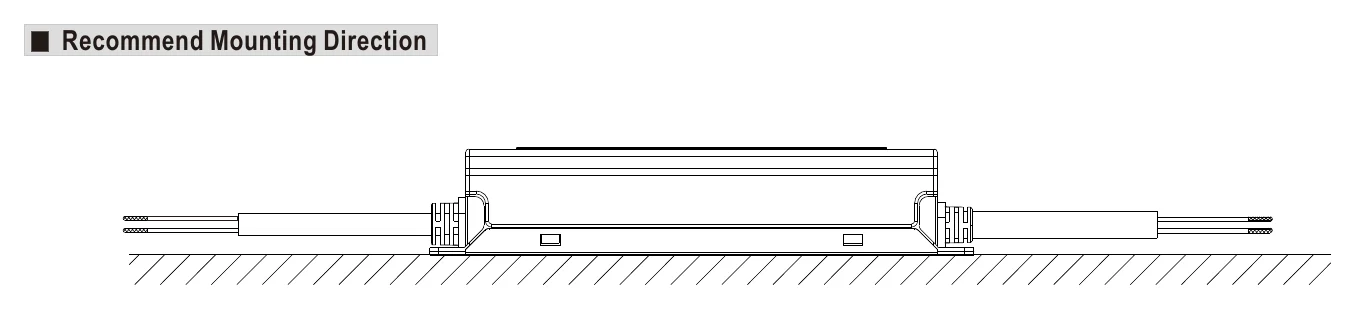

ELG-75-C700A Recommend Mounting Direction — Recommend Mounting Direction

Typical applications

LED street lighting
LED harbor lighting
LED bay lighting
LED greenhouse lighting
LED flood lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Certificates5

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (ELG-75-C)(EN) PDF Download

CB Certificate (ELG-75-C)(EN) PDF Download

EMC Certificate (ELG-75-C)(EN) PDF Download

ENEC Certificate (ELG-75-C)(EN) PDF Download

Test reports1

Test Report (ELG-75-C700)(EN) PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the ELG-75-C700A to power adjustable-brightness LED downlights in an office retrofit?

Yes. The ELG-75-C700A has an output current adjustment via its built-in potentiometer, allowing the light level to be trimmed between 350mA and 700mA. It delivers 700mA constant current at up to 74.9W, which covers most single- or multi-LED downlight modules.

Is the ELG-75-C700A suitable for driving LEDs in a semi-sheltered outdoor fixture?

Yes, with some caveats. The ELG-75-C700A carries an IP65 water-resistant rating, meaning it is protected against low-pressure water jets but not prolonged immersion. It is appropriate for rain-exposed but non-submerged outdoor enclosures, and its working case temperature (Tcase) range of -40°C to +85°C covers typical outdoor temperature extremes.

Can the ELG-75-C700A drive an LED module string in a retail display case?

Yes. At 700mA constant current and up to 74.9W, the ELG-75-C700A can drive a series string of LED modules whose combined forward voltage falls within the 53–107V CC range. The analog adjustment feature makes it easy to set the output current to the desired level for the specific LED string.

What LED arrays will work with the ELG-75-C700A?

Any constant current LED load requiring 700mA and a combined forward voltage between 53V and 107V dc is compatible. The number of individual LEDs that fall within that voltage window depends on each LED's forward voltage specification.

Can I dim the ELG-75-C700A to reduce brightness in an architectural lighting scene?

The ELG-75-C700A's built-in potentiometer allows the output current to be set between 350mA and the nominal 700mA. This is a fixed current-trim function rather than a dimming input; for 0–10V, 10V PWM or resistance dimming, the ELG-75-C700B or ELG-75-C700AB should be considered instead.

How does the ELG-75-C700A compare to the ELG-75-C700 and ELG-75-C700B?

All three are 74.9W, 700mA constant current drivers with the same CC voltage range of 53–107V. The ELG-75-C700 is the fixed-output base model with IP67. The ELG-75-C700A adds potentiometer output adjustment and is rated IP65. The ELG-75-C700B adds 3-in-1 dimming (0–10V, 10V PWM or resistance) and is rated IP67.
