Mean Well UHP-200A-5 Power Supply 200W 5V 40A

low profile(26mm)low leakage current < 1.0mAfanlesswithstand 300VAC surge for 5 seconds

SKU UHP-200A-5

Log in to see price Trade pricing & online ordering for account holders

Available to order

Overview

UHP-200A-5 is the 5V output model of this series: rated current 40A, rated power 200W, typical efficiency 88.5%.

UHP-200A series is a 200W LED display power solution. The ultra low profile design that allows the height and weight of the signal module to be slim. It greatly simplifies the delivery and installation process. Accounting for high efficiency and energy saving, the series effectively achieves electricity reduction. It is suitable for LED signage display, moving sign, LED channel letter and LED TV wall etc.

Features

Universal AC input / Full range
Withstand 300VAC surge input for 5 seconds
Low profile:26mm
Built-in active PFC function
Fanless design, cooling by free air convection
Protections: Short circuit / Overload / Over voltage / Over temperature
Low leakage current<1.0mA
LED indicator for power on
3 years warranty

Specifications

UHP-200A-5Specifications from the official datasheet (2024-11-23 edition)

OUTPUT

DC VOLTAGE: 5V
RATED CURRENT: 40A
CURRENT RANGE: 0~40A
RATED POWER: 200W
RIPPLE & NOISE(max.)^Note.2: 200mVp-p
VOLTAGE ADJ. RANGE: 4.7~5.3V
VOLTAGE TOLERANCE^Note.3: ±4.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±2.5%
SETUP, RISE TIME: 2000ms, 200ms/230VAC at full load, 3000ms, 200ms/115VAC at 80% load
HOLD UP TIME (Typ.): 10ms/230VAC 10ms/115VAC
DC OK FUNCTION: PSU Turns on:DC ok; PSU turns off:DC fail

INPUT

VOLTAGE RANGE^Note.4: 90 ~ 264VAC 127 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≥0.97/115VAC PF≥0.95/230VAC at full load
EFFICIENCY (Typ.): 88.5%
AC CURRENT (Typ.): 2.4A/115VAC 1.2A/230VAC
INRUSH CURRENT (Typ.): Cold start 85A/230VAC
LEAKAGE CURRENT: <1.0mA / 240VAC

PROTECTION

OVERLOAD: 110~140% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
SHORT CIRCUIT: Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 5.6 ~ 7.1V Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Protection type : Shut down O/P voltage, recovers automatically after fault condition is removed

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃(Refer to “OUTPUT LOAD vs TEMPERATURE")
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃ )
VIBRATION: 10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY & EMC (Note.5)

SAFETY STANDARDS: UL 62368-1,TUV BS EN/EN62368-1,GB 4943.1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25℃/ 70%RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55032 (CISPR32),GB17625.1,GB/T 9254.1, BS EN/EN61000-3-2,-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11;BS EN/EN55035, light industry level (surge 4KV),EAC TP TC 020

OTHERS

MTBF: 1949.0 K hrs min. Telcordia SR-332 (Bellcore) ; 211.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 167*55*26mm (L*W*H)
PACKING: 0.42kg; 20pcs/ 11.4kg/0.76CUFT

Test conditions and notes8

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : line regulation and load regulation.
4. Derating may be needed under low input voltages. Please check the static characteristics for more details.
5. Length of set up time is measured at cold first start. Turning ON/OFF the power supply may lead to increase of the set up time.
6. Transient response measure shall be made with 10% load at least.
7. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment may cause radio interference.

Technical drawings

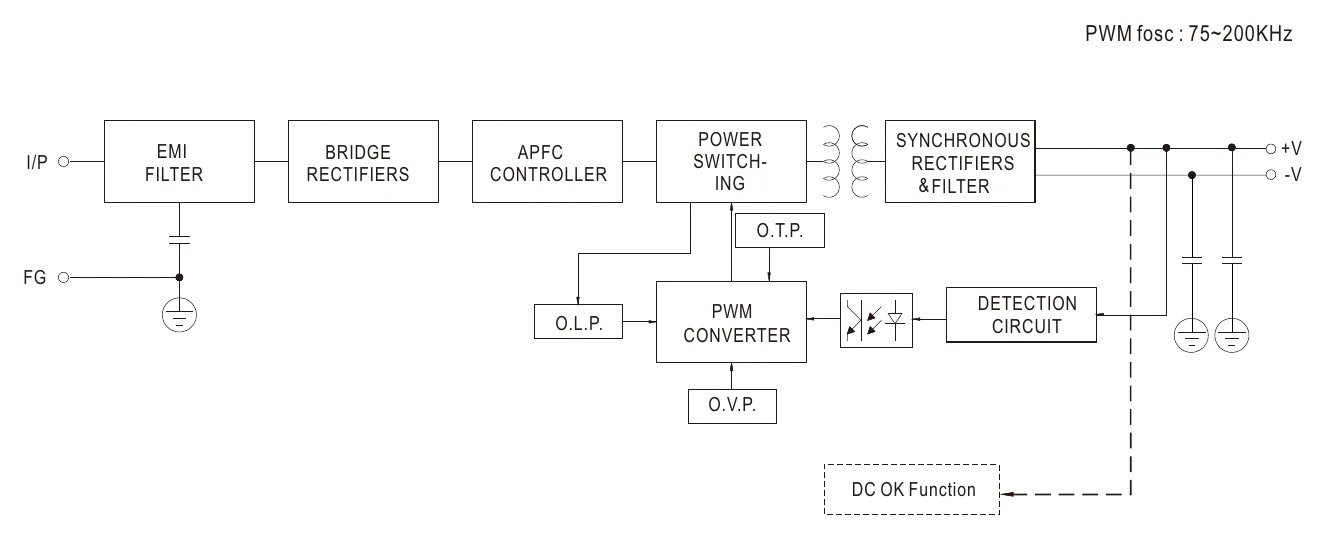

UHP-200A-5 Block Diagram — Block Diagram

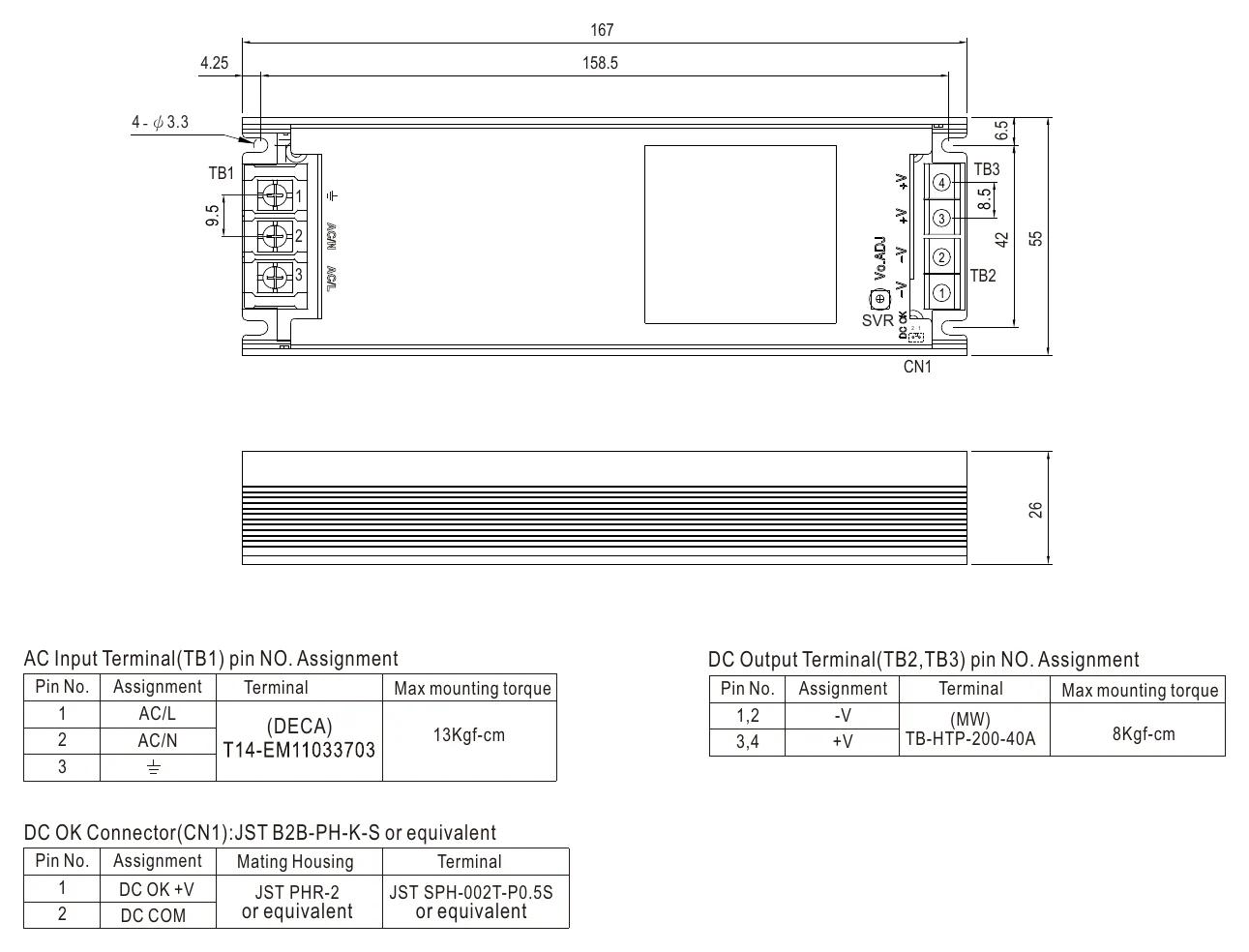

UHP-200A-5 Mechanical Specification — Mechanical Specification

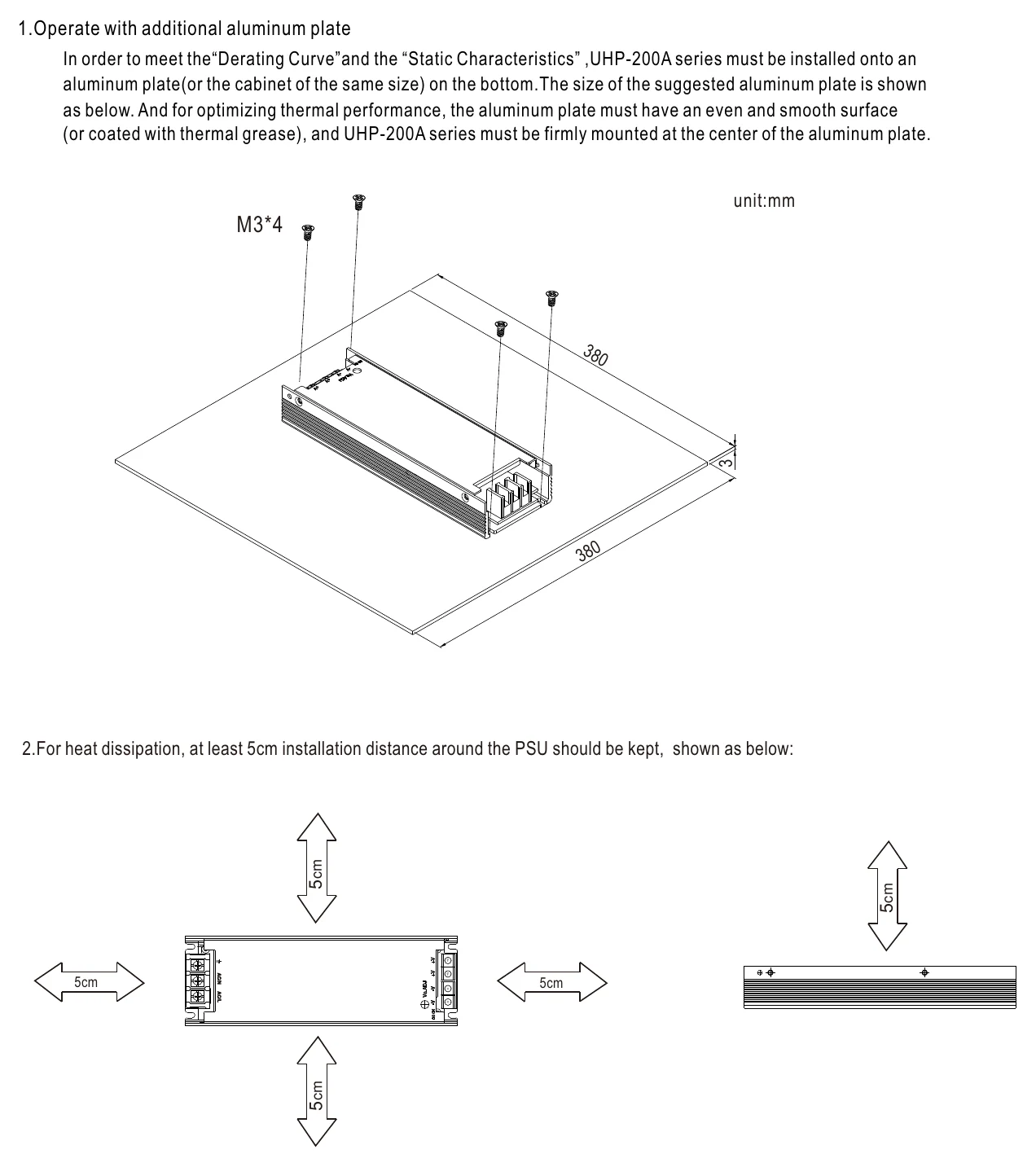

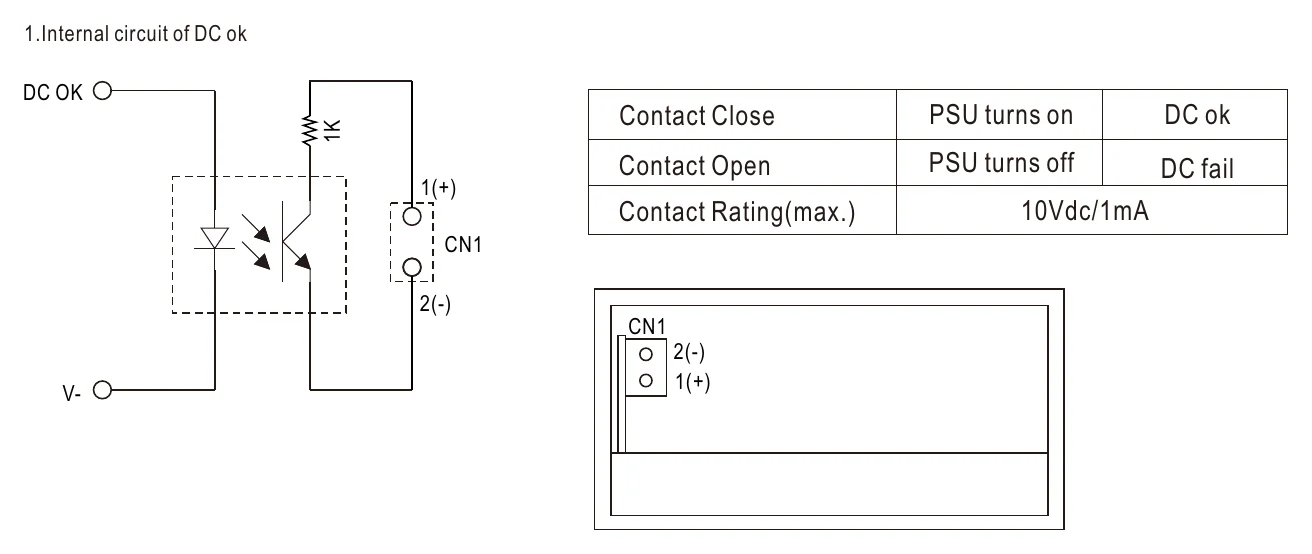

UHP-200A-5 Function manual — Function manual

Typical applications

LED signage display
Moving sign
LED channel letter
LED TV wall

Downloads

Certificates5

UL Certificate (UHP-200A)(EN) PDF Download

CB Certificate (UHP-200A)(EN) PDF Download

EMC Certificate (UHP-200A)(EN) PDF Download

TUV Certificate (UHP-200A)(EN) PDF Download

Catalogues1

Mean Well Catalog (Industrial) PDF Download

Other files1

Testing Report (UHP-200A-5)(EN) PDF Download

FAQ

What is the Mean Well UHP-200A-5 used for?

The Mean Well UHP-200A-5 is a 200W enclosed AC-DC power supply that provides a 5V DC output. It is suited to LED signage displays, moving signs, LED channel letters, and LED TV walls, especially where a low-profile enclosed design is preferred.

What are the main output specifications of the UHP-200A-5?

This model is rated for 5V DC output with up to 40A of current. Its total power rating is 200W, which makes it appropriate for higher-current 5V applications that need a compact enclosed supply.

How compact is the Mean Well UHP-200A-5?

A key feature of the UHP-200A-5 is its low-profile 26mm design. That makes it useful in equipment with limited vertical clearance where a slimmer enclosed power supply is needed.

Does the UHP-200A-5 use a fan for cooling?

No, the UHP-200A-5 has a fanless design and uses free air convection for cooling. This can be beneficial in applications where lower noise and reduced moving-part maintenance are important.

What input range does the UHP-200A-5 support?

The UHP-200A-5 supports universal AC input across 90 to 264VAC, and it also accepts 127 to 370VDC. It is also specified to withstand a 300VAC surge input for 5 seconds.

What protections are included in the Mean Well UHP-200A-5?

This model includes protection for short circuit, overload, over voltage, and over temperature. These built-in protections help support more reliable operation in demanding equipment environments.

What operating temperature range is specified for the UHP-200A-5?

The specified operating temperature range is -30°C to 70°C. That gives the UHP-200A-5 flexibility for use in a wide range of indoor equipment environments, provided the overall system stays within the product's rated limits.

What warranty comes with the Mean Well UHP-200A-5?

The Mean Well UHP-200A-5 includes a 3-year warranty. This matches the product's positioning as an industrial-grade enclosed power supply for long-term equipment use.
