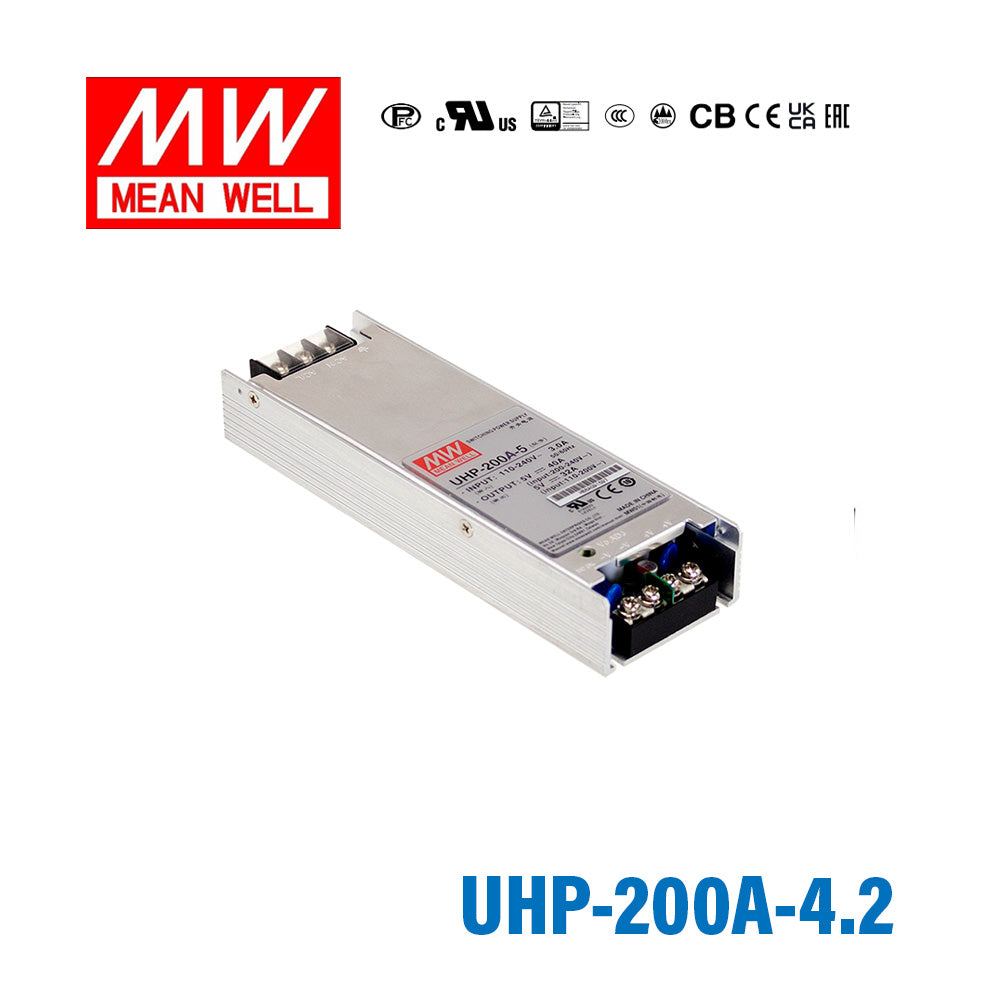

Mean Well UHP-200A-4.2 Power Supply 168W 4.2V 40A
Please Login for Pricing
Description
Description
Features:⦁ Universal AC input / Full range⦁ Withstand 300VAC surge input for 5 seconds⦁ Low profile: 26mm⦁ Built-in active PFC function⦁ Fanless design, cooling by free air convection⦁ Protections: Short circuit / Overload / Over voltage / Over temperature⦁ Low leakage current <1.0mA⦁ LED indicator for power on⦁ 3 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 127 - 370VDCAC Inrush Current (max.)Cold start 85A/230VACOverload Protection110-140% rated output powerProtection type: Hiccup mode, recovers automatically after fault condition is removedShort CircuitProtection type: Hiccup mode, recovers automatically after fault condition is removedOver-voltage Protection(4.6 - 6V) (5 - 6.4V) (5.6 - 7.1V)Protection type: Hiccup mode, recovers automatically after fault condition is removedOver TemperatureProtection type: Shut down O/P voltage, recovers automatically after fault condition is removedWithstand VoltageI/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:0.5KVACWorking Temperature-30 - +70℃ (Refer to “OUTPUT LOAD vs TEMPERATURE")Safety StandardsUL 62368-1,TUV BS EN/EN62368-1,GB 4943.1, EAC TP TC 004 approvedDimension (LxWxH)167x55x26mm
Specifications
Specifications
-
BrandMean Well
-
SeriesUHP Series
-
Power Rating168 Watt
-
Output Voltage4.2 Volt
-
Rated Current40 Ampere
-
Input Voltage90V~264V
-
Standards MetCB,CE,EAC,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length16.7 cm
-
Width5.5 cm
-
Height2.6 cm
-
Weight0.42 kg
File Downloads
File Downloads
::specification::
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Frequently Asked Questions
What are the key output specifications of the Mean Well UHP-200A-4.2?
The UHP-200A-4.2 is rated for 168W total output power. It provides a 4.2V DC output with a rated current of 40A, which makes it a high-current, low-voltage enclosed power supply for demanding equipment.
What kinds of applications is the UHP-200A-4.2 typically suited for?
This model is best suited to equipment that needs a regulated 4.2V supply and high current capacity in an enclosed AC-DC format. Its low-profile 26mm design and fanless operation make it a practical option for compact industrial or OEM builds where space and noise matter.
Is the Mean Well UHP-200A-4.2 a good choice for space-constrained enclosures?
Yes. One of the main differentiators of this model is its 26mm low-profile housing, which helps when vertical space is limited inside cabinets or equipment chassis. That makes it easier to specify than bulkier enclosed supplies when mechanical clearance is tight.
What operating environment is this power supply designed to handle?
The UHP-200A-4.2 is specified for operation from -30°C to 70°C. It also uses free-air convection cooling with a fanless design, which supports quieter operation and reduces reliance on active cooling components.
What input and protection features does the UHP-200A-4.2 include?
This model accepts a universal AC input range of 90 to 264VAC and also supports 127 to 370VDC input. It includes built-in active PFC and protection functions for short circuit, overload, over voltage, and over temperature, which are important for long-term equipment reliability.
What warranty and physical characteristics should buyers know about?
The Mean Well UHP-200A-4.2 includes a 3-year warranty. It has a listed weight of 0.42 kg, which is useful when evaluating it for compact assemblies or larger multi-unit builds.
