Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

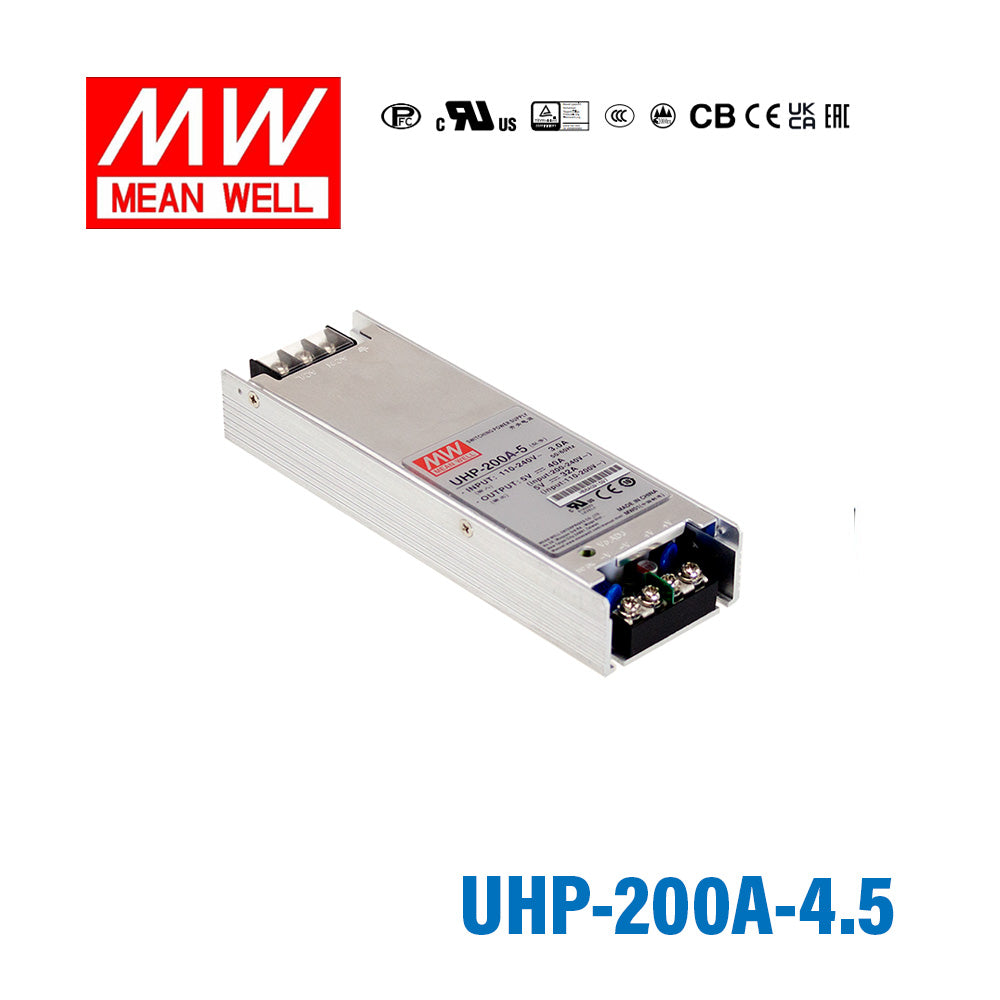

Mean Well UHP-200A-4.5 Power Supply 180W 4.5V 40A

Q: What applications is the Mean Well UHP-200A-4.5 best suited for?

This model is designed for equipment that specifically requires a 4.5V DC supply with up to 40A of output current. It is a practical fit for OEM, industrial, and security-related systems where high current, low voltage, and a compact enclosed power supply are important. Buyers should match it to loads that are specified for 4.5V operation.

Q: What are the key output specifications of the UHP-200A-4.5?

The UHP-200A-4.5 is rated for 180W total output power with a 4.5V DC output and 40A rated current. That makes it a high-current option for low-voltage applications that cannot use more common 12V or 24V supplies. The model name and rating are aligned around that 4.5V output class.

Q: What AC input range does this power supply support?

This model supports a universal input range of 90 to 264VAC, and it also accepts 127 to 370VDC. That wide range makes it easier to standardize across projects that may operate in different mains environments. It also withstands a 300VAC surge input for 5 seconds.

Q: How does the UHP-200A-4.5 handle cooling in compact installations?

The UHP-200A-4.5 uses a fanless design and cools by free air convection. It also has a low-profile 26mm form factor, which helps when space is limited inside equipment housings. For buyers trying to avoid fan noise and moving parts, that is a meaningful advantage.

Q: What protection features are built into this model?

This power supply includes protection for short circuit, overload, over voltage, and over temperature. Those built-in safeguards make it better suited for professional equipment where power stability and fault response matter. It also includes an LED indicator for power-on status.

Q: Is the UHP-200A-4.5 suitable for wider temperature ranges?

This model is specified for operation from -30°C to 70°C. That range makes it more suitable than many general-purpose indoor-only supplies for demanding commercial or industrial environments. Its fanless convection design also avoids reliance on active cooling hardware.

Q: What warranty and physical characteristics should buyers know about?

The UHP-200A-4.5 carries a 3-year warranty from Mean Well. It weighs approximately 0.42 kg, which supports use in compact equipment designs where lower mass can be helpful. Its slim 26mm profile is one of the main physical differentiators of this series.

low profile(26mm), low leakage current < 1.0mA, fanless, withstand 300VAC surge for 5 seconds

SKU:

UHP-200A-4.5

Please for Pricing

Notify me when it's back in stock

Description

Features:⦁ Universal AC input / Full range⦁ Withstand 300VAC surge input for 5 seconds⦁ Low profile: 26mm⦁ Built-in active PFC function⦁ Fanless design, cooling by free air convection⦁ Protections: Short circuit / Overload / Over voltage / Over temperature⦁ Low leakage current <1.0mA⦁ LED indicator for power on⦁ 3 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 127 - 370VDCAC Inrush Current (max.)Cold start 85A/230VACOverload Protection110-140% rated output powerProtection type: Hiccup mode, recovers automatically after fault condition is removedShort CircuitProtection type: Hiccup mode, recovers automatically after fault condition is removedOver-voltage Protection(4.6 - 6V) (5 - 6.4V) (5.6 - 7.1V)Protection type: Hiccup mode, recovers automatically after fault condition is removedOver TemperatureProtection type: Shut down O/P voltage, recovers automatically after fault condition is removedWithstand VoltageI/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:0.5KVACWorking Temperature-30 - +70℃ (Refer to “OUTPUT LOAD vs TEMPERATURE")Safety StandardsUL 62368-1,TUV BS EN/EN62368-1,GB 4943.1, EAC TP TC 004 approvedDimension (LxWxH)167x55x26mm

Specifications

Brand

Mean Well
Series

UHP Series
Power Rating

180 Watt
Output Voltage

4.5 Volt
Rated Current

40 Ampere
Input Voltage

90V~264V
Standards Met

CB,CE,EAC,UL
Operation Mode

Constant Voltage
Operating Temperature

-30°C~70°C
Warranty

3 Year
Length

16.7 cm
Width

5.5 cm
Height

2.6 cm
Weight

0.42 kg

File Downloads

::specification::

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What applications is the Mean Well UHP-200A-4.5 best suited for?

This model is designed for equipment that specifically requires a 4.5V DC supply with up to 40A of output current. It is a practical fit for OEM, industrial, and security-related systems where high current, low voltage, and a compact enclosed power supply are important. Buyers should match it to loads that are specified for 4.5V operation.

What are the key output specifications of the UHP-200A-4.5?

The UHP-200A-4.5 is rated for 180W total output power with a 4.5V DC output and 40A rated current. That makes it a high-current option for low-voltage applications that cannot use more common 12V or 24V supplies. The model name and rating are aligned around that 4.5V output class.

What AC input range does this power supply support?

This model supports a universal input range of 90 to 264VAC, and it also accepts 127 to 370VDC. That wide range makes it easier to standardize across projects that may operate in different mains environments. It also withstands a 300VAC surge input for 5 seconds.

How does the UHP-200A-4.5 handle cooling in compact installations?

The UHP-200A-4.5 uses a fanless design and cools by free air convection. It also has a low-profile 26mm form factor, which helps when space is limited inside equipment housings. For buyers trying to avoid fan noise and moving parts, that is a meaningful advantage.

What protection features are built into this model?

This power supply includes protection for short circuit, overload, over voltage, and over temperature. Those built-in safeguards make it better suited for professional equipment where power stability and fault response matter. It also includes an LED indicator for power-on status.

Is the UHP-200A-4.5 suitable for wider temperature ranges?

This model is specified for operation from -30°C to 70°C. That range makes it more suitable than many general-purpose indoor-only supplies for demanding commercial or industrial environments. Its fanless convection design also avoids reliance on active cooling hardware.

What warranty and physical characteristics should buyers know about?

The UHP-200A-4.5 carries a 3-year warranty from Mean Well. It weighs approximately 0.42 kg, which supports use in compact equipment designs where lower mass can be helpful. Its slim 26mm profile is one of the main physical differentiators of this series.

Model	Power	Voltage	Current
Mean Well UHP-200A-5 Power Supply 200W 5V 40A	200W	5V	40A	View
Mean Well UHP-200A-4.2 Power Supply 168W 4.2V 40A	168W	4.2V	40A	View
