Mean Well

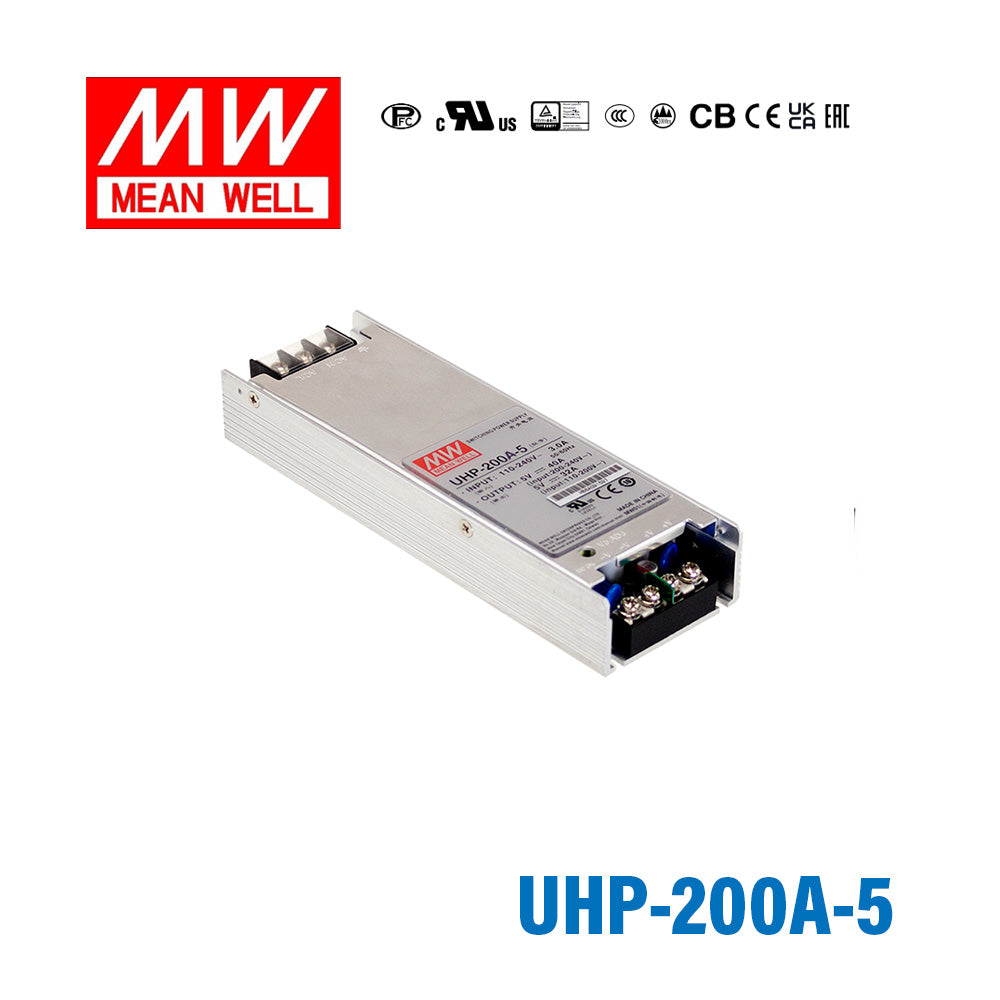

Mean Well UHP-200A-5 Power Supply 200W 5V 40A

low profile(26mm), low leakage current < 1.0mA, fanless, withstand 300VAC surge for 5 seconds
SKU:
UHP-200A-5
Please for Pricing
|

Description

Features:⦁ Universal AC input / Full range⦁ Withstand 300VAC surge input for 5 seconds⦁ Low profile: 26mm⦁ Built-in active PFC function⦁ Fanless design, cooling by free air convection⦁ Protections: Short circuit / Overload / Over voltage / Over temperature⦁ Low leakage current <1.0mA⦁ LED indicator for power on⦁ 3 years warrantyGeneral SpecificationAC Input Voltage Range90 - 264VAC 127 - 370VDCAC Inrush Current (max.)Cold start 85A/230VACOverload Protection110-140% rated output powerProtection type: Hiccup mode, recovers automatically after fault condition is removedShort CircuitProtection type: Hiccup mode, recovers automatically after fault condition is removedOver-voltage Protection(4.6 - 6V) (5 - 6.4V) (5.6 - 7.1V)Protection type: Hiccup mode, recovers automatically after fault condition is removedOver TemperatureProtection type: Shut down O/P voltage, recovers automatically after fault condition is removedWithstand VoltageI/P-O/P:3.0KVAC I/P-FG:2KVAC O/P-FG:0.5KVACWorking Temperature-30 - +70℃ (Refer to “OUTPUT LOAD vs TEMPERATURE")Safety StandardsUL 62368-1,TUV BS EN/EN62368-1,GB 4943.1, EAC TP TC 004 approvedDimension (LxWxH)167x55x26mm

Specifications
  • Brand
    Mean Well
  • Series
    UHP Series
  • Power Rating
    200 Watt
  • Output Voltage
    5 Volt
  • Rated Current
    40 Ampere
  • Input Voltage
    90V~264V
  • Standards Met
    CB,CE,EAC,UL
  • Operation Mode
    Constant Voltage
  • Operating Temperature
    -30°C~70°C
  • Warranty
    3 Year
  • Length
    16.7 cm
  • Width
    5.5 cm
  • Height
    2.6 cm
  • Weight
    0.42 kg

File Downloads

::specification::

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Frequently Asked Questions

What is the Mean Well UHP-200A-5 used for?

The Mean Well UHP-200A-5 is a 200W enclosed AC-DC power supply that provides a 5V DC output. It is suited to industrial and commercial equipment that needs a high-current 5V supply, especially where a low-profile enclosed design is preferred.

What are the main output specifications of the UHP-200A-5?

This model is rated for 5V DC output with up to 40A of current. Its total power rating is 200W, which makes it appropriate for higher-current 5V applications that need a compact enclosed supply.

How compact is the Mean Well UHP-200A-5?

A key feature of the UHP-200A-5 is its low-profile 26mm design. That makes it useful in equipment with limited vertical clearance where a slimmer enclosed power supply is needed.

Does the UHP-200A-5 use a fan for cooling?

No, the UHP-200A-5 has a fanless design and uses free air convection for cooling. This can be beneficial in applications where lower noise and reduced moving-part maintenance are important.

What input range does the UHP-200A-5 support?

The UHP-200A-5 supports universal AC input across 90 to 264VAC, and it also accepts 127 to 370VDC. It is also specified to withstand a 300VAC surge input for 5 seconds.

What protections are included in the Mean Well UHP-200A-5?

This model includes protection for short circuit, overload, over voltage, and over temperature. These built-in protections help support more reliable operation in demanding equipment environments.

What operating temperature range is specified for the UHP-200A-5?

The specified operating temperature range is -30°C to 70°C. That gives the UHP-200A-5 flexibility for use in a wide range of indoor equipment environments, provided the overall system stays within the product's rated limits.

What warranty comes with the Mean Well UHP-200A-5?

The Mean Well UHP-200A-5 includes a 3-year warranty. This matches the product's positioning as an industrial-grade enclosed power supply for long-term equipment use.

Other UHP-200A Models

2 other models
ModelPowerVoltageCurrent
Mean Well UHP-200A-4.5 Power Supply 180W 4.5V 40A 180W 4.5V 40A View
Mean Well UHP-200A-4.2 Power Supply 168W 4.2V 40A 168W 4.2V 40A View
View all 66 UHP Series models
