Envo

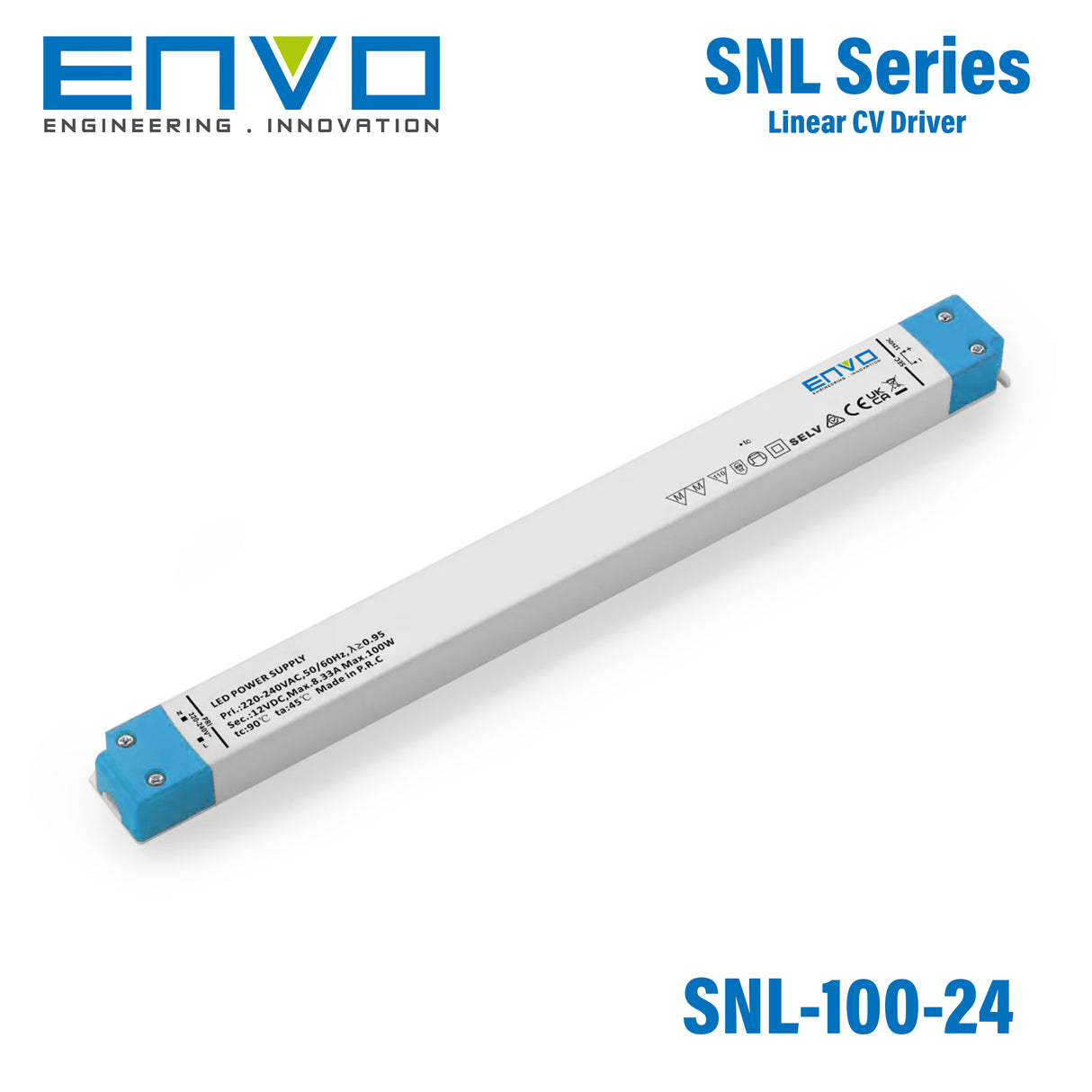

Envo EV-SNL-100-24 Linear Type LED Driver 100W 24V 4.17A

linear typescrew terminal30mm width
SKU EV-SNL-100-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

EV-SNL-100-24
Available to order
|

Overview

EV-SNL-100-24 is the 24V output model of this series: rated current 0-4.17A, rated power 100W.

EV SNL100-12/24 is an indoor constant voltage power supply. Its input voltage range is 198-264Vac, with the high efficiency up to 88%, fanless design, working in the temperature range of -20°C to +45°C under free air convection. It has ultra-high power factor, ultra-low total harmonic distortion, low standby power consumption with all-round protection functions which not only greatly improves the reliability of the product, but also ensures the life cycle of product. This series of products designed for LED lighting, applied to indoor lighting design, has a high cost performance.

Features

  • AC input 198-264VAC)
  • Built-in active PFC function
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry indoor environment
  • Protections: Short circuit / Over voltage / Over temperature/Over load
  • Adopt plastic case and internal glue filling
  • Compliance to worldwide safety

Specifications

EV-SNL-100-24Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
24V
Voltage Tolerance
±5%
Rated current
0-4.17A
Rated power
100W

Input

Voltage Range
AC 198V - 264V
Frequency Range
50-60HZ
Power Factor
0.97@230Vac, full load
Full Load Efficiency (Typ.)
93%
AC Current (Max.)
0.7A/230V
Leakage current
0.75mA@240Vac 50HZ

Protection

Short Circuit
Short circuit power≤0.5W
Over load
1.1~1.6 times rated load, Overloading restores automatically.
Over Temperature
110°C, hiccup mode, auto-recovery after temperature restore

Environment

Working TEMP.
-20 to 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40°C to 85°C; 5%RH to 85%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.2KG
Size
304.8*30*18.2mm (L*W*H)
Packing
50PCS

Notes

Warranty
5 years

Technical drawings

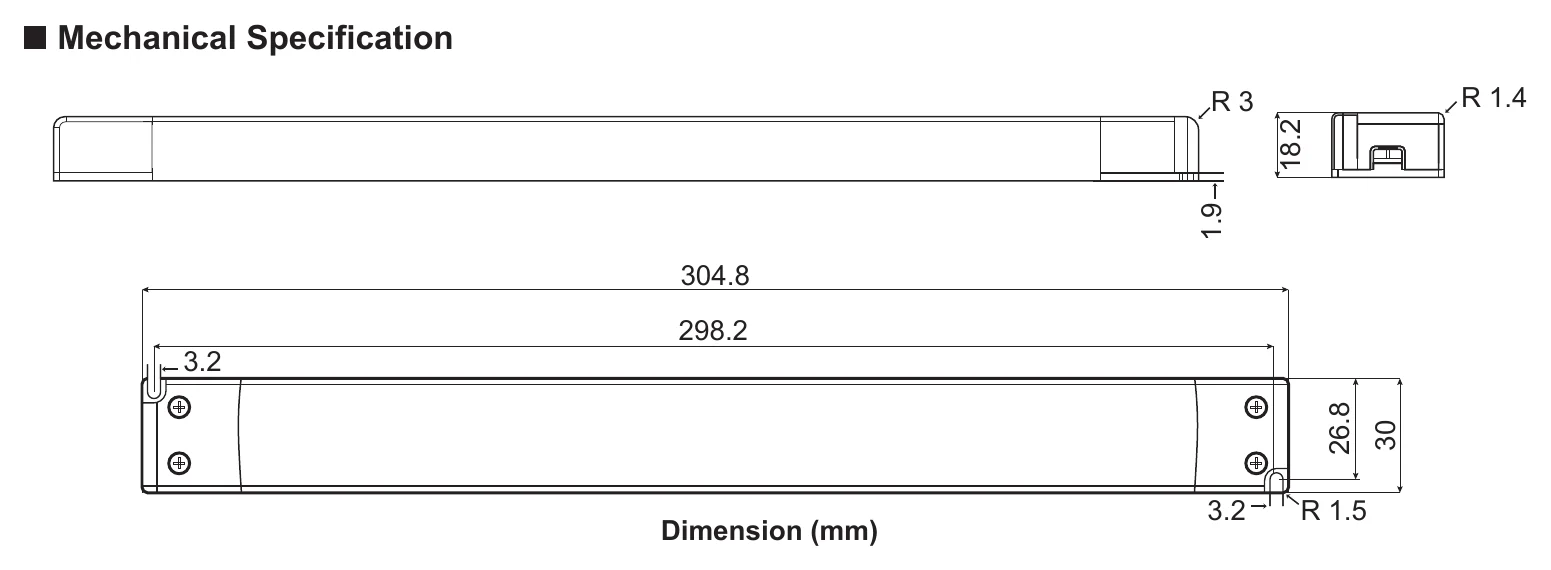

EV-SNL-100-24 Mechanical Specification
Mechanical Specification

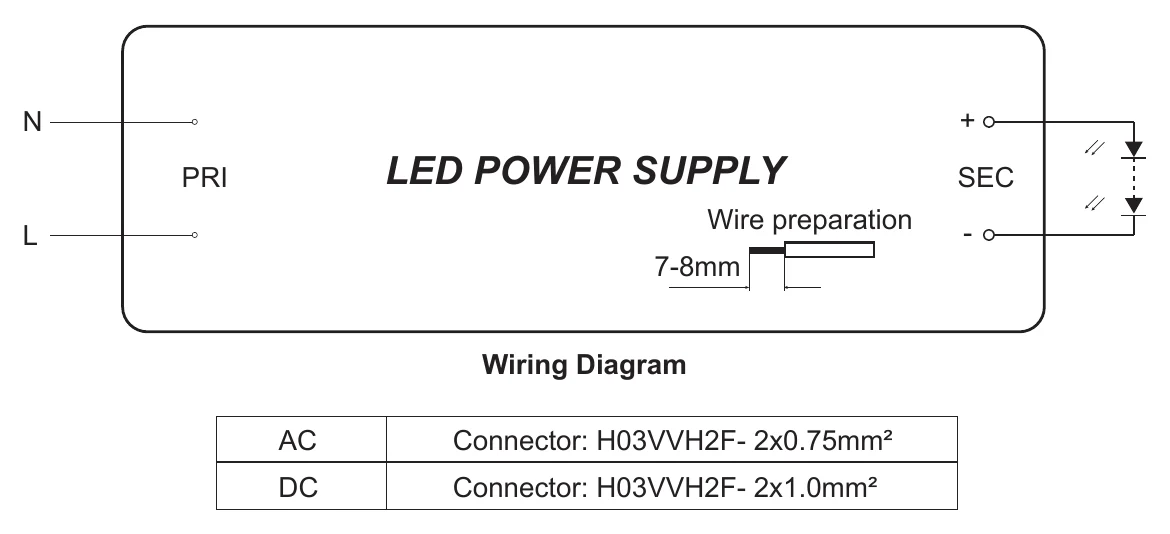

EV-SNL-100-24 LED POWER SUPPLY
LED POWER SUPPLY

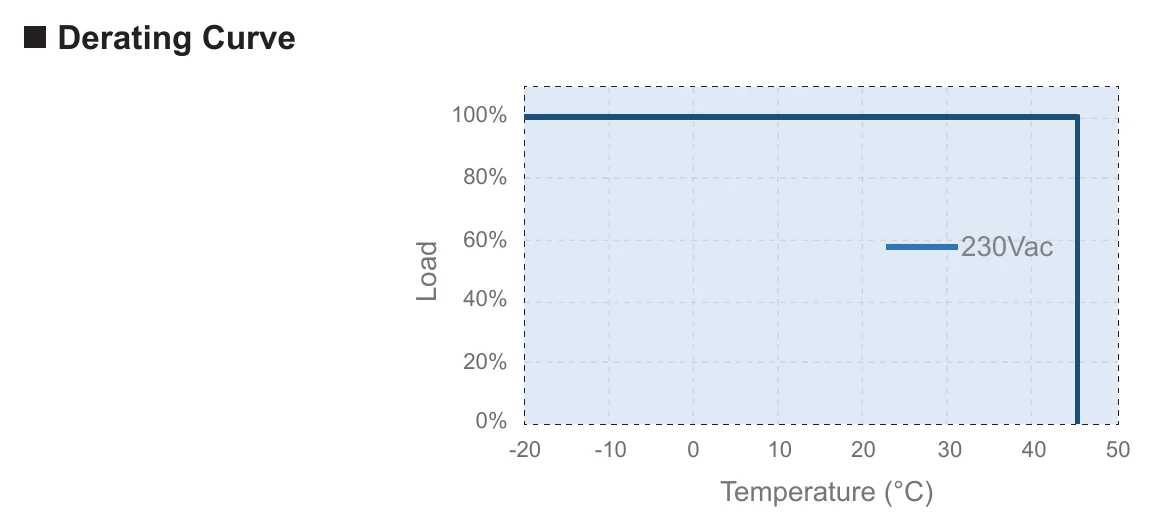

EV-SNL-100-24 Derating Curve
Derating Curve

Downloads

FAQ

What type of applications is the Envo EV-SNL-100-24 designed for?

The Envo EV-SNL-100-24 is a constant-voltage 24V LED driver intended for indoor lighting applications. Its linear form factor and 100W power rating make it suitable for commercial or trade projects that need a 24V power supply for compatible LED systems.

What are the main electrical specifications of the EV-SNL-100-24?

This model is rated for 100W output at 24V DC with a rated current of 4.17A. It accepts an AC input range of 198-264VAC and includes active power factor correction (PFC).

Does the Envo EV-SNL-100-24 support dimming?

No. The listed dimming control for this model is none, so it is intended for applications that require a non-dimming 24V LED driver.

Is the EV-SNL-100-24 suitable for outdoor or wet-area use?

No. This LED driver is specified for dry indoor environments only, so it should be selected for locations that stay within that use condition.

What protection features are included in the EV-SNL-100-24?

The EV-SNL-100-24 includes protection against short circuit, over voltage, over temperature, and overload. These built-in protections help support reliability in lighting power supply applications.

What operating temperature range does this LED driver support?

This model is rated for ambient temperatures from -20°C to 45°C. The installation environment should stay within that range for normal operation.

What makes the EV-SNL-100-24 a practical choice for commercial LED projects?

This model combines a 100W, 24V constant-voltage output with active PFC, multiple protection functions, and compliance to worldwide lighting safety regulations. It also includes a 5-year warranty, which can be useful for professional and B2B purchasing requirements.
