Envo

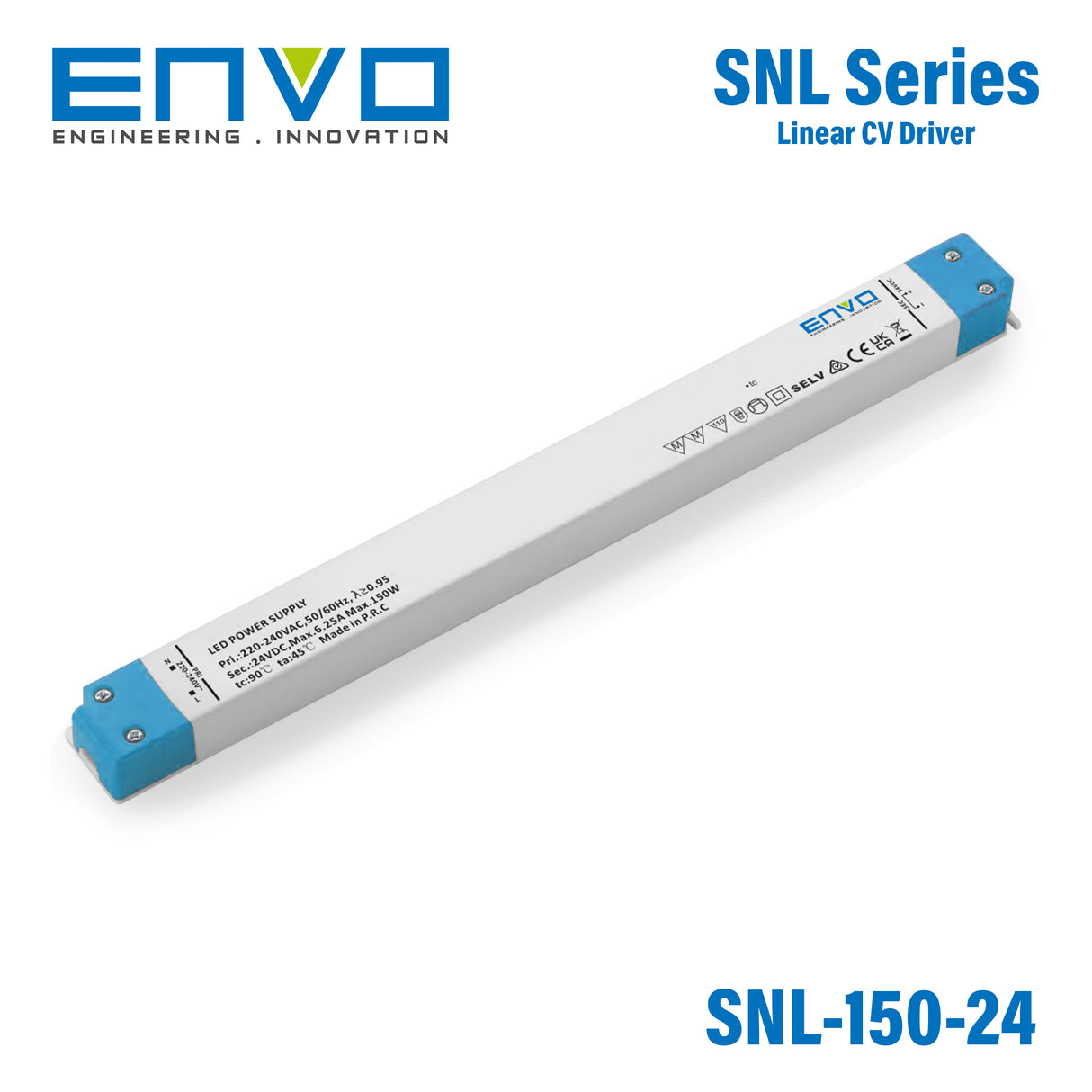

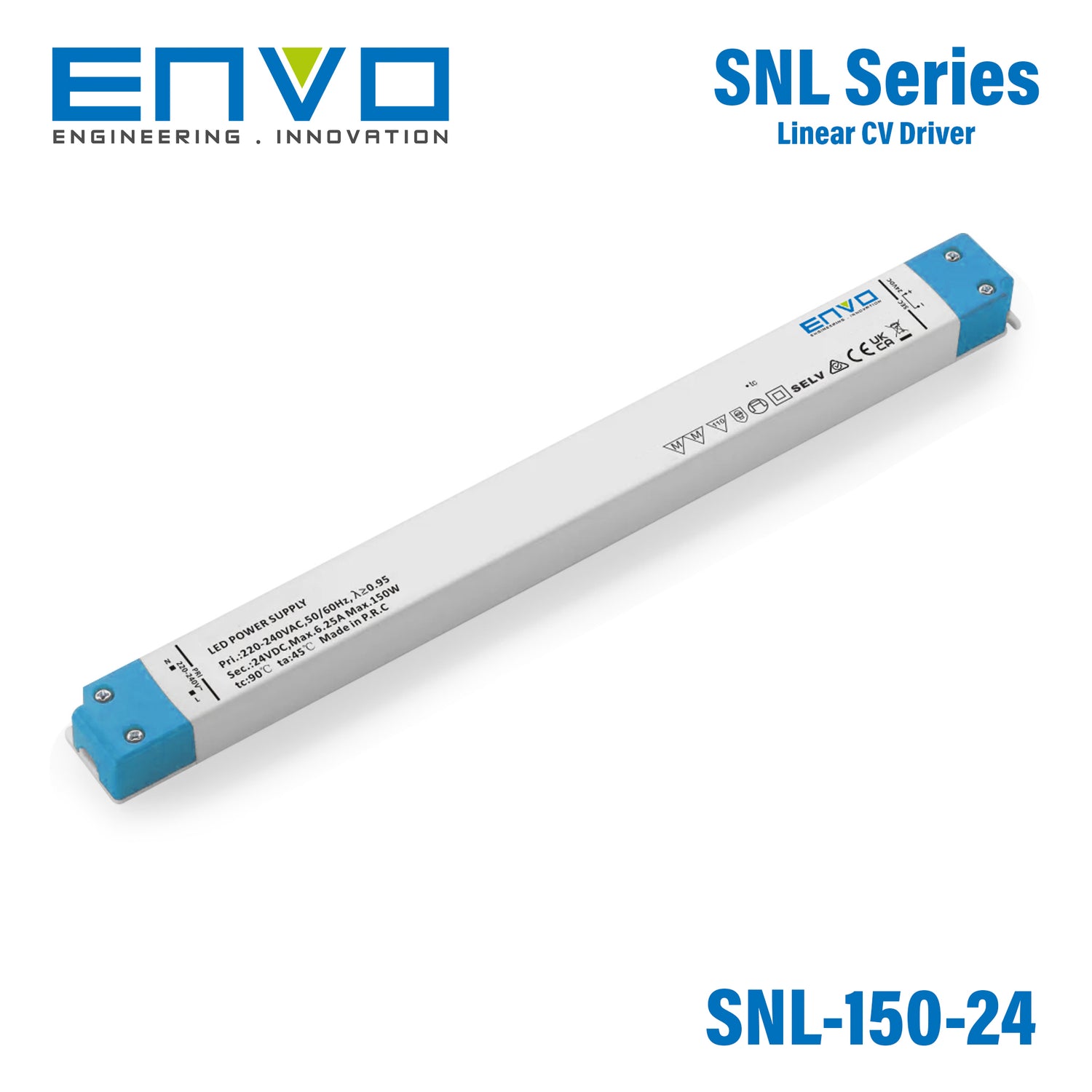

Envo EV-SNL-150-24 Linear Type LED Driver 150W 24V 6.25A

linear typescrew terminal30mm width
SKU EV-SNL-150-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

EV-SNL-150-24
In stock
|

Overview

EV-SNL-150-24 is the 24V output model of this series: rated current 0-6.25A, rated power 150W.

EV SNL150-12/24 is an indoor constant voltage power supply. Its input voltage range is 198-264Vac, with the high efficiency up to 88%, fanless design, working in the temperature range of -20°C to +45°C under free air convection. It has ultra-high power factor, ultra-low total harmonic distortion, low standby power consumption with all-round protection functions which not only greatly improves the reliability of the product, but also ensures the life cycle of product. This series of products designed for LED lighting, applied to indoor lighting design, has a high cost performance.

Features

  • AC input 198-264VAC)
  • Built-in active PFC function
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry indoor environment
  • Protections: Short circuit / Over voltage / Over temperature/Over load
  • Adopt plastic case and internal glue filling
  • Compliance to worldwide safety

Specifications

EV-SNL-150-24Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
24V
Voltage Tolerance
±5%
Rated current
0-6.25A
Rated power
150W

Input

Voltage Range
AC 198V - 264V
Frequency Range
50-60HZ
Power Factor
0.95-0.97@230Vac, full load
Full Load Efficiency (Typ.)
93%
AC Current (Max.)
1A/230V
Leakage current
0.75mA@240Vac 50HZ

Protection

Short Circuit
Short circuit power≤0.5W
Over load
1.1~1.6 times rated load, Overloading restores automatically.
Over Temperature
110°C, hiccup mode, auto-recovery after temperature restore

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40°C-85°C; 5%RH-95%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.29KG
Size
320.6*30*18.2mm (L*W*H)
Packing
50PCS

Notes

Warranty
5 years

Certifications & ratings

Marked features
SELV

Technical drawings

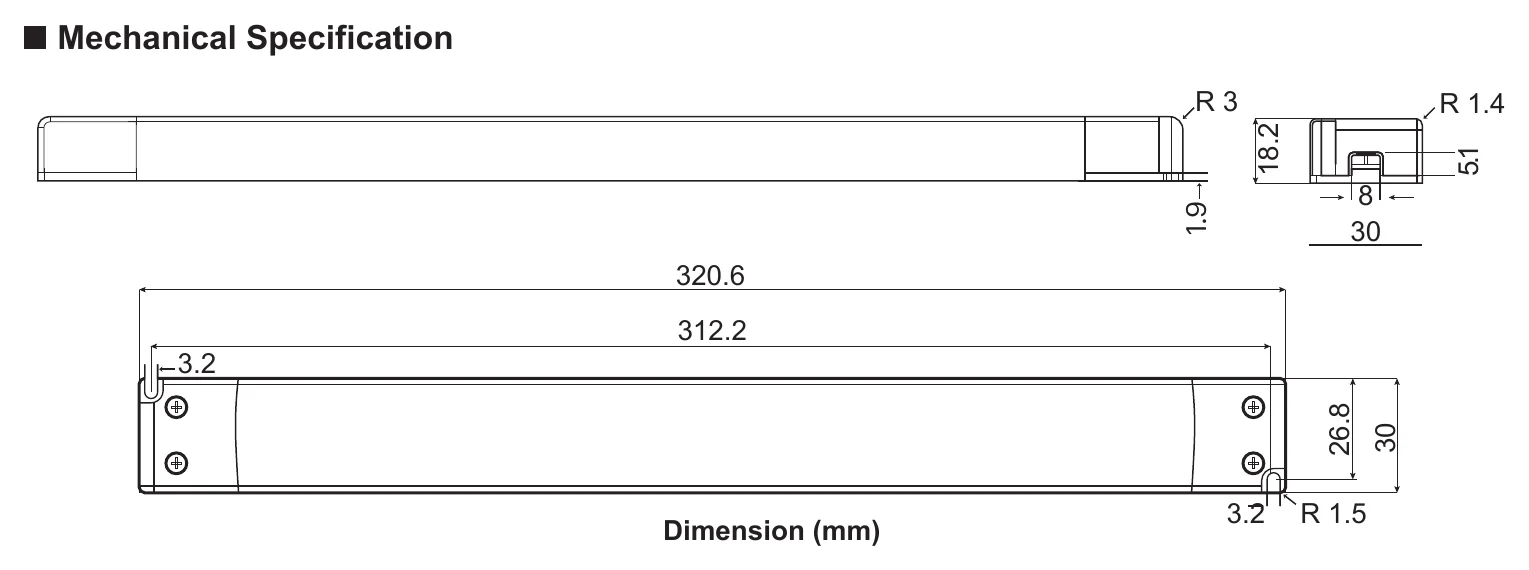

EV-SNL-150-24 Mechanical Specification
Mechanical Specification

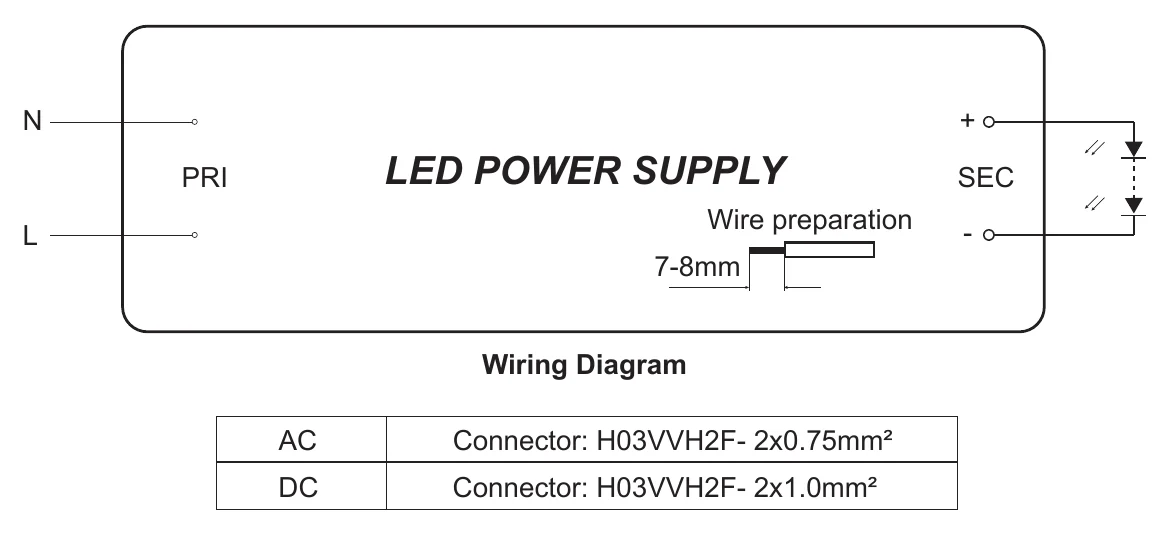

EV-SNL-150-24 LED POWER SUPPLY
LED POWER SUPPLY

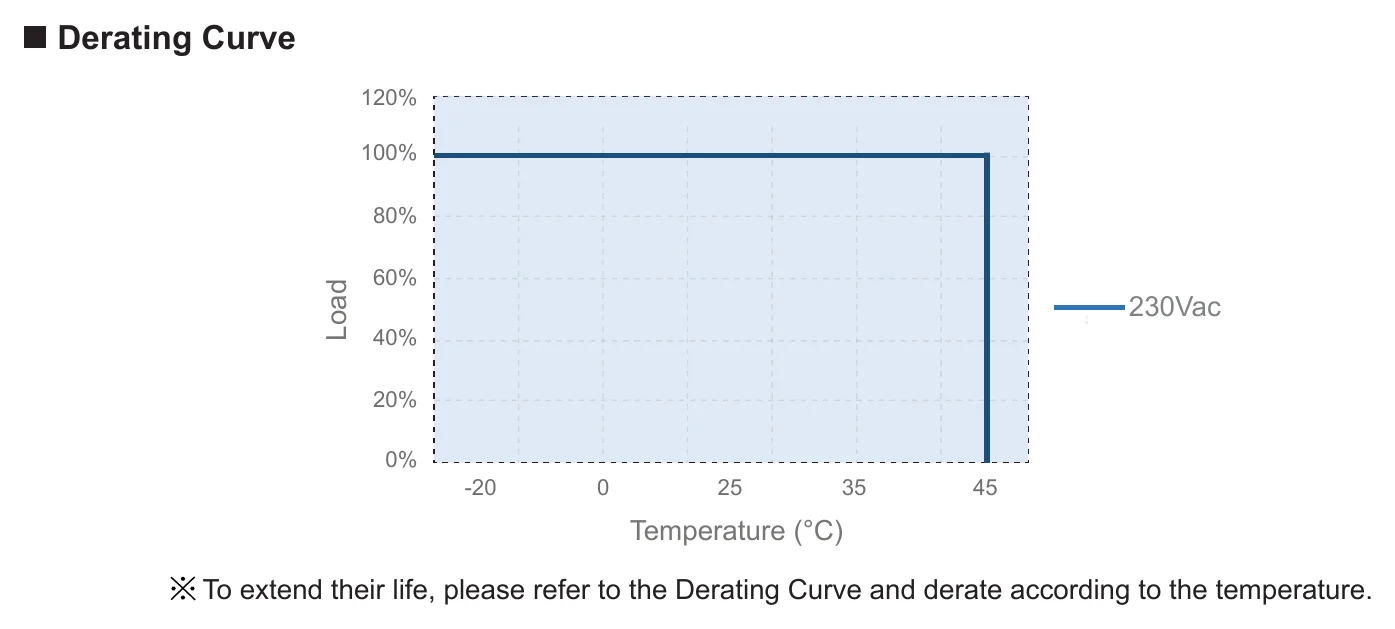

EV-SNL-150-24 Derating Curve
Derating Curve

Downloads

FAQ

What type of LED driver is the Envo EV-SNL-150-24?

The Envo EV-SNL-150-24 is a linear type constant voltage LED driver. It provides a 24V output and is rated for 150W, making it suitable for lighting applications that require a stable 24V DC power source.

What are the main electrical ratings of the EV-SNL-150-24?

This model is rated at 150W with a 24V output and 6.25A rated current. Its AC input range is 198-264VAC, and it includes built-in active PFC.

Does the EV-SNL-150-24 support dimming?

No, this model does not include a dimming control function. It is intended for applications where a non-dimming 24V constant voltage LED driver is required.

Is the Envo EV-SNL-150-24 suitable for indoor or outdoor use?

The EV-SNL-150-24 is specified as suitable for dry indoor environments. It should be selected for locations where the operating conditions match that indoor-use requirement.

What protection features are included in the EV-SNL-150-24?

This LED driver includes short circuit, over voltage, over temperature, and over load protection. These built-in protections help support safe operation in lighting applications within the product's intended use.

What operating temperature range does the EV-SNL-150-24 support?

The stated temperature range for this model is from -20°C to 45°C. Buyers should confirm their project environment stays within that range when evaluating this driver.

What kind of applications is the EV-SNL-150-24 best suited for?

The EV-SNL-150-24 is best suited for indoor lighting systems that need a 24V constant voltage LED driver at up to 150W. It is a practical option for commercial or trade buyers sourcing a linear type driver for compatible 24V LED applications.

What warranty is offered with the Envo EV-SNL-150-24?

The EV-SNL-150-24 comes with a 5-year warranty period. That makes it a solid option for buyers looking for a 24V LED driver with longer-term coverage.
