Envo

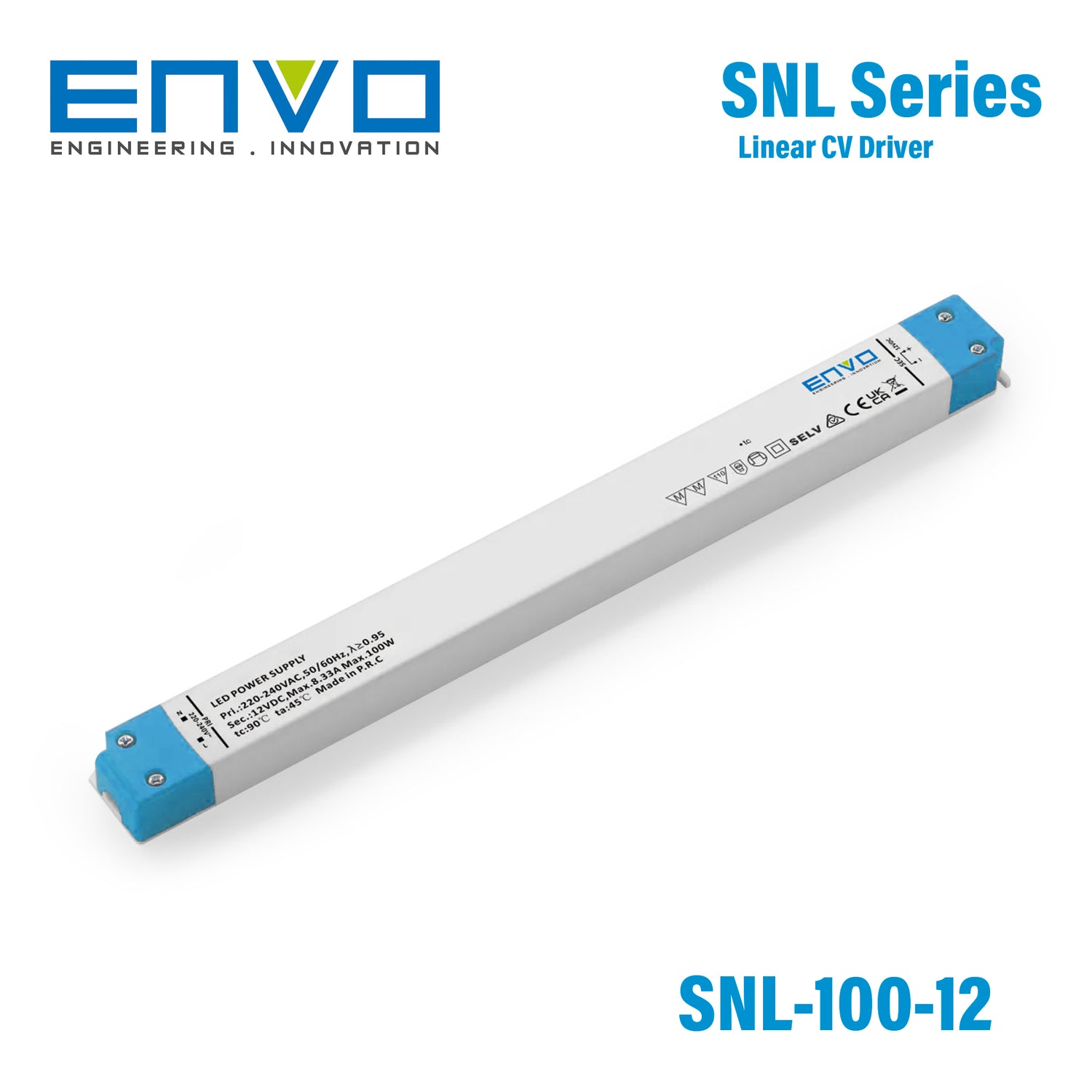

Envo EV-SNL-100-12 Linear Type LED Driver 100W 12V 8.33A

linear typescrew terminal30mm width
SKU EV-SNL-100-12
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 3 in this family

EV-SNL-100-12
In stock
|

Overview

EV-SNL-100-12 is the 12V output model of this series: rated current 0-8.33A, rated power 100W.

EV SNL100-12/24 is an indoor constant voltage power supply. Its input voltage range is 198-264Vac, with the high efficiency up to 88%, fanless design, working in the temperature range of -20°C to +45°C under free air convection. It has ultra-high power factor, ultra-low total harmonic distortion, low standby power consumption with all-round protection functions which not only greatly improves the reliability of the product, but also ensures the life cycle of product. This series of products designed for LED lighting, applied to indoor lighting design, has a high cost performance.

Features

  • AC input 198-264VAC)
  • Built-in active PFC function
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry indoor environment
  • Protections: Short circuit / Over voltage / Over temperature/Over load
  • Adopt plastic case and internal glue filling
  • Compliance to worldwide safety

Specifications

EV-SNL-100-12Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
12V
Voltage Tolerance
±5%
Rated current
0-8.33A
Rated power
100W

Input

Voltage Range
AC 198V - 264V
Frequency Range
50-60HZ
Power Factor
0.97@230Vac, full load
Full Load Efficiency (Typ.)
93%
AC Current (Max.)
0.7A/230V
Leakage current
0.75mA@240Vac 50HZ

Protection

Short Circuit
Short circuit power≤0.5W
Over load
1.1~1.6 times rated load, Overloading restores automatically.
Over Temperature
110°C, hiccup mode, auto-recovery after temperature restore

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40°C-85°C; 5%RH-85%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.2KG
Size
304.8*30*18.2mm (L*W*H)
Packing
50PCS

Notes

Warranty
5 years

Technical drawings

EV-SNL-100-12 Mechanical Specification
Mechanical Specification
EV-SNL-100-12 LED POWER SUPPLY
LED POWER SUPPLY
EV-SNL-100-12 Derating Curve
Derating Curve

Downloads

FAQ

What is the Envo EV-SNL-100-12 designed for?

The Envo EV-SNL-100-12 is a 100W constant-voltage linear type LED driver with a 12V output. It is intended for 12V LED lighting applications that need a stable DC power source within its rated output.

What are the main electrical specifications of the EV-SNL-100-12?

This model is rated at 100W with a 12V output and a rated current of 8.33A. Its AC input range is 198-264VAC, making it suitable for regions and projects operating within that mains range.

Does the EV-SNL-100-12 support dimming?

No. The EV-SNL-100-12 is a constant-voltage linear type LED driver with no dimming control listed, so it is not a dimmable driver.

Is this LED driver suitable for indoor or outdoor use?

This model is specified as suitable for dry indoor environments. It should be selected for indoor applications where exposure to water or wet conditions is not expected.

What protection features does the EV-SNL-100-12 include?

The EV-SNL-100-12 includes short circuit, over voltage, over temperature, and over load protection. These built-in protections help support reliability in lighting power applications.

What operating temperature range is supported by this model?

The specified operating temperature range is from -20°C to 45°C. That makes it better suited to controlled indoor environments that stay within that temperature window.

What warranty is offered for the Envo EV-SNL-100-12?

The listed warranty period for this model is 5 years. For buyers comparing commercial LED drivers, that provides a clear long-term coverage point for this specific unit.
