Envo

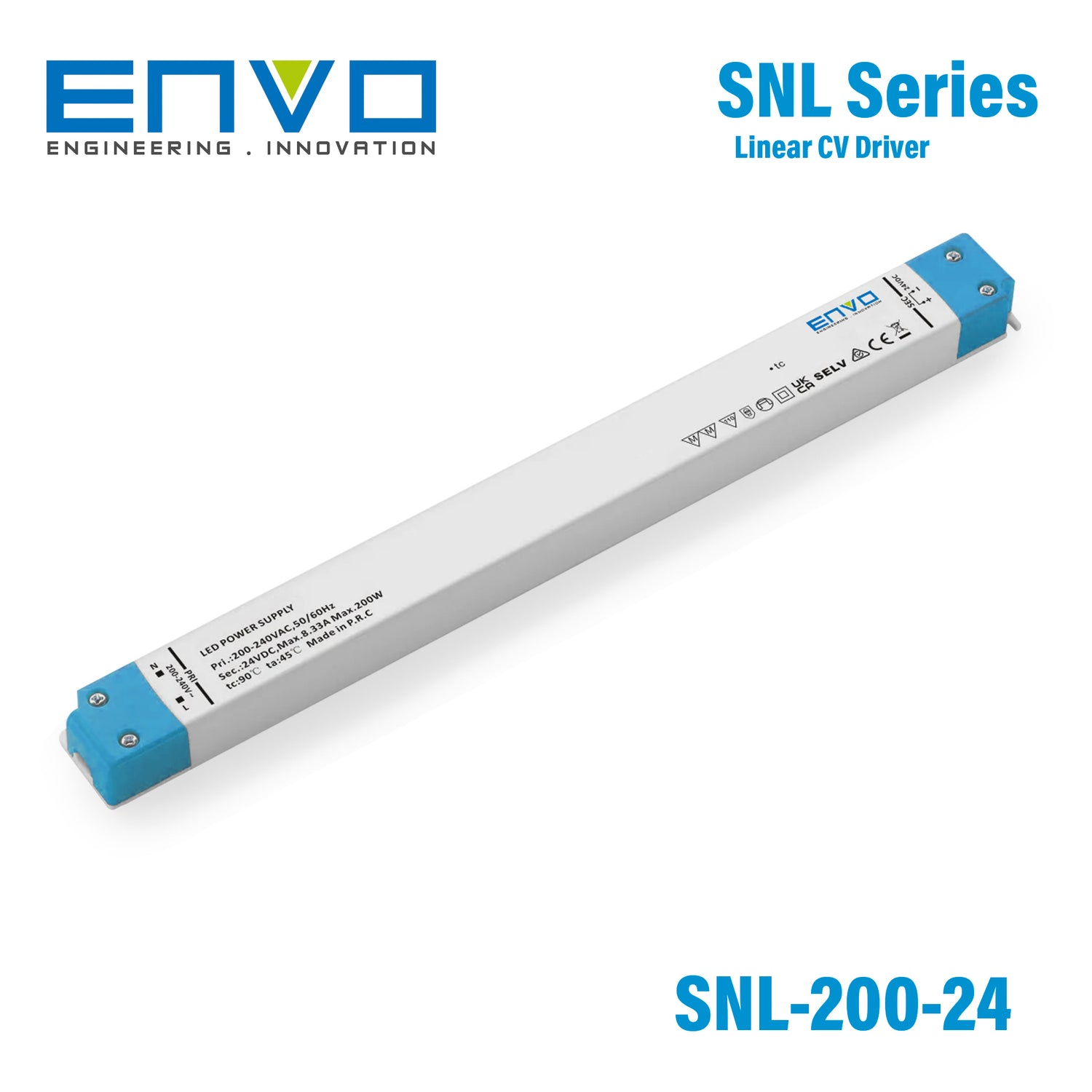

Envo EV-SNL-200-24 Linear Type LED Driver 200W 24V 8.33A

linear typescrew terminal30mm width
SKU EV-SNL-200-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

EV-SNL-200-24
In stock
|

Overview

EV-SNL-200-24 is the 24V output model of this series: rated current 0-8.33A, rated power 200W.

EV SNL200-24 is an indoor constant voltage power supply. Its input voltage range is 198-264Vac, with the high efficiency up to 94.5%, fanless design, working in the temperature range of -20°C to +45°C under free air convection. It has ultra-high power factor, ultra-low total harmonic distortion, low standby power consumptionwith all-round protection functions which not only greatly improves the reliability of the product, but also ensures the life cycle of product. This series of products designed for LED lighting, applied to indoor lighting design, has a high cost performance.

Features

  • AC input 198-264VAC)
  • Built-in active PFC function
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry indoor environment
  • Protections: Short circuit / Over voltage / Over temperature/Over load
  • Adopt plastic case and internal glue filling
  • Compliance to worldwide safety

Specifications

EV-SNL-200-24Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
24V
Voltage Tolerance
±5%
Rated current
0-8.33A
Rated power
200W

Input

Voltage Range
AC 198V - 264V
Frequency Range
50-60HZ
Power Factor
0.95 @ full load
Full Load Efficiency (Typ.)
95%
AC Current (Max.)
1.1A/264V
Leakage current
0.7mA@240Vac 60HZ

Protection

Short Circuit
Hiccup mode, restart automatically after fault correction
Over load
Hiccup mode, restart automatically after fault correction
Over Temperature
Yes (latch off)

Environment

Working TEMP.
-30 - 80°C
Working Humidity
5%RH - 85%RH
Storage TEM.,Humidity
-30°C-80°C; 5%RH-85%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.29KG
Size
320.6*30*18.2mm (L*W*H)
Packing
50PCS

Notes

Warranty
5 years

Technical drawings

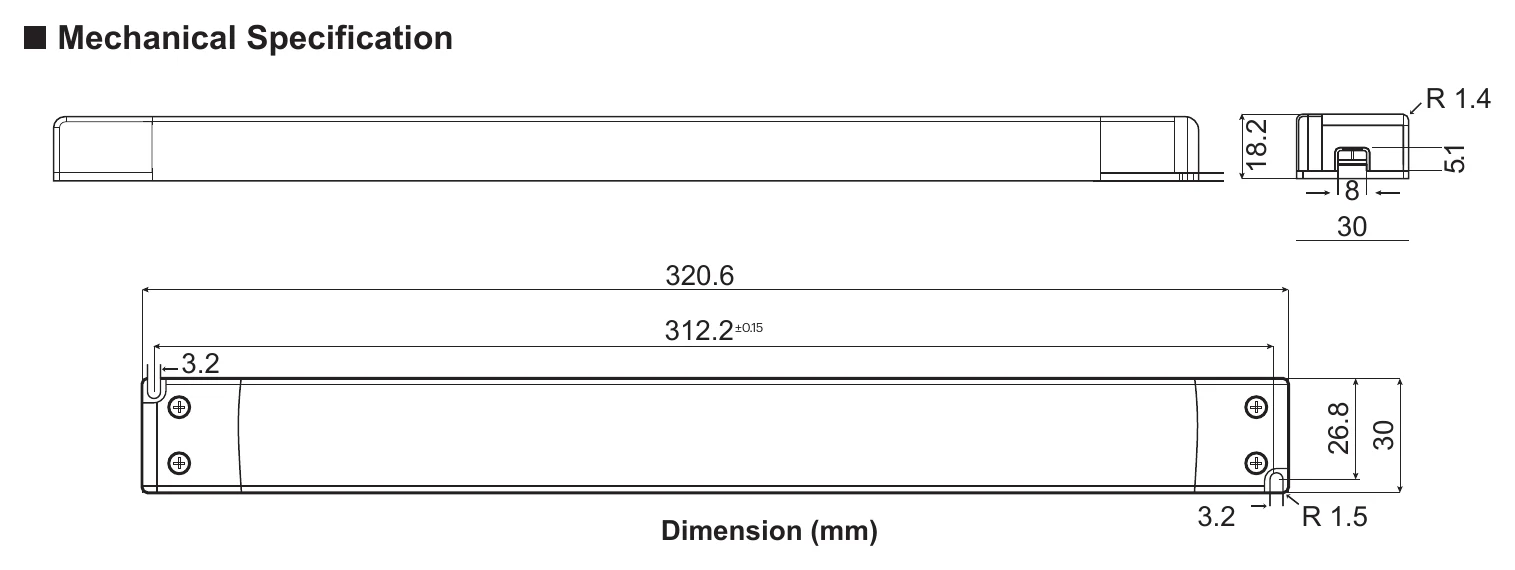

EV-SNL-200-24 Mechanical Specification
Mechanical Specification

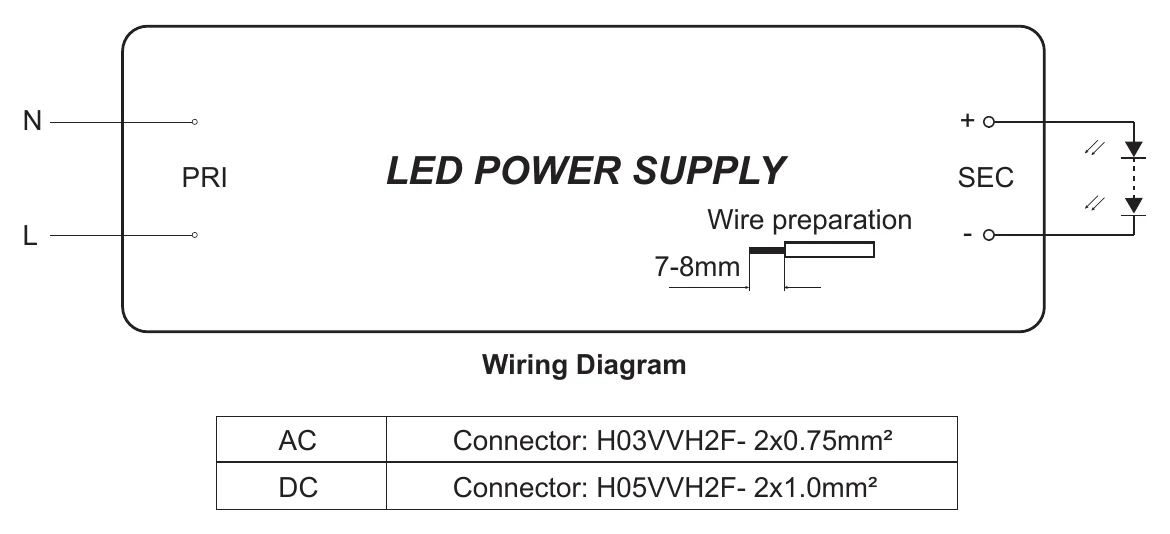

EV-SNL-200-24 LED POWER SUPPLY
LED POWER SUPPLY

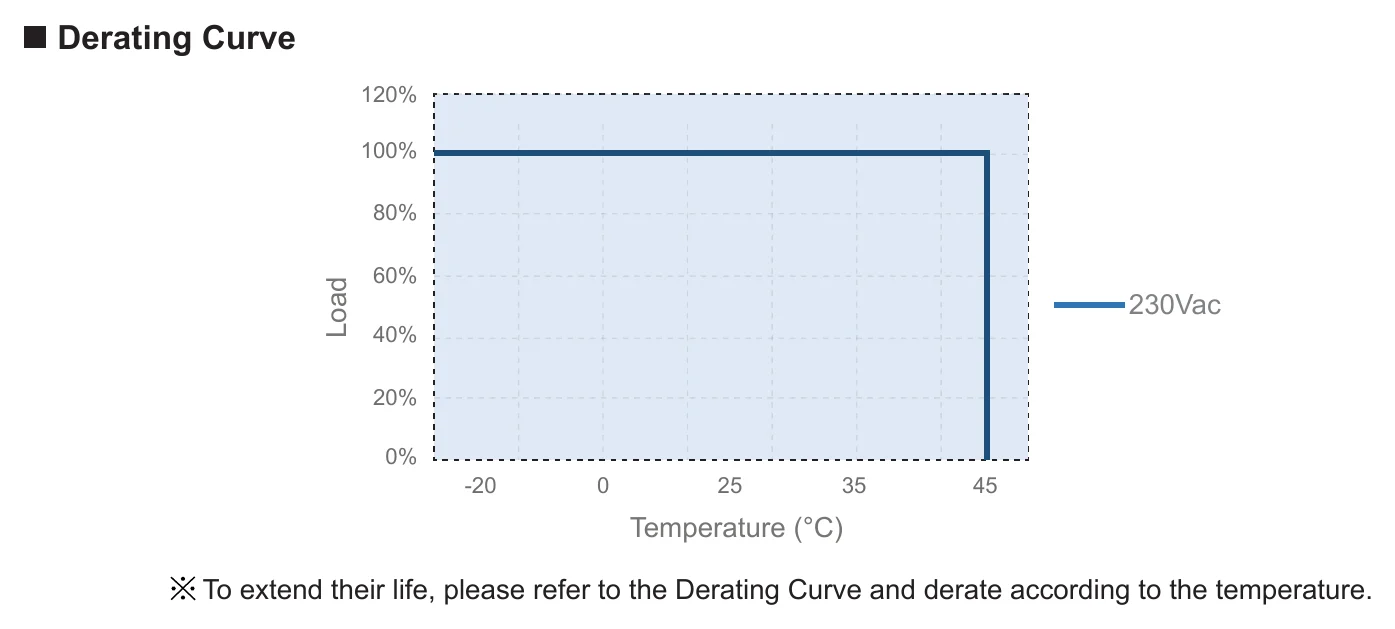

EV-SNL-200-24 Derating Curve
Derating Curve

Downloads

FAQ

What is the Envo EV-SNL-200-24 designed for?

The Envo EV-SNL-200-24 is a 24V constant voltage linear type LED driver for lighting applications. It is intended for buyers who need a 200W power supply for compatible 24V LED systems in dry indoor environments.

What are the main electrical specifications of the EV-SNL-200-24?

This model is rated at 200W with a 24V output and 8.33A rated current. Its AC input range is 198-264VAC, making it suitable for applications that require a stable 24V constant voltage LED driver within that input range.

Does the EV-SNL-200-24 support dimming?

No, this model is specified with no dimming control. It is better suited to installations where a fixed-output 24V LED driver is needed rather than a dimmable power supply.

What protection features are included in this LED driver?

The EV-SNL-200-24 includes short circuit, over voltage, over temperature, and over load protection. These built-in protections help support reliability in demanding commercial lighting applications.

Is the EV-SNL-200-24 suitable for outdoor or wet locations?

This model is specified as suitable for dry indoor environments. If your project involves outdoor exposure or wet conditions, you should choose a driver specifically rated for that environment.

What operating temperature range does the EV-SNL-200-24 support?

The stated temperature range for this model is -30°C to 80°C. Buyers should confirm the surrounding operating conditions stay within that range when selecting it for an LED lighting project.

What makes this model distinct from other 24V LED drivers?

The EV-SNL-200-24 combines a 200W output, built-in active PFC, and multiple protection functions in a linear type design with a plastic case and internal glue filling. It also carries a 5-year warranty, which can make it attractive for long-term indoor lighting applications.
