Envo

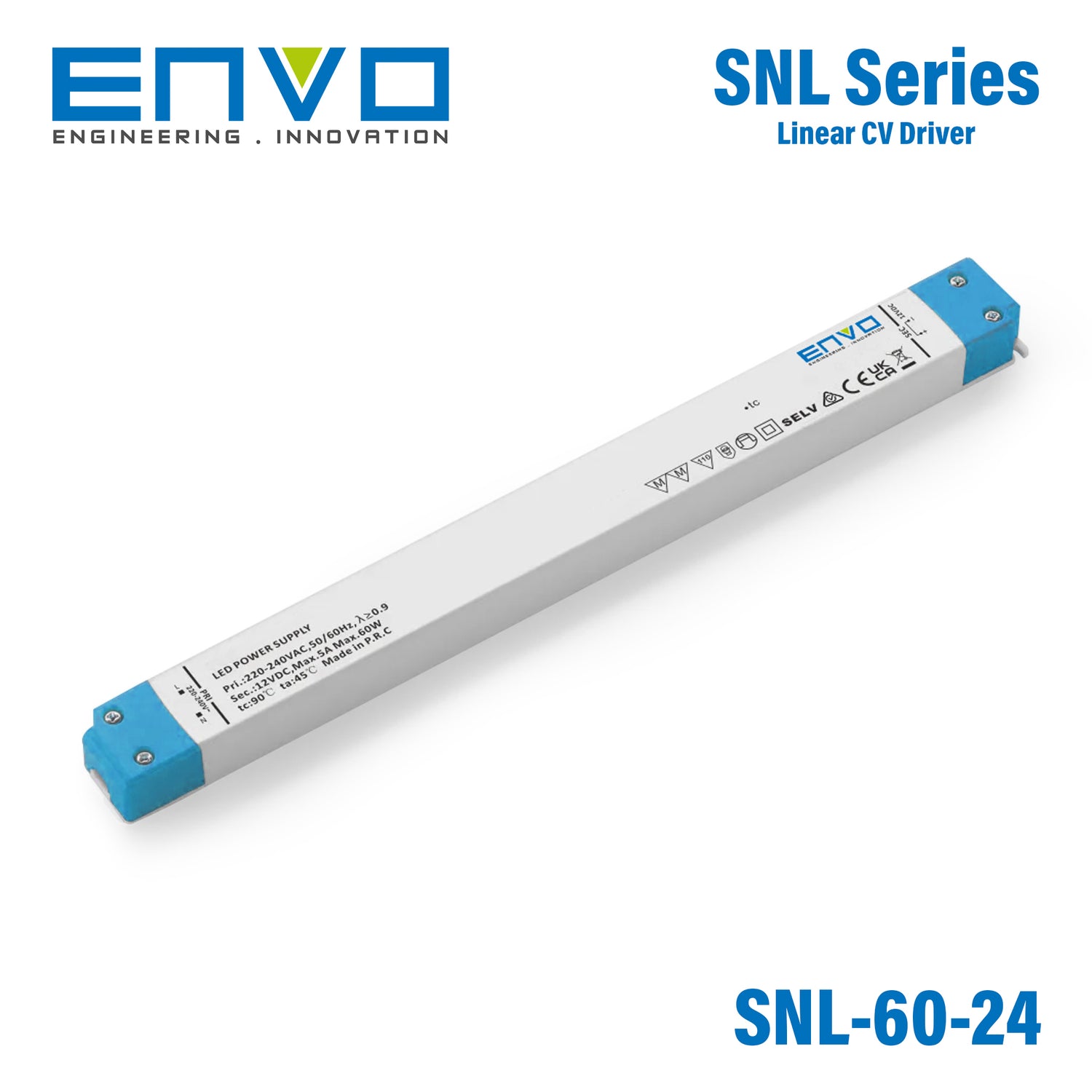

Envo EV-SNL-60-24 Linear Type LED Driver 60W 24V 2.5A

linear typescrew terminal30mm width
SKU EV-SNL-60-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

EV-SNL-60-24
In stock
|

Overview

EV-SNL-60-24 is the 24V output model of this series: rated current 0-2.5A, rated power 60W.

EV SNL60-12/24 is an indoor constant voltage power supply. Its input voltage range is 198-264Vac, with the high efficiency up to 88%, fanless design, working in the temperature range of -20°C to +45°C under free air convection. It has ultra-high power factor, ultra-low total harmonic distortion, low standby power consumptionwith all-round protection functions which not only greatly improves the reliability of the product, but also ensures the life cycle of product. This series of products designed for LED lighting, applied to indoor lighting design, has a high cost performance.

Features

  • AC input 198-264VAC)
  • Built-in active PFC function
  • Compliance to worldwide safety regulations for lighting
  • Suitable for dry indoor environment
  • Protections: Short circuit / Over voltage / Over temperature
  • Adopt plastic case and internal glue filling
  • Compliance to worldwide safety

Specifications

EV-SNL-60-24Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
24V
Voltage Tolerance
±5%
Rated current
0-2.5A
Rated power
60W

Input

Voltage Range
AC 198V - 264V
Frequency Range
50-60HZ
Power Factor
0.95@230Vac, full load
Full Load Efficiency (Typ.)
86%
AC Current (Max.)
0.5A/230V
Leakage current
0.75mA@240Vac 60HZ

Protection

Short Circuit
hiccup mode, restart automatically after fault correction.
Over load
hiccup mode, restart automatically after fault correction.
Over Temperature
Latch Off

Environment

Working TEMP.
-20 - 45°C
Working Humidity
10%RH - 90%RH
Storage TEM.,Humidity
-40°C-85°C; 10%RH-90%RH
TEMP.coefficient
±0.03%/°C (0 ~ 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.2KG
Size
304.8*30*16.7mm (L*W*H)
Packing
50PCS

Notes

Warranty
5 years

Technical drawings

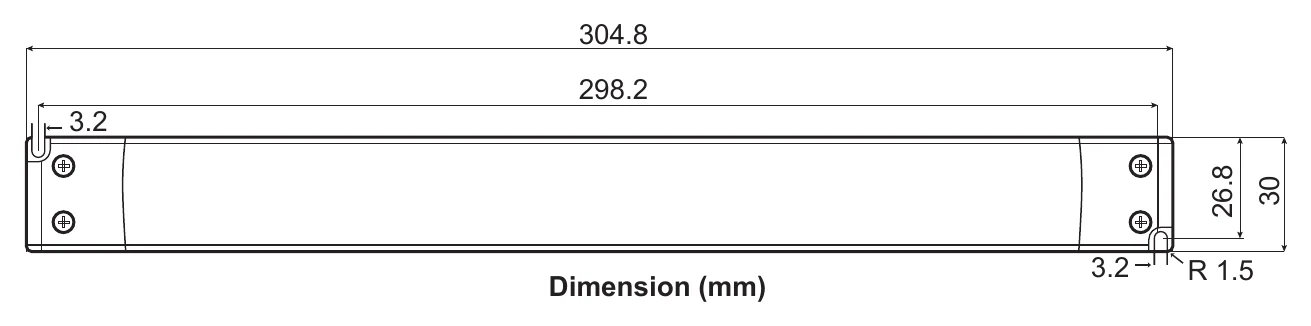

EV-SNL-60-24 Illustration (page 2)
Illustration (page 2)

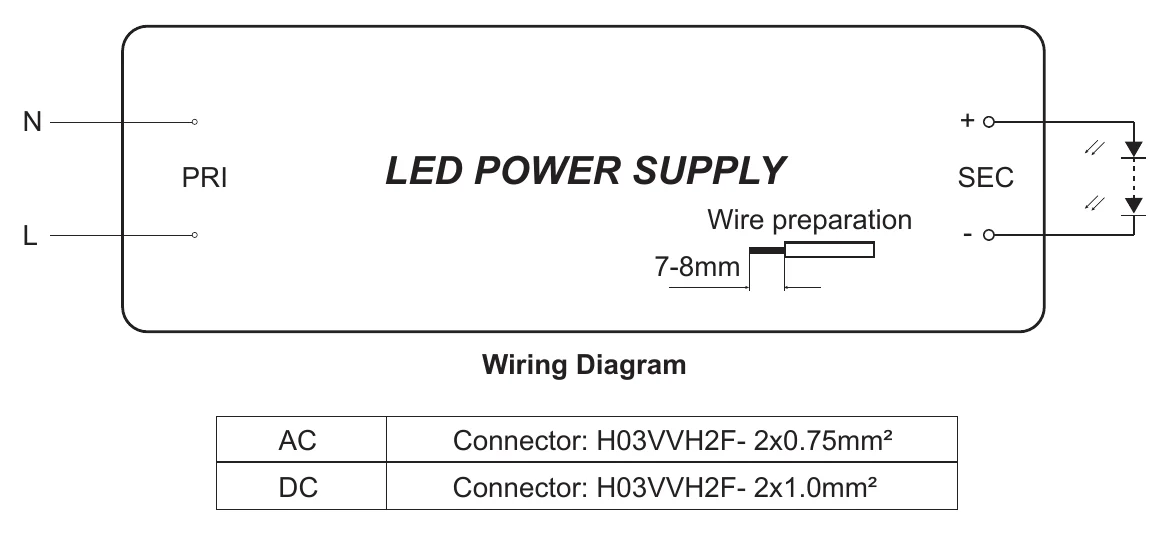

EV-SNL-60-24 LED POWER SUPPLY
LED POWER SUPPLY

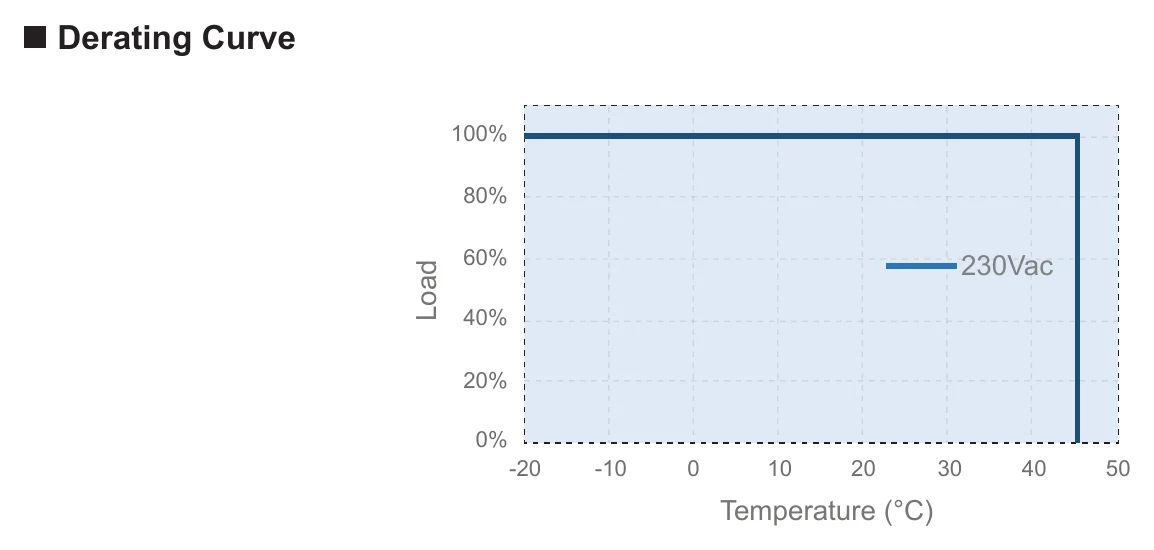

EV-SNL-60-24 Derating Curve
Derating Curve

Downloads

FAQ

What is the Envo EV-SNL-60-24 used for?

The Envo EV-SNL-60-24 is a linear type LED driver designed for 24V lighting applications. It is intended for projects that need a constant-voltage 24V power source in a compact 60W model.

What are the main electrical specifications of this LED driver?

This model is rated at 60W output and provides 24V output voltage. Its AC input range is 198-264VAC, and it also includes an active PFC function.

Does the EV-SNL-60-24 support dimming?

No. This specific model is listed with no dimming control, so it is intended for applications that do not require dimming functionality from the driver itself.

What protection features are included in the EV-SNL-60-24?

The EV-SNL-60-24 includes protection against short circuit, over load, and over temperature. These built-in protections help support reliability in lighting applications using this driver.

What environments is this LED driver rated for?

This model is specified for operation from -20°C to 45°C. It also uses a plastic case with internal glue filling, which is suited to lighting applications needing a sealed internal construction style.

What warranty comes with the Envo EV-SNL-60-24?

The EV-SNL-60-24 includes a 5-year warranty. That makes it a practical option for buyers looking for a longer warranty period on a 24V 60W LED driver.
