Envo

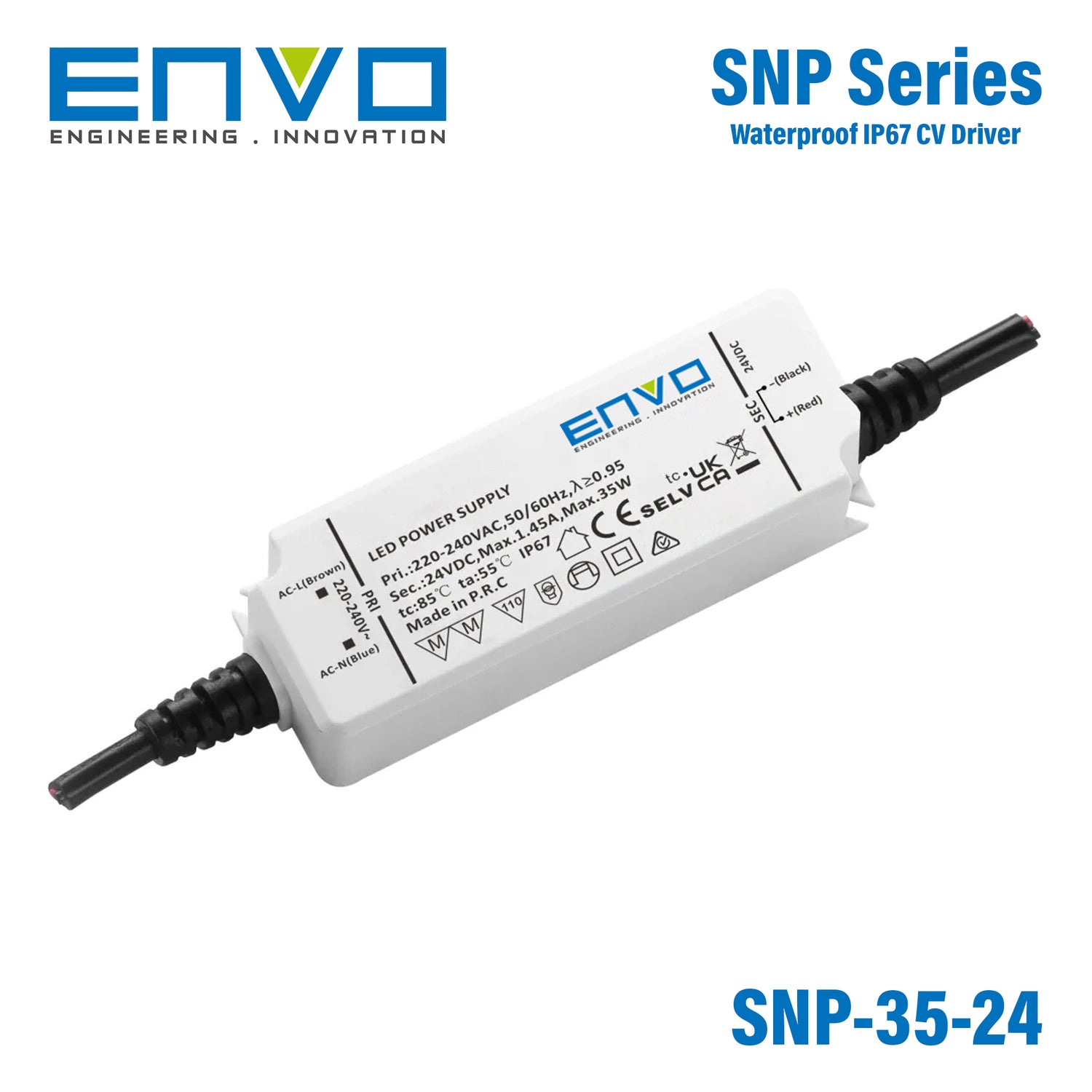

Envo EV-SNP-35-24 LED Driver 35W 24V Waterproof IP67 1.45A

waterproof IP67
SKU EV-SNP-35-24
Log in to see price Trade pricing & online ordering for account holders
Log in or apply for a trade account →

Select model — 4 in this family

EV-SNP-35-24
In stock
|

Overview

EV-SNP-35-24 is the 24V output model of this series: rated current 0-1.45A, rated power 35W.

EV-SNP-35-12/24 is a constant voltage IP67 LED driver with an input voltage range of 220- 240Vac and a conversion efficiency up to 86%.It works in the temperature range of - 20 ° C~+45 ° C natural cooling radiator housing, and has ultra-high power factor, ultra-low Total harmonic distortion, low standby power consumption, and all round protection functions, which not only greatly improves the reliability of the product, but also ensures the product lifecycle. Comply with global lighting safety regulations, ensuring the safety of both users and lighting systems during installation

Features

  • AC input 220-240VAC)
  • Built-in active PFC function
  • Compliance to worldwide safety regulations for lighting
  • Protections: Short circuit / Over voltage / Over temperature/Over load
  • Using plastic shell. internal potting.
  • Compliance to worldwide safety

Specifications

EV-SNP-35-24Specifications from the official datasheetDownload datasheet PDF

Output

DC Voltage
24V
Voltage Tolerance
±5%
Rated current
0-1.45A
Rated power
35W

Input

Voltage Range
AC 220V - 240V
Frequency Range
50-60HZ
Power Factor
0.95
Full Load Efficiency (Typ.)
87%
AC Current (Max.)
0.18A/230V
Leakage current
0.7mA (230Vac/60HZ)

Protection

Short Circuit
hiccup mode, restart automatically after fault correction
Over load
1.2x rated load

Environment

Working TEMP.
-20°C to 45°C
Working Humidity
10%RH - 95%RH
Storage TEM.,Humidity
-40°C to 80°C; 10%RH to 95%RH
TEMP.coefficient
±0.03%/°C (0°C to 60°C)

Safety&EMC

Safety standards
EN/IEC-61347, EN/IEC-60598 Approved, AS/NZS-61347/60598 Approved
Withstand voltage
Input-Output 3750V/5mA/1min
Isolation resistance
>5M Ohm/500VDC/25°C/70%RH
EMC EMISSION
Compliance to EN/IEC-55015, EN/IEC-61000, AS CISPR 15:2017
EMC immunity
Compliance to EN-61547:2009, EN-61000-4-2,3,4,5,6,11

Others

Weight
0.28KG
Size
110*40*29.5mm (L*W*H)
Packing
25PCS
Warranty
5 years

Technical drawings

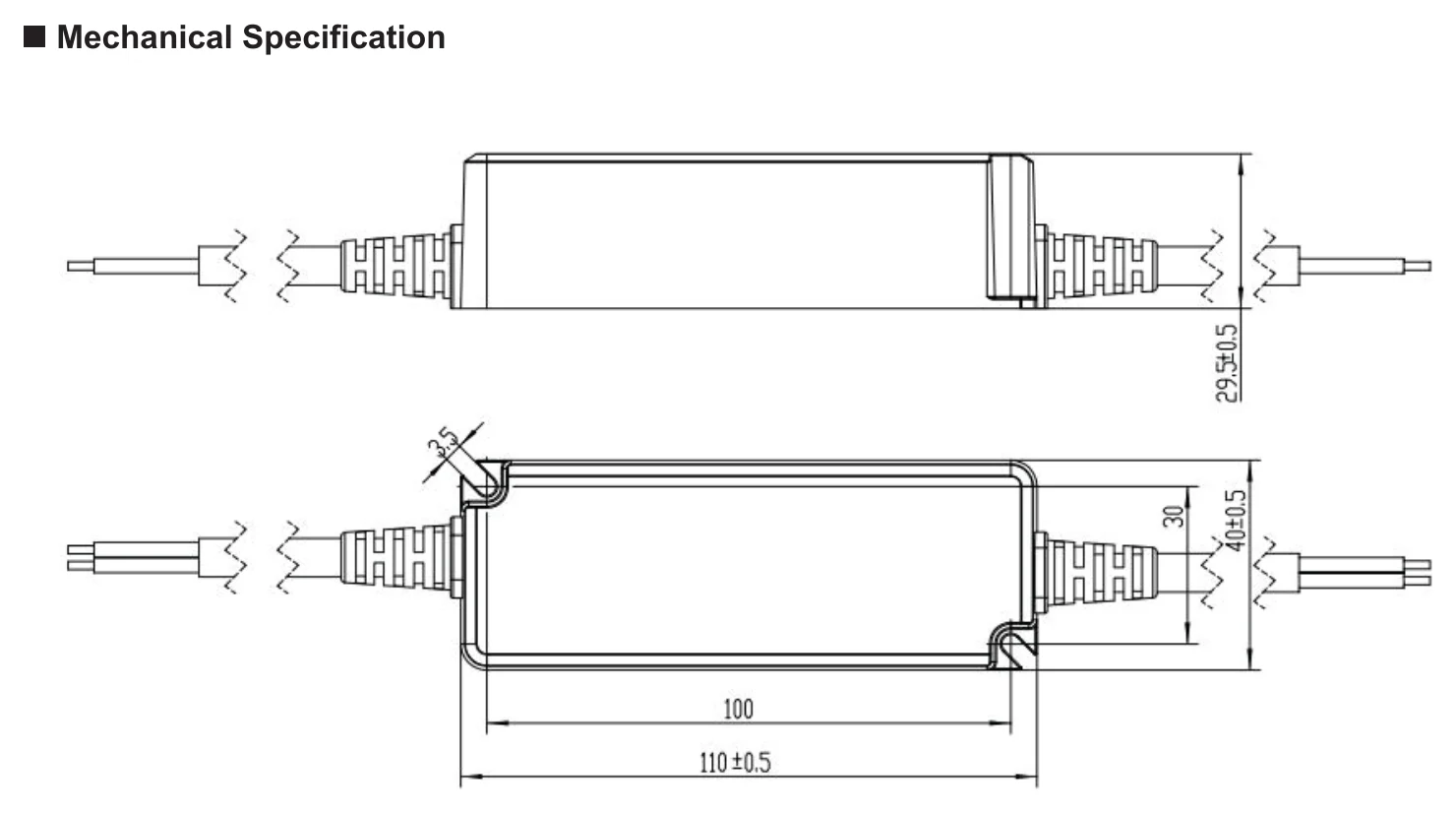

EV-SNP-35-24 Mechanical Specification
Mechanical Specification

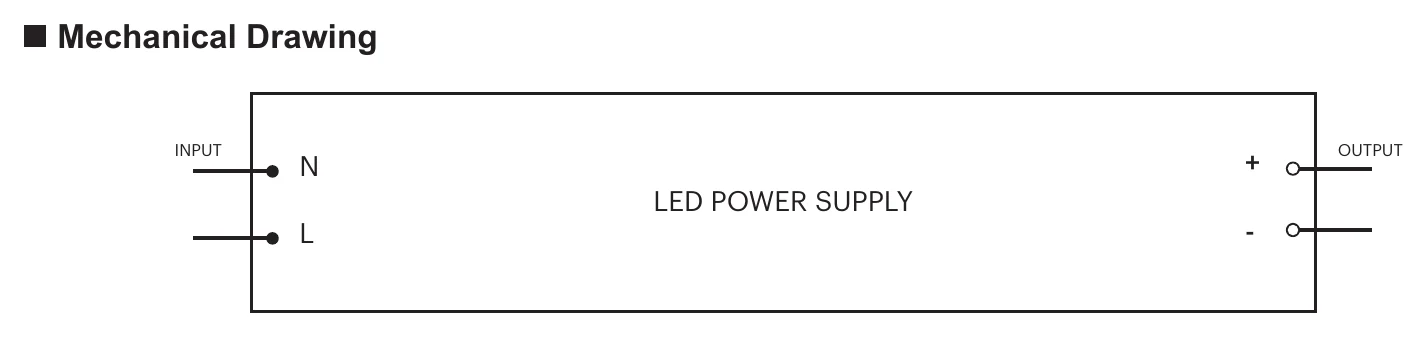

EV-SNP-35-24 Mechanical Drawing
Mechanical Drawing

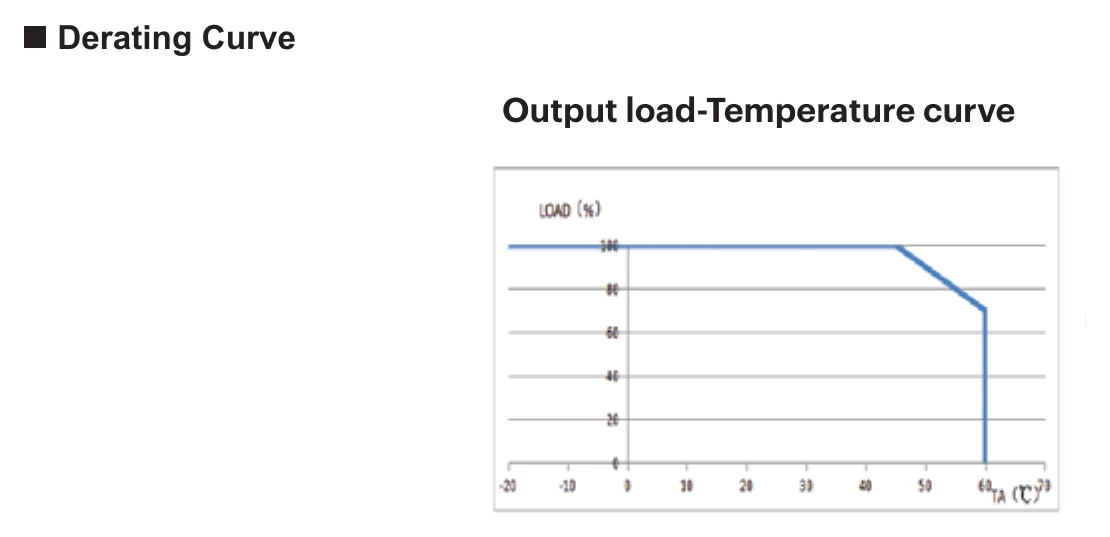

EV-SNP-35-24 Derating Curve
Derating Curve

Downloads

FAQ

What is the Envo EV-SNP-35-24 designed for?

The Envo EV-SNP-35-24 is a 35W constant-voltage LED driver designed for 24V lighting applications. It is intended for buyers who need a waterproof IP67-rated power supply for LED systems using 220-240VAC input.

What are the main electrical specifications of this LED driver?

This model is rated at 35W with a 24V output and 1.45A rated current. It accepts 220-240VAC input and is a non-dimming driver.

Is the EV-SNP-35-24 suitable for wet or exposed environments?

Yes, this model has an IP67 waterproof rating, which makes it suitable for environments where protection from water and dust is important. It also uses a plastic shell with internal potting for added environmental protection.

Does this LED driver support dimming controls?

No, the EV-SNP-35-24 does not include a dimming control function. It is intended for applications that require a fixed 24V constant-voltage output rather than adjustable light levels.

What protection features are included in the EV-SNP-35-24?

This model includes short circuit, over voltage, and over load protection. These built-in protections help support reliability in commercial LED power applications.

What operating temperature range is specified for this model?

The specified operating temperature range for the EV-SNP-35-24 is -20°C to 45°C. Buyers should confirm that the installation environment stays within that range for normal operation.

What warranty is offered with the Envo EV-SNP-35-24?

The EV-SNP-35-24 includes a 5-year warranty period. That makes it a practical option for buyers looking for a waterproof 24V LED driver with longer-term coverage.
