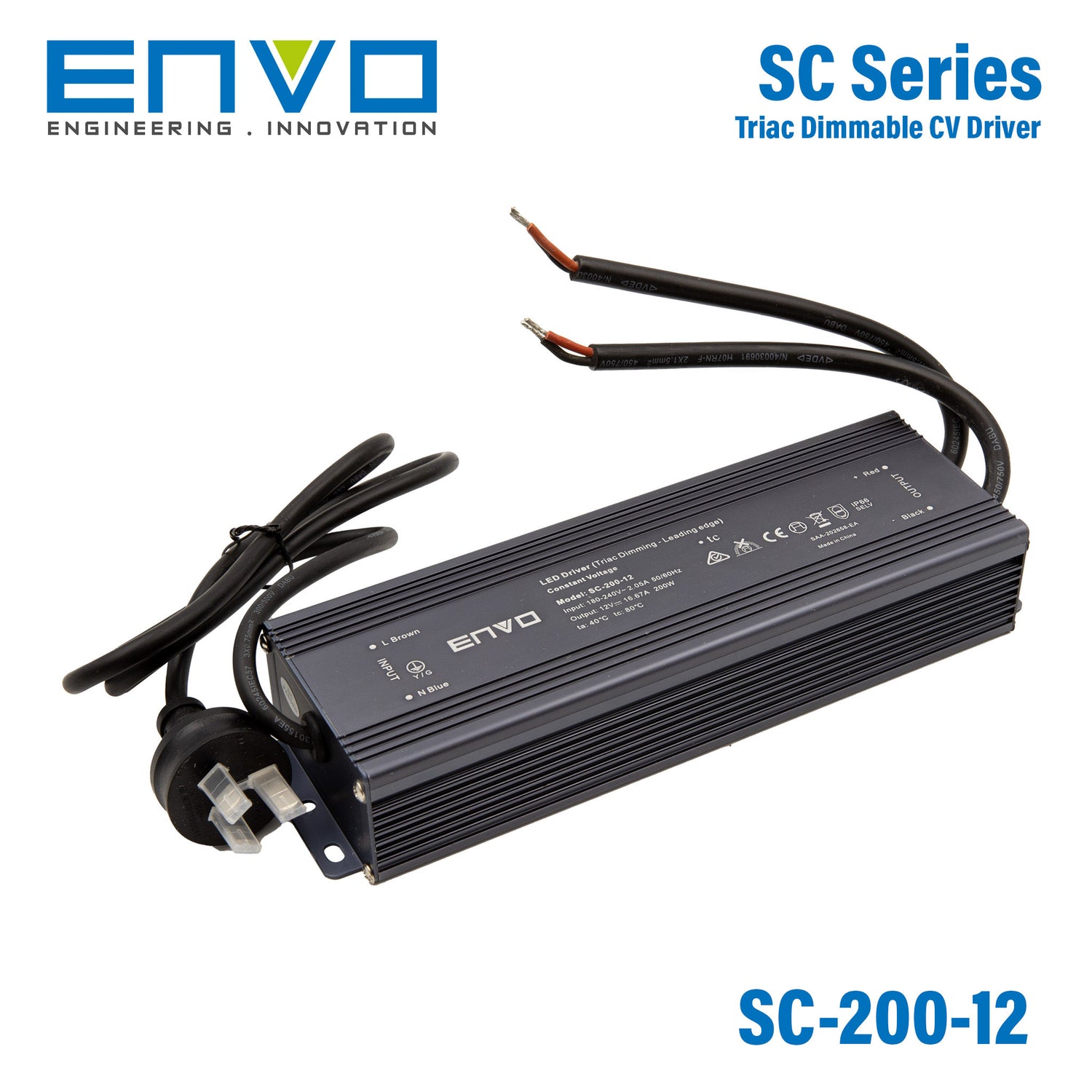

Envo SC-200-12 Power Supply 200W 12V - Triac Dimmable LED Driver

The SC-200-12 is a 200W ENVO AC-DC constant voltage LED driver (input: 180~240VAC, output: 12V, operating temperature: -40~+60°C).

Key Features

✓ Input voltage: 180~240VAC
✓ Output voltage: 12V
✓ Rated output current: 16.67A
✓ TRIAC (phase-cut) dimmable
✓ Ingress protection: IP66
✓ Operating temperature: -40~+60°C
✓ Safety certifications: CE, SAA
✓ 5 year warranty

Frequently Asked Questions

What is the Envo SC-200-12 designed for?

The Envo SC-200-12 is a 200W constant voltage power supply for 12V LED lighting and moving sign applications. It is intended for buyers who need a TRIAC dimmable model with broad dimmer compatibility.

What are the main electrical ratings of the SC-200-12?

This model is rated for 200W output at 12V. Its rated current is 16.67A, making it suitable for higher-power 12V constant voltage LED systems within that output range.

Is the Envo SC-200-12 TRIAC dimmable?

Yes, this power supply is designed for AC phase-cut dimming and works with both leading edge and trailing edge TRIAC dimmers. The product description also notes strong compatibility and flicker-free dimming performance.

What input range does this power supply support?

The listed input range for the SC-200-12 is 180-240V AC. That makes it a fit for applications using that universal AC input range rather than low-voltage DC input sources.

Can the SC-200-12 be used in demanding temperature conditions?

This model is specified for operation from -40°C to 60°C. That wide temperature range makes it suitable for environments where lighting equipment may be exposed to both low and elevated ambient temperatures.

What protections does the Envo SC-200-12 include?

The product description lists protections for short circuit, over loading, and over current. These built-in protections help support reliability in commercial LED lighting applications.

How is the SC-200-12 different from a non-dimmable 12V power supply?

The key difference is that the SC-200-12 is built for AC phase-cut dimming, including compatibility with leading edge and trailing edge TRIAC dimmers. It is also positioned for flicker-free dimming, which matters when dimming performance is a purchase priority.

What physical and build characteristics are noted for this model?

The SC-200-12 has a full protection aluminum housing and is cooled by free air convection. Its listed weight is 1.5 kg, which is useful when evaluating enclosure space and handling requirements for larger lighting projects.

Payment & Security

Payment methods

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Model	Power	Voltage	Current	IP Rating
Envo SC-200-24 Power Supply 200W 24V - Triac dimmable 8.33A	200W	24V	8.33A	IP66	View
Envo SC-200-24 Power Supply 200W 24V - PWM dimmable 8.3A	200W	24V	8.3A	IP66	View
